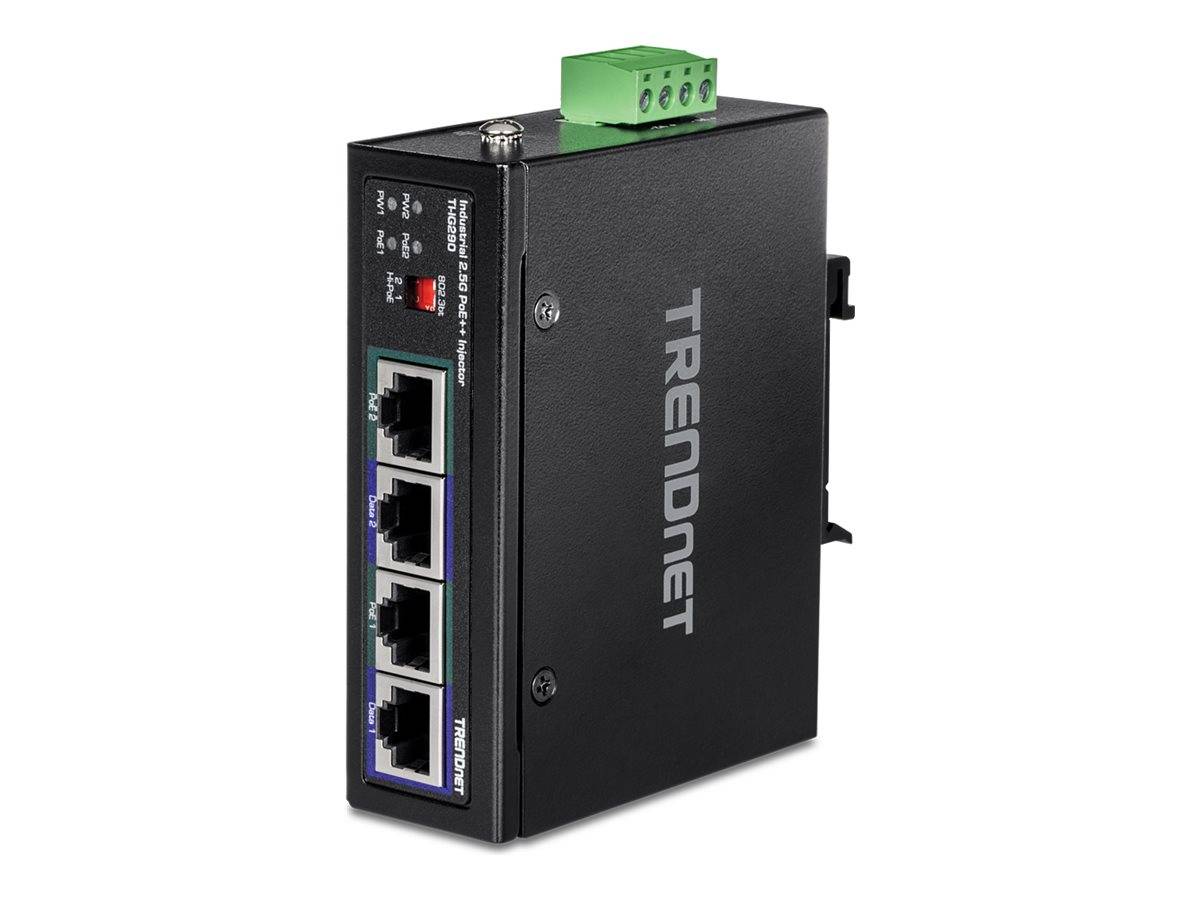

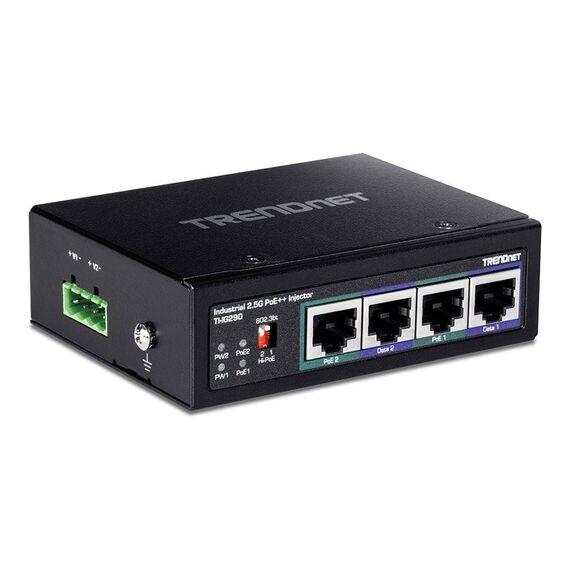

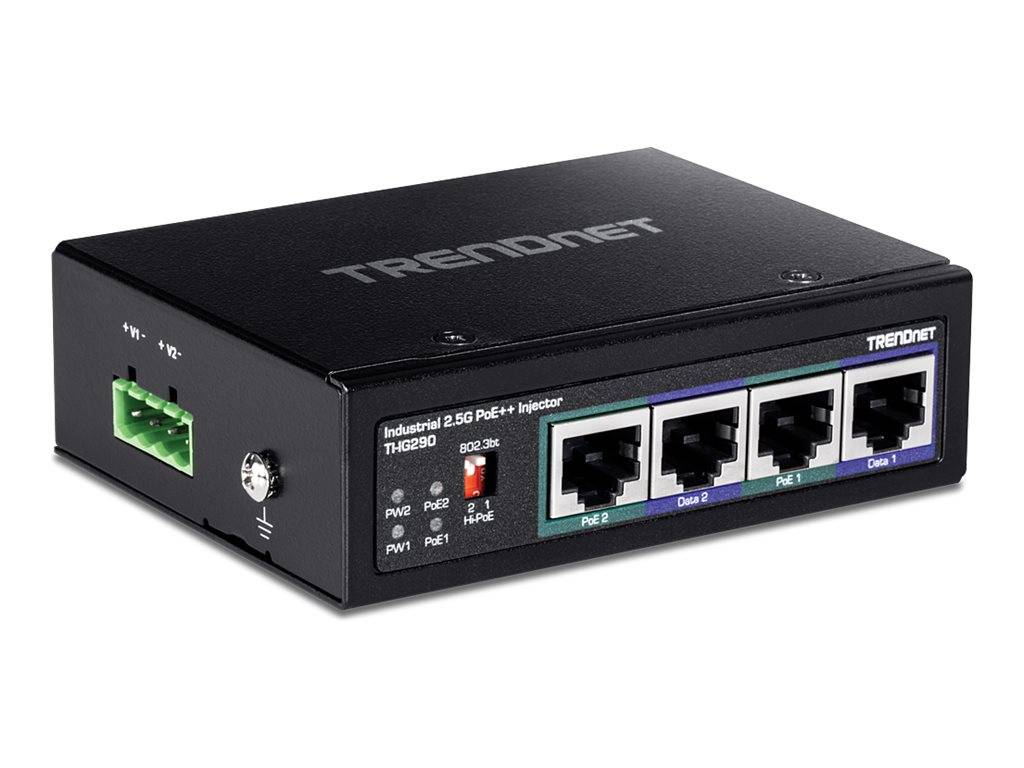

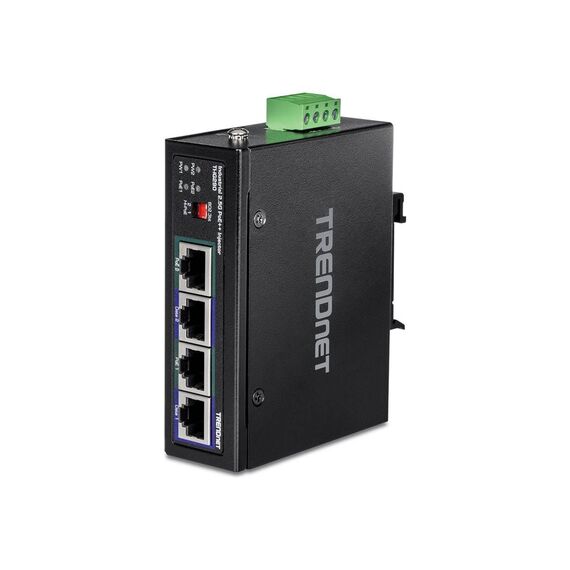

TRENDnet TI-IG290 2-Port Industrial 2.5G PoE++ Injector
2.5G PoE++95W per portDIN-rail-40 to 75 °C
The TRENDnet TI-IG290 is a 2-port Industrial 2.5G PoE++ Injector that adds up to 95W of IEEE 802.3bt power per port to two 2.5GBASE-T links from a non-PoE switch, in a hardened IP30 metal case for DIN-rail or wall mounting. It is meant for control cabinets, factories and outdoor enclosures where high-power PTZ cameras, Wi-Fi 6/6E access points or small PoE switches need power and 2.5G data over one cable.
Each of the two channels has a data-in port and a PoE++ data-plus-power out port, so the injector simply sits between your switch and the powered device. It runs from 52-56V DC through a removable terminal block with redundant inputs — the power supply is not included and must be chosen separately.
Before you order: The TI-IG290 needs a 52-56V DC supply (TRENDnet names TI-S24052 or TI-S24048 for it). A fixed 48V DIN-rail PSU is below the 52V minimum and will not deliver PoE++.
What's in the Box
- 1 × TI-IG290 2-port industrial 2.5G PoE++ injector
- Removable terminal block for the DC input
- DIN-rail and wall mount kit
- Quick Installation Guide
- Power supply not included
What It Means in Practice
- Two non-PoE 2.5G switch ports become two PoE++ ports carrying up to 95W each, 180W in total
- The powered device can be up to 100 m away on the output side
- Redundant DC inputs let you feed it from two supplies for more uptime
- Fanless metal housing for cabinets that see -40 to 75 °C
What Will Not Work
- Direct mains (AC) power — it only accepts 52-56V DC
- Switching or VLANs — it is an injector, not a switch
- 10G links — data ports run at 10/100/1000/2500 Mbps
- Full 95W per port from an undersized supply — the PSU must cover up to 186W at full load
Key Features
802.3bt PoE++
Up to 95W per port over all 4 pairs, backwards compatible with 802.3af and 802.3at devices.
2.5G data
2.5GBASE-T ports with auto-negotiation down to 10 Mbps, for Wi-Fi 6/6E APs and multi-gig cameras.
Industrial build
IP30 metal, fanless, -40 to 75 °C, 2 kV surge and 6 kV/8 kV ESD protection.
Redundant power
Dual 52-56V DC inputs on a removable terminal block with grounding point.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The TI-IG290 is the clean way to add PoE++ to an existing industrial or multi-gig switch without replacing it: two 95W ports, 2.5G pass-through and a cabinet-grade metal case. Budget for the right 52-56V DC supply — it is the most common thing people forget. If you would rather replace the switch, see our network switches.
✓ Buy it if you need up to two 802.3bt PoE++ ports for 2.5G cameras or access points in a DIN-rail cabinet and already have a non-PoE switch.
✕ Skip it if you have no 52-56V DC supply planned, need more than two ports, or the devices only need 15-30W.
→ Also consider a single-port PoE+ injector for low-power devices, or an industrial PoE++ switch if you need more ports.
Not sure about the power budget? Send us the models of the devices you want to power and we will size the injector and power supply for you.
Features - Trendnet - TI-IG290
More Details
Product Code
04:450077
EAN Code
0710931162301
Manufacturer
Trendnet
