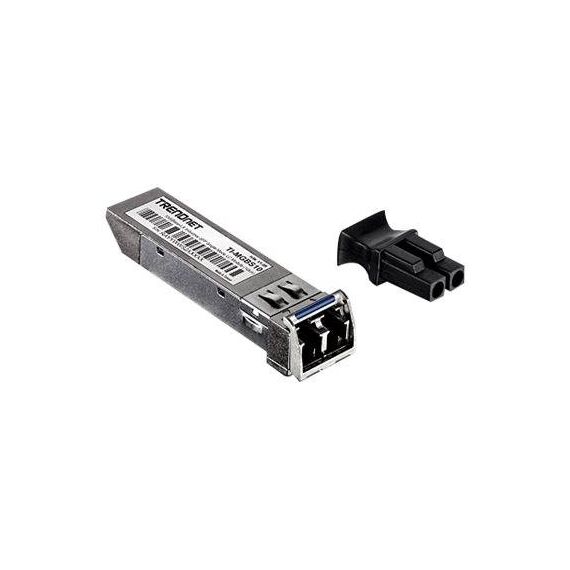

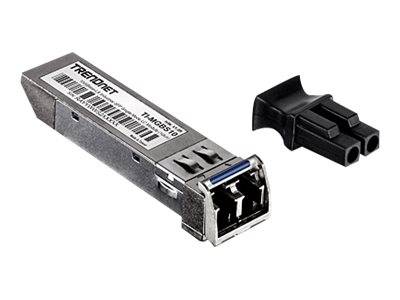

TRENDnet TI-MGBS10 Industrial SFP Transceiver 1000BASE-LX 1310 nm LC Single-Mode up to 10 km -40 to 85 C
Brand:
Trendnet
TRENDnet TI-MGBS10 Industrial SFP Transceiver 1000BASE-LX 1310 nm LC Single-Mode up to 10 km -40 to 85 C
€46.68 inc. VAT
TI-MGBS10
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
TRENDnet TI-MGBS10 — Industrial 1G LX SFP, 10 km
1 Gbps1000BASE-LX−40 to 85 °CUp to 10 km
The TRENDnet TI-MGBS10 is an industrial Gigabit SFP module for single-mode fibre, reaching up to 10 km at 1310 nm over an LC duplex connection. It is rated for −40 to 85 °C, so it suits industrial switches and fibre converters in street cabinets, plant rooms and outdoor enclosures. In practice, single-mode optics are the choice when a link leaves the building or runs several hundred metres: the OS2 fibre used by carriers and campus backbones carries the signal for kilometres with little loss. Before you order, confirm the fibre is single-mode at both ends and note the length and the number of patch panels on the way.
Compatibility — check before buying:
It needs a duplex single-mode fibre pair (two strands) and an LX module at the far end — it will not work on a single-strand BiDi link or on multimode fibre. The commercial sibling TEG-MGBS10 has the same optics but is rated only 0 to 70 °C. TRENDnet does not publish digital diagnostics for this module. Keep the dust cap on until you connect the fibre, and clean both connector ends before every mating — dirt is the most common cause of a link that will not come up. Not sure? Send us your device model and the cable run and we check it before you order.
Best For
✓ Industrial switches in cabinets
✓ Outdoor and roadside installations
✓ Factory and utility fibre links
✓ Single-mode runs up to 10 km
✓ Industrial media converters
✓ Replacing TI-MGBS10 modules
Key Features
Built for harsh sites
Industrial rating from −40 to 85 °C keeps a fibre link running in unheated cabinets and plant rooms.
Single-mode fibre, long reach
Built for single-mode (OS1/OS2) fibre, the type used between buildings, floors and sites. It will not run over the orange or aqua multimode fibre found in many racks — the fibre type has to match at both ends.
Hot-swappable
Modules plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch to remove it.
Plan both ends together
A link only comes up when both ends use the same standard, speed and media. Order the far-end module, the cable and any spares in one go and the link works on day one.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
We suggest the TI-MGBS10 whenever the switch lives outside a server room — in a cabinet, a plant room or on a pole. For links between two normal rooms, the commercial TEG-MGBS10 is enough. Both need a duplex single-mode pair and an LX module at the far end. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status and we help you find out whether it is the module, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.
Buyer’s Guide
Buy it if
You need a 1G single-mode link up to 10 km on an industrial switch or converter in a harsh location.
Skip it if
Your fibre is multimode, you only have one strand, or the switch sits in a climate-controlled room.
Also consider
TRENDnet TEG-MGBS10 for indoor use.
