TRENDnet TI-PG102F 10-Port Industrial Gigabit PoE+ Front Access Switch, 8x PoE+ + 2x SFP, 240W, Wall/DIN/Magnet Mount

Brand:
Trendnet
TRENDnet TIPG102F Industrial switch 8 x 101001000 TI-PG102F
TRENDnet TI-PG102F 10-Port Industrial Gigabit PoE+ Front Access Switch, 8x PoE+ + 2x SFP, 240W, Wall/DIN/Magnet Mount
€339 inc. VAT
Buy
TI-PG102F
€284.87 €316.52
€339.00 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
04:399728
EAN Code
0710931161786
Manufacturer
Trendnet

Quick Specs

Type
Industrial PoE+ front access switch
Ports
8x Gigabit PoE+ + 2x SFP
PoE budget
240W (30W per port)
Mounting
Wall / DIN rail / magnet, 48-56V DC
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

TRENDnet TI-PG102F — 10-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch

8x Gigabit PoE+ · 240W2x Gigabit SFPFront access · low profile-40 to 75°C · 48-56V DC

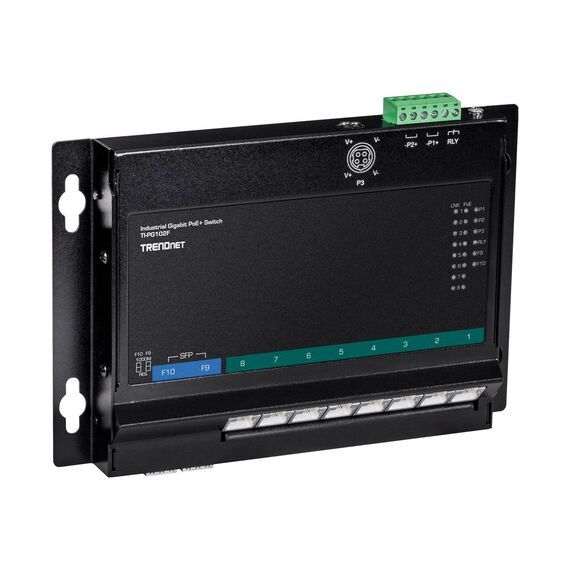

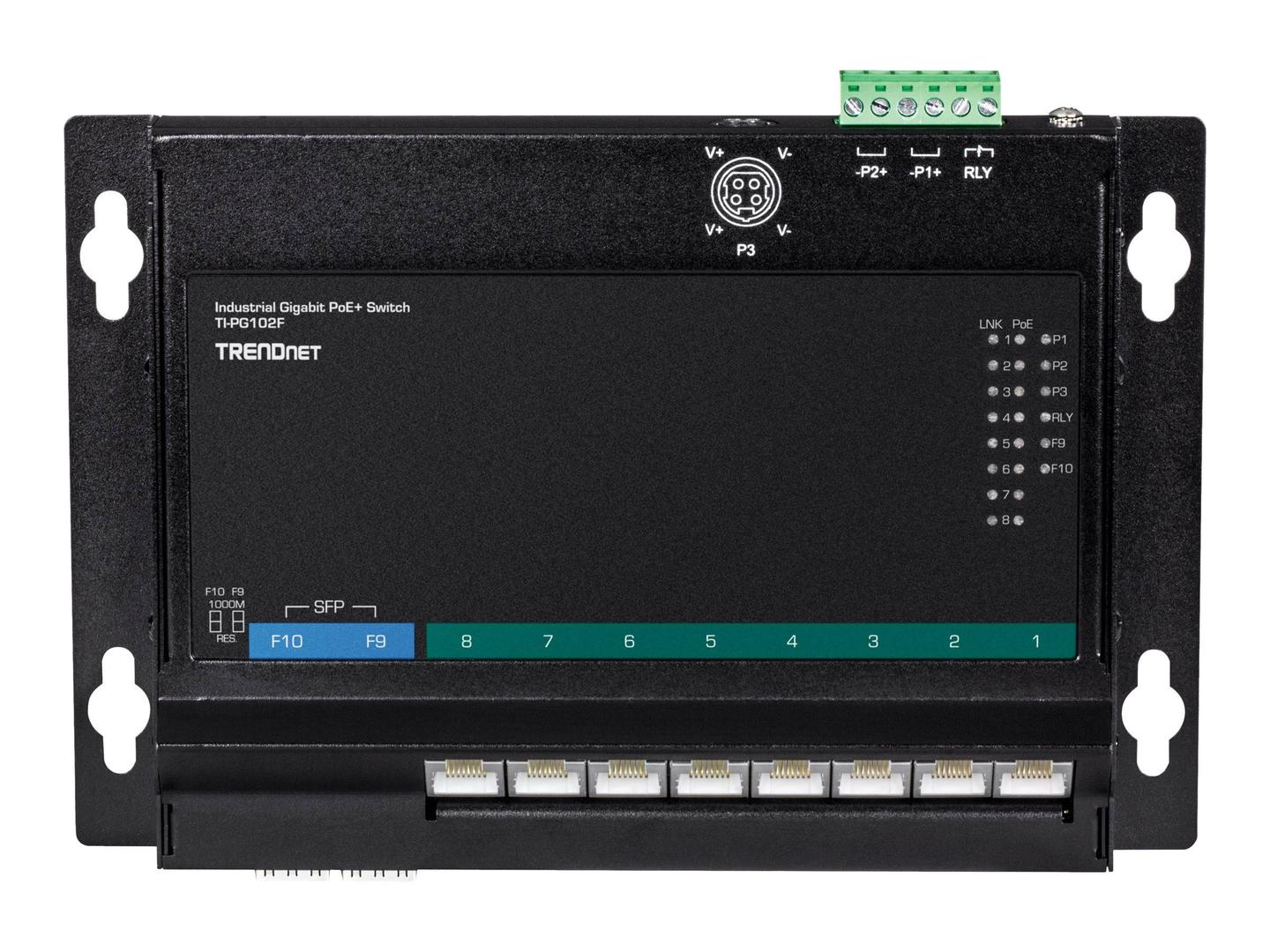

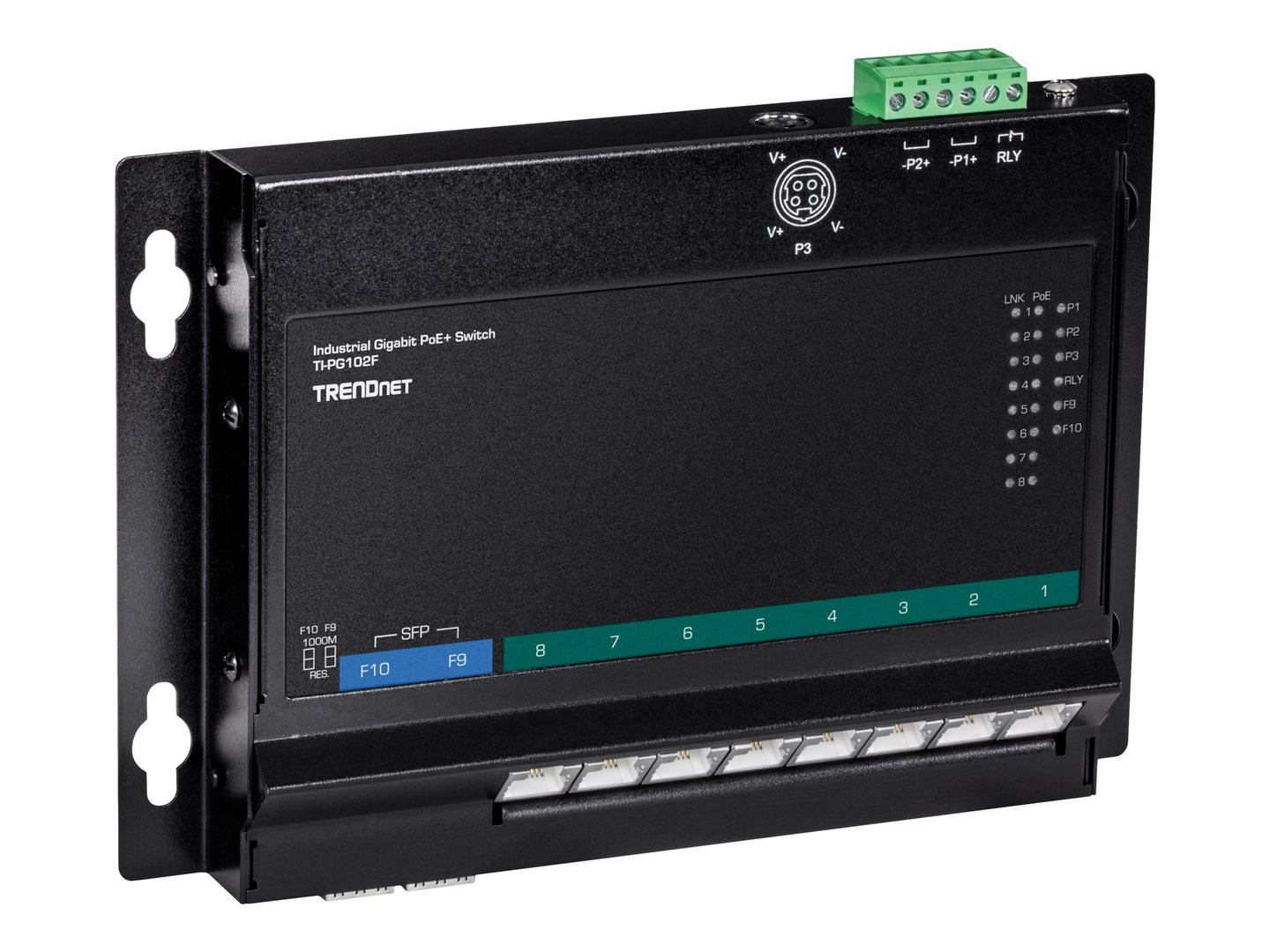

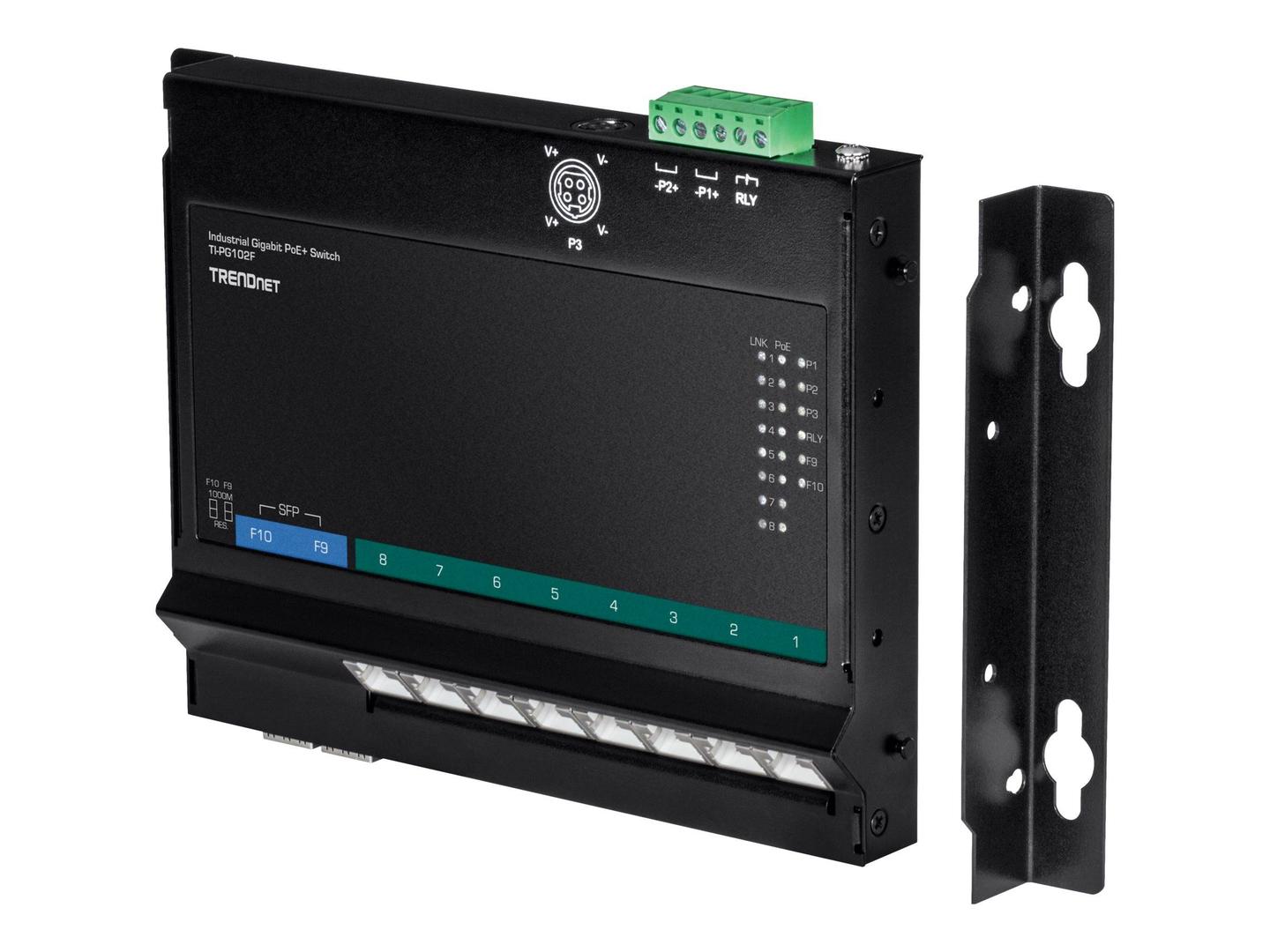

The TRENDnet TI-PG102F is a low-profile industrial switch with eight Gigabit PoE+ ports and two Gigabit SFP slots, all on the front panel, so it can be mounted flat on a wall, in a shallow enclosure, on a DIN rail or with magnets on a steel cabinet door.

It delivers up to 30W per port (IEEE 802.3af/at) from a 240W budget, takes 48-56V DC on dual inputs with an alarm relay, and works from -40 to 75°C without configuration — a practical fit for camera boxes, kiosks, transport and shallow street cabinets.

Before you order: No power supply is included: connect 48-56V DC (TRENDnet lists TI-S24052, TI-S24048, TI-S48048 or the 48VDC3000 adapter). It is the front-access, wall-mount version — not the same housing as the DIN-rail TI-PG102.

What's in the Box

  • TI-PG102F industrial switch
  • Removable power terminal block
  • DIN-rail, wall and magnet mount kit
  • Quick Installation Guide

What It Means in Practice

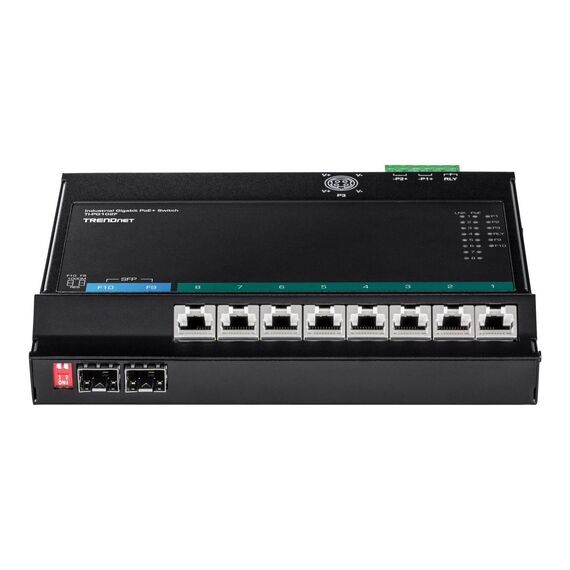

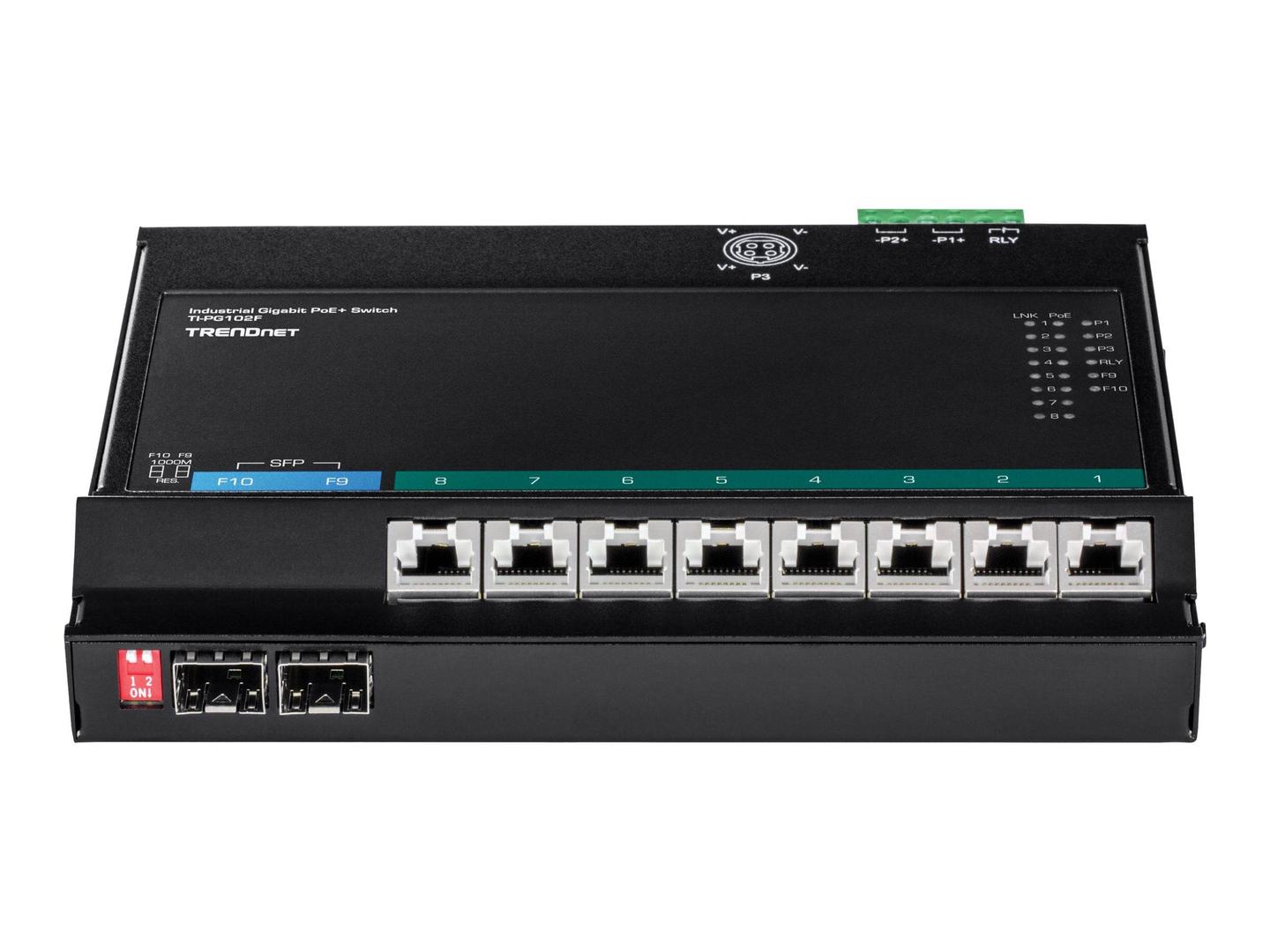

  • All cables and power enter from the front, so it fits where a deep DIN-rail switch will not — only about 23 mm deep without brackets.
  • Eight cameras or access points at full 30W each fit inside the 240W budget.
  • Two SFP slots for fibre uplinks; modules not included.
  • Dual DC inputs plus relay alarm for unattended sites.

What Will Not Work

  • Needs 48-56V DC — not 230V AC and not 12/24V DC.
  • The SFP slots carry data only, no PoE.
  • No management: no VLAN, QoS, ring or SNMP.
  • No PoE++ (802.3bt) above 30W per port.

Key Features

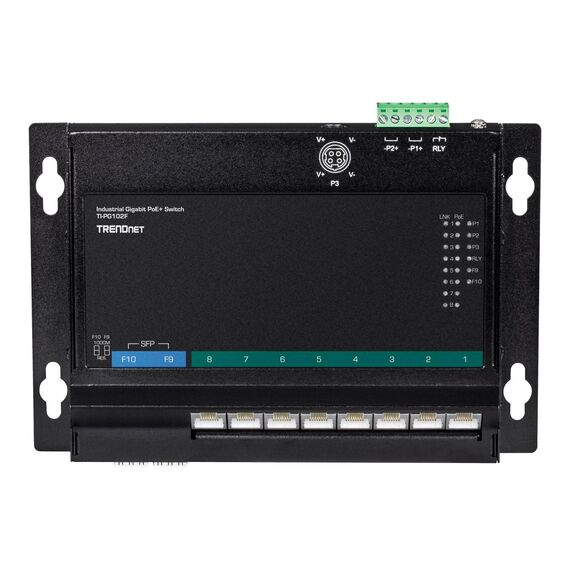

Front-access, low profile
Flat housing with every port and the power terminal on the front panel.

240W PoE+
8 ports x 30W, 802.3af/at.

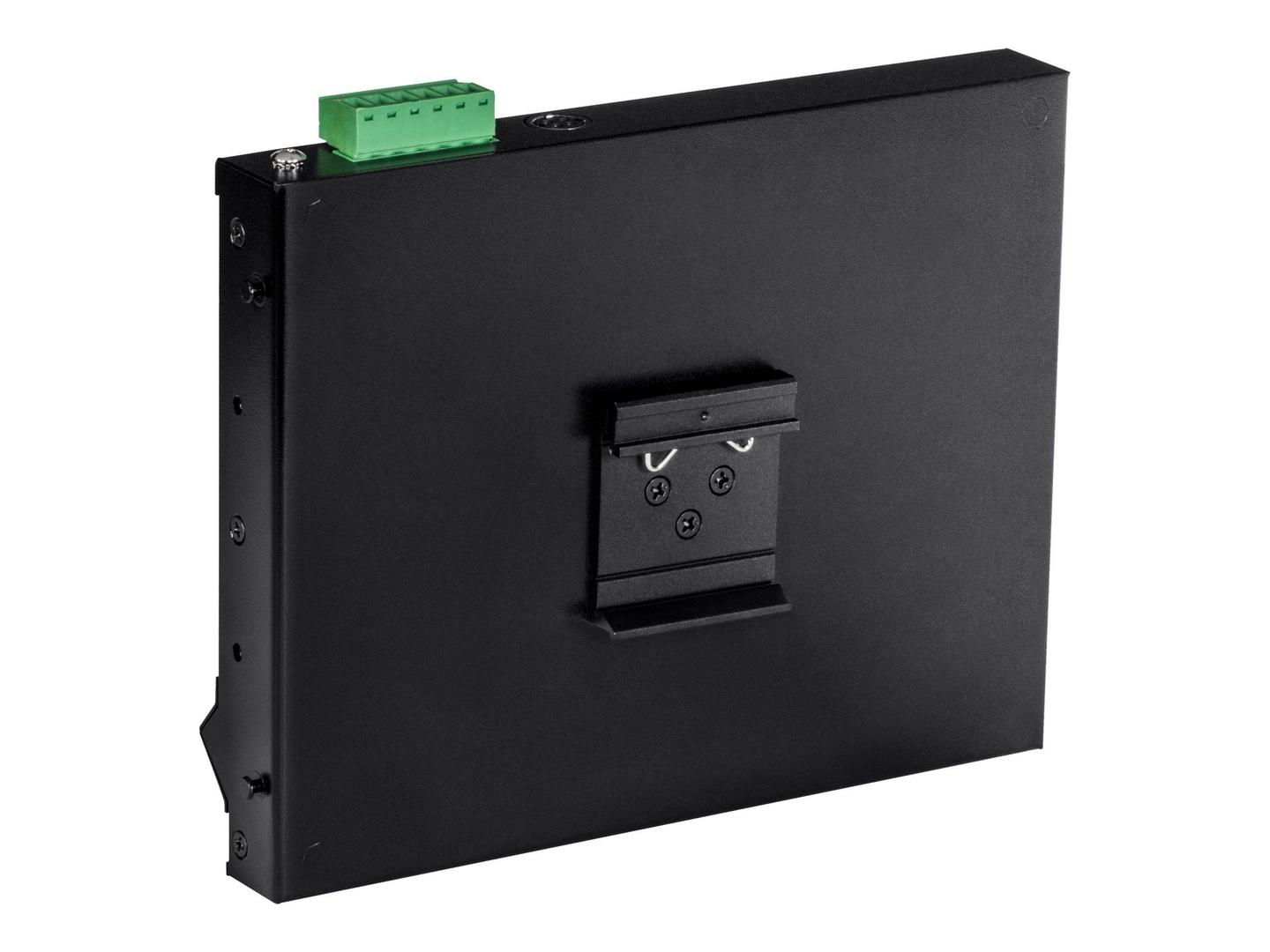

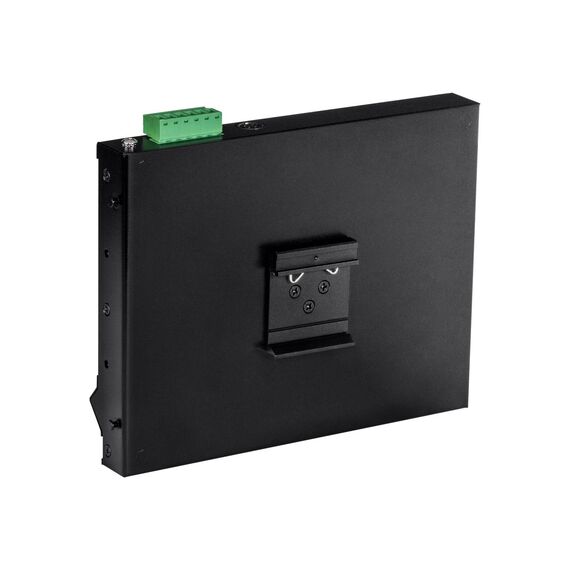

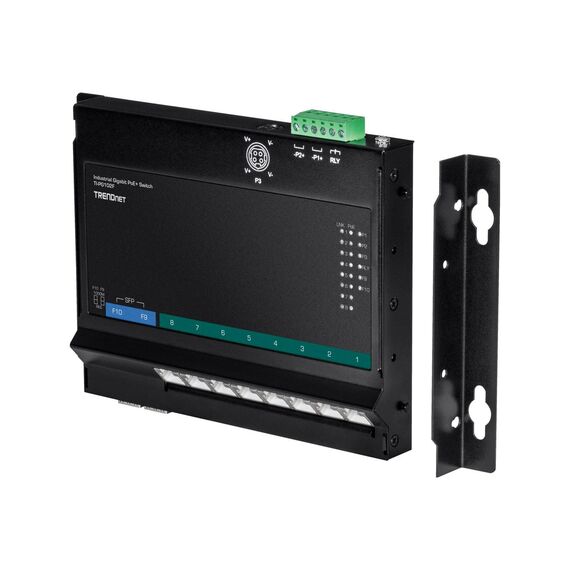

Flexible mounting
Wall, DIN rail or magnet mount kit included.

Industrial protection
Metal housing, -40 to 75°C, ESD 6kV, surge 2kV, dual DC inputs with alarm relay.

Technical Specifications

Identification
Part Number TI-PG102F
Brand TRENDnet
Hardware version v1 (per distributor listing)
Type Industrial PoE+ front access switch, no management
Ports
PoE+ RJ45 8x 10/100/1000 Mbps
SFP 2x Gigabit SFP (no PoE)
PoE standard IEEE 802.3af / 802.3at, Mode A
PoE per port Up to 30 W
PoE budget 240 W @ 56V DC
Performance
Switching capacity 20 Gbps
Forwarding rate 14.88 Mpps
MAC address table 11K entries
Jumbo frames 10 KB
Power
Input 48-56V DC, dual inputs
Connector Removable 6-pin terminal block
Protection Overload current protection
Alarm Relay 1A @ 24V DC
Consumption without PoE 4.8 W
Power supply Not included
Physical
Housing Metal, IP40, front access
Mounting Wall, DIN rail or magnet (kit included)
Dimensions 150 x 145 x 23 mm (without brackets)
Weight 635 g
Operating temperature -40 to 75°C
Certifications CE, FCC
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term 3-year limited manufacturer warranty (TRENDnet, EU) — claims handled through Singular

Frequently Asked Questions

Why choose front access over a DIN-rail switch?
Because every port is on one flat face, it fits shallow wall boxes and doors where a standard DIN-rail switch with top/bottom cabling would not.
Can it be mounted with magnets?
Yes — a magnet mount kit is included, alongside the wall and DIN-rail brackets.
Which SFP modules can I use?
Gigabit SFP modules such as TRENDnet TI-MGBSX or TI-MGBS10/20/40.
Singular Expert Insight · Buyer's Guide
The TI-PG102F offers the same eight full-power PoE+ ports as the TI-PG102 in a flat, front-access body — the deciding factor is enclosure depth and where the cables come in. Size the 48V supply for your PoE load and add SFP modules for fibre. See all network switches.
✓ Buy it if you need 8 PoE+ ports in a shallow enclosure or on a cabinet door.
✕ Skip it if you need management, AC power or a standard DIN-rail form factor.
→ Also consider TRENDnet TI-PG62F (4x PoE+ front access) or TI-PG102 (DIN rail).
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
