TRENDnet TI-PG80 8-Port Industrial Gigabit PoE+ DIN-Rail Switch, Unmanaged, 8x PoE+ RJ45, 200W Budget, 48-56V DC

Brand:
Trendnet

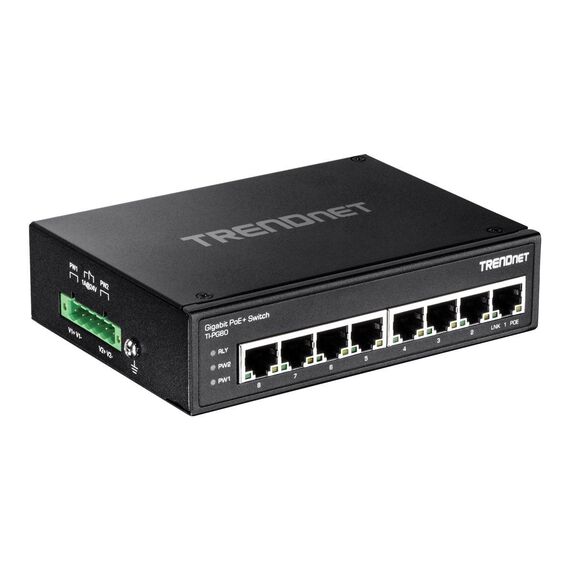

TRENDnet TI-PG80 Industrial PoE+ DIN-Rail Switch 8-Port
TRENDnet TI-PG80 8-Port Industrial Gigabit PoE+ DIN-Rail Switch, Unmanaged, 8x PoE+ RJ45, 200W Budget, 48-56V DC
€192.42 inc. VAT
Buy
TI-PG80
€161.70 €179.67
€192.42 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
04:190439
EAN Code
0710931160352
Manufacturer
Trendnet

Quick Specs

Type
Industrial unmanaged PoE+ switch
Ports
8x Gigabit PoE+ RJ45
PoE budget
Up to 200W (30W per port)
Power
48-56V DC, DIN rail / wall
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

TRENDnet TI-PG80 — 8-Port Industrial Gigabit PoE+ DIN-Rail Switch

8x Gigabit PoE+Up to 200W PoE budget48-56V DC dual inputs-40 to 75°C · metal

The TRENDnet TI-PG80 is an unmanaged industrial switch with eight Gigabit PoE+ ports that powers and connects IP cameras, access points and PoE sensors from a DIN rail or wall, in cabinets and outdoor enclosures operating from -40 to 75°C.

Every port supplies up to 30W (IEEE 802.3af/at) from a budget of up to 200W. It runs on 48-56V DC with dual redundant inputs and a power-failure alarm relay, and switches traffic without any configuration.

Before you order: No power supply is included and the switch needs 48-56V DC — it will not start on 12V or 24V. Do not confuse it with the TI-PG80B (12-56V input) or TI-PG80F (fibre version). TRENDnet recommends the TI-S24052 DIN-rail PSU.

What's in the Box

  • TI-PG80 industrial switch
  • Removable power terminal block
  • DIN-rail and wall mount kit

What It Means in Practice

  • Power eight PoE+ cameras or access points from one compact DIN-rail unit; the budget is shared, so add up your devices' maximum draw.
  • No uplink SFP: all eight ports are copper, so one of them normally becomes the uplink to the rest of the network.
  • Connect two DC supplies to the redundant inputs and wire the alarm relay to your monitoring system.
  • Plug-and-play — no software, no IP address.

What Will Not Work

  • Needs 48-56V DC; 230V AC mains or 12/24V DC supplies will not work.
  • No fibre/SFP port for long uplinks — choose the TI-PG102 if you need SFP.
  • No PoE++ (802.3bt) for devices above 30W per port.
  • No management: no VLAN, QoS, ring redundancy or PoE monitoring.

Key Features


8x PoE+
Up to 30W per port, 802.3af/at, Mode A, up to 200W in total.

Industrial design
Metal housing, -40 to 75°C, shock, freefall and vibration tested, ESD 6kV / surge 2kV.

Redundant power
48-56V DC dual inputs with overload protection and a 1A @ 24V DC alarm relay.

Zero configuration
16 Gbps switching capacity, 9KB jumbo frames, nothing to set up.

Technical Specifications

Identification
Part Number TI-PG80
Brand TRENDnet
Type Unmanaged industrial PoE+ switch
Ports
RJ45 8x 10/100/1000 Mbps, all PoE+
SFP None
PoE standard IEEE 802.3af / 802.3at, Mode A
PoE per port Up to 30 W
PoE budget Up to 200 W
Performance
Switching capacity 16 Gbps
Forwarding rate 11.9 Mpps
MAC address table 4K entries
Jumbo frames 9 KB
Buffer 125 KB
Power
Input 48-56V DC, dual redundant inputs
Connector Removable 6-pin terminal block
Protection Overload current protection
Alarm Relay 1A @ 24V DC
Consumption without PoE 5.76 W @ 48V
Power supply Not included (recommended TI-S24052)
Physical
Housing Metal, grounding point
Mounting DIN rail or wall (kit included)
Dimensions 143 x 104 x 36 mm
Weight 554 g
Operating temperature -40 to 75°C
Certifications CE, FCC, LVD
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term 3-year limited manufacturer warranty (TRENDnet, EU) — claims handled through Singular

Frequently Asked Questions

What does the 200W budget mean in practice?
The switch can deliver up to 200W in total across all ports, with at most 30W per port — enough for eight 25W devices if your power supply is large enough.
Can I add a fibre uplink?
Not on this model; it has eight copper ports only. Use a media converter, or choose the TI-PG102 with two combo SFP ports.
Is it the same as the TI-PG80B?
No. The TI-PG80B accepts 12-56V DC; the TI-PG80 needs 48-56V DC. Order the one that matches your cabinet supply.
Singular Expert Insight · Buyer's Guide
The TI-PG80 is the straightforward eight-camera industrial PoE+ switch: copper only, generous budget, nothing to configure. The two decisions are the DC supply (48-56V, sized for your PoE load) and whether you need a fibre uplink. Compare with our other network switches.
✓ Buy it if you need 8 PoE+ ports on a DIN rail with a 48V DC supply.
✕ Skip it if your cabinet only has 12/24V DC, or you need SFP uplinks or management.
→ Also consider TRENDnet TI-PG102 (8x PoE+ + 2 combo SFP) or TI-PG162 for 14 PoE+ ports.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
