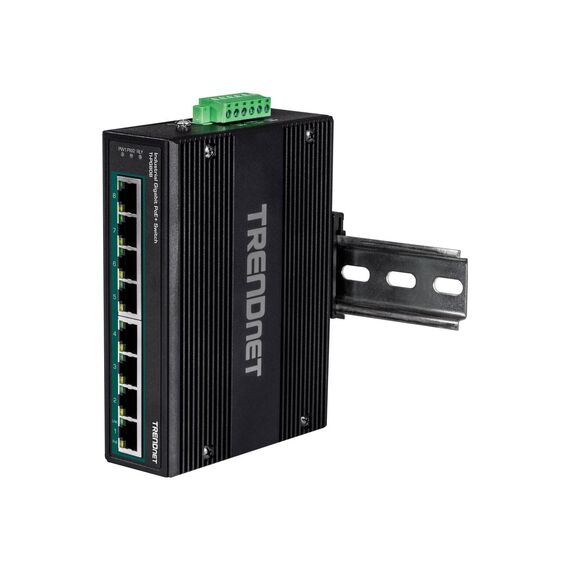

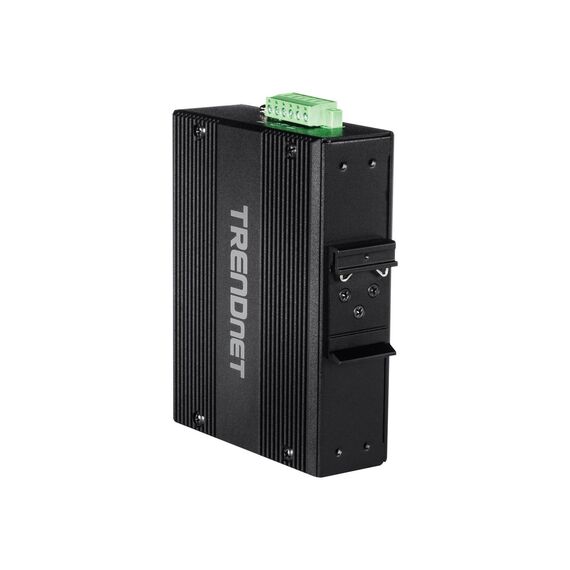

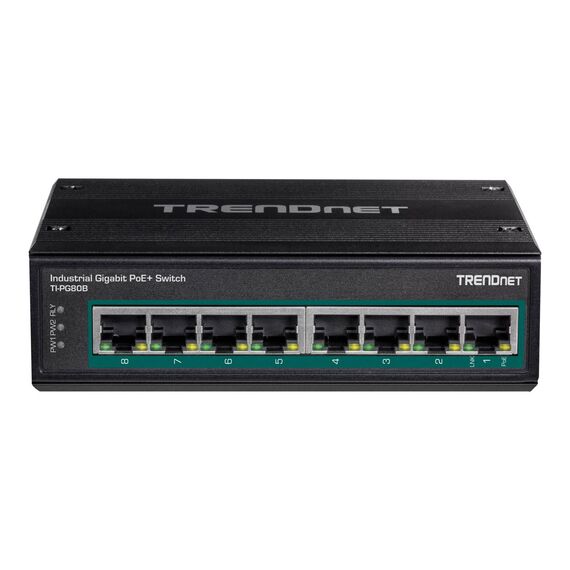

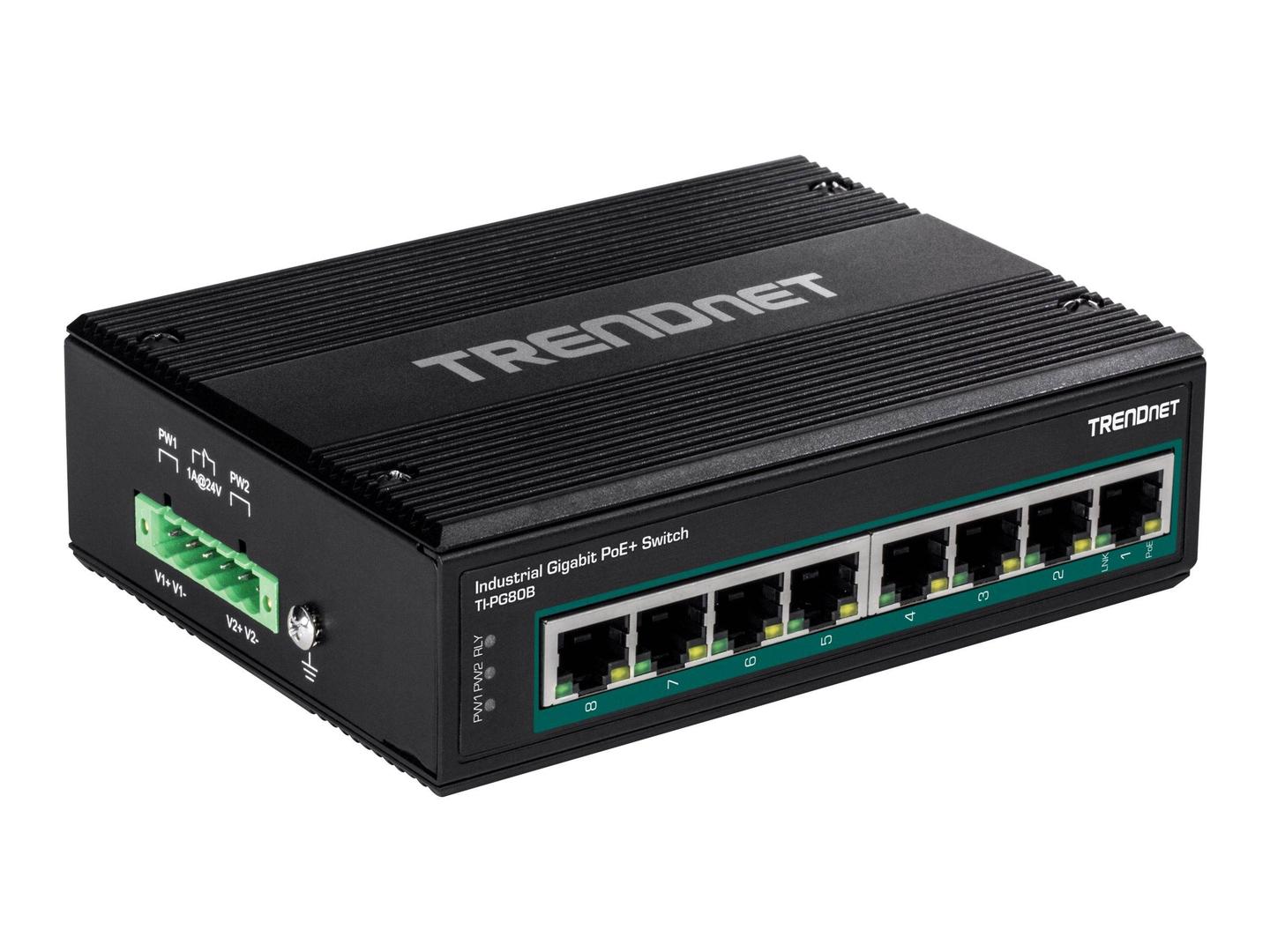

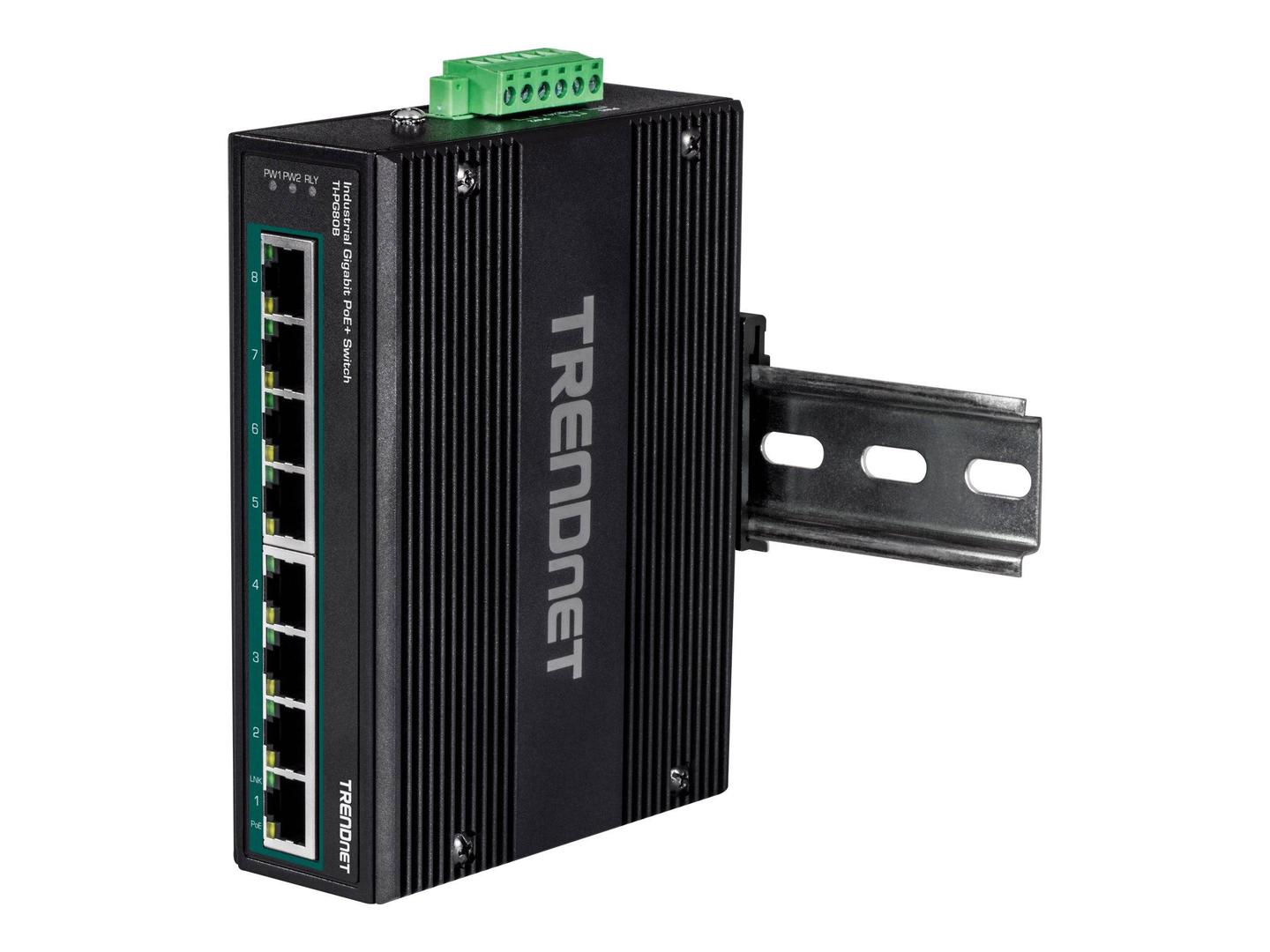

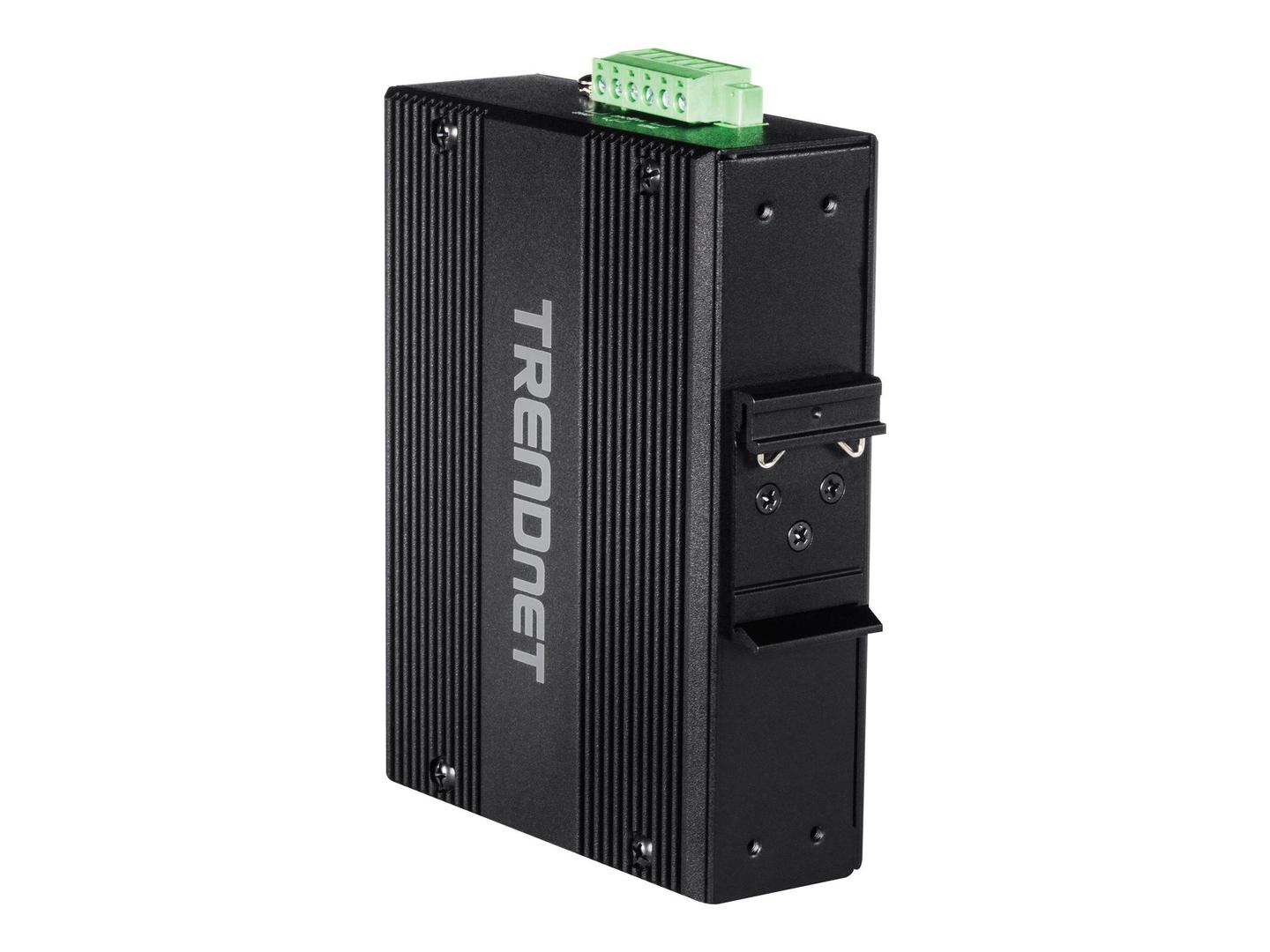

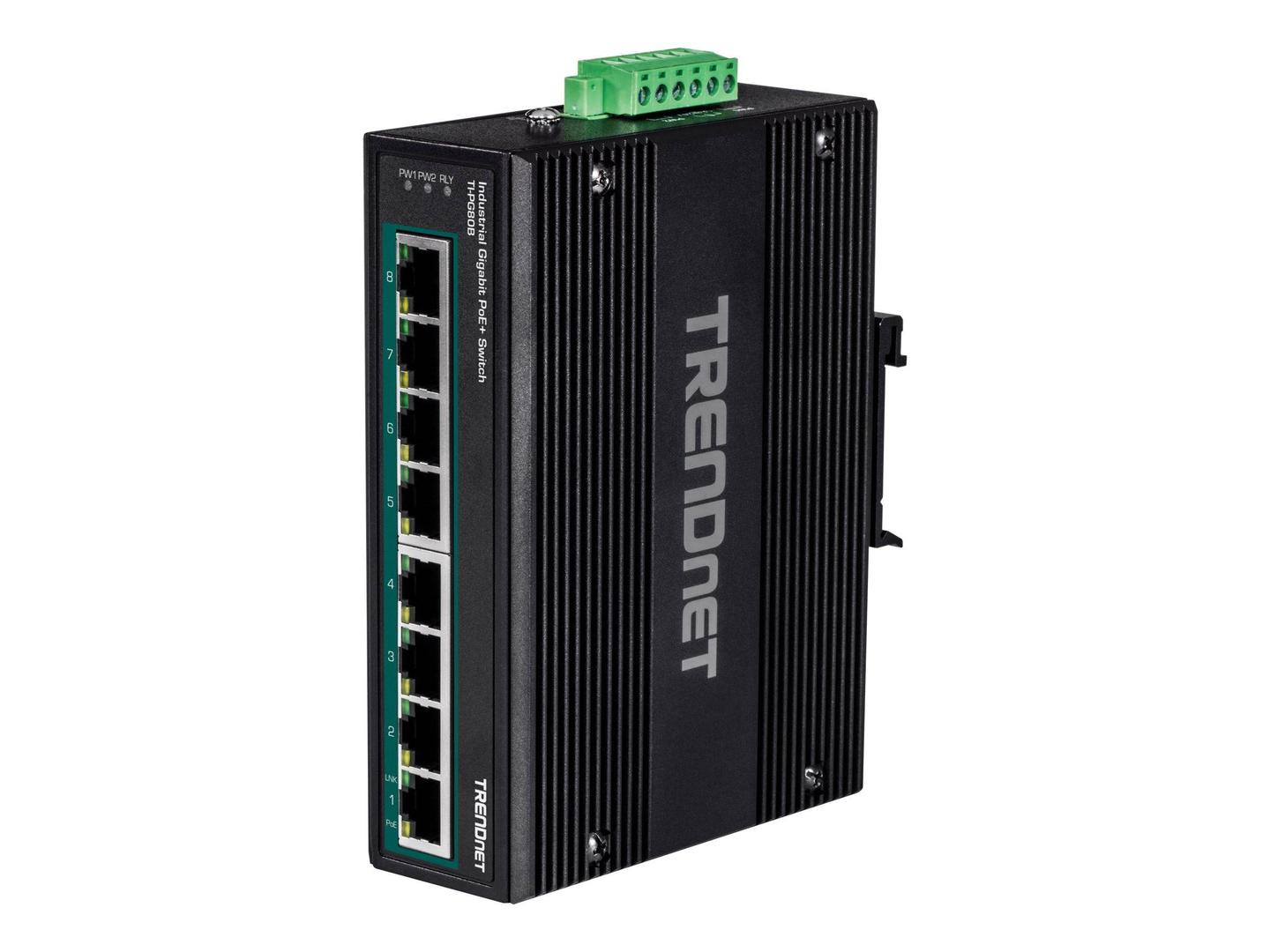

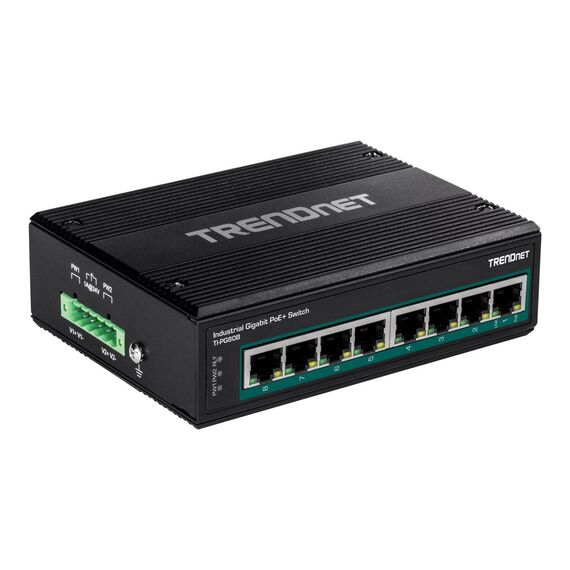

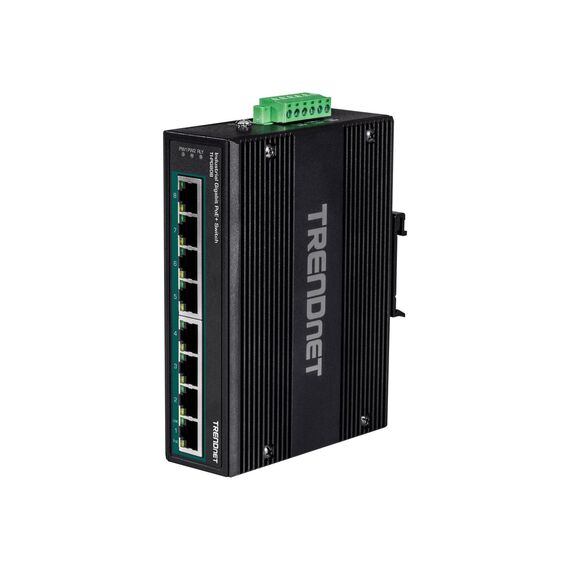

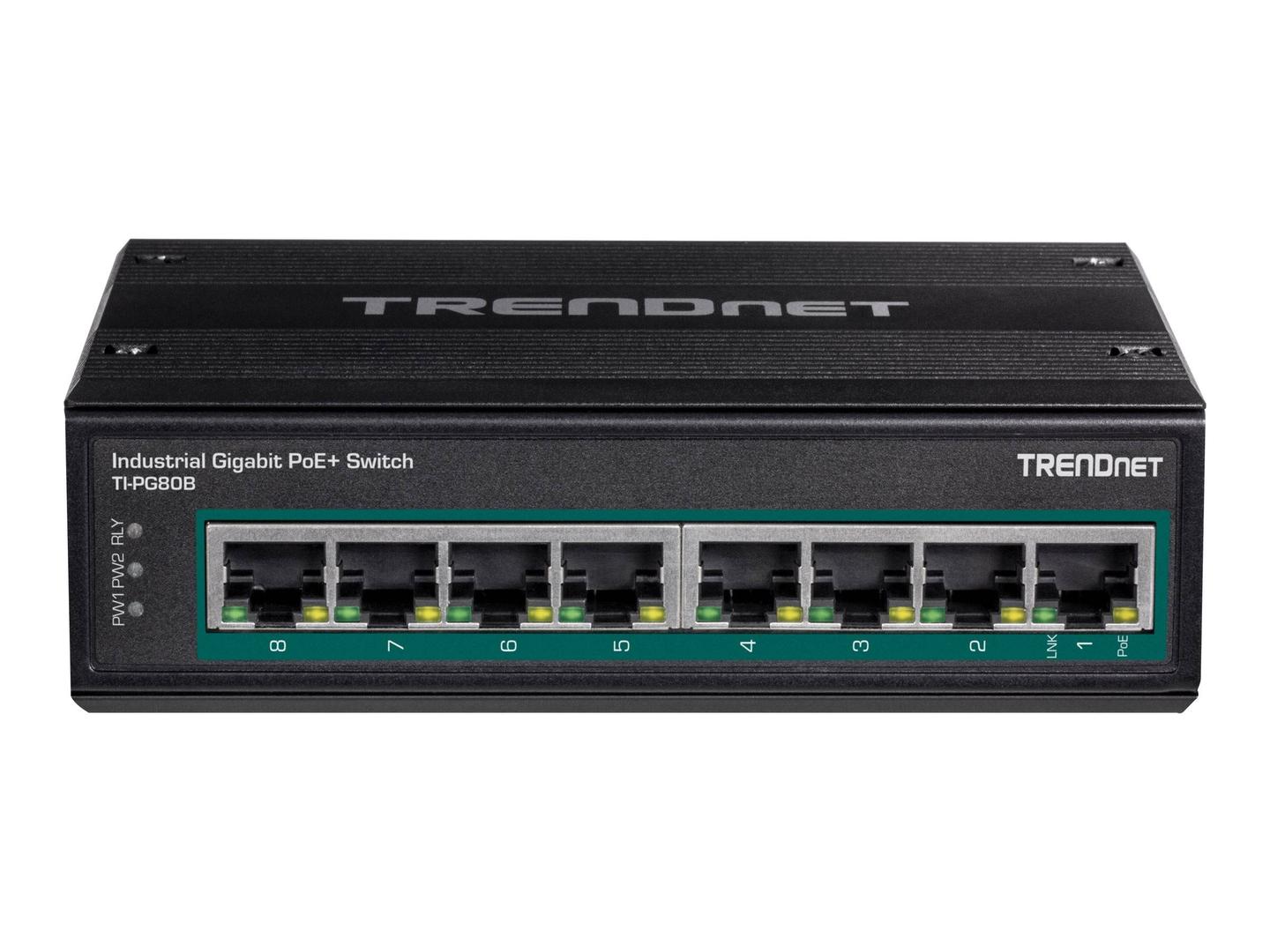

TRENDnet TI-PG80B 8-Port Industrial Gigabit PoE+ DIN-Rail Switch
The TRENDnet TI-PG80B is an unmanaged industrial Gigabit Ethernet switch with 8 PoE+ ports for networked devices that need both data and power. It is built for DIN-rail or wall mounting, with an IP30 metal housing, dual DC power input support, and a wide operating temperature range for industrial use.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Switch - 8 ports - unmanaged |
| Ports | 8 x 10/100/1000 (PoE+) |
| Interfaces | 8 x 1000Base-T RJ-45 PoE+ |
| Power over Ethernet | PoE+ |
| PoE Ports | 8 |
| PoE Budget | 200 W |
| Switching Capacity | 16 Gbit/s |
| Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4000 entries |
| Jumbo Frames | 9000 |
| Packet Buffer Memory | 1 MB |
| Networking Standards | IEEE 802.3 | IEEE 802.3u | IEEE 802.3ab | IEEE 802.3af | IEEE 802.3x | IEEE 802.3at |
| Power Device | External power adapter (not included) |
| Voltage Required | DC 24 - 56 V |
| Power Consumption | 5.3 W |
| Power Redundancy | Yes |
| Enclosure Type | DIN rail mountable | wall-mountable |
| Housing Material | Metal |
| Protection Rating | IP30 |
| Product Colour | Black |
| Operating Temperature | -40 - 75 °C |
| Operating Humidity | 0 - 95 % |
| Dimensions | 142 x 105 x 36 mm |
| Weight | 622 g |
| Included Accessories | DIN-rail mounting kit | wall mounting kit | removable terminal block |
| Service & Support | Limited warranty - lifetime |
| TAA Compliant | Yes |
| Power | External power adapter (not included) | 5.3 W |
| Package Contents | DIN-rail mounting kit, wall mounting kit, removable terminal block |
| SKU / EAN | TI-PG80B | 0710931161885 |
SINGULAR RECOMMENDS
For who
Suitable for industrial and automation installations that need an unmanaged 8-port Gigabit PoE+ switch with DIN-rail mounting and dual power input support.
Real reason to buy it
It combines 8 Gigabit PoE+ ports with a 200 W power budget in a rugged IP30 metal enclosure, making it a practical fit for industrial deployments.
Know before
An external power adapter is not included. The switch is unmanaged, so it does not offer advanced network configuration features.
