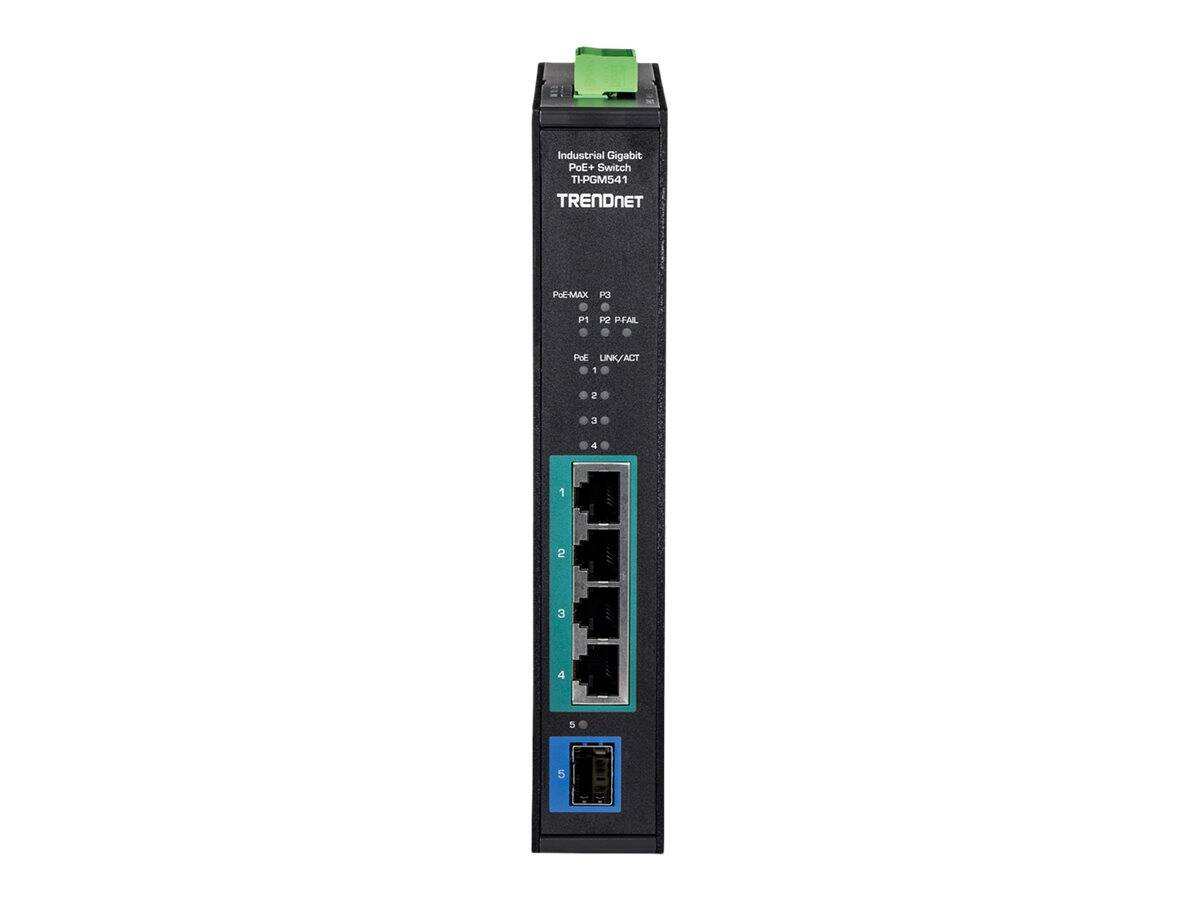

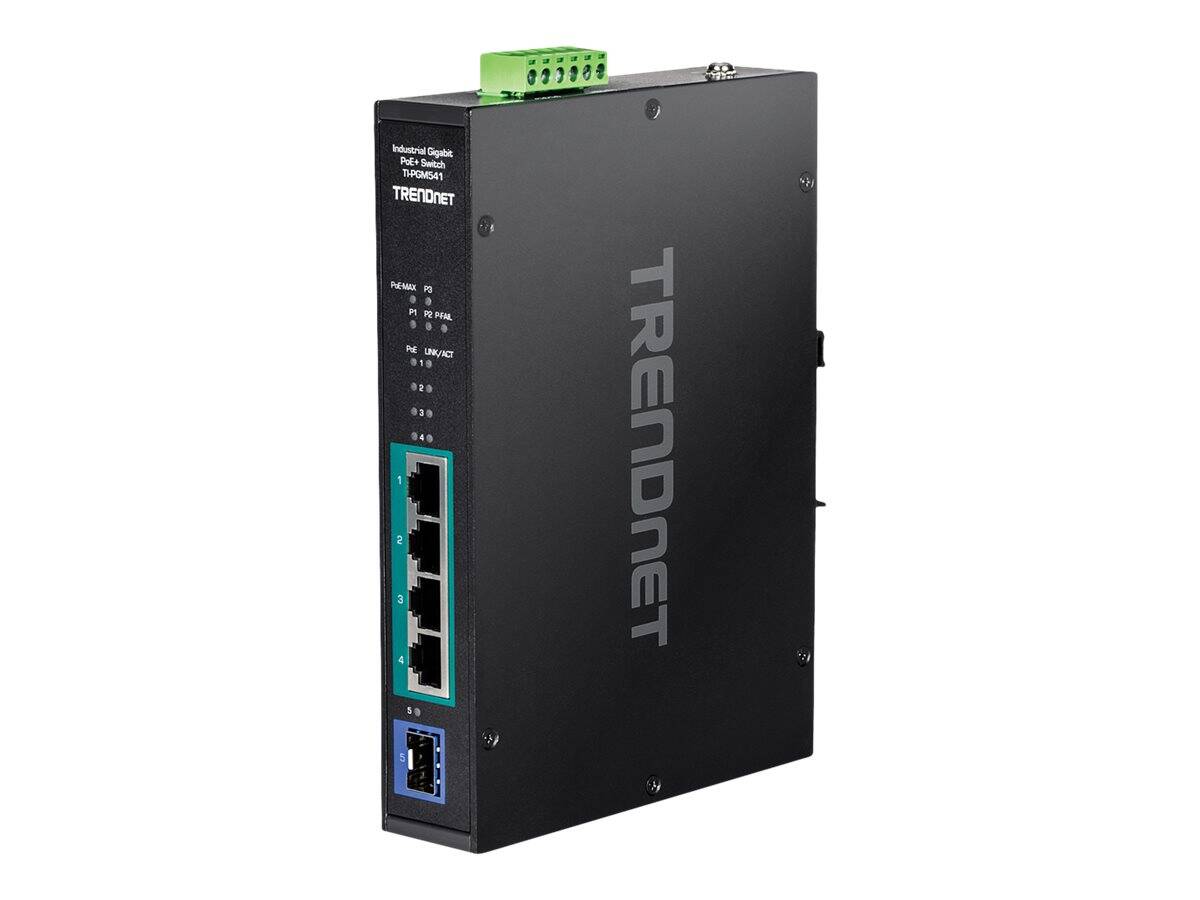

TRENDnet TI-PGM541 5-Port Industrial Gigabit PoE+ DIN-Rail Switch, 4x PoE+ RJ45 + 1x SFP, 120W, 48-55V DC, -20 to 65°C

Brand:
Trendnet
TRENDnet TI-PGM541 - Switch - -20° - 65°C (-4° - 149°F) - 4 x 10/
TRENDnet TI-PGM541 5-Port Industrial Gigabit PoE+ DIN-Rail Switch, 4x PoE+ RJ45 + 1x SFP, 120W, 48-55V DC, -20 to 65°C
€139.49 inc. VAT
Buy
TI-PGM541
€117.22 €130.24
€139.49 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
04:450095
EAN Code
0710931162196
Manufacturer
Trendnet

Quick Specs

Type
Industrial PoE+ switch
Ports
4x Gigabit PoE+ + 1x SFP
PoE budget
120W (30W per port)
Power
48-55V DC, DIN rail / wall
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

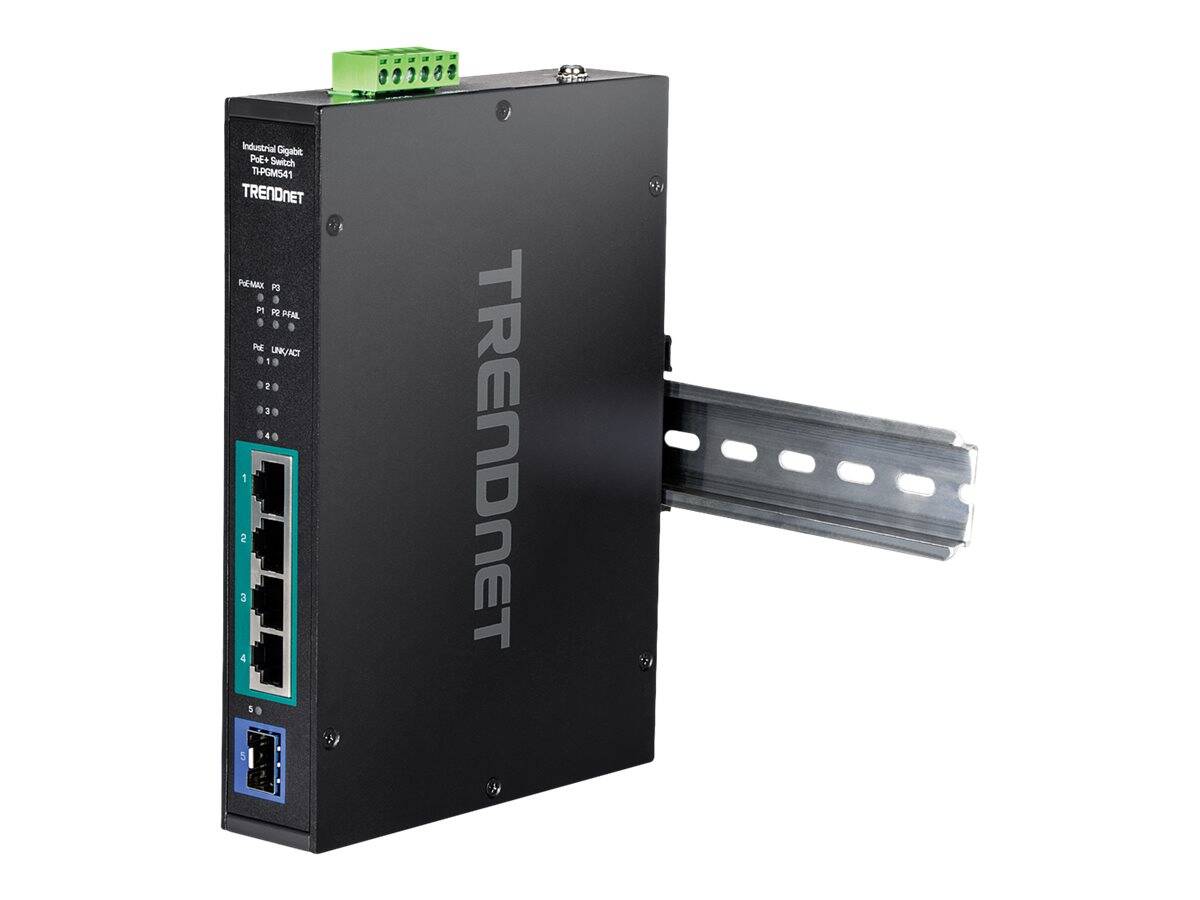

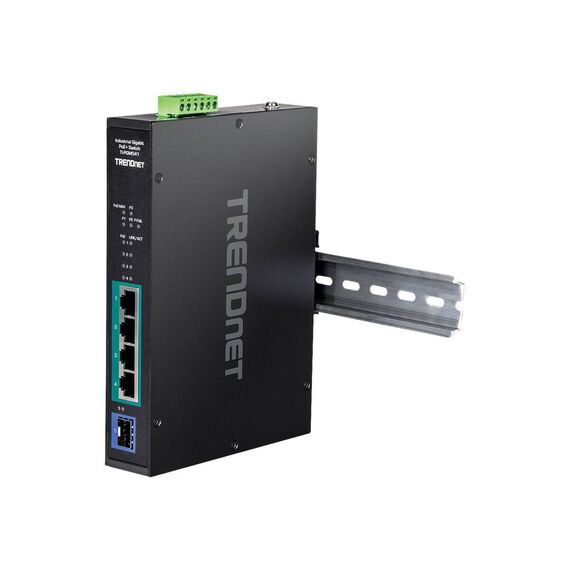

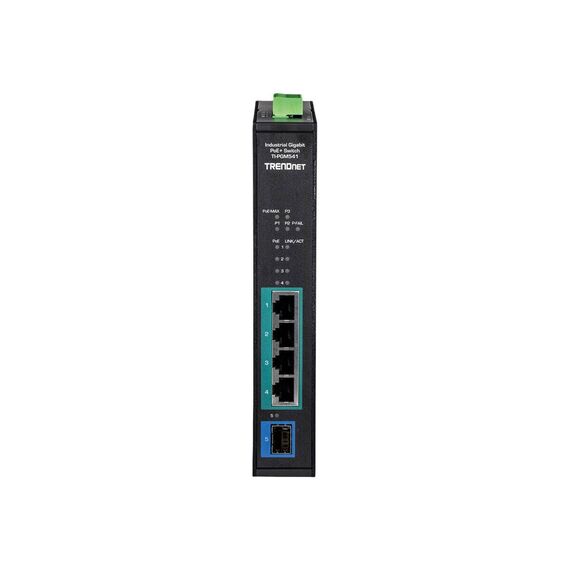

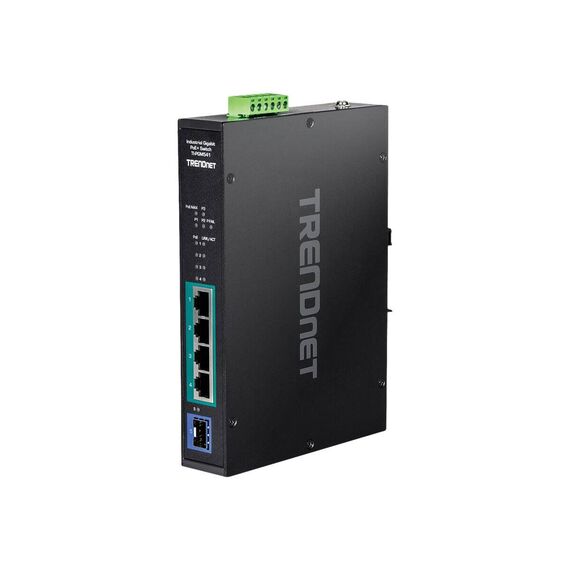

TRENDnet TI-PGM541 — 5-Port Industrial Gigabit PoE+ DIN-Rail Switch

4x Gigabit PoE+ · 120W1x Gigabit SFP uplink48-55V DC redundant inputs-20 to 65°C · IP30 metal

The TRENDnet TI-PGM541 is a five-port industrial Gigabit switch with four PoE+ ports and one SFP slot, for powering up to four IP cameras, access points or PoE sensors from a DIN rail or wall in control cabinets and technical rooms.

Its 120W budget gives each PoE+ port the full 30W (IEEE 802.3af/at). Power comes from 48-55V DC on redundant inputs with an alarm relay. It is built for -20 to 65°C — a narrower range than TRENDnet's -40 to 75°C models, which matters for unheated outdoor cabinets.

Before you order: No power supply is included: connect 48-55V DC (TRENDnet lists TI-S15052, TI-S24052, TI-S12048, TI-S24048). For outdoor cabinets that see frost or strong sun, consider a -40 to 75°C model instead.

What's in the Box

  • TI-PGM541 industrial switch
  • Removable power terminal block
  • Quick Installation Guide

What It Means in Practice

  • Four PoE+ devices at full power plus one SFP fibre uplink — a typical small camera point.
  • There is no extra RJ45 uplink: the network connection is either the SFP fibre or one of the four PoE ports.
  • Redundant DC inputs with relay alarm for unattended cabinets.
  • No configuration needed.

What Will Not Work

  • Not rated below -20°C or above 65°C.
  • Needs 48-55V DC — no AC, no 12/24V operation.
  • No VLAN, QoS, ring or SNMP management.
  • SFP module not included; the SFP slot has no PoE.

Key Features


120W PoE+
4 ports at up to 30W each.

Fibre uplink
1x Gigabit SFP slot.

Redundant power
48-55V DC dual inputs, overload protection, 1A @ 24V DC alarm relay.

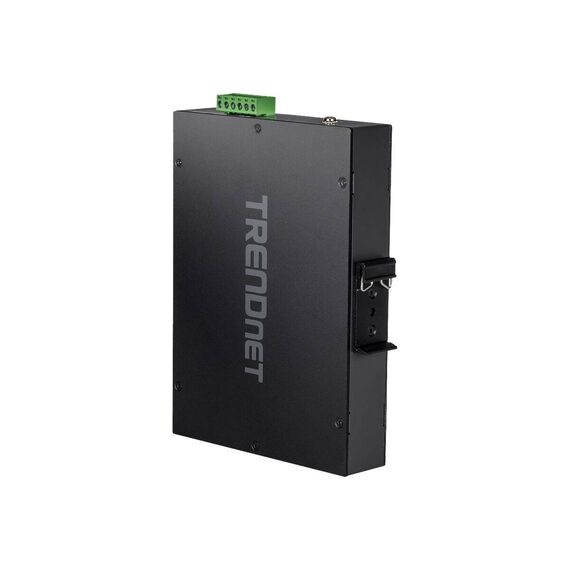

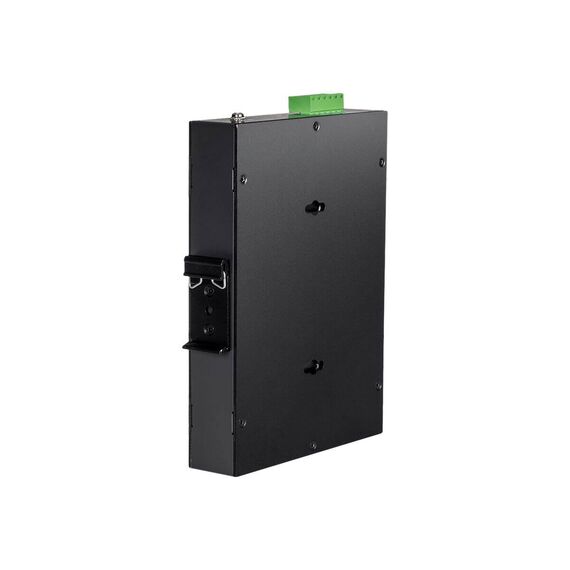

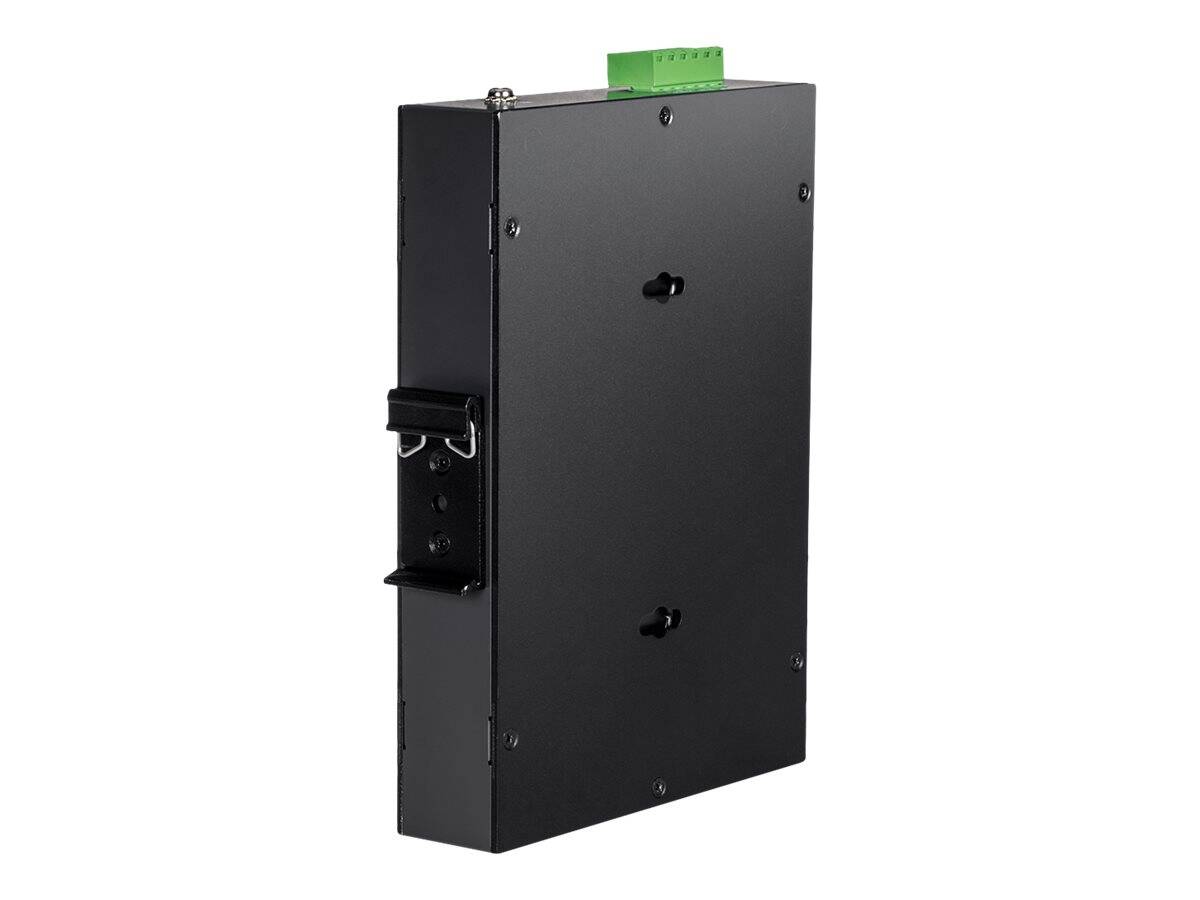

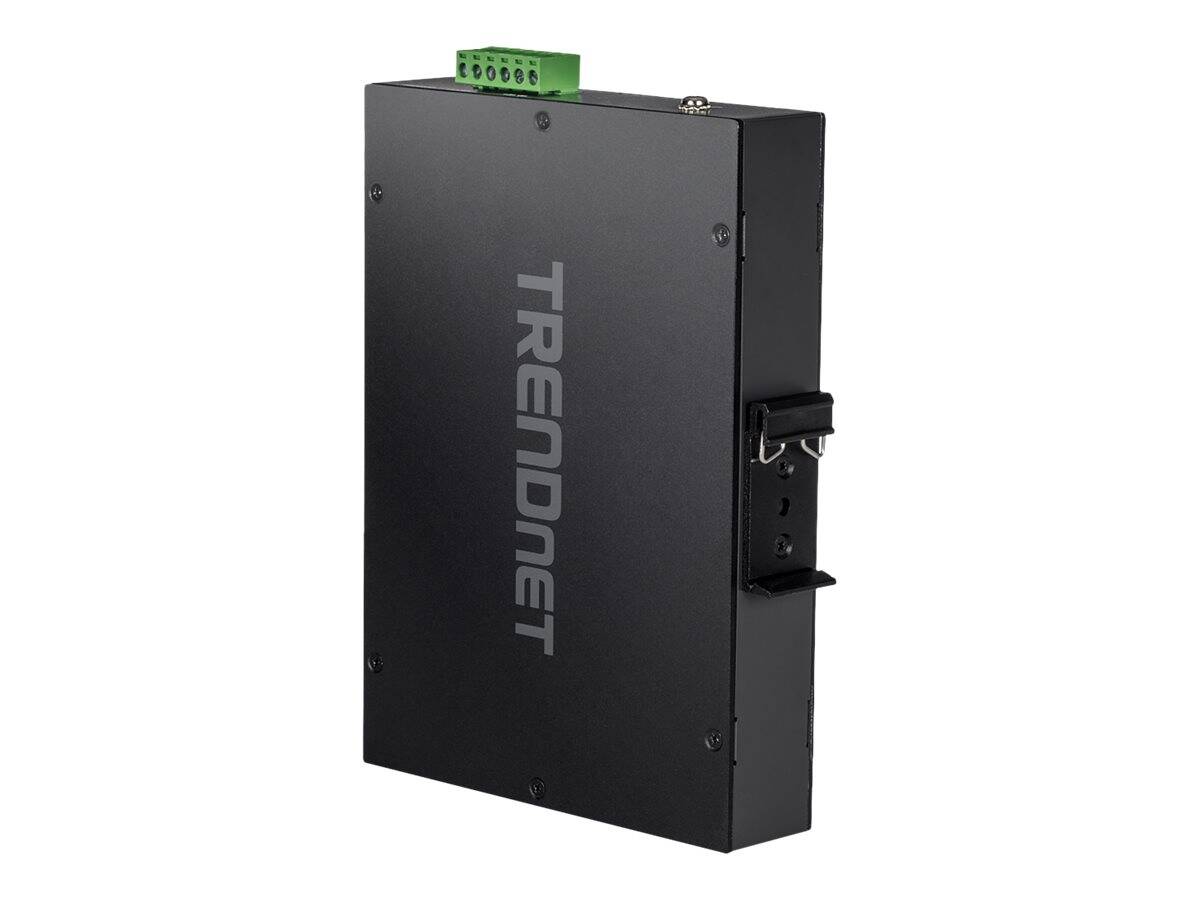

Industrial housing
IP30 metal with grounding point, DIN-rail or wall mounting.

Technical Specifications

Identification
Part Number TI-PGM541
Brand TRENDnet
Hardware version v1.0R
Type Industrial PoE+ switch, plug and play
Ports
PoE+ RJ45 4x 10/100/1000 Mbps
SFP 1x Gigabit SFP
PoE standard IEEE 802.3af / 802.3at
PoE budget 120 W @ 56V DC (up to 30 W per port)
Performance
Switching capacity 10 Gbps
Forwarding rate 7.44 Mpps
MAC address table 2K entries
Jumbo frames 9 KB
Power
Input 48-55V DC, redundant dual inputs
Connector Removable 6-pin terminal block
Protection Overload current protection
Alarm Relay 1A @ 24V DC
Consumption without PoE 5 W max
Power supply Not included
Physical
Housing Metal, IP30, grounding point
Mounting DIN rail or wall
Dimensions 180 x 130 x 28 mm
Weight 668 g
Operating temperature -20 to 65°C
Humidity Up to 95% non-condensing
Certifications CE, FCC, LVD
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term 3-year limited manufacturer warranty (TRENDnet, EU) — claims handled through Singular

Frequently Asked Questions

How does it differ from the TI-PG541?
The TI-PGM541 has 4 PoE+ ports and 1 SFP (5 ports) and a -20 to 65°C rating; the TI-PG541 adds a non-PoE Gigabit RJ45 port and is rated for wider temperatures.
Is it managed?
No — TRENDnet lists no management functions; it works plug-and-play.
What size power supply do I need?
For four 30W devices plan for at least about 130W at 48-55V DC; smaller loads need less.
Singular Expert Insight · Buyer's Guide
The TI-PGM541 is a cost-effective four-camera PoE+ switch for indoor or sheltered cabinets: full PoE+ power, a fibre uplink and redundant DC inputs. Check the temperature range before using it outdoors. Compare models in our network switches.
✓ Buy it if you need four PoE+ ports and a fibre uplink in a sheltered DC cabinet.
✕ Skip it if the cabinet goes below -20°C or above 65°C, or you need an extra RJ45 uplink.
→ Also consider TRENDnet TI-PG541 (adds 1x RJ45) or TI-PG62B for wider temperature ranges.
