TRENDnet TI-S12048 Industrial DIN-Rail Power Supply, 120W 48V DC Single Output, 100-240V AC Input, Active PFC, Metal
Brand:
Trendnet
TRENDnet TI-S12048 Industrial DIN-Rail Power Supply, 120W 48V DC Single Output, 100-240V AC Input, Active PFC, Metal
€129.95 inc. VAT
TI-S12048
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
TRENDnet TI-S12048 120W 48V Industrial DIN-Rail Power Supply
120W48V DCDIN-rail TS-35Active PFC

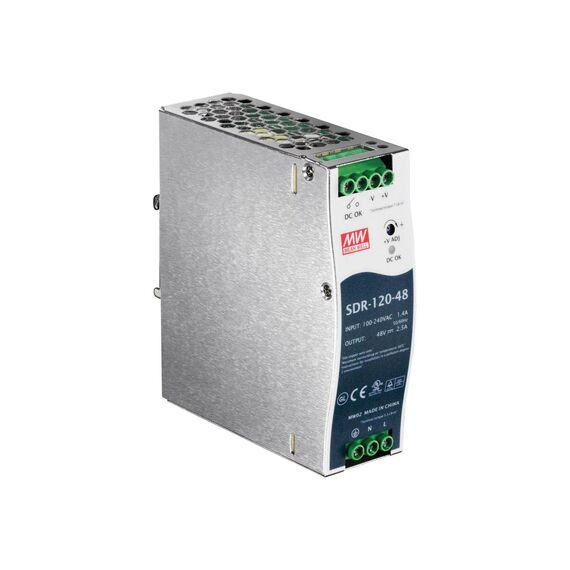

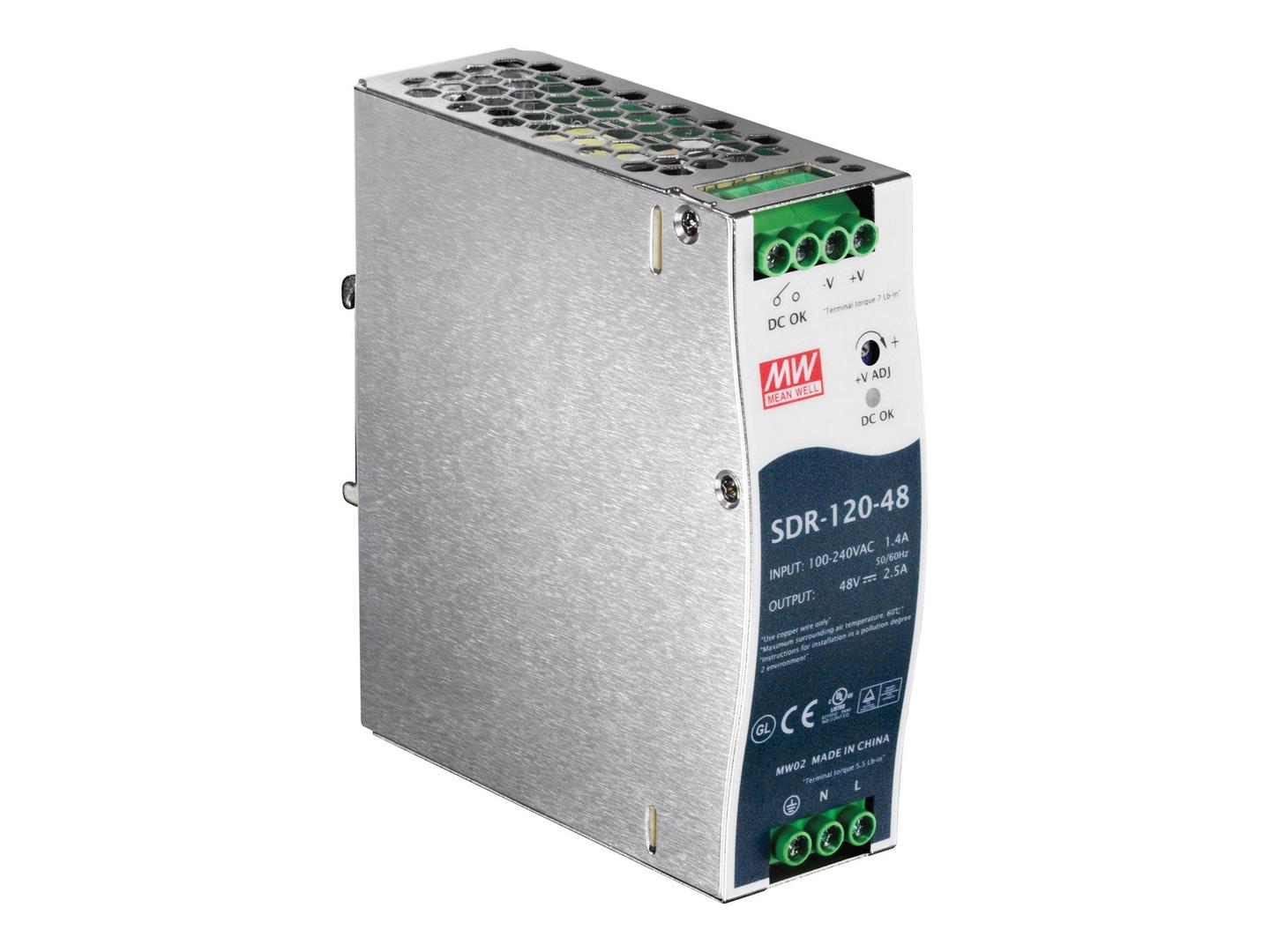

The TRENDnet TI-S12048 is a 120W single-output Industrial DIN-Rail Power Supply that turns 100-240V AC mains into a regulated 48V DC, 2.5A feed for industrial PoE switches, network cameras and access points mounted in a control cabinet. TRENDnet states that it is built on the Mean Well SDR-120-48 platform.
It clips onto a standard TS-35 DIN rail next to the switch, uses passive convection cooling with no fan, and includes active PFC, a DC OK relay contact and protection against short circuit, overload, over-voltage and over-temperature — the things that matter in an unattended cabinet.
Before you order: This page describes TI-S12048 hardware v1.0R: fixed 48V DC, 120W. Devices that need 52-56V DC — such as 802.3bt PoE++ injectors like the TRENDnet TI-IG290 — need a different supply. Ask us if you are unsure.
What's in the Box
- 1 × TRENDnet TI-S12048 DIN-rail power supply (Mean Well SDR-120-48)
- Mains cable, DC wiring and ferrules are not listed — plan your cabinet wiring separately
What It Means in Practice
- One 120W, 48V supply can feed a small industrial PoE switch and its connected cameras or APs
- Active PFC (PF > 0.93) and 91% efficiency keep heat and mains draw down inside a closed cabinet
- 150% peak-load capability helps with PoE devices that draw a start-up surge
- The DC OK relay contact can signal a PLC or alarm if the output fails
What Will Not Work
- Devices that need 52-56V DC, such as 802.3bt PoE++ injectors — output is a fixed 48V
- Loads above 120W continuous
- Plugging in like a desktop adapter — it needs wiring to AC and DC screw terminals by a qualified person
- Outdoor use without an enclosure — it is a cabinet-mounted unit
Key Features
120W at 48V DC
Regulated 48V DC, 2.5A single output for PoE switches and industrial network gear.
Active PFC
Power factor above 0.93 with 91% efficiency and 150% peak-load capability.
Full protection
Short circuit, overload, over-voltage and over-temperature protection, plus a DC OK relay contact.
Industrial range
-25 to 70 °C, fanless convection cooling, TS-35 DIN-rail mounting, MTBF 2,899,000 hours.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The TI-S12048 is a proven 120W, 48V DIN-rail supply for small industrial PoE switches — efficient, protected and with a DC OK contact for monitoring. Match the output voltage before ordering: anything built around 802.3bt PoE++ usually wants 52-56V instead. For other cabinet hardware see our rack accessories.
✓ Buy it if you need a 48V DC, up to 120W supply for an industrial PoE switch or devices on a DIN rail.
✕ Skip it if your equipment needs 52-56V DC, more than 120W, or a plug-in desktop adapter.
→ Also consider a higher-wattage 48-56V DIN-rail supply for PoE++ installations.
Not sure it is enough? Send us the models of your switch and powered devices and we will calculate the power budget before you order.
Features - Trendnet - TI-S12048
More Details
Product Code
04:190441
EAN Code
0710931160383
Manufacturer
Trendnet
