TRENDnet TI-S48048 — 480W Industrial DIN-Rail Power Supply
480W output48V DC / 10A94% efficiencyActive PFC

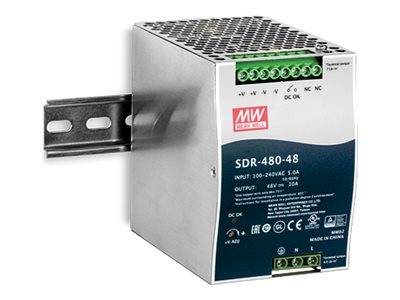

The TRENDnet TI-S48048 is an industrial 480W AC-to-DC DIN-rail power supply designed to power compatible industrial networking and surveillance equipment. It provides a fixed 48V DC output at up to 10A, incorporates active power factor correction and mounts directly to standard TS-35 DIN rail. Its fanless convection-cooled design supports operation across a wide −25°C to 70°C temperature range.
Variant check:

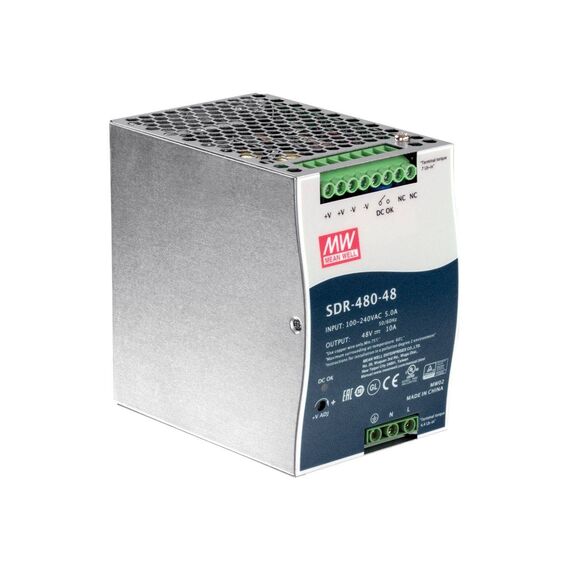

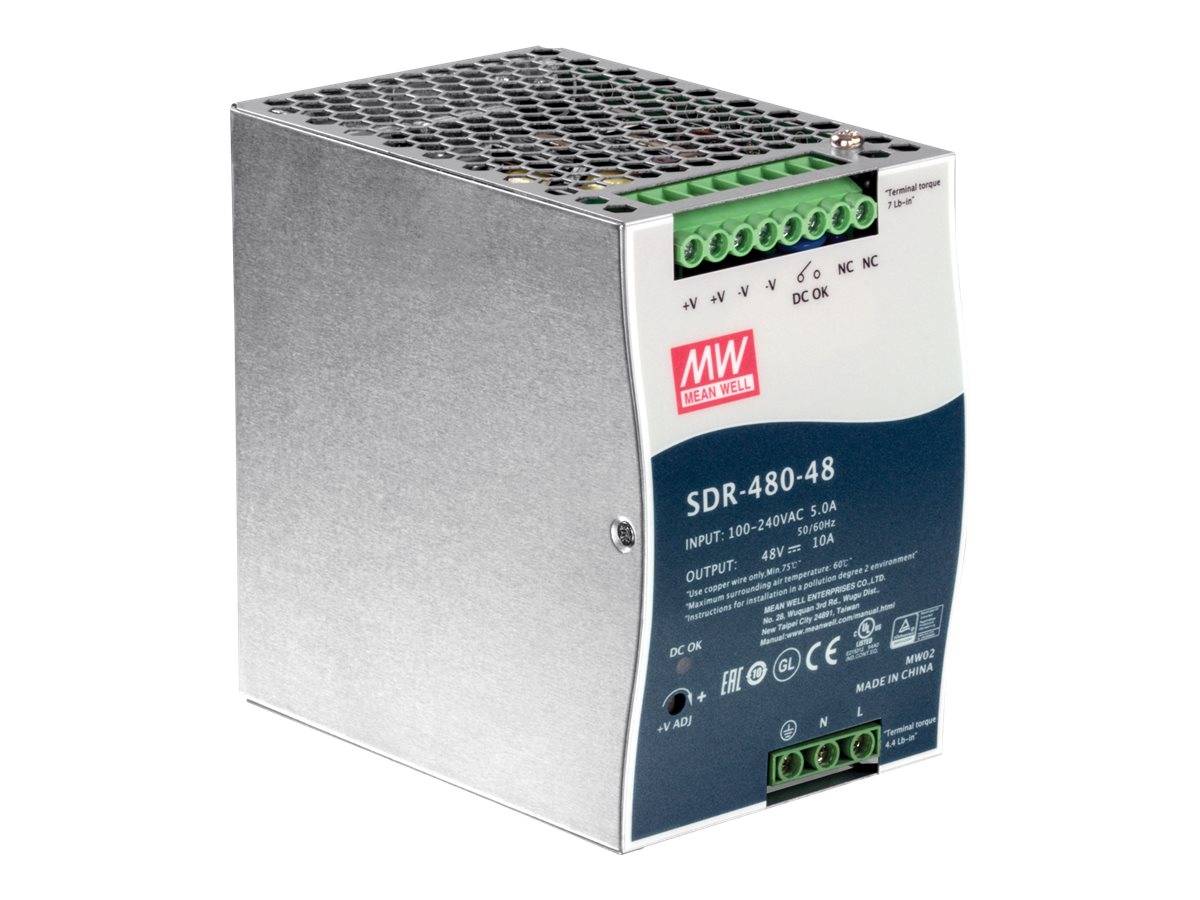

EAN 0710931161441 corresponds to the original TI-S48048 Version V1 specification, supplied as a Mean Well SDR-480-48 based unit. TRENDnet has since introduced a physically smaller Version V2 with different efficiency, dimensions, certifications and a 48–56V adjustable output range. Those V2 specifications should not be mixed into this V1 listing.
Best For
✓ Industrial PoE network switches
✓ Network cameras and surveillance systems
✓ Wireless access points and injectors
✓ DIN-rail industrial installations
Key Features
480W industrial output
The supply delivers up to 480W at 48V DC and 10A, providing the power capacity required by compatible high-power industrial networking equipment.
Active power factor correction
An integrated active Power Factor Controller provides a power factor greater than 0.94, helping the supply use incoming AC power efficiently under supported operating conditions.
150% peak-load capability
TRENDnet specifies support for peak loads up to 150% of the rated output, useful for equipment with short-duration startup or transient power requirements.
Fanless industrial design
Cooling is handled by natural air convection, with no cooling fan required. The unit is rated for operation from −25°C to 70°C and includes an integrated DIN-rail mount.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
TI-S48048 is one of those part numbers where the hardware revision matters. The supplied EAN maps to the original V1 specification: 480W, fixed 48V DC output, 10A, 94% efficiency and an 85.5 x 125 x 128.5 mm chassis. TRENDnet's newer V2 keeps the same base model name but changes several important specifications, including the physical size, efficiency, certification set and adjustable output range. When replacing an existing unit, compare the version and electrical requirements rather than relying on the TI-S48048 model name alone.
Buyer’s Guide
Buy it if
You need a 48V DC, 10A industrial DIN-rail supply with up to 480W output for compatible networking, surveillance or automation equipment.
Check first
Confirm your equipment requires 48V DC and does not exceed 10A or 480W. Also verify available DIN-rail space and ventilation around the supply.
Version warning
Do not substitute V2 specifications into this V1 product entry. The two revisions share the TI-S48048 name but differ in dimensions, efficiency, output-voltage range and certifications.
Features - Trendnet - TI-S48048
More Details
Product Code
04:284154
EAN Code
0710931161441
Manufacturer
Trendnet
