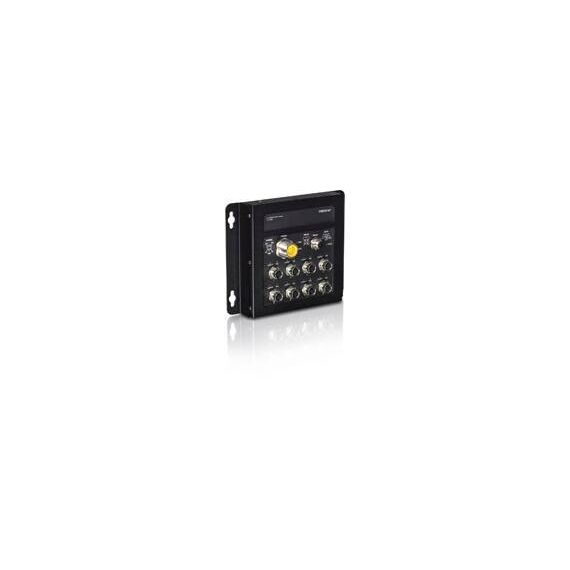

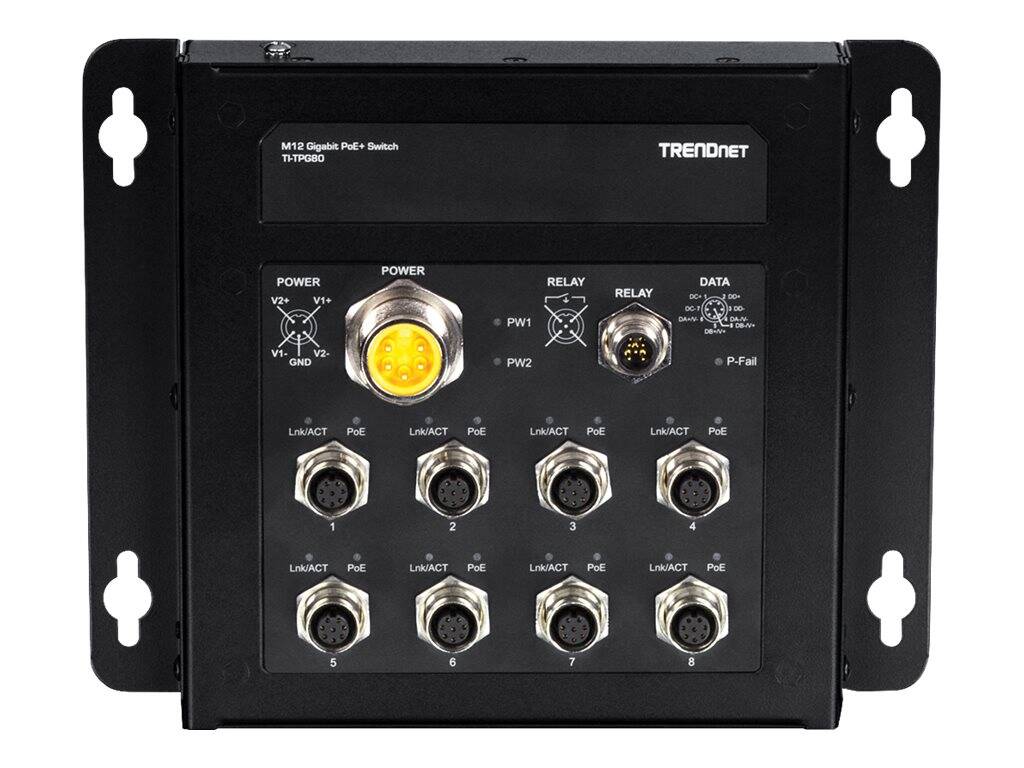

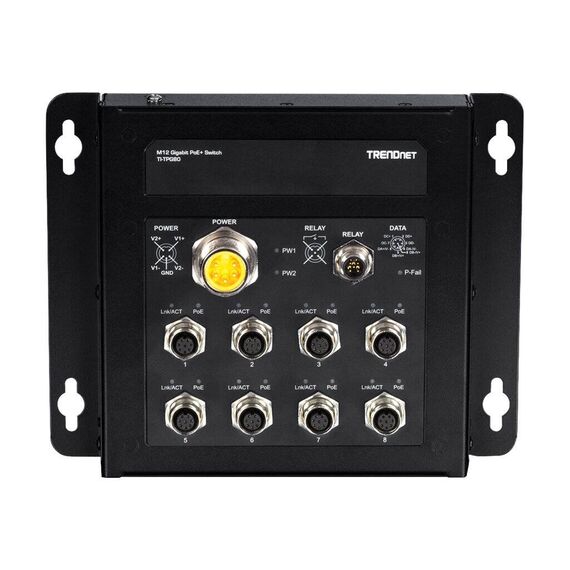

TRENDnet TI-TPG80 - Switch - unmanaged - 8 x 100/1000/10000 + 1 x shared Gigabit SFP + 1 x SFP - wall-mountable - DC power - TAA Compliant | TI-TPG80

Product Features

• Power over Ethernet (PoE+)
  Eight M12 gigabit PoE+ ports deliver up to 30W of PoE+ power per port with a total power budget of 200W@48V DC, or 100W@24V DC.
• Switching capacity
  16Gbps switching capacity.
• Jumbo frame
  Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance.
• EN50155 compliance
  This industrial M12 switch certified for rail (EN 50155 / EN 50121-3) and (EN 50155 / EN 50121-4).
• Shock and vibration resistant
  Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6).
• Wall mount
  IP40 rated metal enclosure, includes wall mounting brackets for the industrial M12 switch.
• Wide temperature range
  A wide operating temperature range of -40° - 75° C (-40° - 167° F) allows for installations in extreme hot or cold environments.
• Power
  Supports an input voltage range from 24 - 56V DC with M23 power and M12 alarm relay interfaces for moving bus, train, and other rolling stock applications.
• Grounding point
  Grounding point protects the M12 switch from external electrical surges.

Special Fetures

• 8 x M12 Gigabit PoE+ ports
• PoE power budget: 200W@48V DC; 100W@24V DC
• EN50155 compliant for rolling stock and railway applications
• Hardened IP40 rated metal housing
• 16Gbps switching capacity
• Includes wall mount brackets
• Operating temperature range of -40° - 75° C (-40° - 167° F)
• Dual redundant power inputs with overload current protection
• Alarm relay triggered by power failure
