TRENDnet TL2-F7120 12-Port 10G Layer 2 Managed SFP+ Switch, 12x 10G SFP+, Static Routing, 1U Rackmount

Brand:
Trendnet
TRENDnet TL2-F7120 - Switch - Managed - 12 x 10 Gigabit SFP+ - ra
TRENDnet TL2-F7120 12-Port 10G Layer 2 Managed SFP+ Switch, 12x 10G SFP+, Static Routing, 1U Rackmount
€397.28 inc. VAT
Buy
TL2-F7120
€333.85 €370.95
€397.28 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
04:496129
EAN Code
0710931140972
Manufacturer
Trendnet

Quick Specs

Type
L2 managed 10G SFP+ switch
Ports
12x 1G/10G SFP+ + RJ45 console
Switching
240 Gbps · static routing
Form factor
1U rackmount, 100-240V AC
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

TRENDnet TL2-F7120 — 12-Port 10G Layer 2 Managed SFP+ Switch

12x 10G SFP+L2 Managed + static routing240 Gbps switching1U rackmount

The TRENDnet TL2-F7120 is a 1U Layer 2 managed switch with twelve 10G SFP+ slots, built as a compact 10 Gigabit aggregation or core switch for server rooms, storage networks and fibre backbones in small and mid-size businesses.

All twelve slots accept 10G SFP+ and 1G SFP modules, giving 240 Gbps of non-blocking switching. Management covers 802.1Q VLANs, LACP, RSTP/MSTP, QoS, ACLs, IGMP/MLD snooping and IPv4/IPv6 static routing, through a web GUI or CLI over console, Telnet and SSH.

Before you order: There are no RJ45 data ports: every connection needs an SFP+ or SFP module, or a DAC cable. Modules and DAC cables are not included — tell us your servers, NAS and uplink switches and we will match the optics.

What's in the Box

  • TL2-F7120 switch
  • Power cord
  • RJ-45 to RS-232 console cable (1.5 m)

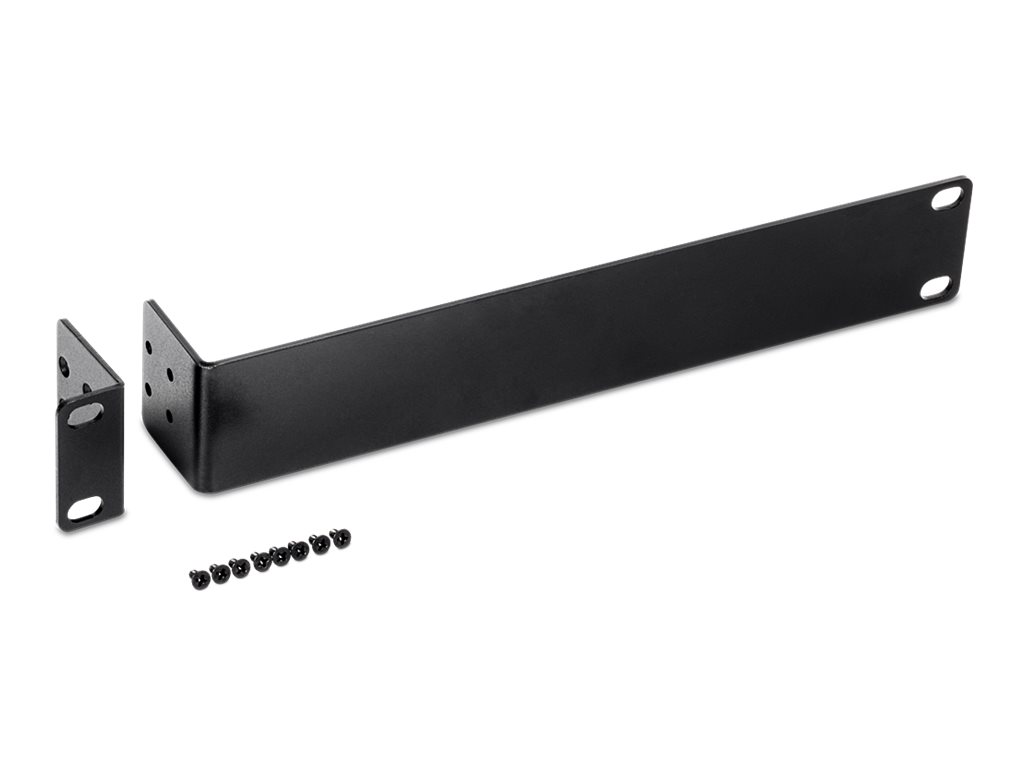

  • Rackmount kit
  • Quick Installation Guide

What It Means in Practice

  • Aggregate several access switches over 10G fibre or DAC, or connect servers and NAS units at 10G.
  • Use 1G SFP modules in any slot for older fibre links and move to 10G later.
  • Inter-VLAN routing with static routes lets the switch route between server, storage and user VLANs without a separate router for internal traffic.
  • Out-of-band RJ45 console for setup and recovery.

What Will Not Work

  • No RJ45 copper data ports — RJ45 devices need 10GBASE-T SFP+ or 1000BASE-T SFP modules.
  • No PoE.
  • No dynamic routing protocols (OSPF/BGP) — routing is static only.
  • Not fanless: one smart fan (up to 38.6 dBA), better suited to a rack than an open office.

Key Features


12x 10G SFP+
Every slot runs at 1G or 10G for 240 Gbps total switching capacity.

Layer 2 managed + static routing
802.1Q VLAN (256 groups), LACP (8 groups), STP/RSTP/MSTP, IPv4/IPv6 static and inter-VLAN routing.

Security & QoS
IPv4/IPv6 ACLs, 802.1X with RADIUS/TACACS+, DHCP snooping, DoS protection, CoS/DSCP QoS.

Manageable your way
Web GUI, CLI via console/Telnet/SSH, SNMP v1/v2c/v3, RMON, LLDP, dual firmware image, DDM for optics.

Technical Specifications

Identification
Part Number TL2-F7120
Brand TRENDnet
Hardware version v1.0R
Type Layer 2 managed 10G SFP+ switch
Ports
SFP+ 12x 1G/10G SFP+ slots
Console 1x RJ45 console
RJ45 data ports None
PoE No
Performance
Switching capacity 240 Gbps
Forwarding rate 178.6 Mpps
MAC address table 32K entries
Buffer 2 MB
Management
Interfaces Web GUI (HTTP/HTTPS), CLI (console, Telnet, SSH), SNMP v1/v2c/v3
VLAN 802.1Q (256 groups), GVRP, voice VLAN, port isolation
Link aggregation Static + LACP, 8 groups x 8 ports
Spanning tree STP, RSTP, MSTP (16 instances)
Multicast IGMP v1/v2/v3 and MLD snooping
Routing IPv4/IPv6 static and inter-VLAN routing, DHCP relay
Security IPv4/IPv6 ACL, 802.1X, RADIUS/TACACS+, DHCP snooping
Power & physical
Power Internal PSU, 100-240V AC, 50/60 Hz
Max consumption 20 W
Cooling 1 smart fan, max 38.6 dBA
Form factor 19" 1U, rackmount kit included
Dimensions 210 x 230 x 44 mm
Weight 1.6 kg
Operating temperature 0 to 50°C
Certifications CE, FCC, UL
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term 3-year limited manufacturer warranty (TRENDnet, EU) — claims handled through Singular

Frequently Asked Questions

Can I use 1G SFP modules?
Yes — every slot accepts 1G SFP as well as 10G SFP+ modules, so you can mix speeds.
Does it route between VLANs?
Yes, with IPv4/IPv6 static routing and inter-VLAN routing; dynamic routing protocols are not listed.
Which cables do I need for short rack links?
10G SFP+ DAC cables are the simplest option for links inside the rack; fibre modules for longer runs. Ask us for compatible parts.
Singular Expert Insight · Buyer's Guide
The TL2-F7120 is a cost-effective way to build a 10G fibre core: twelve SFP+ slots, proper L2 management and static routing in a half-width 1U chassis. Budget for optics or DAC cables, since nothing is included. Browse our network switches for access switches to pair with it.
✓ Buy it if you need a compact 10G SFP+ aggregation switch with VLANs and static routing.
✕ Skip it if you need RJ45 ports, PoE or dynamic routing.
→ Also consider TRENDnet TL2-F70284 (24x 1G SFP + 4x 10G SFP+) for Gigabit fibre access.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
