TRENDnet TPE-30284 28-Port Gigabit Web Smart PoE+ Switch

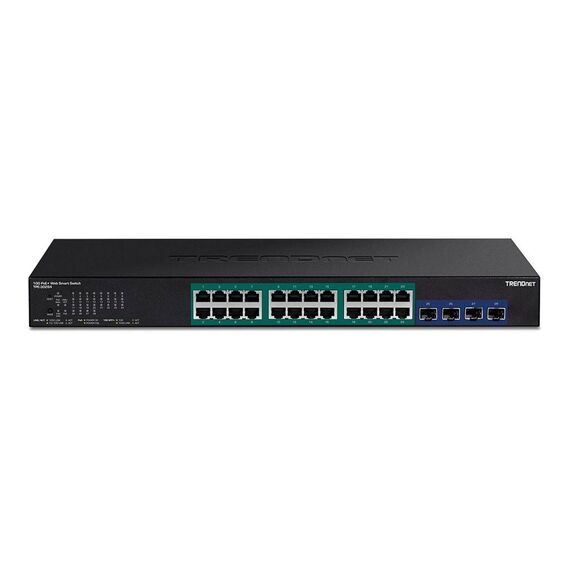

The TRENDnet TPE-30284 is a rack-mountable 1U web smart managed switch for SMB networks that need Gigabit PoE+ access with 10G uplinks. It offers 24 PoE+ RJ-45 ports, 4 x 10G SFP+ slots, a 370W PoE budget and a range of managed features for traffic control and network segmentation.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Switch - 28 ports - smart |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
| Device Type | Switch - 28 ports - smart |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| PoE | PoE+ |
| PoE Budget | 370 W |
| Switching Capacity | 128 Gbps | 128 Gbit/s |
| Forwarding Rate | 95.2 Mpps |
| VLAN Groups | 256 |
| MAC Address Table | 16K entries | 16000 entries |
| Jumbo Frame Support | 12KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | SNMP 1, RMON 1, SNMP 3, SNMP 2c, HTTP, HTTPS |
| Encryption | TLS, SSL 3.0, SSL 2.0 |
| Authentication | RADIUS, TACACS+ |
| Features | DHCP support, VLAN support, IGMP snooping, Syslog support, port mirroring, MAC address filtering, IPv6 support, half duplex mode, full duplex mode, SNTP support, STP support, RSTP support, VCT technology, MSTP support, DHCP snooping, ACL support, QoS, MLD snooping, LLDP support, LACP, Traffic Control, SNMP trap, MIB, GVRP, CoS, Strict Priority (SP), tagged VLAN, DoS, per port bandwidth control, 2 fans, 1.5MB packet buffer, Storm Control, port filtering, Static Link Aggregation, Voice VLAN, LLDP-MED, Private VLAN, Weighted Round Robin (WRR), HOL Blocking Prevention, loopback detection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Interfaces | 24 x 1000Base-T RJ-45 PoE+ | 4 x 10Gbit LAN SFP+ | 24 x 1000Base-T RJ-45 PoE+ ¦ 4 x 10Gbit LAN SFP+ |
| Power Device | Internal power supply |
| Voltage Required | AC 100 - 240 V (50/60 Hz) |
| Power Consumption Operational | 23.7 Watt |
| Rack Mounting Kit | Included |
| TAA Compliant | Yes |
| Width | 44 cm |
| Depth | 24.9 cm |
| Height | 4.4 cm |
| Weight | 3.94 kg |
| Service & Support | Limited warranty - lifetime |
| Switch Type | Managed |
| Switch Layer | L2/L4 |
| Quality of Service (QoS) Support | Yes |
| ARP Inspection | Yes |
| Power Over Ethernet (PoE) | Yes |
| Power Over Ethernet Plus (PoE+) Ports Quantity | 24 |
| Power Over Ethernet (PoE) Power per Port | 30 W |
| Total Power Over Ethernet (PoE) Budget | 370 W |
| Jumbo Frames Support | Yes |
| Jumbo Frames | 12000 |
| Packet Buffer Memory | 1.5 MB |
| Networking Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G Support | Yes |
| Port Mirroring | Yes |
| Full Duplex | Yes |
| Half Duplex | Yes |
| Link Aggregation | Yes |
| Spanning Tree Protocol | Yes |
| Head-of-line (HOL) Blocking | Yes |
| VLAN Support | Yes |
| Virtual LAN Features | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4094 |
| Power Supply Included | Yes |
| AC Input Voltage | 100 - 240 V |
| AC Input Frequency | 50 - 60 Hz |
| Power Consumption (Max) | 23.7 W |
| Multicast Support | Yes |
| Multicast MAC Address Table | 256 entries |
| DHCP Features | DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP Snooping | Yes |
| Security Algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, SSH-2, SSL/TLS |
| Loop Protection | Yes |
| IP-MAC-Port Binding | Yes |
| Queue Scheduling Algorithms | SP, Weighted Round Robin (WRR) |
| Cables Included | AC |
| Quick Start Guide | Yes |
| Rack Mount Kit | Yes |
| Operating Temperature (T-T) | -5 - 50 °C |
| Operating Relative Humidity (H-H) | 0 - 95 % |
| Noise Level | 52.2 dB |
| Mean Time Between Failures (MTBF) | 287724 h |
| Certification | CE FCC |
| Manufacturer ID | TPE-30284 |
| EAN/UPC | 0710931161878 |
| Power | Internal power supply | 23.7 W |
| Security | HTTPS | SNMP | SNMPv2 | SNMPv3 | SSH-2 | SSL/TLS |
| Management Protocol | SNMP 1, RMON 1, SNMP 3, SNMP 2c, HTTP, HTTPS |
| SKU / EAN | TPE-30284 | 0710931161878 |
