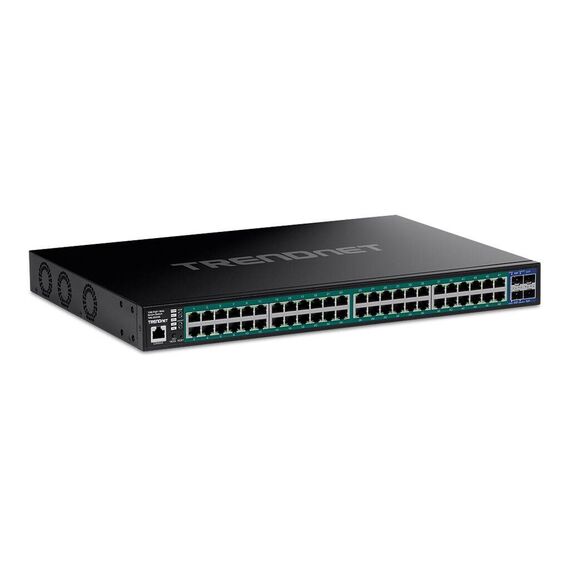

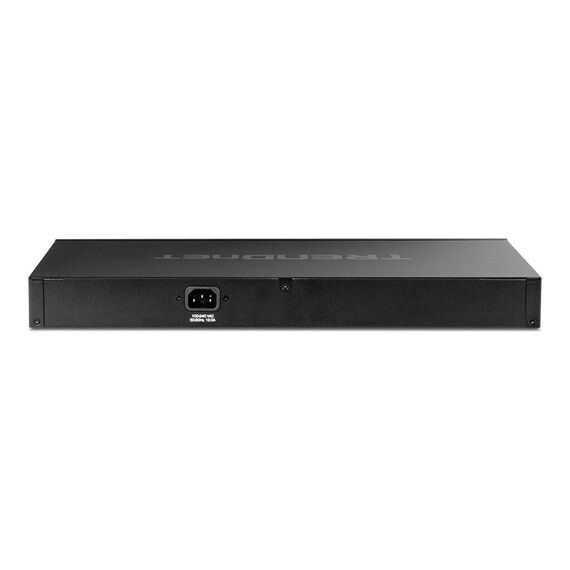

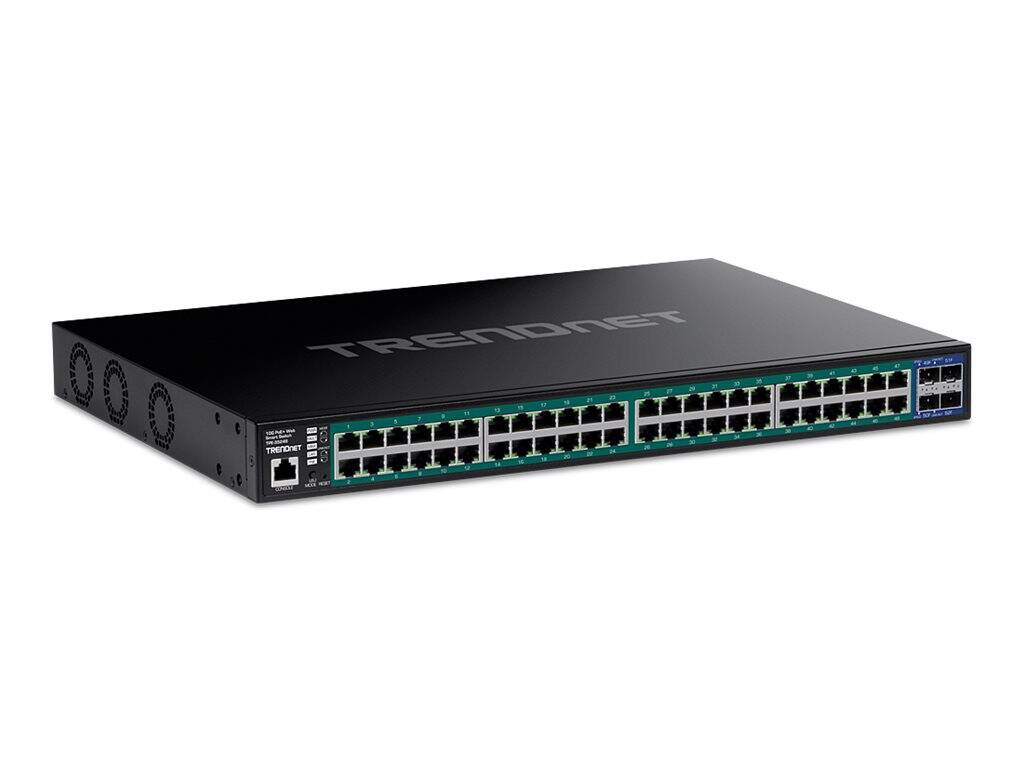

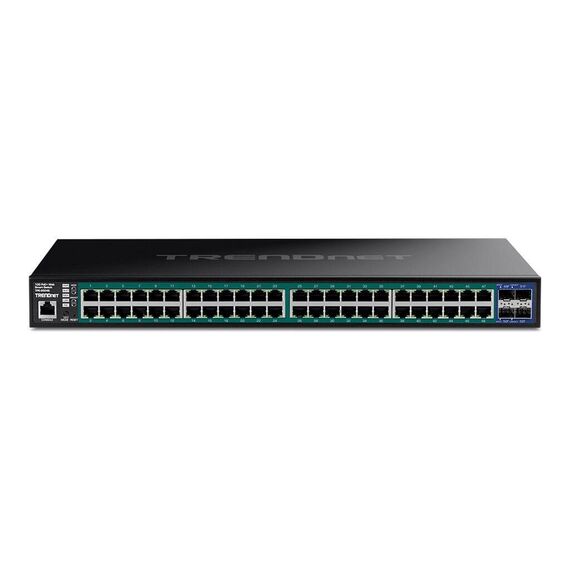

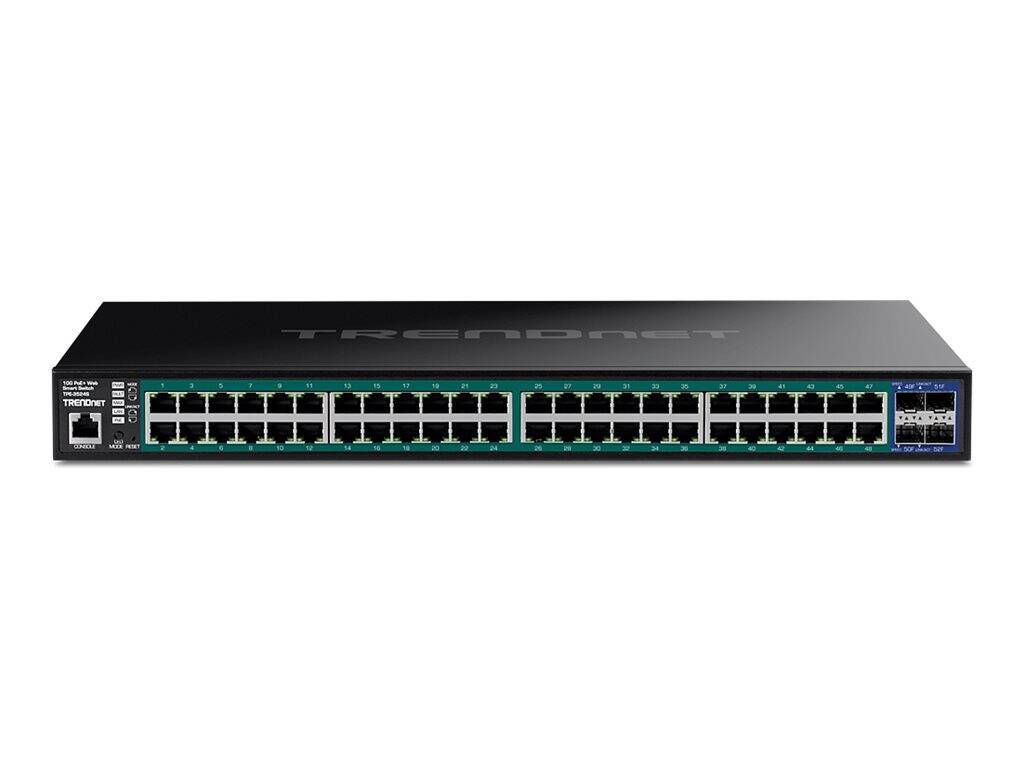

TRENDnet TPE-3524S - Switch - 52-port, web - L2+ - smart - 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ - desktop, rack-mountable - PoE+ (410 W) - TAA Compliant | TPE-3524S
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Switch - 52 ports - L2+ - smart |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 410 W |
| Performance | Switching capacity: 176 Gbps ¦ Forwarding performance (64-byte packet size): 130.95 Mpps |
| Capacity | VLAN groups: 256 ¦ ARP table: up to 128 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 9KB |
| Remote Management Protocol | SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2 |
| Encryption Algorithm | TLS, SSL 3.0, SSL 2.0 |
| Authentication Method | RADIUS, TACACS+ |
| Features | DHCP support, VLAN support, IGMP snooping, IPv6 support, full duplex mode, DHCP snooping, Quality of Service (QoS), MLD snooping, over-current protection, short circuit protection, Dynamic VLAN Support (GVRP), static routing, Strict Priority (SP), Denial of Service (DoS), per port bandwidth control, DiffServ Code Point (DSCP) support, dual image support, Static Link Aggregation, Voice VLAN, Private VLAN, IGMP fast leave, Inter-VLAN Routing, Weighted Round Robin (WRR), loopback detection, block unknown multicast, web-based management, Smart Fans, MAC-Port Binding, Media Endpoint Discovery (LLDP-MED), HoL Blocking Prevention |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Built-in Devices | 3 x fans |
| Status Indicators | Status |
| Expansion / Connectivity | |
| Interfaces | 48 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 4 x 10Gbit LAN SFP+ ¦ 1 x console RJ-45 |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Miscellaneous | |
| Included Accessories | Power cable (1.5 m) |
| Cables Included | 1 x console cable - 1 m |
| Rack Mounting Kit | Included |
| MTBF | 74,330 hours |
| Compliant Standards | UL, FCC, NDAA |
| TAA Compliant | Yes |
| Dimensions & Weight | |
| Width | 44 cm |
| Depth | 31 cm |
| Height | 4.4 cm |
| Weight | 4.745 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime ¦ Limited warranty - power supply and fans - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 95% (non-condensing) |
Features - Trendnet - TPE-3524S
General
48-Port
More Details
Product Code
04:449888
EAN Code
0710931162509
Manufacturer
Trendnet
