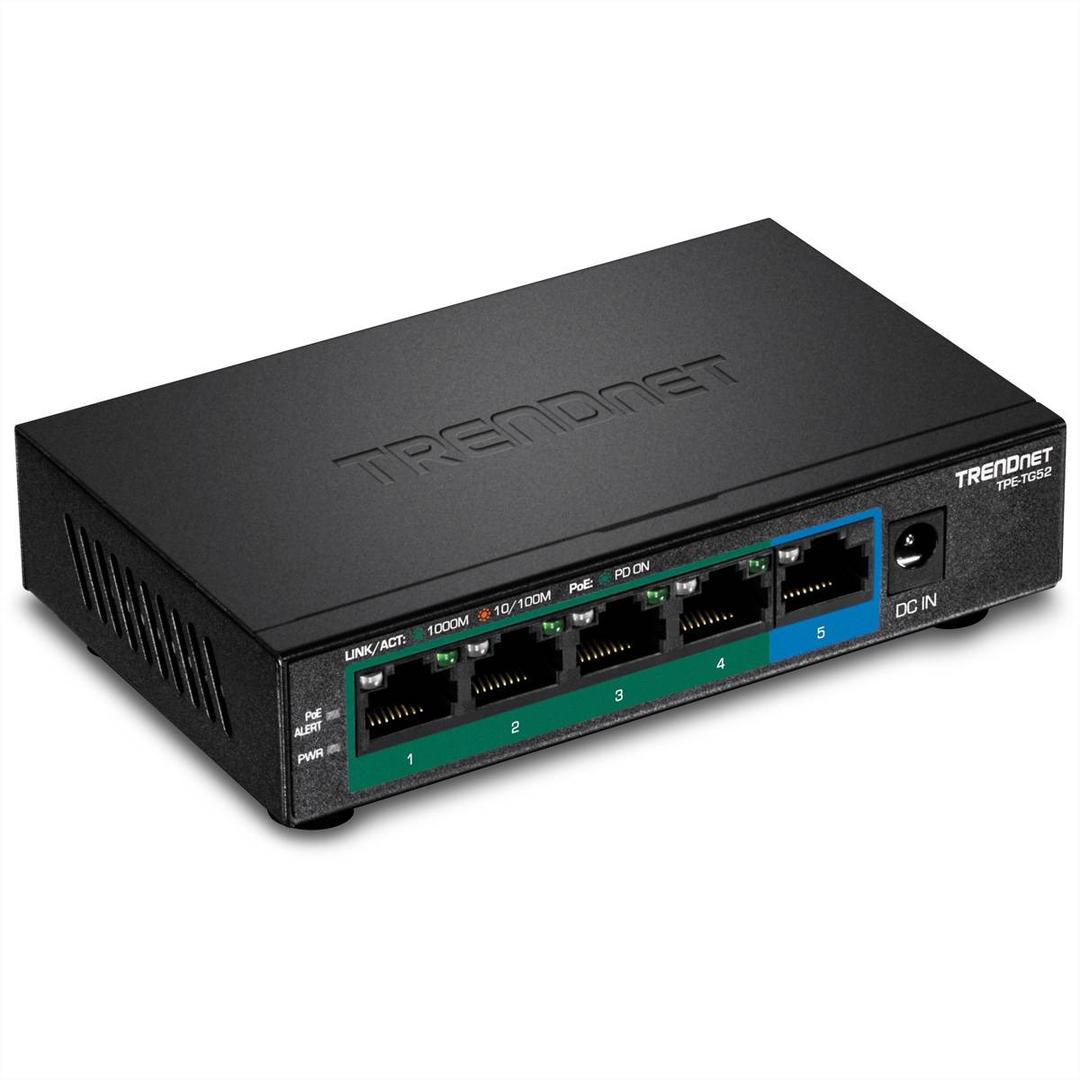

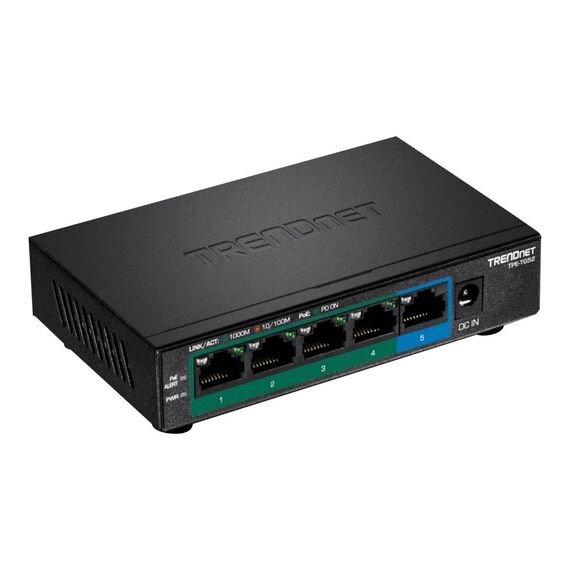

TRENDnet TPE TG52 / Switch / 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 / desktop, wall-mountable / PoE+ (32 W) | TPE-TG52
Please sign in so that we can notify you about a reply
Special Features
- 4 x Gigabit PoE+ ports
- 1 x Gigabit port
- 32W PoE power budget
- 10Gbps switching capacity
- IEEE 802.1p QoS and DSCP pass-through support
- Compact fanless design
- Wall-mountable metal housing
Product Specification
| Device Type | Switch - 5 ports |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 32 W |
| Performance | Switching capacity: 10 Gbps ¦ Forwarding performance (64-byte packet size): 7.44 Mpps |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9KB |
| Features | Half duplex mode, full duplex mode, fanless, metal housing |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az |
| Status Indicators | Port status |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 4 x 1000Base-T RJ-45 PoE+ ¦ 1 x 1000Base-T RJ-45 |
| Power | Power |
| Power Device | External power adapter |
| Power Provided | DC 54 V - 1.2 A |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 36 Watt |
| Miscellaneous | Miscellaneous |
| MTBF | 3,516,000 hours |
| Compliant Standards | Plug and Play, FCC |
| Dimensions & Weight | Dimensions & Weight |
| Width | 12.1 cm |
| Depth | 7.5 cm |
| Height | 2.6 cm |
| Weight | 246 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 90% (non-condensing) |
Features - Trendnet - TPE-TG52
General
5-Port
More Details
Product Code
04:399708
EAN Code
0710931162219
Manufacturer
Trendnet
