TRENDnet USB VGA KVM Extension Kit — up to 100 m
KVM over Cat5e100 mVGA 1920 × 1200Local + remote console
The TRENDnet USB VGA KVM Extension Kit (TK-EX4) lets you operate a computer or server from up to 100 metres away: the VGA monitor, USB keyboard and USB mouse at the remote desk work as if they were plugged into the machine.

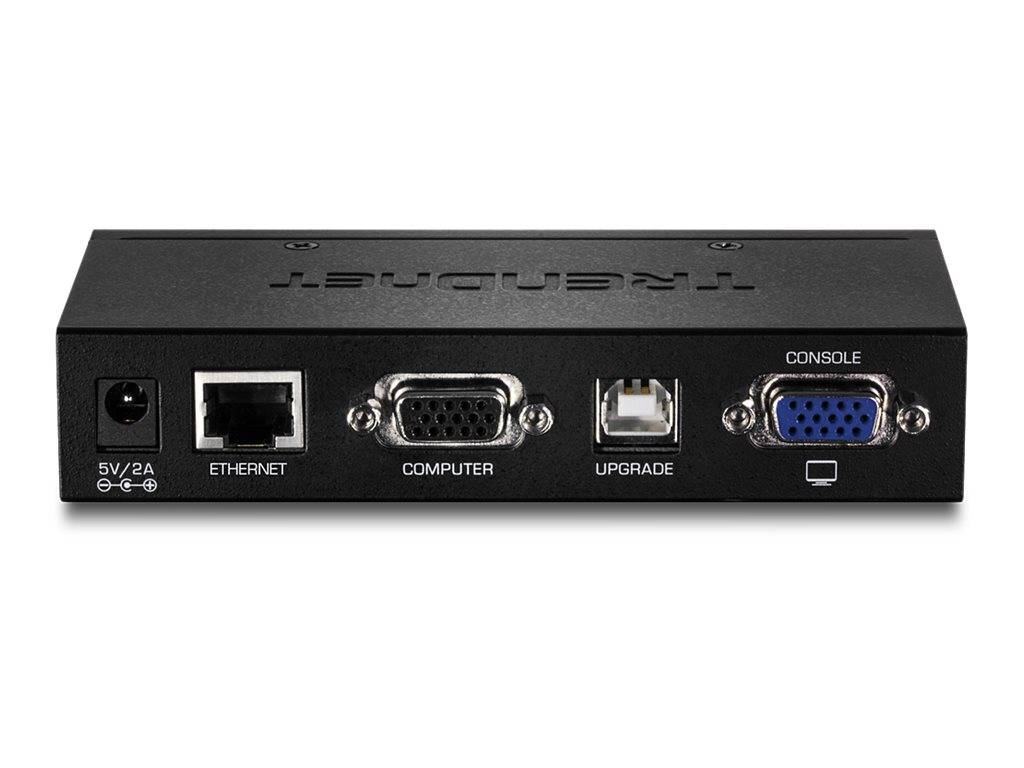

The transmitter also keeps a local console, so the same computer can be used both beside the rack and from an office or control room. An on-screen display with password protection, hotkeys and view-only mode makes it suitable for server rooms and industrial PCs.
Before you order: Video is VGA only. For HDMI or DisplayPort computers you would need an active converter — tell us the source and we will suggest the right option.
What's in the Box

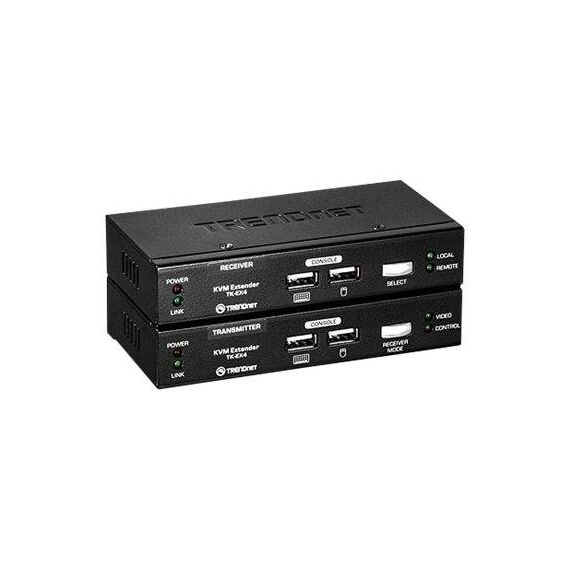

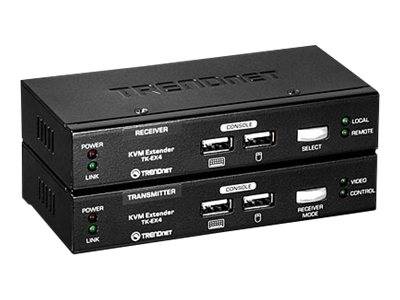

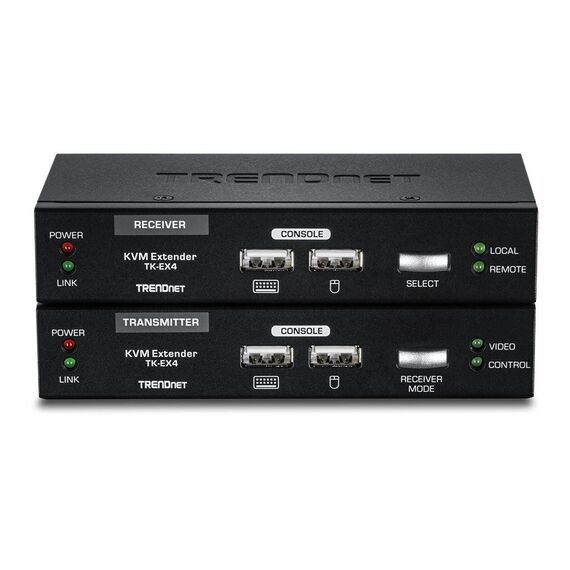

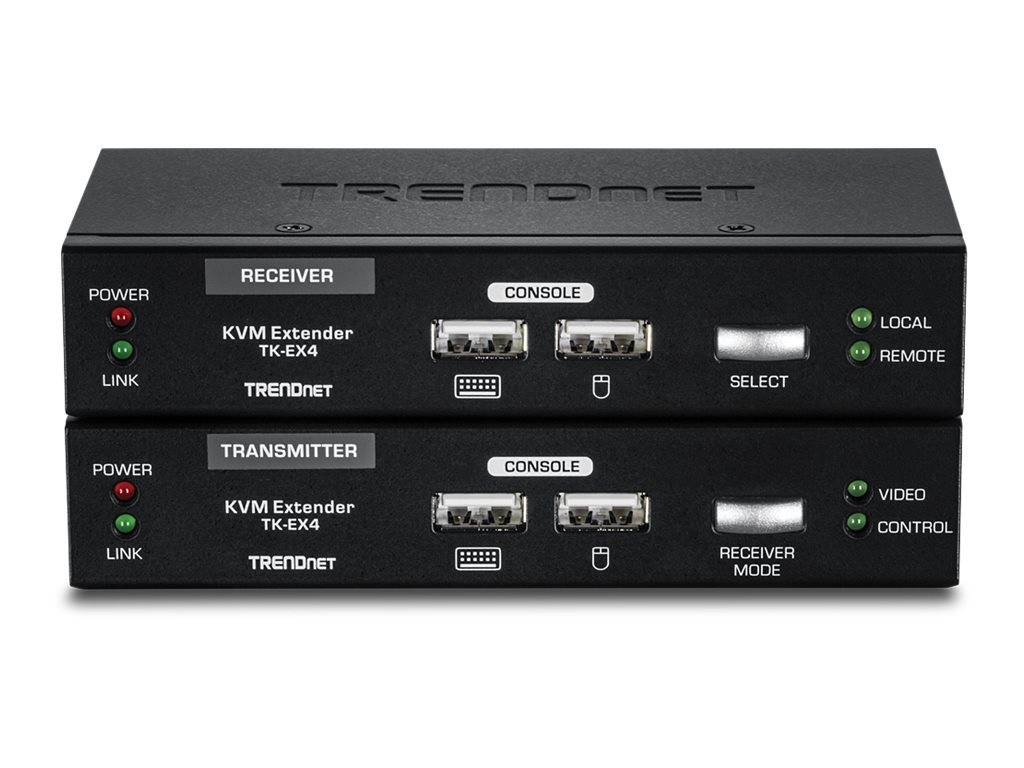

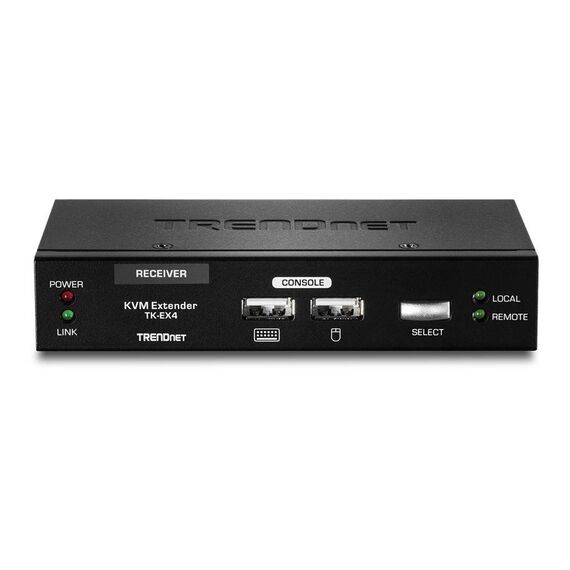

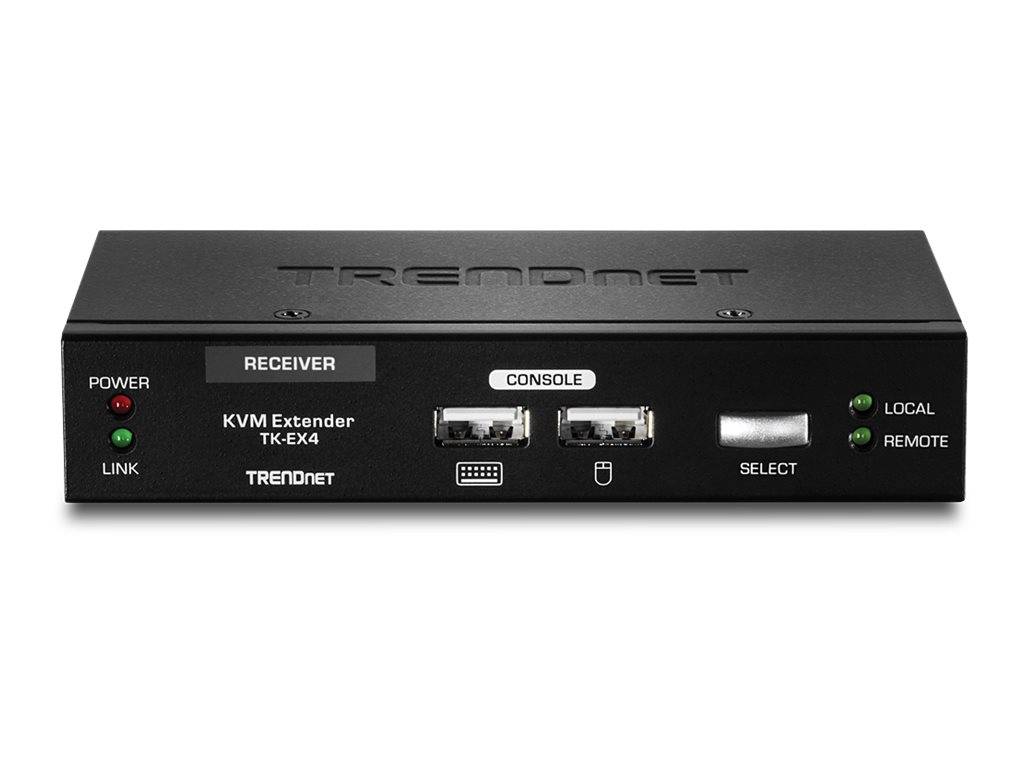

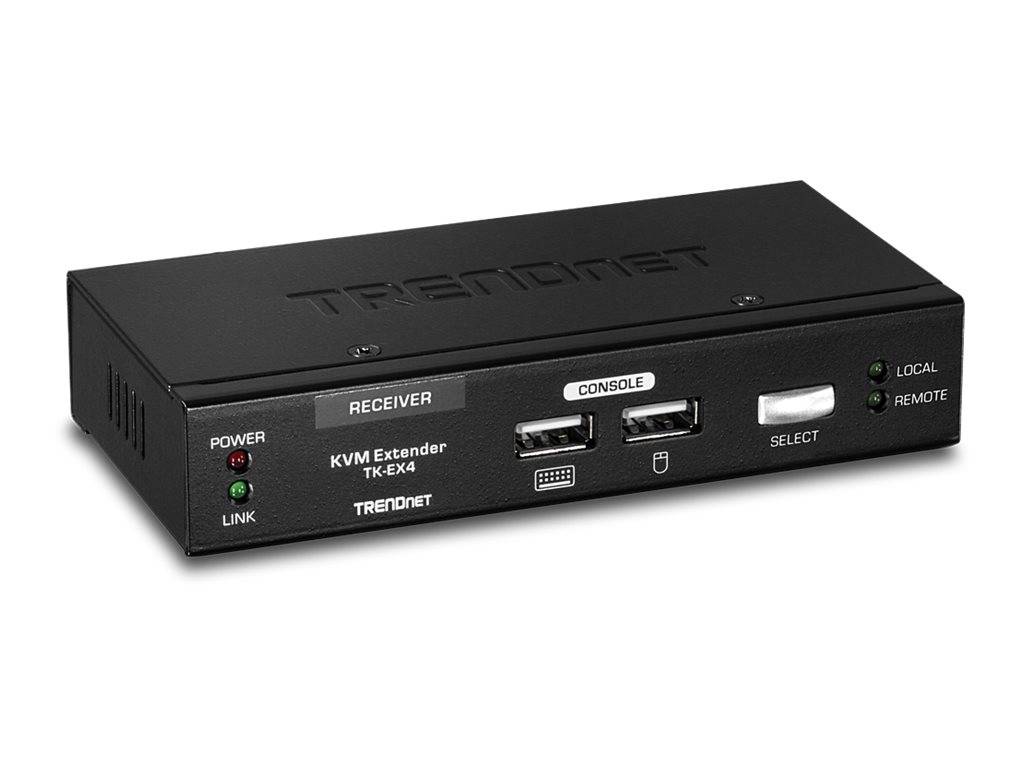

- 1 × transmitter and 1 × receiver
- 2 × 3-in-1 VGA KVM cables (1.2 m)
- 1 × USB-A to USB-B cable (1.2 m)
- 2 × power adapters 5 V DC / 2 A
- 2 × USB to PS/2 adapters
- Quick installation guide
- Network cable not included
What It Means in Practice
- Up to 100 m over a single Cat5e or better cable at up to 1920 × 1200.
- Local console at the computer and remote console at the far end — both usable.
- Connects to a TRENDnet KVM switch to reach several servers from one remote desk.
- OSD with password and auto-logout, console override and view-only mode for shared environments.
What Will Not Work
- No HDMI, DVI or DisplayPort — VGA only.
- No audio extension.
- Both units need mains power (two adapters supplied).
- It does not run through a network switch — use one direct Cat5e/6 cable.
Key Features
100 m KVM
Keyboard, video and mouse over Cat5e or better.
Up to 1920 × 1200
VGA with EDID emulation.
Security
OSD password, auto-logout, view-only mode.
Flexible host
USB or PS/2 computers (PS/2 adapters included).
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A dependable way to operate a VGA server or industrial PC from another room over standard network cable, while keeping a local console. Use a good Cat5e or Cat6 run — see our network cables.
✓ Buy it if you need to control a VGA computer up to 100 m away with USB keyboard and mouse.
✕ Skip it if your computer and monitor use HDMI/DisplayPort, or you need audio.
→ Also consider Digitus HDMI KVM IP extender (DS-55529 set) for HDMI computers.
Not sure about your server’s video output? Send us the model and we will check before you order.
Features - Trendnet - TK-EX4
Length
100m
More Details
Product Code
04:190471
EAN Code
0710931170009
