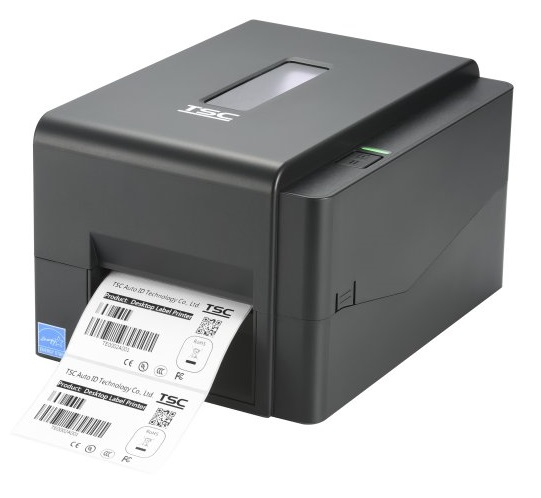

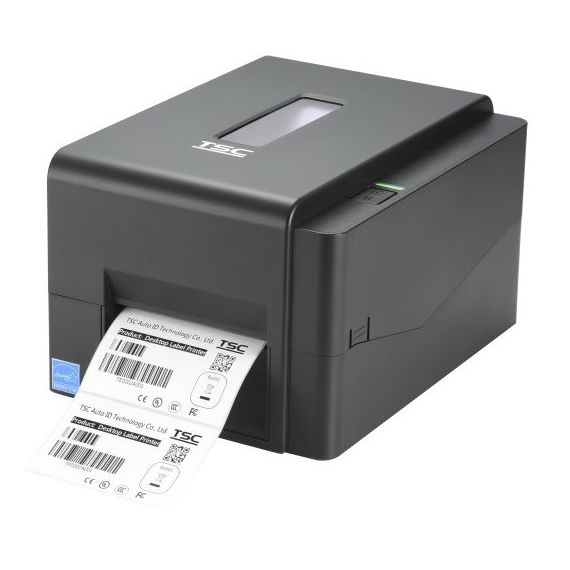

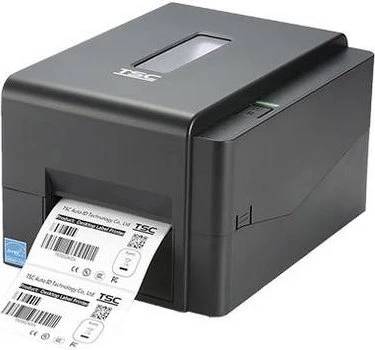

TSC TE210 - Label printer - direct thermal / thermal transfer - Roll (11.2 cm) - 203 dpi - up to 152.4 mm/sec - USB 2.0, LAN, USB host, RS232 | 99-065A301-00LF00
TSC TE210 - Label printer - direct thermal / thermal transfer - Roll (11.2 cm) - 203 dpi - up to 152.4 mm/sec - USB 2.0, LAN, USB host, RS232 | 99-065A301-00LF00
€358.05 inc. VAT
99-065A301-00LF00
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- 152.4 mm (6") per second print speed
- 300 meter (984") ribbon supply on a 25.4 mm (1") core (coated outside)
- 72 to 110 meter (361") ribbon supply on a 12.7 mm (0.5") core (coated outside)
- 127 mm (5") OD internal media supply, optional external media holder supports 214 mm (8.4") OD label rolls on 76.2 mm (3") core
- Print mechanism for kiosk applications
- Internally scalable true type fonts
- TSPL-EZD firmware emulates TPLE, TPLZ, and TPLD languages out of the box
- ENERGY STAR qualified
Product Specification
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Printer | |
| Print Speed | Up to 152.4 mm/sec - max speed |
| Connectivity Technology | Wired |
| Interface | USB 2.0, LAN, USB host, RS232 |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | ZPL, ZPL II, EPL, DPL, TSPL-EZD |
| Fonts | CG Triumvirate Bold Condensed |
| Styles & Effects | Rotated text |
| Features | Realtime clock, ribbon end sensor, open head sensor, Black Mark sensor (position adjustable), transmissive/gap sensor |
| Fonts Included | 8 x bitmapped <br /> 1 x scalable |
| Barcodes | Code 93, Code 39, Code 49, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, LOGMARS, UPC-A, UPC-E, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, PLANET, China Post, Plessey, Code 128B, Code 128C, Micro QR code, Code 128A, ITF-14, EAN-128, EAN-8, EAN-13, MSI, UPC-2, UPC-5, Deutsche Post Identcode, Deutsche Post Leitcode, GS1 DataMatrix |
| RAM | |
| RAM Installed (Max) | 64 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | |
| Flash Memory | 128 MB |
| Media Handling | |
| Media Type | Continuous labels, die cut labels, fanfold labels, black mark labels |
| Max Media Size | Roll (11.2 cm) |
| Min Media Size (Custom) | 20 mm x 5 mm |
| Max Media Size (Custom) | 112 mm x 25400 mm |
| Media Sizes | Roll (2 - 11.2 cm) |
| Max Printing Width | 108 mm |
| Max Printing Length | 25400 mm |
| Media Thickness Range | 0.06 mm - 0.19 mm |
| Roll Maximum Outer Diameter | 127 mm |
| Roll Core Diameter | 25.4 mm, 38 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.2 cm) |
| Expansion / Connectivity | |
| Connections | 1 x USB 2.0 - 4 pin USB Type B <br /> 1 x LAN - RJ-45 <br /> 1 x RS-232 <br /> 1 x USB host - 4 pin USB Type A |
| Miscellaneous | |
| Included Accessories | 1" label spindle, 1" ribbon paper core, 2 x fixing tabs, 2 x 1.5" adapters, 2 x 1" ribbon spindles |
| Cables Included | 1 x USB cable |
| Compliant Standards | FCC Class B certified, UL, TUV, cUL, C-Tick Class B, CCC, RoHS, WEEE, REACH, KC, EAC, BIS, CoC |
| Power | |
| Power Device | Power adapter - external |
| Voltage Required | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years <br /> Limited warranty - printhead - 1 year / 25 km <br /> Limited warranty - platen - 1 year / 50 km |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 25 - 85% (non-condensing) |
| Dimensions & Weight | |
| Width | 20.4 cm |
| Depth | 28 cm |
| Height | 16.4 cm |
| Weight | 2.5 kg |
Features - APC - 99-065A301-00LF00
More Details
Product Code
04:516079
EAN Code
4060533187865
Manufacturer
APC
