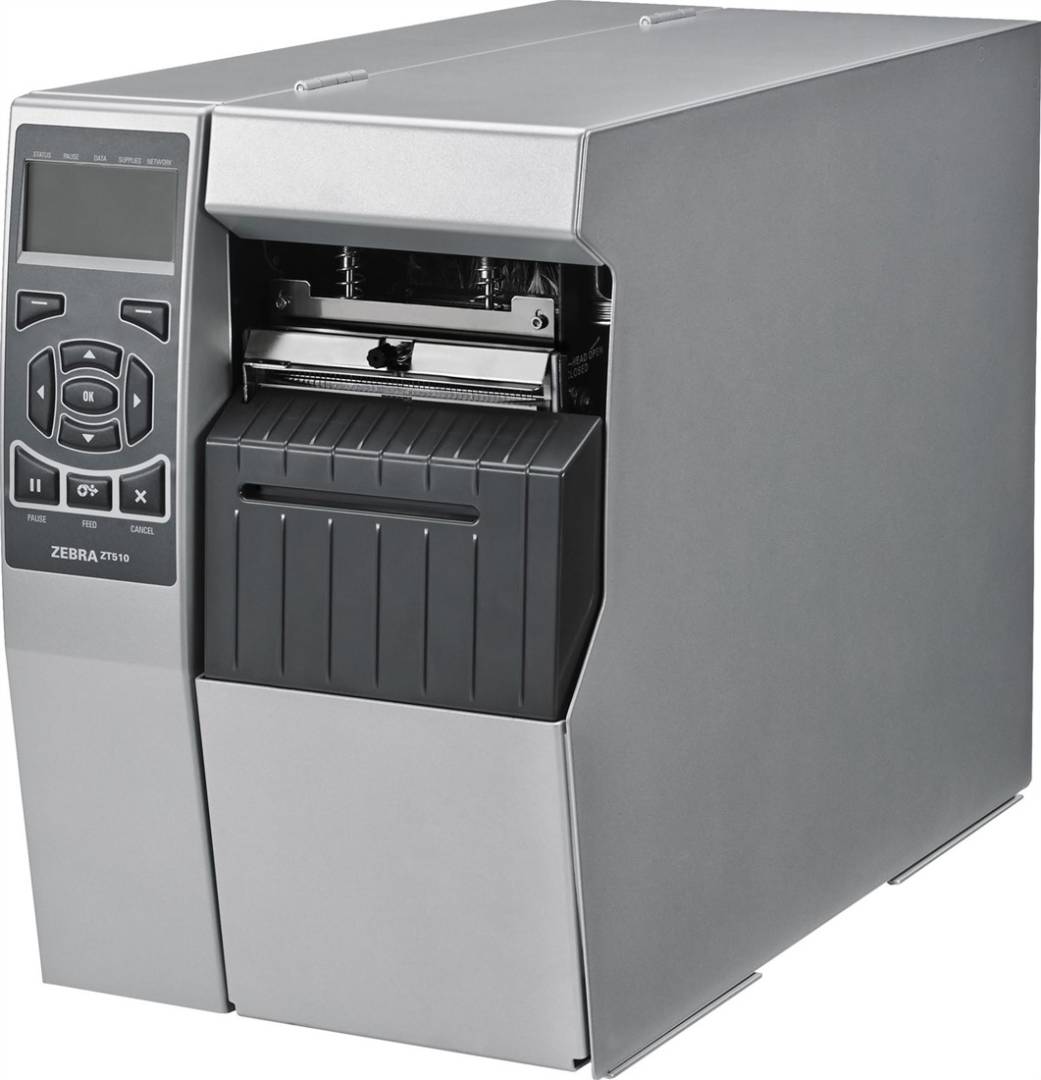

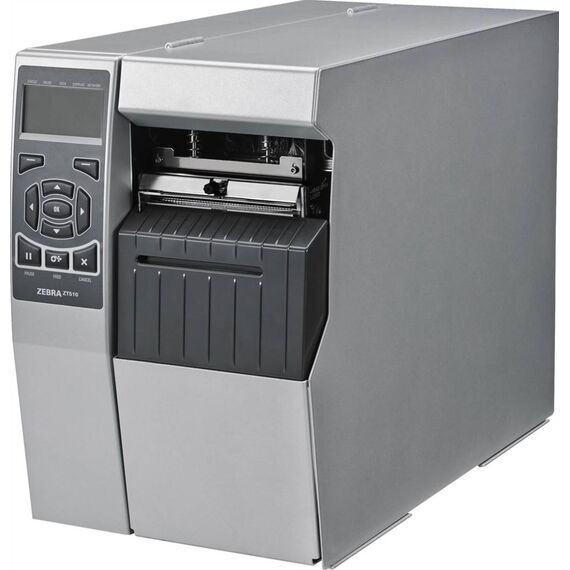

Zebra ZT510 Industrial Label Printer, 203 dpi, Cutter, Thermal Transfer & Direct Thermal, Gigabit Ethernet, USB, RS-232 & Bluetooth LE

Brand:
Zebra
Zebra ZT510 203 dpi Cutter Label Printer
Zebra ZT510 Industrial Label Printer, 203 dpi, Cutter, Thermal Transfer & Direct Thermal, Gigabit Ethernet, USB, RS-232 & Bluetooth LE
€3308.1 inc. VAT
Buy
ZT51042-T1E0000Z
€2,779.92
€3,308.10 inc. VAT
Ships from EU stock: 4 item(s)
+ −
Add to wish list Ask a question
Product Code
V368520
EAN Code
8596375178212
Manufacturer
Zebra
Features
Bluetooth

Quick Specs

Resolution
203 dpi
Handling
Cutter fitted
Print width / speed
104 mm / up to 305 mm/s
Interfaces
USB, Serial, Gigabit LAN, BLE
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Zebra ZT510 203 dpi Cutter Industrial Label Printer

203 dpiCutter fitted104 mm / up to 305 mm/sUSB, Serial, Gigabit LAN, BLE

The ZT51042-T1E0000Z is the 203 dpi Zebra ZT510 industrial label printer with a fitted cutter. It prints barcodes, text and graphics up to 104 mm wide using thermal transfer or direct thermal media. The cutter separates printed media under software control, making this configuration useful for batches of individually cut labels or strips. USB, RS-232, Gigabit Ethernet and Bluetooth LE provide the verified connections; Wi-Fi is not fitted.

Before you order:
This is the 203 dpi cutter configuration, with a maximum print speed of 12 ips / 305 mm/s. Cutter media must be 0.076–0.23 mm thick with a minimum 38 mm label length; qualify the stock and cutting workflow before use. Parallel and USB Host require optional cards.

What's in the Box

  • Zebra ZT51042-T1E0000Z printer with 203 dpi printhead and cutter.
  • EU and UK power cables; order the interface cable separately.

What It Means in Practice

  • For a label batch, load suitable stock, add a matching ribbon for thermal transfer, calibrate and send the format from your host application. Configure the software to cut individual labels or groups as required.
  • Direct thermal needs heat-sensitive stock without ribbon; thermal transfer requires a ribbon matched to the label material. The cutter separates media but does not automatically stick labels onto products.
  • The 203 dpi printhead should be chosen around the smallest text and barcode in your label. Test actual supplies, layout and cut frequency rather than assuming the maximum 305 mm/s is the sustained cut-batch speed.

What Will Not Work

  • The cutter option is not compatible with rewind and peel options according to Zebra.
  • This SKU does not provide fitted Wi-Fi, Parallel or USB Host. Bluetooth LE is mainly for setup and light data transfer.
  • Do not use non-thermal paper for direct thermal output or operate thermal transfer without a suitable ribbon.

Key Features


203 dpi with a fitted cutter
The software-controlled guillotine cuts individual labels or strips. Match cutter thickness and minimum label length to the media before deploying the workflow.

104 mm width, up to 305 mm/s
The 203 dpi engine supports production label layouts at up to 12 ips. Actual print-and-cut throughput depends on supplies, layout and cut frequency.

Industrial construction and controls
A metal frame, backlit multi-line LCD, keypad, RTC and reflective/transmissive media sensors support a fixed warehouse or production workstation.

Wired network integration
Gigabit Ethernet, USB 2.0 and RS-232 connect to compatible systems. ZPL, ZPL II and XML-enabled printing are supported; Link-OS tools support setup and management.

Technical Specifications

Identification
Brand / model Zebra ZT510
Manufacturer part number ZT51042-T1E0000Z
EAN 8596375178212
Type / colour Industrial label printer / grey
Print engine
Printing methods Thermal transfer and direct thermal
Resolution 203 dpi (nominal 8 dots/mm)
Maximum print width 104 mm
Programmable print speeds 2.4, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 ips; maximum 305 mm/s
Maximum print length 3810 mm continuous; 991 mm non-continuous
Minimum label length, cutter 38 mm in cutter mode; depends on media, ribbon and speed
Registration tolerance Vertical ±0.75 mm at up to 6 ips, ±1.5 mm above 6 ips; horizontal ±1.5 mm; supply/application dependent
Barcode X dimension Non-rotated and rotated: 4.9–49 mil
Performance conditions Manufacturer reference tests use Zebra Certified Supplies; qualify actual media, ribbon, layout and speed for the application
Media and ribbon
Supplied media handling Software-controlled guillotine cutter; individual labels or strips; incompatible with rewind/peel
Media width, label and liner 20–114 mm
Media thickness, cutter 0.076–0.23 mm, cutter limit
Media types Continuous, die-cut, notch, hole, black mark
Maximum media roll / core 203 mm outside diameter / 76 mm inside diameter
Media sensors Transmissive and reflective
Gap / notch / hole sensing Gap 2–4 mm (3 mm preferred); notch 6 × 3 mm; hole diameter 3 mm
Black-mark sensing Length 3–11 mm; width greater than 11 mm; within 1 mm of inside edge; density greater than 1.0 ODU; media density maximum 0.5 ODU
Ribbon 450 m standard length; 51–110 mm width; coated side out
Ribbon roll / core 81.3 mm maximum outside diameter / 25.4 mm inside diameter
Connectivity, controls and software
Fitted interfaces USB 2.0, RS-232, Gigabit Ethernet (10/100/1000 Mbit/s), Bluetooth LE
Base Bluetooth / NFC Bluetooth LE for setup/light data transfer; static NFC tag for Print Touch pairing
Optional interfaces Wi-Fi, Parallel and USB Host cards; not included
Processor Cortex-A9 800 MHz
Installed memory 512 MB SDRAM / 2 GB Flash
User-available memory 32 MB DRAM / 512 MB Flash
Display / controls Backlit multi-line graphic LCD, keypad, programmable password protection, real-time clock
Calibration / alerts Automatic media calibration at power-on or printhead closure; printhead-cleaning alerts
Print languages / management ZPL, ZPL II, XML-enabled printing; Link-OS, Zebra Setup Utility, WebView and Alert
Fonts / graphics 16 resident expandable ZPL II bitmap fonts, 2 scalable ZPL fonts, Unicode; downloadable fonts, graphics and formats
Code pages 850; 1250, 1252, 1253, 1254, 1255 with font 0
Linear barcodes Code 11, Code 39, Code 93, Code 128 A/B/C, UCC Case Codes, ISBT-128, UPC-A/E, EAN-8/13, UPC/EAN 2/5-digit extensions, Plessey, Postnet, Standard/Industrial/Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
2D barcodes Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 and composite, Aztec
Power, physical and environment
Construction Metal frame
Dimensions, closed (W × D × H) 268.2 × 512.3 × 395.68 mm
Weight 22.7 kg
Power supply rating 90–265 VAC, 47–63 Hz, 250 W rated, power-factor correction; not typical consumption
Operating temperature Thermal transfer 5–40 °C; direct thermal 0–40 °C
Storage / transport temperature −30–60 °C
Operating / storage humidity 20–85%, non-condensing
Compliance ENERGY STAR; CE; IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3
Package
Verified included items Printer; EU and UK power cables
Separately required Suitable media; ribbon for thermal transfer; interface cable if used; compatible host application/workflow

Frequently Asked Questions

Is the cutter included in this exact SKU?
Yes. ZT51042-T1E0000Z is the 203 dpi cutter configuration. The guillotine operates under software control to cut individual labels or strips.
Does it also peel or rewind the labels?
No. Zebra specifies the cutter as incompatible with rewind and peel options. It separates media; an operator or separate equipment handles label application.
Which connections and supplies do I need?
The verified interfaces are USB, RS-232, Gigabit Ethernet and Bluetooth LE. EU/UK power cables are included; order an interface cable separately. Choose suitable cutter-compatible media and a matching ribbon for thermal transfer.
Singular Expert Insight
Choose this 203 dpi configuration for an actual cutting requirement. Match label detail, stock thickness and cut frequency to your process; the print-engine speed alone does not describe finished batch throughput. label printers at Singular.

Buyer’s Guide

✓

Buy it if

 You need a 203 dpi industrial 104 mm printer with automatic cutting.
✕

Skip it if

 Your process needs peel-and-present, rewind or fitted Wi-Fi.
→

Also consider

 A different resolution for finer text, or a tear-off configuration when automatic cutting adds no value.
Ask Singular to check your label size, material, ribbon and software workflow before selecting the final printer configuration.
