Ubiquiti UniFi Access Gate Hub Controller PoE++ DIN-Rail 5x GbE UA-Hub-Gate

Brand:
Ubiquiti
UA-Hub-Gate
€370.64
€441.06 inc. VAT
Out of stock
Add to wish list Ask a question
Product Code
04:520030
EAN Code
0810084699997
Manufacturer
Ubiquiti
Quick Specs
Supported Doors
1 gate + 1 side door
Max Users
6,000
Networking
5x GbE RJ45
Power
PoE++ in, 4x PoE+ out
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

UniFi Access Gate Hub

1 Gate + 1 Door6,000 UsersPoE++

The Ubiquiti UniFi Access Gate Hub (UA-Hub-Gate) is a wired access controller for automated gates and adjoining side doors, part number UA-Hub-Gate, built for properties that need vehicle and pedestrian access control in one hub. Typically in stock with fast delivery across Cyprus.

Before you buy: the Gate Hub requires the UniFi Access application on a UniFi OS console/gateway, plus readers, locks and gate operator wiring which are sold separately. It mounts on a DIN rail inside a suitable enclosure and is designed for indoor use unless installed in a waterproof junction box.

Key Features


Gate and Side Door in One
Controls a gate operator plus a side door from a single hub, sharing user credentials and access rules.

License Plate Recognition Ready
Integrates with UniFi Protect AI cameras for automatic vehicle access without a card or fob.

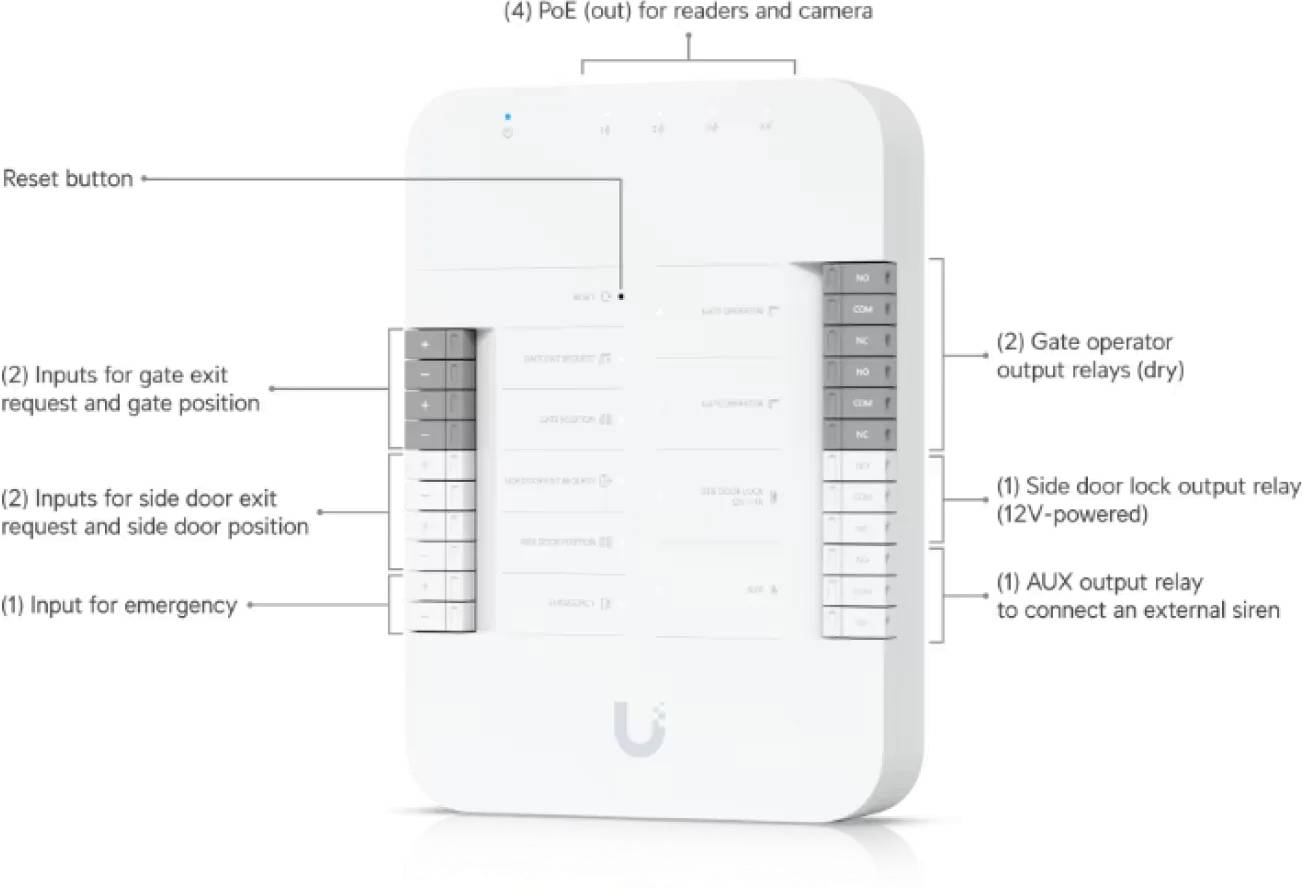

Flexible I/O and PoE++ Output
Dedicated dry relays for gate/aux plus a powered 12V door lock output, with 4 PoE+ ports for readers and cameras.

Technical Specifications

Identification
Part Number UA-Hub-Gate
EAN / GTIN 0810084699997
MPN UA-Hub-Gate
Capacity
Supported Doors 1 gate, 1 side door
Max Users 6,000
Networking and Power

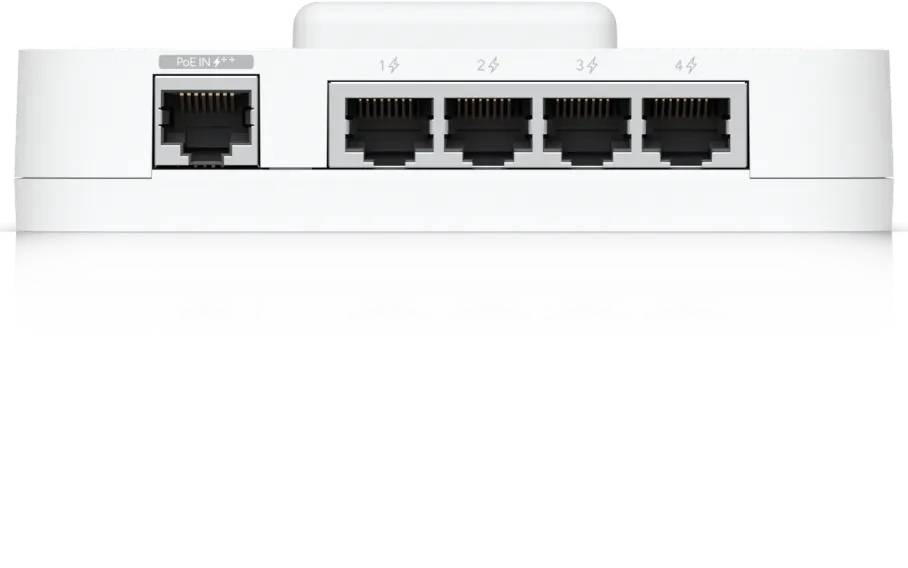

Network Ports 5x 10/100/1000 Base-T
PoE Input PoE++, 50V DC, 1A
PoE Output 4x PoE+, 50V DC, up to 30W per port (55W aggregated)
Max Power Draw 22W without PoE output, 60W with PoE output
Hardware

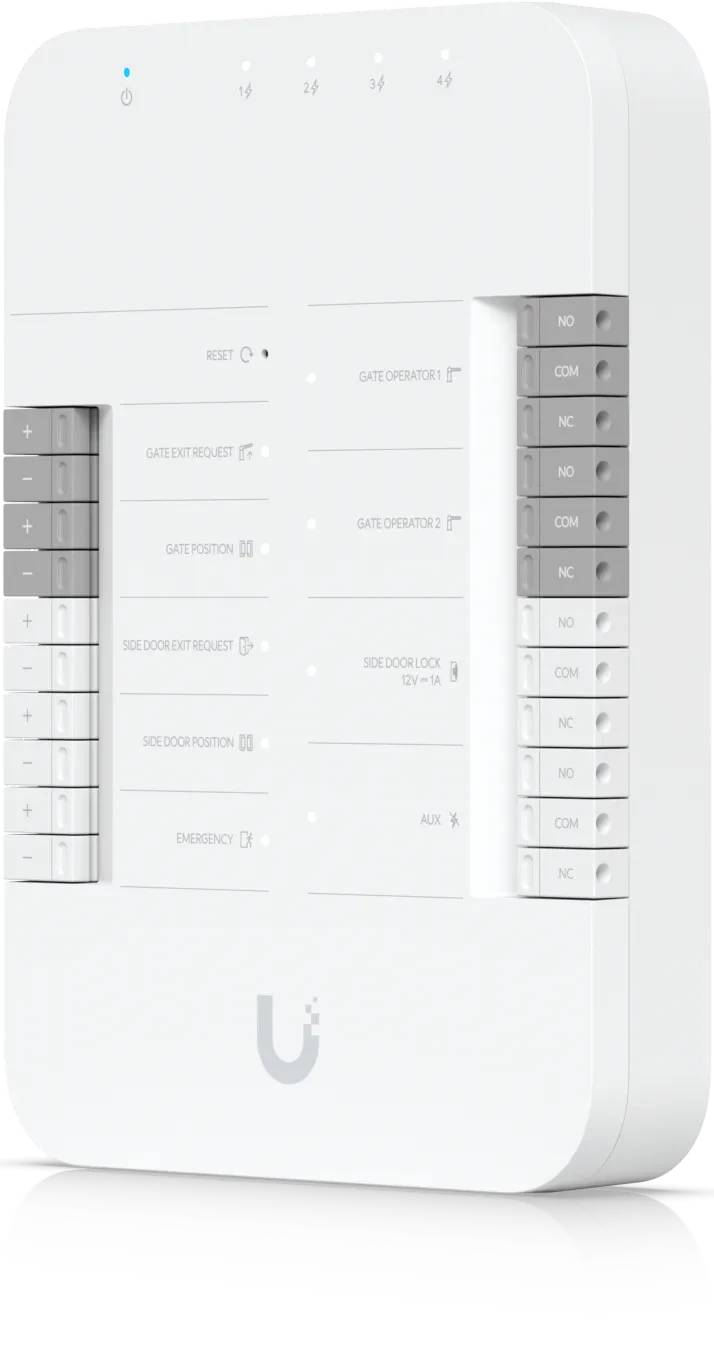

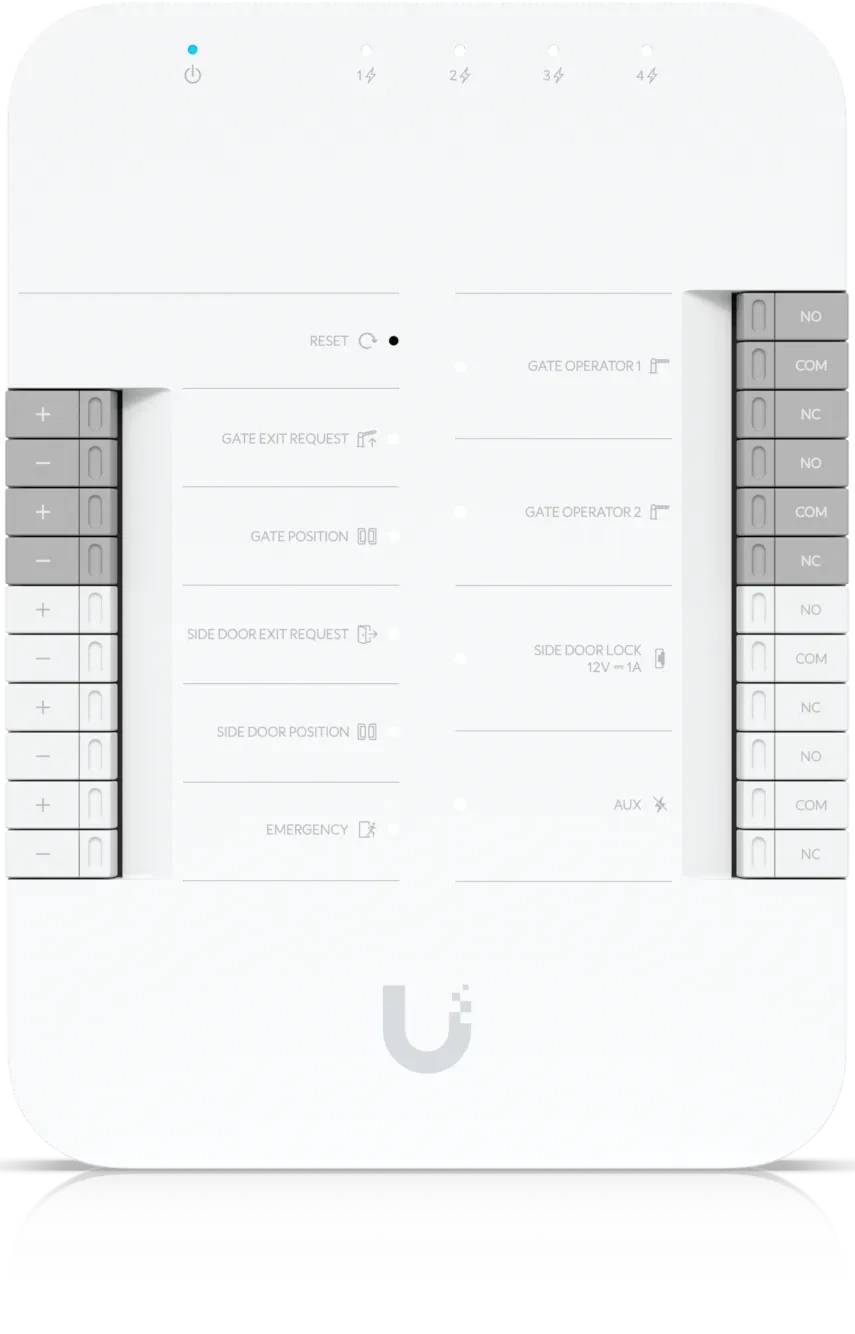

Dry Output Relays 2x operator (30V DC, 1A), 1x aux (30V DC, 1A)
Powered Output Side door lock, 12V DC, up to 1A
Physical
Dimensions 175 x 126 x 26 mm
Weight 460 g

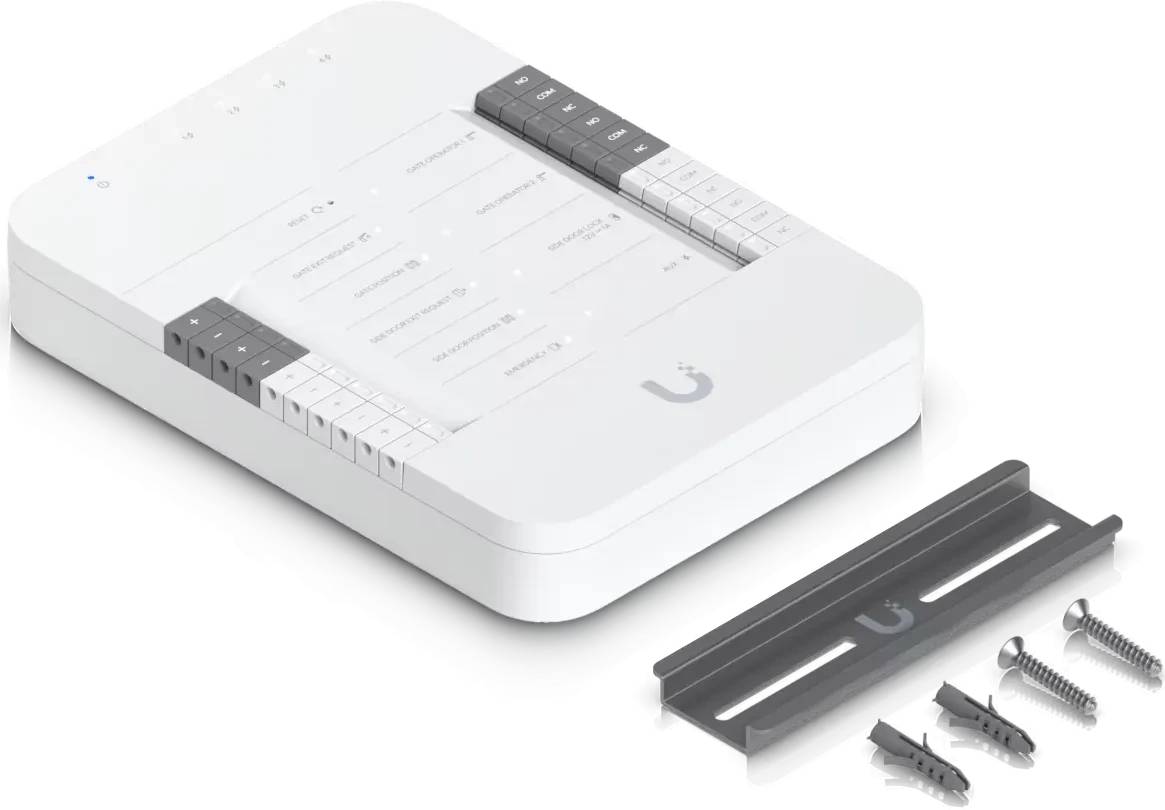

Enclosure Polycarbonate, DIN-rail mount included
Operating Range -30 to 60 degC, 5-90% humidity noncondensing

FAQ

Does the Gate Hub work with UniFi Protect cameras?
Yes. It supports license plate recognition through UniFi Protect AI cameras for automatic vehicle access, alongside standard readers.
Is the Gate Hub suitable for outdoor installation?
The hub itself is designed for indoor mounting; for outdoor placement it must be installed inside a waterproof junction box.
What do I need before buying the Gate Hub?
A UniFi OS console running the Access application, compatible readers or cameras, gate operator wiring, and locks - none of which are included.
Singular Expert Insight
Choose the Gate Hub over the standard UniFi Access Hub when a property has an automated gate alongside a pedestrian side door, since it adds the dedicated gate relays the standard hub lacks. Pair it with a UniFi IP camera for licence-plate-based entry.

Buyer Guide

Buy it if
You need combined gate and side-door access control on a UniFi Access system.
Skip it if
You only need a single interior door - a standard Door Hub is simpler and cheaper.
Also consider
UniFi Door Hub for interior-only doors, or Door Hub Mini for single-door budget setups.
