Ubiquiti UACC-CWDM-8, 8-channel optical mux/demux

Brand:
Ubiquiti

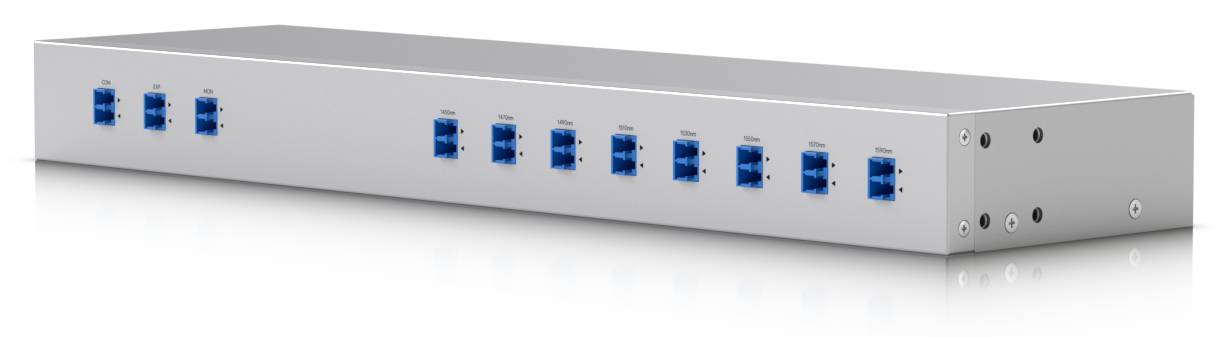

Ubiquiti UACC-CWDM-8, angled front view of the eight-channel unit
Ubiquiti UACC-CWDM-8, 8-channel optical mux/demux
€559.05 inc. VAT
Buy
UACC-CWDM-8
€469.79
€559.05 inc. VAT
Ships from EU stock: 5 item(s)
+ −
Add to wish list Ask a question
Product Code
04:511636
Manufacturer
Ubiquiti
Quick Specs
Channels
8 wavelengths, 1450–1590 nm
Connectors
Duplex LC/UPC
Fibre type
SMF-28e
Insertion loss
<2.5 dB (Max.)
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Ubiquiti CWDM Mux Demux 8 - 8-channel optical multiplexing

8 wavelengths, 1450–1590 nmDuplex LC/UPCSMF-28eInsertion loss <2.5 dB

The Ubiquiti CWDM Mux Demux 8 (UACC-CWDM-8) is a single, passive rack-mountable unit for multiplexing and demultiplexing eight optical wavelengths from 1450 to 1590 nm. It is designed to increase capacity on existing fibre infrastructure when used with compatible CWDM optics, a matching remote mux/demux and suitable host equipment.

Best For: For fibre-network operators planning an eight-wavelength CWDM link who can provide the matching remote unit, compatible optical modules, duplex single-mode fibre and host switching or aggregation hardware.
Before you order: This is one passive mux/demux, not a complete link or a pair. A matching remote UACC-CWDM-8, wavelength-compatible CWDM modules, suitable host switching/aggregation hardware, duplex single-mode fibre and patching are separate requirements and are not listed as included. Using the optional EXP expansion requires a separate CWDM Mux Demux 4 and compatible equipment at each end. No data rate, reach, aggregate bandwidth, amplification or universal module compatibility is specified.

What's in the Box

  • One Ubiquiti UACC-CWDM-8 eight-channel chassis
  • Two rack mounting ears
  • Eight ear screws
  • Four rack cage nuts
  • Four rack screws

What It Means in Practice

  • The COM connection links another CWDM Mux Demux 8 over a pair of single-mode fibre cables; it is not a one-strand simplex BiDi link.
  • The MON port supports observation using a separate optical power meter or spectrum analyser; neither instrument is listed as included.
  • The EXP port is for linking a separate CWDM Mux Demux 4 to add its four channels; it does not mean an expansion unit is included.

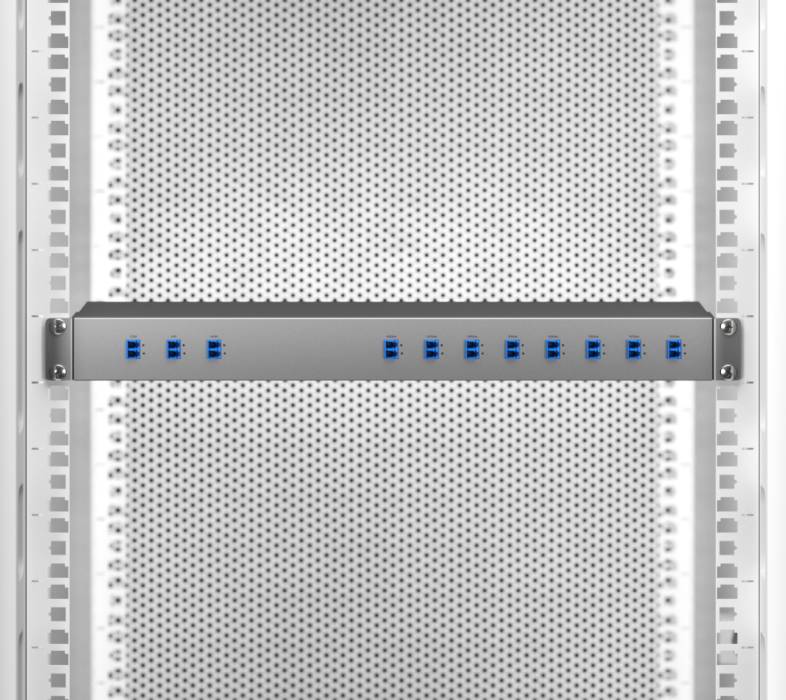

  • The chassis measures 442 × 120 × 43.7 mm and weighs 1.4 kg; check rack and cable-connector clearance for the installation.

What Will Not Work

  • Does not provide active Ethernet switching, media conversion, amplification or regeneration.
  • A second matching eight-channel mux/demux, compatible CWDM optical modules, host switching/aggregation hardware, duplex single-mode fibre and patching are separate requirements.
  • The four-channel expansion unit, rack, optical modules, fibre patch cables, host equipment, power meter and optical spectrum analyser are not listed as included.
  • No data rate, reach, guaranteed aggregate bandwidth or universal optical-module compatibility is specified.

Key Features


Eight specified wavelengths
Eight channel ports cover 1450, 1470, 1490, 1510, 1530, 1550, 1570 and 1590 nm.

Dedicated monitoring port
The duplex LC/UPC MON port supports observation with a separate optical power meter or optical spectrum analyser.

Expansion connection
The duplex LC/UPC EXP port can link a separate CWDM Mux Demux 4 to add its four channels, with compatible equipment and extra patching.

Technical Specifications

ManufacturerUbiquiti
ModelCWDM Mux Demux 8
Manufacturer SKUUACC-CWDM-8
Product typePassive 8-channel optical multiplexer/demultiplexer
Channel wavelengths1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590 nm

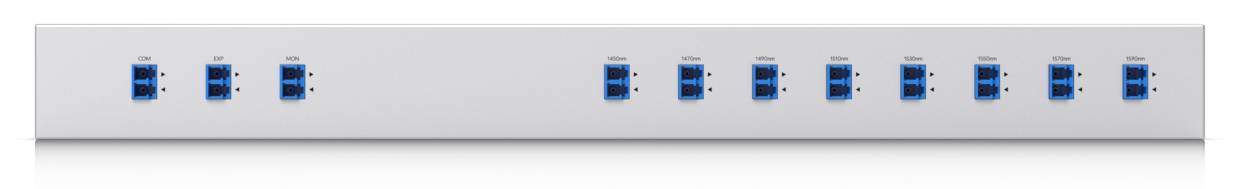

Ports8 duplex LC/UPC wavelength ports; separate duplex LC/UPC COM, MON and EXP ports
COM port roleLinks to another CWDM Mux Demux 8 using a pair of single-mode fibre cables
MON port roleOptical observation with a separate power meter or optical spectrum analyser
EXP port roleLinks to a separate CWDM Mux Demux 4 to add its four channels; compatible equipment and extra patching are required
Fibre typeSMF-28e
Pigtails and connectorsCOM: 0.9 mm black LC/UPC; other ports: 0.9 mm white LC/UPC
Minimum channel passband±6.5 nm
Insertion loss<2.5 dB (Max.)
Return loss50 dB (Min.)
Maximum power handling500 mW (optical)
Passband ripple0.3 dB (Max.)
Polarisation-dependent loss0.1 dB (Max.)
Polarisation mode dispersion0.1 ps (Max.)
Adjacent channel isolationMax. 30 dB (source specification label)
Non-adjacent channel isolationMin. 40 dB
Directivity55 dB (Min.)
EnclosureSGCC steel; silver
Dimensions442 × 120 × 43.7 mm
Weight1.4 kg
Operating temperature-30 to 75 °C
Storage temperature-40 to 90 °C
Included in packageOne 8-channel chassis, 2 rack ears, 8 ear screws, 4 rack cage nuts and 4 rack screws

Frequently Asked Questions

Is this a complete two-ended link?
No. The package is one eight-channel unit. A matching remote CWDM Mux Demux 8 and the required optics, host equipment and fibre cabling are separate.
What does the COM port connect to?
It links to another CWDM Mux Demux 8 over a pair of single-mode fibre cables.
Is a CWDM Mux Demux 4 included?
No. The EXP port can link a separate CWDM Mux Demux 4; compatible equipment at each end and extra patching are required.
Does it need power or switch Ethernet traffic?
It is a passive optical unit, not an active Ethernet switch. The reviewed installation sequence shows no power connection.
Singular Expert Insight

This exact eight-channel model carries eight specified wavelengths from 1450 to 1590 nm and provides separate COM, MON and EXP ports. Its passive design avoids treating it as a powered Ethernet switch or media converter.

Buyer’s Guide

✓ Buy it if For fibre-network operators planning an eight-wavelength CWDM link who can provide the matching remote unit, compatible optical modules, duplex single-mode fibre and host switching or aggregation hardware.
✕ Skip it if This is one passive mux/demux, not a complete link or a pair. A matching remote UACC-CWDM-8, wavelength-compatible CWDM modules, suitable host switching/aggregation hardware, duplex single-mode fibre and patching are separate requirements and are not listed as included. Using the optional EXP expansion requires a separate CWDM Mux Demux 4 and compatible equipment at each end. No data rate, reach, aggregate bandwidth, amplification or universal module compatibility is specified.
→ Also consider Plan wavelength matching, compatible optics and the full optical loss budget, including any optional EXP-connected four-channel expansion.
