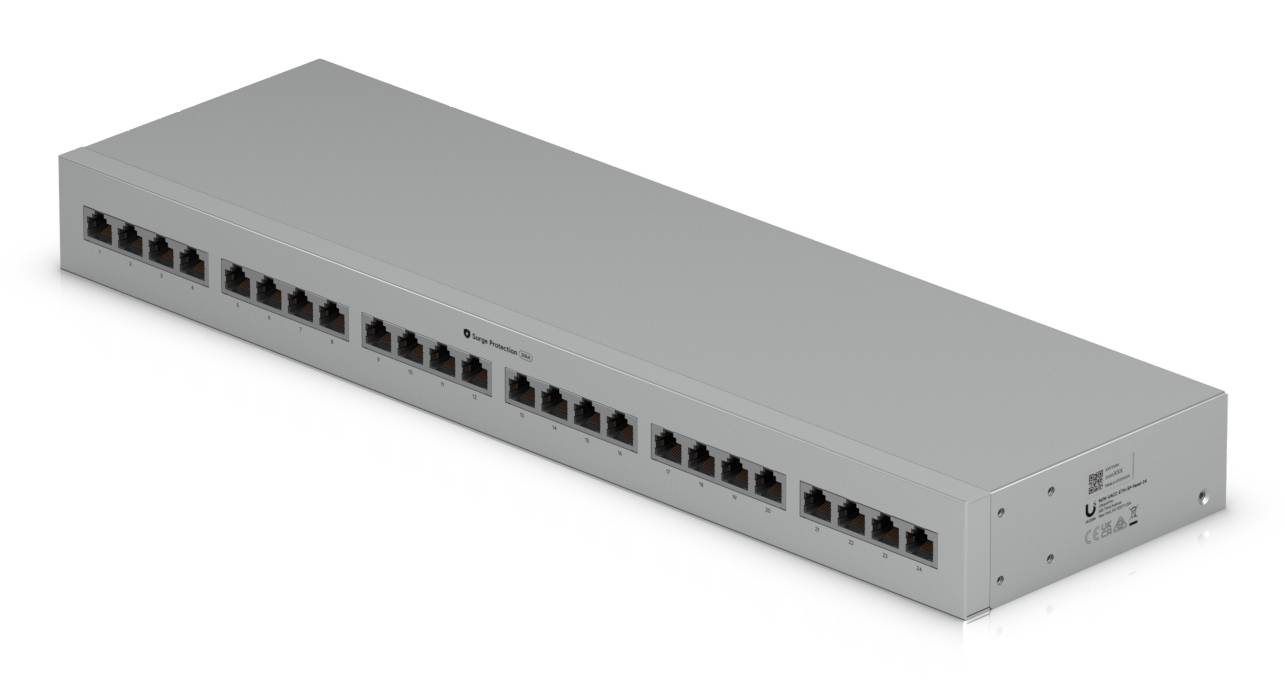

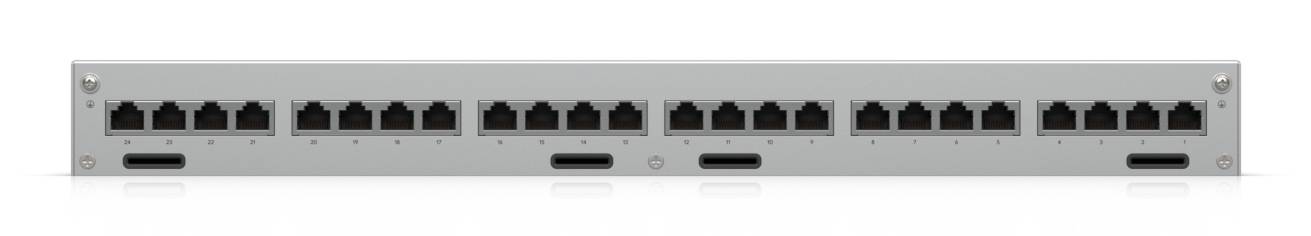

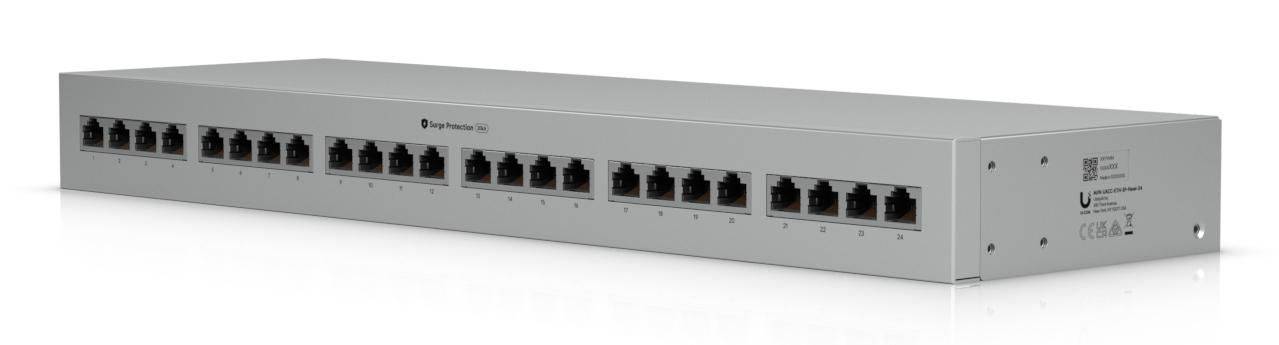

Ubiquiti UACC-ETH-SP-Panel-24 24-Port Ethernet Surge Protection Panel 1U Rackmount PoE++ 10G 20kA
Brand:
Ubiquiti
Ubiquiti UACC-ETH-SP-Panel-24 24-Port Ethernet Surge Protection Panel 1U Rackmount PoE++ 10G 20kA
€588.42 inc. VAT
UACC-ETH-SP-Panel-24
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
UACC-ETH-SP-Panel-24 — 24-Port Ethernet Surge Protection Panel
24 Ports20 kA / Port10G DataPoE++1U Rackmount
The Ubiquiti UACC-ETH-SP-Panel-24 is a 1U rack-mount Ethernet surge protection panel that shields up to 24 network links from lightning and transient surges, ideal for protecting outdoor-connected access points, cameras and links. Identified by part number UACC-ETH-SP-Panel-24, it passes 10 Gbps data and PoE++ through 48 RJ45 ports (24 in, 24 out) while diverting up to 20 kA per port to earth. Typically in stock with fast delivery across Cyprus.
Before you buy: Surge protectors only work when properly earthed — bond the panel to a good ground for it to divert surges. It installs inline between your equipment and the exposed cable runs (24 in / 24 out). It passes PoE++ and up to 10 Gbps, so it will not bottleneck modern links. It protects the data path; it does not replace mains surge protection or an isolated grounding system.
Best For
✓Protecting outdoor APs and cameras
✓Buildings with exposed cable runs
✓Racks aggregating many links
✓Lightning-prone sites
✓PoE++ and 10G deployments
✓UniFi and general network installs
Key Features
24 protected links in 1U
A single 1U panel protects up to 24 Ethernet runs (48 RJ45 ports, 24 in / 24 out), consolidating surge protection for a whole rack of outdoor links.
20 kA per-port discharge
Each port can divert up to 20 kA of surge current to earth, shielding connected switches, APs and cameras from lightning-induced transients.
10G data & PoE++
Low-capacitance protection passes up to 10 Gbps and PoE++ power, so it works with multi-gig links and high-power PoE devices without loss.
Rugged, wide-temperature build
An SGCC-steel 1U chassis rated -40 to +80° C suits demanding indoor comms rooms and mixed environments.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
If you have several outdoor-connected devices — rooftop APs, external cameras, building-to-building links — a panel like this centralises surge protection in one grounded 1U unit instead of many inline protectors. For a single link, a standalone ETH-SP is cheaper. Whatever you choose, the earth bond is what makes it work, so plan grounding first. Pair it with your rack switches and gateway.
Buyer’s Guide
Buy it if
You need centralised, grounded surge protection for many outdoor-connected 10G/PoE++ Ethernet links in a rack.
Skip it if
You only have one or two links to protect, or you cannot provide a proper earth ground.
Also consider
A standalone ETH-SP surge protector for single links, or proper grounding kit to complete the install.
Features - Ubiquiti - UACC-ETH-SP-Panel-24
Colour
grey
Interface
- Ethernet
Standard
24-Port
Port Speed
- 10 Gbps
More Details
Product Code
04:547590
EAN Code
0810177161851
Manufacturer
Ubiquiti
