Ubiquiti LiteBeam ac LR LBE-5AC-LR Outdoor 5GHz airMAX ac Bridge 26dBi 450Mbps 25km PoE

Brand:
Ubiquiti
LBE-5AC-LR
€133.21 €148.01
€158.52 inc. VAT
Out of stock
Add to wish list Ask a question
Product Code
04:301585
EAN Code
0817882027403
Manufacturer
Ubiquiti

Quick Specs

Wireless Standard
airMAX ac
Antenna Gain
26 dBi
Max Range
25+ km
Power
24V PoE
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

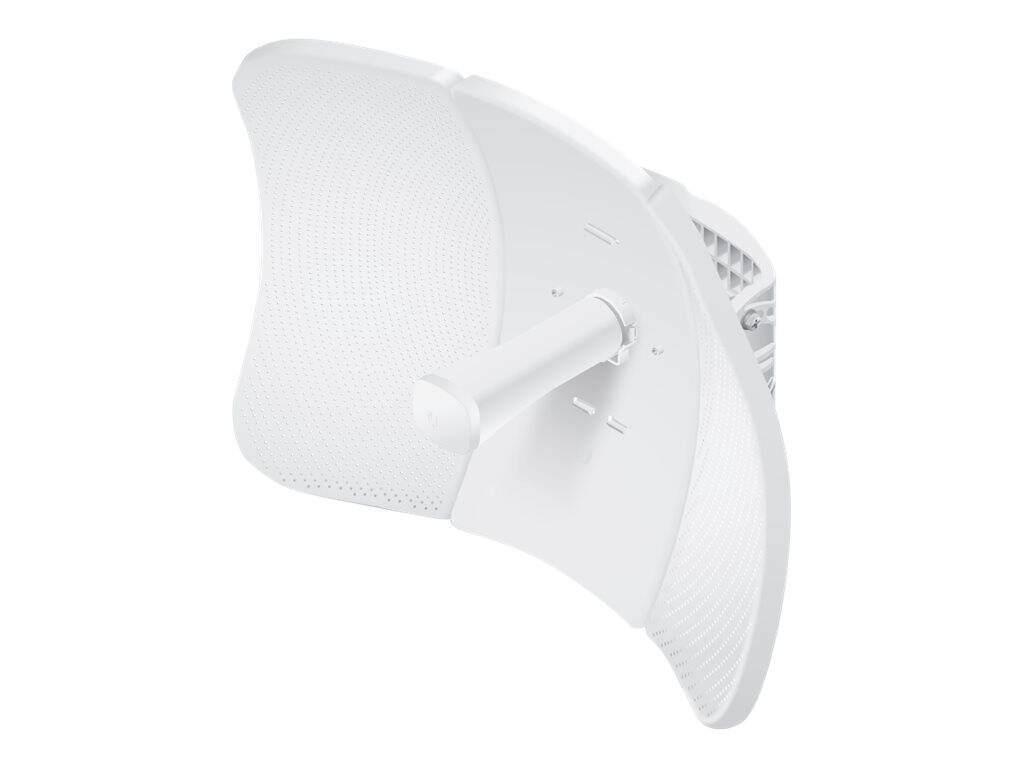

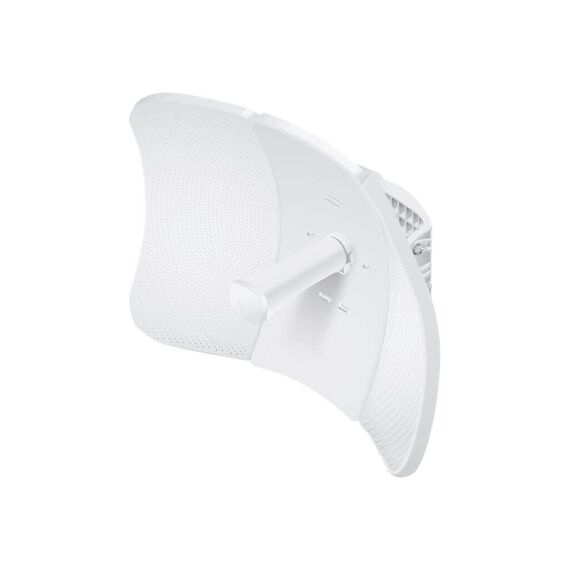

Ubiquiti LiteBeam ac LR — Long-Range Outdoor Bridge

26 dBi25+ km450+ Mbps

The Ubiquiti LiteBeam ac LR (part number LBE-5AC-LR) is a long-range outdoor airMAX ac bridge with a 26 dBi high-gain dish, supporting 5GHz point-to-point links beyond 25km at 450+ Mbps. Typically in stock with fast delivery across Cyprus.

Compatibility: For a point-to-point link you need two units (one at each end), or pair with an airMAX ac base station for point-to-multipoint. The large reflector needs sturdy pole mounting for long-range links.

Key Features

Dedicated Management Radio
A separate Wi-Fi radio handles app-based configuration without disrupting the main data link.

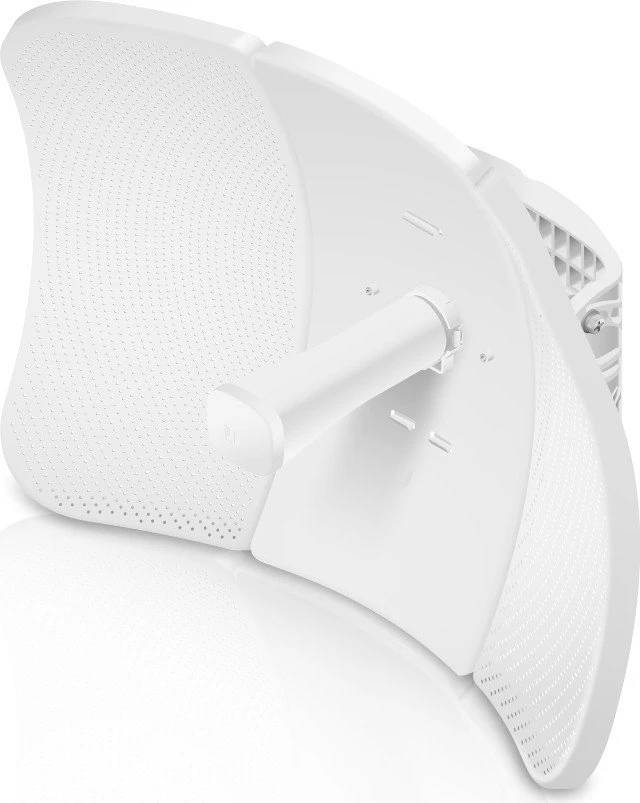

26 dBi High-Gain Dish
A large reflector antenna supports links up to 25+ km at 450+ Mbps.
Single Gigabit Ethernet Port
A simple single-port design keeps point-to-point installs straightforward.
Wide Operating Temperature Range
Rated from -40°C to 70°C for extreme climates.

Technical Specifications

Identification
Part Number LBE-5AC-LR
EAN / GTIN 0817882027403
MPN LBE-5AC-LR
Wireless
Standard airMAX ac
Frequency 5 GHz
Antenna Gain 26 dBi
Max Data Rate 450+ Mbps
Max Range 25+ km
Networking
Ethernet Ports 1 x Gigabit RJ-45
Power
Power Method 24V passive PoE
Power Supply Included 24V, 0.3A Gigabit PoE adapter
Max Power Consumption 7 W
Physical & Environmental
Dimensions 512.5 x 385.75 x 258.3 mm

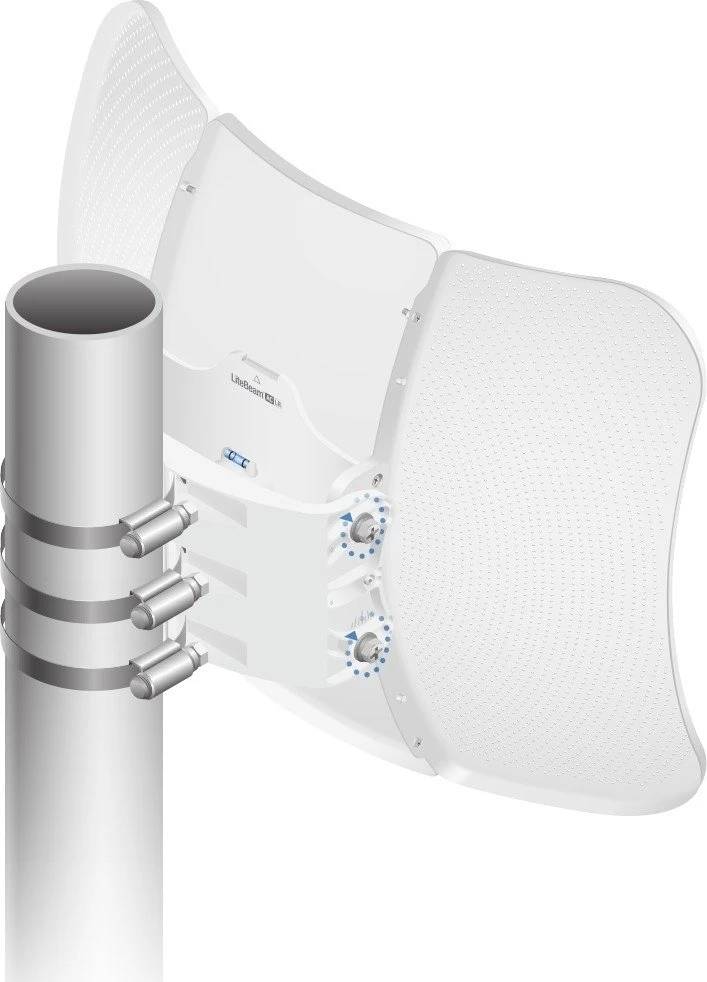

Mounting Pole-mount with elevation adjustment
Operating Temperature -40°C to 70°C
Operating Humidity 5–95% non-condensing

Frequently Asked Questions

Do I need two units to build a link?
Yes, for point-to-point you need one at each end, or pair with an airMAX ac base station for point-to-multipoint.
How far can this link reach?
Up to 25+ km line-of-sight depending on conditions and antenna alignment.
Does it come with a power adapter?
Yes, a 24V, 0.3A Gigabit PoE adapter is included.
Singular Expert Insight
For shorter links where a compact antenna matters more than raw range, compare this against the smaller NanoBeam before choosing this larger LiteBeam LR dish.

Buyer's Guide

Buy it if
You need a long-range (25km+) outdoor 5GHz point-to-point link with high gain.
Skip it if
Your link is under a few km — a smaller NanoBeam is easier to mount and just as capable at shorter range.
Also consider
The NanoBeam 5AC Gen2 for shorter links with a smaller footprint.
