Ubiquiti NanoBeam 5AC Gen2 NBE-5AC-GEN2 Outdoor 5GHz airMAX ac Bridge 19dBi 450Mbps Dual Gigabit PoE

Brand:
Ubiquiti
Ubiquiti NanoBeam AC GEN2 NBE-5AC-GEN2 NBE-5AC-Gen2
Ubiquiti NanoBeam 5AC Gen2 NBE-5AC-GEN2 Outdoor 5GHz airMAX ac Bridge 19dBi 450Mbps Dual Gigabit PoE
€139.62 inc. VAT
Buy
NBE-5AC-GEN2
€117.33 €130.37
€139.62 inc. VAT
Ships from EU stock: 5 item(s)
+ −
Add to wish list Ask a question
Product Code
03:141830
EAN Code
0810354026348
Manufacturer
Ubiquiti

Quick Specs

Wireless Standard
airMAX ac
Antenna Gain
19 dBi
Max Data Rate
450+ Mbps
Power
24V Passive PoE
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

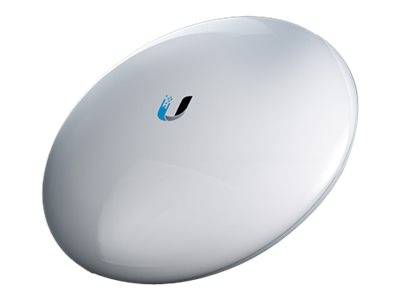

Ubiquiti NanoBeam 5AC Gen2 — Outdoor airMAX ac Bridge

5 GHz19 dBi450+ Mbps

The Ubiquiti NanoBeam 5AC Gen2 (part number NBE-5AC-GEN2) is a compact outdoor airMAX ac bridge with a 19 dBi integrated antenna, built for point-to-point or point-to-multipoint 5GHz links that push past 450 Mbps over long distances — ideal for connecting buildings, towers or remote sites. Typically in stock with fast delivery across Cyprus.

Compatibility: For a point-to-point link you need two units (one at each end) or pair this with an airMAX ac base station for point-to-multipoint. Includes a 24V 0.5A Gigabit PoE adapter and pole-mount kit; a wall-mount kit is sold separately.

Key Features


Dedicated Management Radio
A separate Wi-Fi radio lets you configure the unit from a phone or tablet app without disrupting the main airMAX link.

19 dBi Long-Range Antenna
Integrated high-gain antenna delivers data rates over 450 Mbps at line-of-sight distances beyond 10 km.

Dual Gigabit Ethernet
Two GbE RJ-45 ports — double the original NanoBeam ac — simplify daisy-chaining PoE to a second device.

Wind-Rated Outdoor Design
Weatherproof housing engineered for 200 km/h wind survivability, powered by included 24V passive PoE.

Technical Specifications

Identification
Part Number NBE-5AC-GEN2
EAN / GTIN 0810354026348
MPN NBE-5AC-Gen2
Wireless
Standard airMAX ac
Frequency Band 5 GHz
Antenna Gain 19 dBi (integrated)
Max Data Rate 450+ Mbps
Range Up to 10+ km line-of-sight
Networking & Hardware
Ethernet Ports 2 x Gigabit RJ-45
Processor Atheros MIPS 74Kc, 720 MHz
Memory 128 MB DDR2, 8 MB Flash
Power
Power Method 24V passive PoE in (Pairs 4,5+ / 7,8 return)
Power Supply Included 24V, 0.5A Gigabit PoE adapter
Max Power Consumption 8.5 W
Physical & Environmental
Dimensions 189 x 189 x 125 mm
Weight 530 g
Mounting Pole-mount kit included; wall-mount sold separately
Wind Survivability 200 km/h — engineered for extreme weather resilience

Frequently Asked Questions

Do I need two NanoBeam units to build a link?
Yes, for a point-to-point bridge you need one NBE-5AC-GEN2 at each end, or pair it with an airMAX ac base station for a point-to-multipoint setup.
What is the difference between the NBE-5AC-GEN2 and the original NanoBeam ac?
Gen2 adds a second Gigabit Ethernet port and a dedicated management Wi-Fi radio for app-based setup without disrupting the main 5GHz link.
Is the NBE-5AC-GEN2 suitable for long-distance outdoor links?
Yes, its 19 dBi antenna supports data rates over 450 Mbps at line-of-sight distances beyond 10 km, and the housing is wind-rated to 200 km/h.
Does it come with a wall-mount kit?
No, a pole-mount kit is included, but a wall-mount kit is sold separately.
Singular Expert Insight
For a point-to-multipoint deployment, pair the NBE-5AC-GEN2 with a Ubiquiti bridge or base station on the other end. If your link only needs 2.4GHz range, the NanoBeam 2AC is a lower-cost alternative with a smaller antenna footprint.

Buyer's Guide

Buy it if
You need a reliable outdoor point-to-point 5GHz link with Gigabit throughput and easy app-based setup.
Skip it if
You need indoor Wi-Fi coverage — this is an outdoor directional bridge, not an access point.
Also consider
The NanoBeam 2AC for 2.4GHz links, or the Bullet AC for a flexible third-party antenna option.
