Ubiquiti NanoStation M5 NSM5 airMAX Wireless Bridge 5GHz 16dBi 2x2 MIMO Outdoor CPE 150 Mbps White
Brand: Ubiquiti
NSM5
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

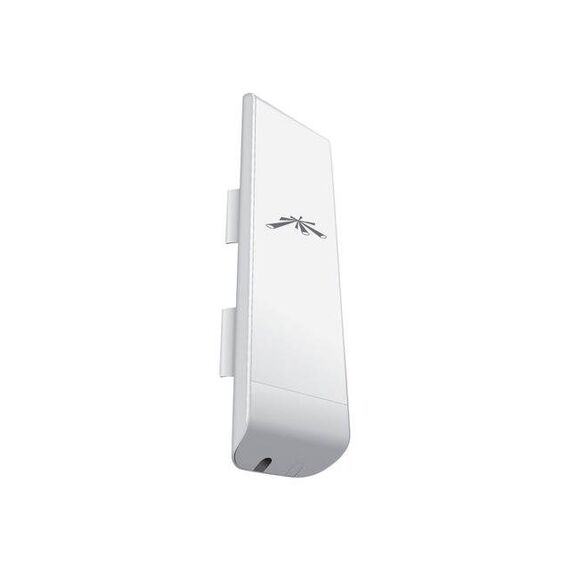

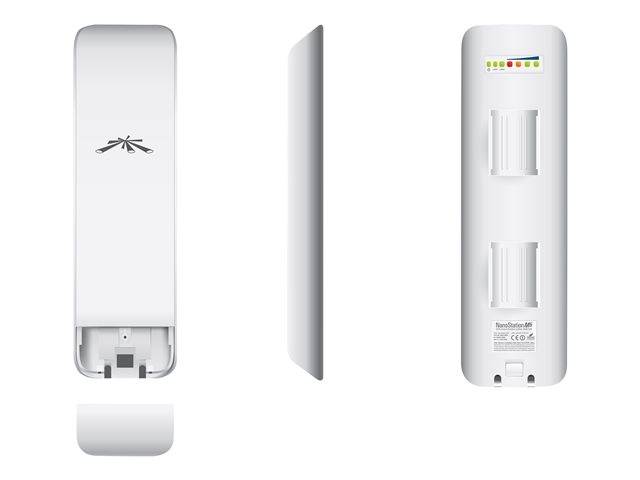

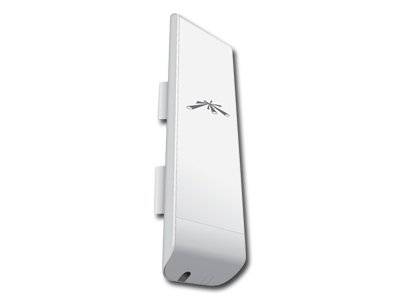

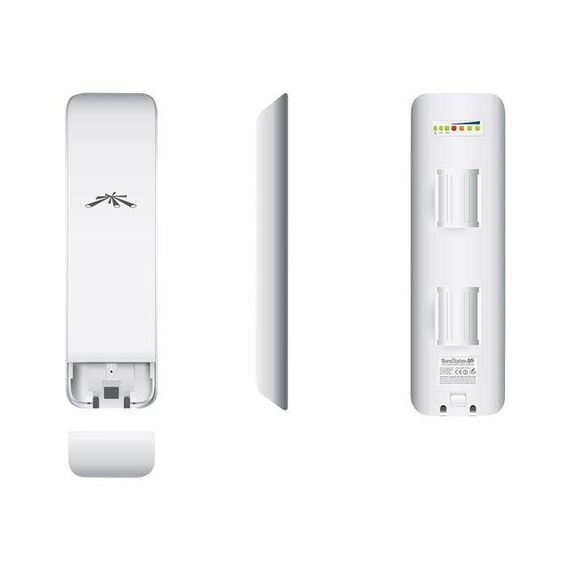

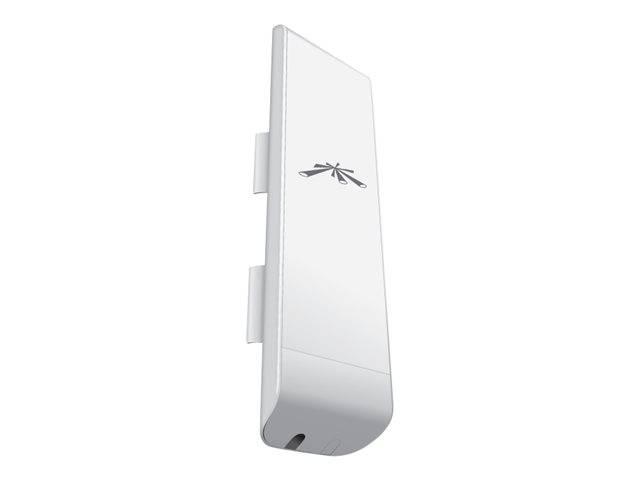

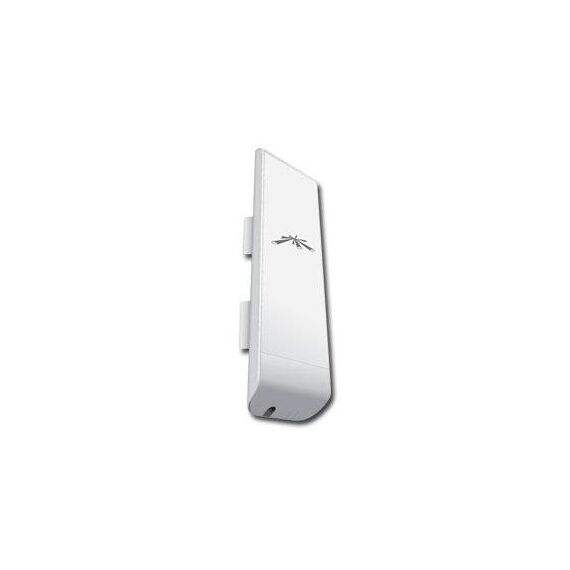

Ubiquiti NanoStation M5 — airMAX 5 GHz Bridge
150+ Mbps real throughput16 dBi antenna15+ km linksPtP / PtMP
The Ubiquiti NanoStation M5 (NSM5) is the 5 GHz workhorse of the airMAX M line — an outdoor CPE with an integrated 16 dBi dual-polarity antenna that bridges buildings, farms and village sites kilometres apart with 150+ Mbps of real TDMA throughput. The cleaner 5 GHz spectrum keeps long point-to-point links stable where 2.4 GHz drowns in interference, and its second Ethernet port offers software-enabled PoE passthrough for a camera at the remote end. Order part number NSM5 for the model described here. Typically in stock with fast delivery across Cyprus.
Compatibility note: airMAX TDMA needs airMAX radios on both ends — for a PtP bridge order two units. 5 GHz needs clear(er) line of sight than 2.4 GHz. Powered by 24V passive PoE (adapter included), ports are 10/100.
Key Features
Clean 5 GHz Spectrum
Far less congestion than 2.4 GHz in built-up areas, letting the 16 dBi panel hold high modulation rates — and with it, real 150+ Mbps — over long links.
airMAX TDMA Protocol
Scheduled time slots instead of Wi-Fi contention: predictable latency and throughput even with many stations on one sector AP.
Remote-Site Friendly
Dual 10/100 ports with software-enabled PoE passthrough on the secondary port power an IP camera or second radio at the far site over one feed.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The NSM5’s continued popularity is mostly about installed base: thousands of Cypriot rooftops already run M-series sectors, and a station must speak the same airMAX generation. For a brand-new PtP link, spend the same money on airMAX AC gear; for extending an existing M-series PtMP network, the NSM5 is exactly right. Related equipment lives in our wireless bridges and IP cameras categories.
Buyer’s Guide
Buy it if
You are adding stations to an existing airMAX M5 network, or need a proven 5 GHz PtP bridge with PoE passthrough at the far end.
Skip it if
You are building a new link from scratch — airMAX AC (LiteBeam/NanoBeam 5AC) triples the throughput with Gigabit ports for similar money.
Also consider
The NSM2 where foliage forces 2.4 GHz, or the Loco5AC for compact, budget 5 GHz station duty.
Features - Ubiquiti - NSM5
Colour
white
Interface
- Ethernet
- WIFI
More Details
Product Code
04:171502
EAN Code
0810354022548
Manufacturer
Ubiquiti
