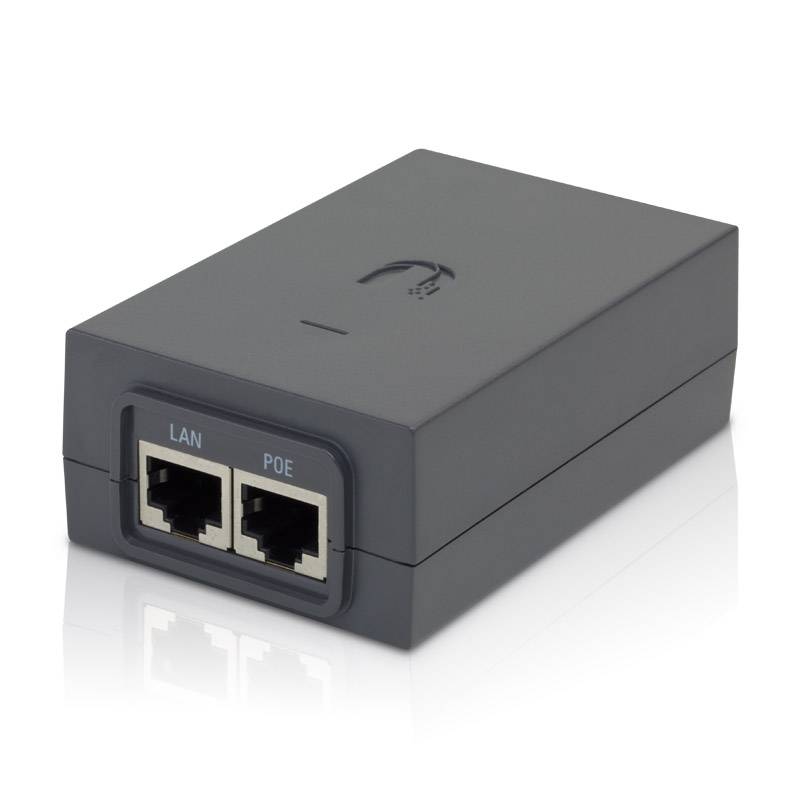

Ubiquiti POE-24-30W 24V 1.25A Passive PoE Injector 30W Gigabit 4-Pair Surge Protection

Brand:
Ubiquiti
POE-24-30W
€14.28
€16.99 inc. VAT
Out of stock
Add to wish list Ask a question
Product Code
03:128241
EAN Code
0810354023545
Manufacturer
Ubiquiti
QUICK SPECS
Output
24VDC 1.25A — 30 W
Data port
Gigabit Ethernet
PoE type
Passive 24V
Protection
Surge + ESD, earth ground
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Ubiquiti POE-24-30W — 24V PoE Injector, 30 W, Gigabit

24V passive PoE30 W outputGigabit data port

The Ubiquiti POE-24-30W (EAN 0810354023545) is a 24V passive PoE injector delivering 24VDC at 1.25A (30 W) with full Gigabit data passthrough, the high-power option of the 24V passive family, sized for demanding airMAX and airFiber radios. It provides earth grounding and surge/ESD protection — the leading cause of outdoor device failure — with a shielded RJ45 socket and IEC C6 detachable power cord. Typically in stock with fast delivery across Cyprus.

Compatibility note: This is a passive 24V injector — it is not IEEE 802.3af/at/bt PoE. Connect it only to devices explicitly rated for 24V passive PoE with 4-pair powering. Plugging passive power into a standard-PoE-only or non-PoE device can damage it — always check the device power spec first.

Key Features


Gigabit passthrough
Passes full Gigabit Ethernet alongside power, so the injector never bottlenecks a modern radio or access point link.

Surge and ESD protection
Difference and common-mode surge protection with clamping at 11V on data and 60V on power lines, plus max surge discharge of 1500A (8/20 µs) and earth-grounded AC cable.

Set-and-forget design
No configuration required: plug LAN in, connect the powered device to the PoE port, done.

Technical Specifications

Identification
Part Number POE-24-30W
EAN / GTIN 0810354023545
MPN POE-24-30W
Power
Output 24VDC, 1.25A — 30 W passive PoE
Powering pins 4-pair — pins 1,2,4,5 (+) / 3,6,7,8 (−)
Input 100–240VAC, 50/60 Hz — IEC 60320 C6 inlet, detachable earth-grounded cord
Efficiency 83%+
Surge protection Difference + common mode; clamping 11V data / 60V power; max discharge 1500A (8/20 µs)
Data
LAN port Gigabit Ethernet passthrough
Remote reset No
Data/PoE socket RJ45 shielded
Physical
Dimensions 94 × 60 × 33 mm
Weight 156 g
Operating conditions 0 to 40°C, 35–95% non-condensing
Certifications CE, FCC, IC, UL
Colour Black

Frequently Asked Questions

Which devices does the POE-24-30W power?
Ubiquiti devices rated for 24V passive PoE up to 30 W with 4-pair powering — typically airFiber and high-power airMAX radios. Always confirm 24V passive support in the device datasheet.
Is it compatible with standard 802.3af/at PoE devices?
No. Passive 24V and IEEE 802.3 PoE are different systems — use a UniFi PoE switch or an 802.3-compliant adapter (like the U-POE-af) for standard PoE devices.
What do I need to know before buying?
Match three things to your device: voltage (24V passive), wattage (up to 30 W) and data speed (Gigabit). The IEC C6 cord is detachable and standard EU cords fit.
Singular Expert Insight
At 30 W and 24V with 4-pair powering, the POE-24-30W covers radios the smaller 12 W and 24 W bricks cannot — it is the safe choice when the datasheet asks for the full 30 W. Powering several devices centrally? A UniFi PoE switch from the switch range is the tidier path.

Buyer's Guide

Buy it if
Your 24V-passive Ubiquiti radio needs up to 30 W over 4-pair powering and Gigabit data.
Skip it if
Your device uses 2-pair 24V (most CPEs — pick POE-24-12W/24W) or standard 802.3 PoE.
Also consider
POE-24-24W for 24 W 2-pair devices, or POE-24-12W-G for smaller Gigabit CPEs.
