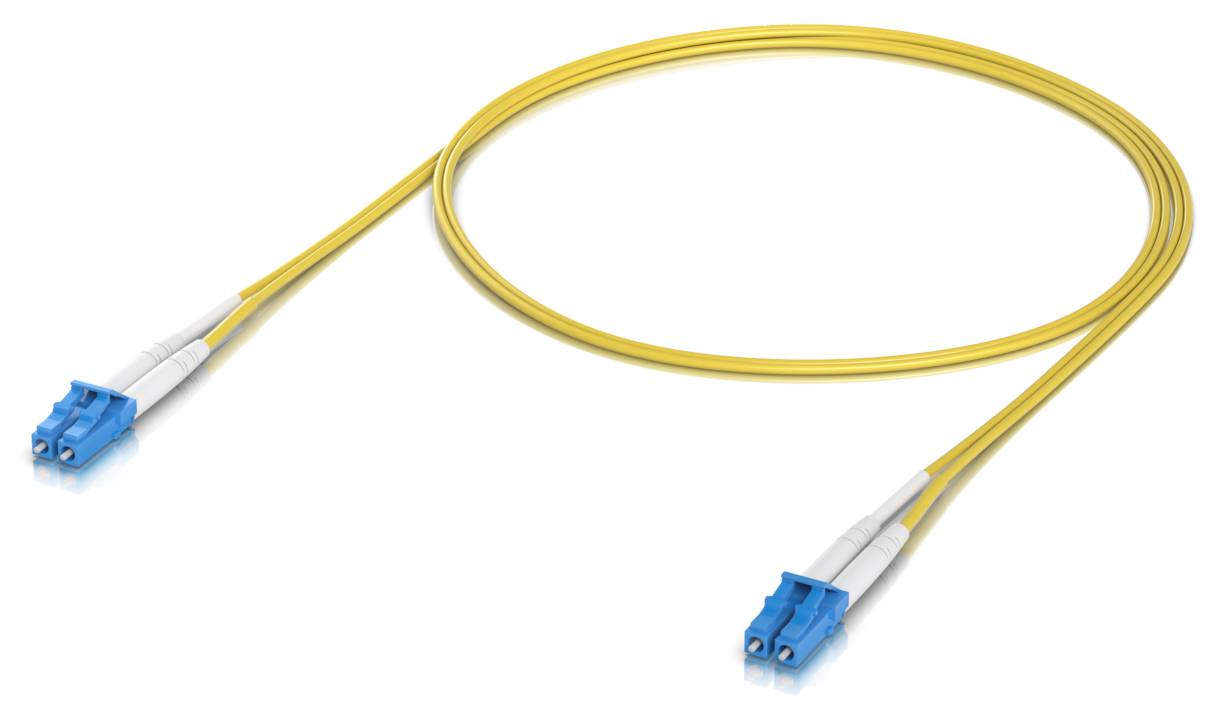

Ubiquiti OS2 Duplex LC UPC Fiber Patch Cable, 1 m, 50-pack
OS2 single-modeDuplex LC UPC, both ends50 × 1 m cablesIndoor; yellow LSZH jacket
The Ubiquiti UACC-OFC-S2-LULU-1M-50 is an indoor OS2 single-mode fiber patch cable pack for connections using duplex LC UPC interfaces. The pack contains 50 separate 1 m cables, not one 50 m cable. Matching single-mode LC UPC optics or interfaces are required separately.
Best For: For installations needing multiple short indoor OS2 single-mode links with duplex LC UPC connectors. Confirm the connected equipment uses matching single-mode LC UPC optics or interfaces.
Before you order: This is an indoor passive cable pack, not a 50 m cable. Matching single-mode LC UPC optics or interfaces are required separately; optical modules, switches and adapters are not included. The up-to-100G connection figure depends on compatible optics, equipment and link budget; it does not guarantee link rate or internet throughput. It is not an OM4 multimode, APC, MPO or RJ45 cable.
What's in the Box
- 50 separate passive Ubiquiti OS2 single-mode duplex LC UPC fiber cables, each 1 m
What It Means in Practice
- Each cable is 1 m long, so check the route between connection points before choosing this length.

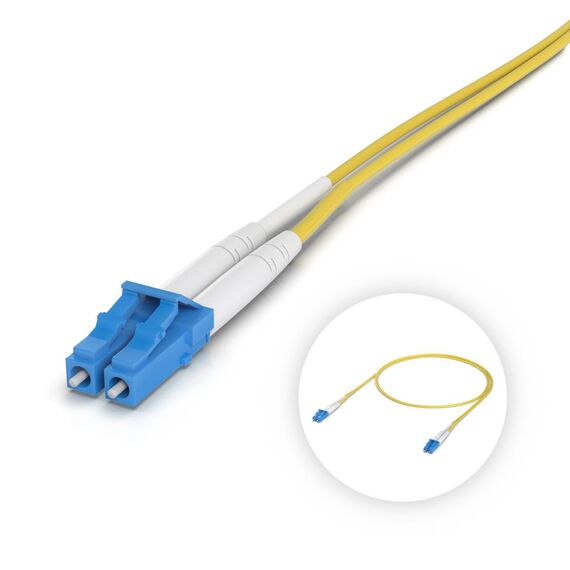

- Each cable has a duplex LC UPC connector at both ends; matching single-mode LC UPC optics or interfaces must be obtained separately.
- The 50-pack quantity means 50 individual 1 m cables, not a single 50 m run.
- The yellow 2 mm LSZH jacket is specified for indoor use.
What Will Not Work
- Matching single-mode LC UPC optics or interfaces are required separately; modules are not included.
- Switches and adapters are not included.
- The up-to-100G figure is conditional on compatible optics, equipment and link budget; the cable alone does not guarantee a link rate or internet throughput.
- This is not an OM4 multimode, APC, MPO or RJ45 cable.
Key Features
50 individual 1 m cables
Provides multiple short cable runs in one pack; it is not one continuous 50 m cable.
OS2 single-mode fiber
For links designed around OS2 single-mode fiber and matching LC UPC interfaces.
Specified optical performance
Insertion loss ≤ 0.3 dB and return loss ≥ 50 dB for this variant.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
One pack supplies 50 separate 1 m OS2 cables, with the connector type and optical-loss limits specified for this exact variant. It suits setups that need multiple short links rather than one long cable.
Buyer’s Guide
✓ Buy it if For installations needing multiple short indoor OS2 single-mode links with duplex LC UPC connectors. Confirm the connected equipment uses matching single-mode LC UPC optics or interfaces.
✕ Skip it if This is an indoor passive cable pack, not a 50 m cable. Matching single-mode LC UPC optics or interfaces are required separately; optical modules, switches and adapters are not included. The up-to-100G connection figure depends on compatible optics, equipment and link budget; it does not guarantee link rate or internet throughput. It is not an OM4 multimode, APC, MPO or RJ45 cable.
Features - Ubiquiti - UACC-OFC-S2-LULU-1M-50
Colour
yellow
More Details
Product Code
04:549352
Manufacturer
Ubiquiti
