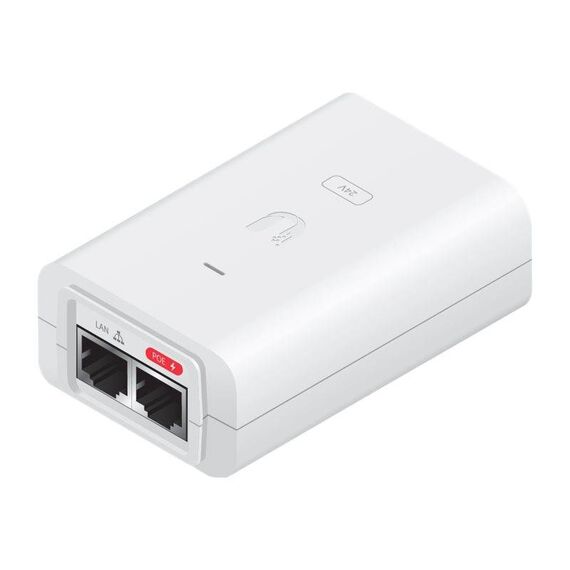

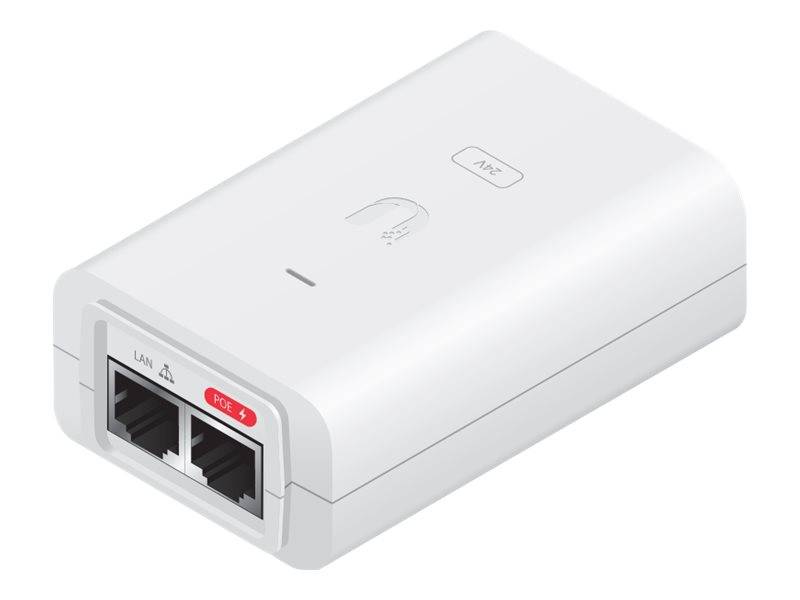

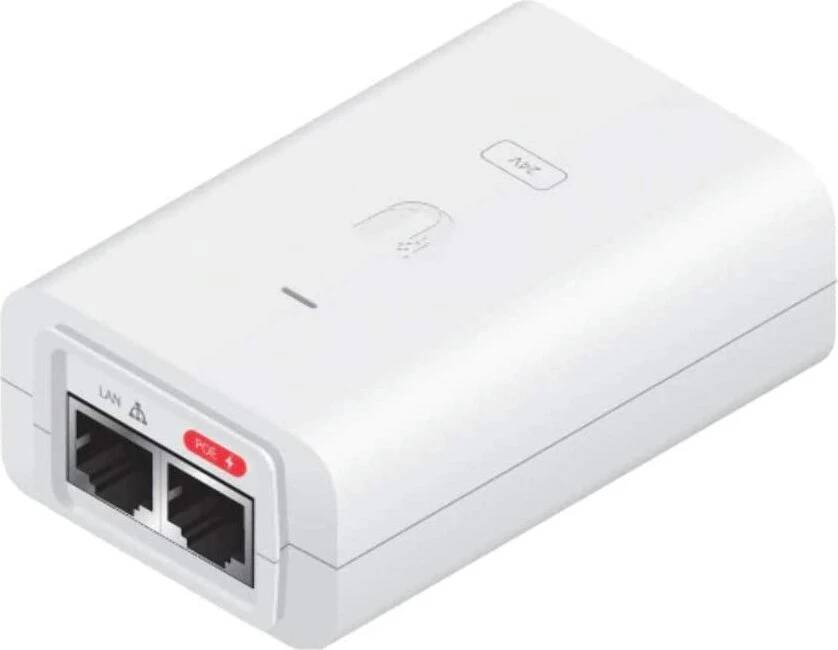

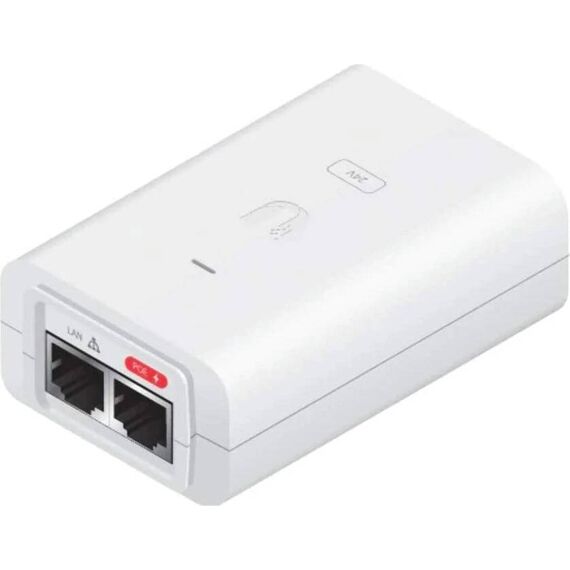

Ubiquiti POE-24-30W-G-WH Passive PoE Adapter 24V 1.25A 30W Gigabit Passthrough Surge Protection White

Brand:
Ubiquiti
Ubiquiti POE-24-30W-G-WH PoE Adapter 24V 30W Gigabit
Ubiquiti POE-24-30W-G-WH Passive PoE Adapter 24V 1.25A 30W Gigabit Passthrough Surge Protection White
€24.41 inc. VAT
Buy
POE-24-30W-G-WH
€20.51
€24.41 inc. VAT
Ships from EU stock: 8 item(s)
+ −
Add to wish list Ask a question
Product Code
04:432367
EAN Code
0817882022583
Manufacturer
Ubiquiti
QUICK SPECS
Output
24VDC 1.25A — 30W passive
Data
Gigabit passthrough
Protection
Surge + ESD, earth ground
Colour
White · IEC C6 input
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Ubiquiti POE-24-30W-G-WH Passive PoE Adapter 24V 1.25A Gigabit White

24VDC @ 1.25A — 30WGigabit Data PassthroughSurge & ESD ProtectionIEC C6 Earth-Grounded

The Ubiquiti POE-24-30W-G-WH is a 24V 1.25A (30W) passive PoE adapter in white with full Gigabit data passthrough, powering demanding 24V Ubiquiti airMAX, airFiber and UISP devices over the Ethernet run. Part number POE-24-30W-G-WH, EAN 0817882022583. Its earth-grounded design with built-in surge and clamping protection makes it the recommended way to feed outdoor radios — ESD is the leading cause of outdoor device failure. Typically in stock with fast delivery across Cyprus.

Compatibility note: Passive 24V PoE on pins 4,5(+)/7,8(-) — NOT auto-negotiated IEEE 802.3af/at, and NOT 48V. Connect only devices rated for 24V passive input (check the device spec sheet); 48V or standards-based PoE devices need a different adapter.

Key Features


30W For Hungry Radios
At 24V 1.25A this is the high-power option in the 24V family — enough for larger airMAX sectors and airFiber radios that outgrow 12W/24W adapters.

Gigabit + Surge Protection
Full Gigabit passthrough with difference/common-mode surge protection, 11V data / 60V power clamping and 1500A (8/20 µs) max discharge.

Grounded & Efficient
Earth ground via the IEC-320 C6 inlet drains ESD safely; 83%+ efficiency and shielded RJ45 sockets round out a WISP-grade design in a clean white housing.

Technical Specifications

Identification
Part Number POE-24-30W-G-WH
EAN / GTIN 0817882022583
MPN POE-24-30W-G-WH
Electrical
Output 24VDC @ 1.25A (30W), passive
Powering Pins Pins 4,5 (+) / 7,8 (-) — 2-pair passive, not 802.3af/at negotiated
Data Rate Gigabit LAN passthrough
Input 100-240VAC @ 50/60Hz, IEC-320 C6 with earth ground
Efficiency 83%+
Remote Reset No
Protection
Surge Protection Difference and common mode
Clamping 11V data, 60V power
Max. Surge Discharge 1500A (8/20 µs) power
Peak Pulse Current 36A (10/1000 µs) data
Physical & Environment
Dimensions 94 x 60 x 33 mm
Weight 156 g
Colour White
Ports RJ45 shielded sockets (Data IN / POE OUT)
Operating Temperature 0 to 40° C
Humidity 35 to 95% noncondensing
Certifications CE, FCC, IC, UL

Frequently Asked Questions

Is the POE-24-30W-G-WH compatible with 802.3af/at devices?
No. It outputs always-on passive 24V without IEEE negotiation — standards-based devices expect negotiated 48V. Use it only with devices whose spec sheet explicitly accepts 24V passive PoE.
What is the difference from the POE-24-24W or POE-24-12W-G?
Power headroom: this model delivers 1.25A (30W) versus 1.0A (24W) and 0.5A (12W). All are 24V; pick by your radio's documented power requirement — more headroom never hurts.
Does it need a special power cord?
It uses a standard detachable IEC-320 C6 ("cloverleaf") cord with earth ground — EU cords are readily available, and the ground connection should always be used for the surge protection to work.
Singular Expert Insight
This is the top of Ubiquiti's 24V passive line — the safe default when a 24V radio's draw approaches what smaller adapters can feed, with Gigabit and surge protection included. If your device is 48V or standards-based 802.3af/at, step over to the POE-48/U-POE family instead; for multi-device sites a PoE network switch consolidates power in one box.

Buyer's Guide

Buy it if
your 24V-passive Ubiquiti radio needs up to 30W on a Gigabit link and you want grounded surge protection in one plug.
Skip it if
your device requires IEEE 802.3af/at or 48V passive — the voltage and negotiation are the wrong match here.
Also consider
POE-24-24W for lighter 24V loads, U-POE-at for 802.3at devices, or a UniFi PoE switch for multiple radios.
