Ubiquiti 10G PoE+++ Adapter (90 W)

Brand:
Ubiquiti

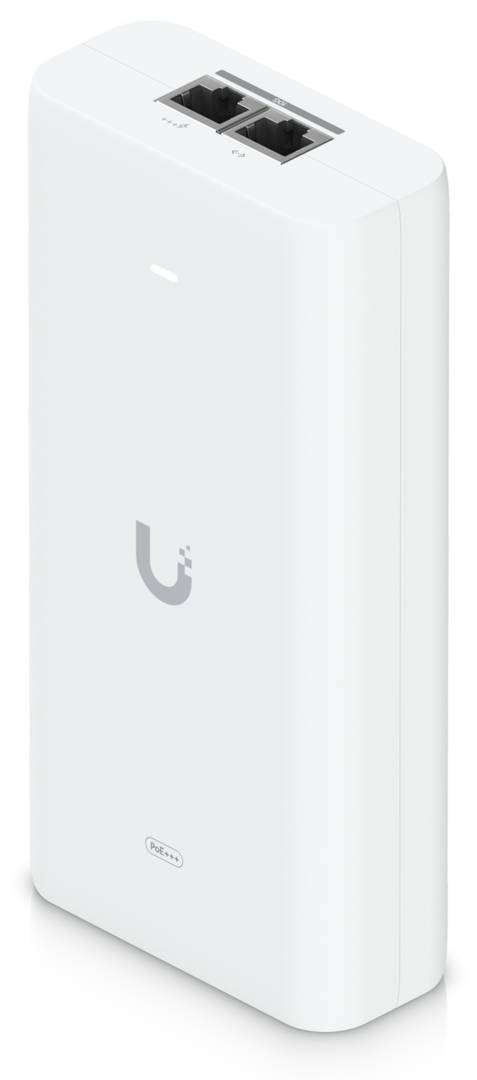

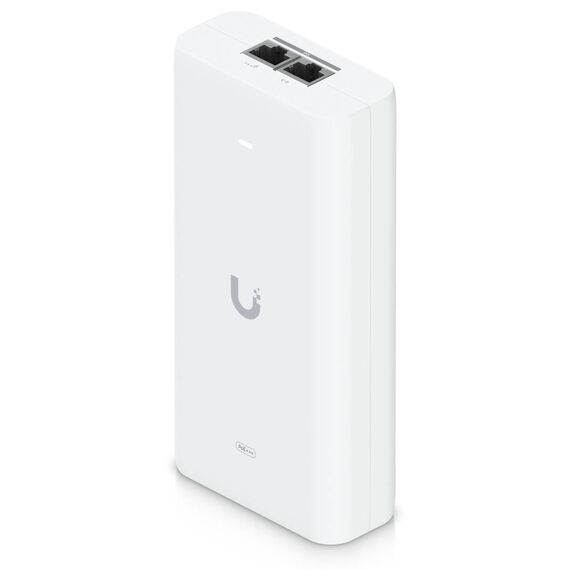

Ubiquiti UACC-PoE+++-10G adapter, angled front view
Ubiquiti 10G PoE+++ Adapter (90 W)
€87.69 inc. VAT
Buy
UACC-PoE+++-10G
€73.69
€87.69 inc. VAT
Ships from EU stock: 40 item(s)
+ −
Add to wish list Ask a question
Product Code
04:575108
Manufacturer
Ubiquiti
Quick Specs
PoE output
Up to 90 W at PSE
LAN ports
1 data input, 1 PoE+++ output
Link marking
10G on both RJ45 ports
Power input
100–240 V AC, 50/60 Hz
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Ubiquiti 10G PoE+++ Adapter (90 W)

Up to 90 W at PSE1 data input, 1 PoE+++ output10G on both RJ45 ports100–240 V AC, 50/60 Hz

The Ubiquiti 10G PoE+++ Adapter (90 W), SKU UACC-PoE+++-10G, adds PoE+++ power to a wired LAN connection for compatible UniFi PoE+++ devices, reducing reliance on PoE switch power. It has one data input and one powered output, with up to 90 W at the PSE output; power delivered to the endpoint depends on the cable and system. A grounded AC cable and wall-mount kit are included.

Best For: Suitable for a compatible UniFi PoE+++ device that needs power from an AC-powered injector rather than PoE switch power, while retaining a 10G-marked LAN link. Check the powered device’s voltage and PoE requirements before use.
Before you order: You need a suitable mains outlet, grounded installation, Ethernet cabling, and a compatible powered device, none of which is included except the grounded AC cable. Confirm the supplied mains-plug format for your installation before ordering. DIN-rail and floating-mount options are sold separately. Do not assume compatibility with arbitrary passive-PoE or non-PoE devices; verify their voltage and PoE requirements. No IP weather rating or outdoor-use claim is established.

What's in the Box

  • Ubiquiti 10G PoE+++ Adapter (90 W)
  • Grounded AC power cable
  • Wall-mount bracket
  • 2 wall anchors
  • 2 M3 screws

What It Means in Practice

  • Connect the wired LAN to the single DATA IN port and the compatible powered device to the single DATA+PoE+++ OUTPUT port; this is an injector, not a switch.
  • The 10G marking identifies link capability, but actual throughput depends on the host, powered device and cabling; no full list of lower negotiated rates is established.
  • Up to 90 W refers to the PSE output, not guaranteed power at the endpoint. Cable and system conditions affect what reaches the device.
  • For wall installation, use the included bracket, anchors and screws. DIN-rail and floating-mount options are separate purchases.

What Will Not Work

  • One data-only RJ45 input and one PoE+++ output; it is not a two-output switch.
  • The 90 W maximum PSE output does not guarantee 90 W at the powered device.
  • A compatible powered device, Ethernet cabling and suitable mains outlet are required and are not included; the grounded AC cable is included.
  • DIN-rail and floating-mount options are sold separately.
  • The exact supplied wall-plug country/format is unverified.
  • No IP weather rating or outdoor-use claim is established.
  • LAN activity indicator, remote reset capability and reset button are not listed for this model.
  • Compatibility with arbitrary passive-PoE or non-PoE devices is not established; verify device voltage and PoE requirements.

Key Features


Up to 90 W PoE+++ output
Provides power at the injector’s PSE output for a compatible device; endpoint power depends on cable and system conditions.

10G-marked LAN ports
The single input and powered output carry 10G markings; delivered throughput depends on the connected system and cabling.

Built-in protection
Includes surge, peak-pulse and overcurrent protection; proper grounded installation is required.

Wall kit included
The package includes a bracket, two anchors and two M3 screws; DIN-rail and floating-mount options are separate.

Technical Specifications

ManufacturerUbiquiti
Model10G PoE+++ Adapter (90 W)
Manufacturer SKUUACC-PoE+++-10G
CategoryNetworking Accessories
RoleAC-powered PoE injector; not a network switch
Ports1 shielded RJ45 DATA IN; 1 shielded RJ45 DATA+PoE+++ OUTPUT
Link capability10G marking on both RJ45 ports; delivered throughput depends on host, device and cabling
Maximum PSE PoE outputUp to 90 W; not a guarantee of 90 W delivered at the endpoint
Output54 V DC @ 1.67 A
Rated AC input100–240 V AC, 50/60 Hz
Maximum input current1.5 A
Powering method4-pair; pins 1, 2, 4, 5 positive; pins 3, 6, 7, 8 negative
Inrush currentLess than 120 A peak at 230 V AC
EfficiencyGreater than 88%
Switching frequency65 kHz
Output ripple1% max.
Line regulation≤2%
Load regulation≤5%
Surge clamping11 V data; 60 V power
Maximum surge discharge1500 A (8/20 μs), power
Peak pulse current36 A (10/1000 μs), data
Response timeLess than 1 ns
Shunt capacitanceLess than 5 pF, data
Surge protectionDifferential and common mode; surge, peak pulse and overcurrent protection
Status indicatorStatus LED present
Dimensions164.5 × 81 × 42 mm
Weight372 g
ColourWhite
Operating temperature0–40 °C
Storage temperature−30–70 °C
Operating humidity10–95%, non-condensing
GroundingGrounded AC connection required
Outdoor/weather ratingNo IP weather rating established; outdoor use is not claimed
ComplianceNDAA compliant
CertificationsCE, FCC, IC, UL, UKCA, KC, CCC, RoHS

Frequently Asked Questions

Does it have two powered Ethernet ports?
No. It has one shielded RJ45 DATA IN port and one shielded RJ45 DATA+PoE+++ OUTPUT port; it is not a network switch.
Does the powered device receive 90 W?
Not necessarily. Up to 90 W is the PSE output rating; cable and system conditions affect power delivered at the endpoint.
What is included for installation?
The adapter, grounded AC cable, wall bracket, two anchors and two M3 screws are included. Ethernet cabling and the powered device are not included; DIN-rail and floating-mount options are sold separately.
Can I use it outdoors or with any PoE device?
No outdoor weather rating is established. Compatibility with arbitrary passive-PoE or non-PoE devices is not established; verify the device’s voltage and PoE requirements.
Singular Expert Insight

It combines a single PoE+++ output rated up to 90 W at the PSE with 10G-marked input and output ports. The 90 W rating is not a promise of 90 W at the endpoint; cable and system conditions affect delivered power.

Buyer’s Guide

✓ Buy it if Suitable for a compatible UniFi PoE+++ device that needs power from an AC-powered injector rather than PoE switch power, while retaining a 10G-marked LAN link. Check the powered device’s voltage and PoE requirements before use.
✕ Skip it if You need a suitable mains outlet, grounded installation, Ethernet cabling, and a compatible powered device, none of which is included except the grounded AC cable. Confirm the supplied mains-plug format for your installation before ordering. DIN-rail and floating-mount options are sold separately. Do not assume compatibility with arbitrary passive-PoE or non-PoE devices; verify their voltage and PoE requirements. No IP weather rating or outdoor-use claim is established.
→ Also consider Check the powered device requirements, available mains grounding and Ethernet cabling together; a suitable existing network may provide the data connection.
