Ubiquiti UniFi Retrofit PSU 12V, 12V 5A

Brand:
Ubiquiti

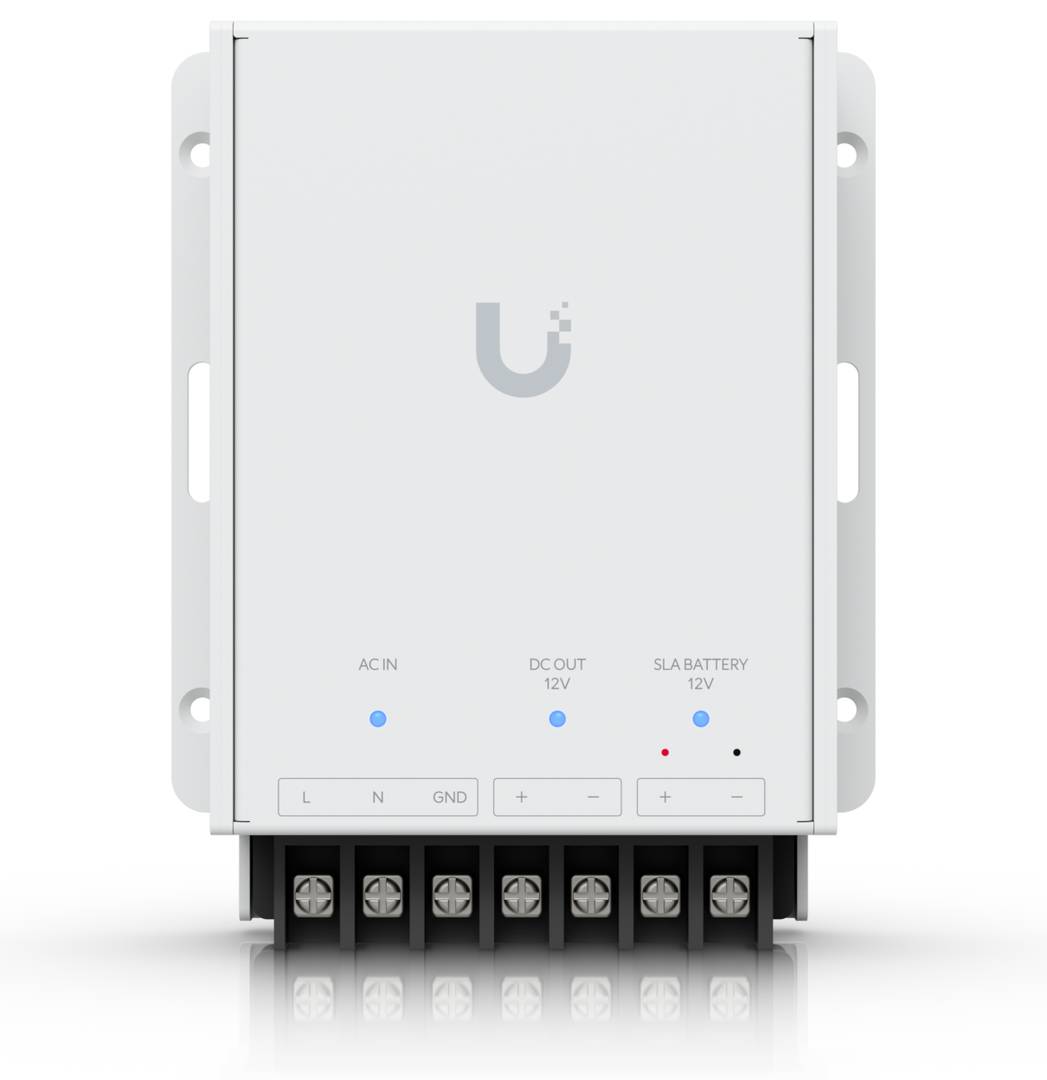

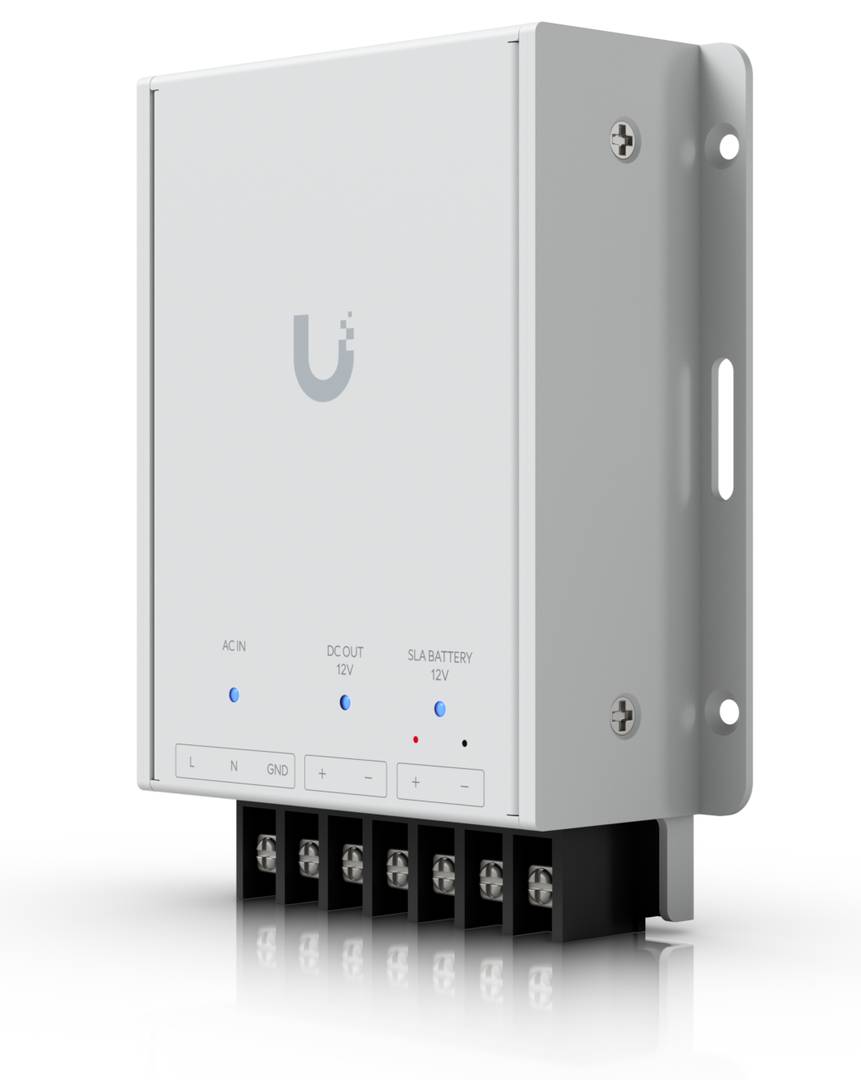

Ubiquiti UniFi Retrofit PSU 12V, angled front view with AC, 12V DC and SLA battery terminal labels
Ubiquiti UniFi Retrofit PSU 12V, 12V 5A
€143.11 inc. VAT
Buy
UACC-Retrofit-PSU-12V
€120.26
€143.11 inc. VAT
Ships from EU stock: 85 item(s)
+ −
Add to wish list Ask a question
Product Code
04:602580
EAN Code
0810177163930
Manufacturer
Ubiquiti
Quick Specs
Rated output
12V DC, 5A
AC input
100–240V AC, 50/60Hz
Battery support
Optional 12V SLA, sold separately
Installation
Terminal-wired
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Ubiquiti UniFi Retrofit PSU 12V

12V DC, 5A100–240V AC, 50/60HzOptional 12V SLA, sold separatelyTerminal-wired

The Ubiquiti UniFi Retrofit PSU 12V (UACC-Retrofit-PSU-12V) is a dedicated, terminal-wired power supply for the UniFi Retrofit Hub. It provides 12V DC at 5A and supports an optional, separately purchased 12V sealed lead-acid (SLA) backup battery. The Hub and battery are not included.

Best For: For installations using a UniFi Retrofit Hub that need a dedicated 12V supply and may require backup from a separately selected compatible 12V SLA battery. Installation uses screw terminals rather than a plug-in adapter.
Before you order: This is the PSU only, not the UniFi Retrofit Hub or a complete UPS. The 12V SLA battery is optional and sold separately; backup runtime and battery capacity are not specified. Installation is terminal-wired and requires correct polarity and appropriate AC/DC cabling. The 80W figure is maximum power consumption, not output; the rated output is 12V DC, 5A. No plug-ended AC mains cord inclusion is established.

What's in the Box

  • Ubiquiti UniFi Retrofit PSU 12V
  • Mounting plate
  • 4 anchors
  • 4 M3 screws
  • 2 connection lead assemblies

What It Means in Practice

  • The PSU has one AC input, one 12V DC output for the Retrofit Hub and one 12V DC input/output for an SLA battery; these terminals have distinct roles.
  • An external 12V SLA battery is optional and sold separately. Charging current is 0.5A; no battery capacity or backup runtime is specified.
  • The unit is terminal-wired, not a plug-and-play wall adapter. Plan for correct polarity and appropriate AC/DC cabling; a mains plug cord is not confirmed as included.
  • Allow for the stated 127 × 76 × 35mm dimensions and 350g weight. Operating conditions are −10 to 40°C and 10–90% non-condensing humidity; storage temperature is −40 to 70°C.

What Will Not Work

  • The package does not include the UniFi Retrofit Hub or an SLA battery.
  • The PSU provides 12V DC at 5A; it is not a 24V output supply. The 80W maximum is power consumption, not output.
  • The AC and DC connections are terminal-wired; this is not a USB-C, barrel-jack, PoE or network-port power adapter.
  • No battery capacity or guaranteed backup runtime is specified; battery backup depends on a suitably selected compatible SLA battery and load.
  • No plug-ended AC mains cord inclusion is established. Outdoor suitability or an IP protection rating is not established.

Key Features


12V DC, 5A rated output
A dedicated power output for the UniFi Retrofit Hub; 60W is the calculated rated output.

Optional SLA battery connection
Supports a separately purchased external 12V sealed lead-acid backup battery, charged at 0.5A.

Three status LEDs
Separate indicators identify AC input, DC output and battery status.

Mounting hardware included
The package includes a mounting plate, four anchors, four M3 screws and two connection lead assemblies.

Technical Specifications

ManufacturerUbiquiti
ModelUniFi Retrofit PSU 12V
Manufacturer SKUUACC-Retrofit-PSU-12V
EAN0810177163930
AC input100–240V AC, 50/60Hz
Rated output12V DC, 5A (60W by 12V × 5A calculation)
Maximum power consumption80W; this is consumption, not output
Efficiency85%; test-load conditions not stated
Backup battery supportOptional external 12V sealed lead-acid (SLA) battery; sold separately
Battery charging current0.5A
Wiring connections1 AC input (L/N/GND); 1 12V DC output (+/−) for Retrofit Hub; 1 12V DC input/output (+/−) for SLA battery
Status indicators3 LEDs: AC input, DC output and battery
InstallationTerminal-wired; correct polarity and appropriate AC/DC cabling required
Dimensions127 × 76 × 35mm
Weight350g
ColourWhite/light silver enclosure with dark terminal block
Operating temperature−10 to 40°C
Storage temperature−40 to 70°C
Operating humidity10–90% non-condensing
CertificationsCE, FCC, IC
ComplianceNDAA compliant

Frequently Asked Questions

Does this include the UniFi Retrofit Hub?
No. It is the power supply only; the Hub is purchased separately.
Is a backup battery included?
No. An external 12V SLA battery is optional and sold separately. No battery capacity or runtime is specified.
What is the output rating?
The rated output is 12V DC at 5A. The stated 80W maximum is power consumption, not output.
Does it plug into a wall outlet?
It has terminal-wired AC input and DC connections, not a plug-in wall-adapter design. A plug-ended AC mains cord is not confirmed as included.
Singular Expert Insight

It combines a dedicated 12V, 5A Hub output with a separate 12V battery input/output and a 0.5A battery charging current. The three status LEDs identify AC input, DC output and battery status.

Buyer’s Guide

✓ Buy it if For installations using a UniFi Retrofit Hub that need a dedicated 12V supply and may require backup from a separately selected compatible 12V SLA battery. Installation uses screw terminals rather than a plug-in adapter.
✕ Skip it if This is the PSU only, not the UniFi Retrofit Hub or a complete UPS. The 12V SLA battery is optional and sold separately; backup runtime and battery capacity are not specified. Installation is terminal-wired and requires correct polarity and appropriate AC/DC cabling. The 80W figure is maximum power consumption, not output; the rated output is 12V DC, 5A. No plug-ended AC mains cord inclusion is established.
