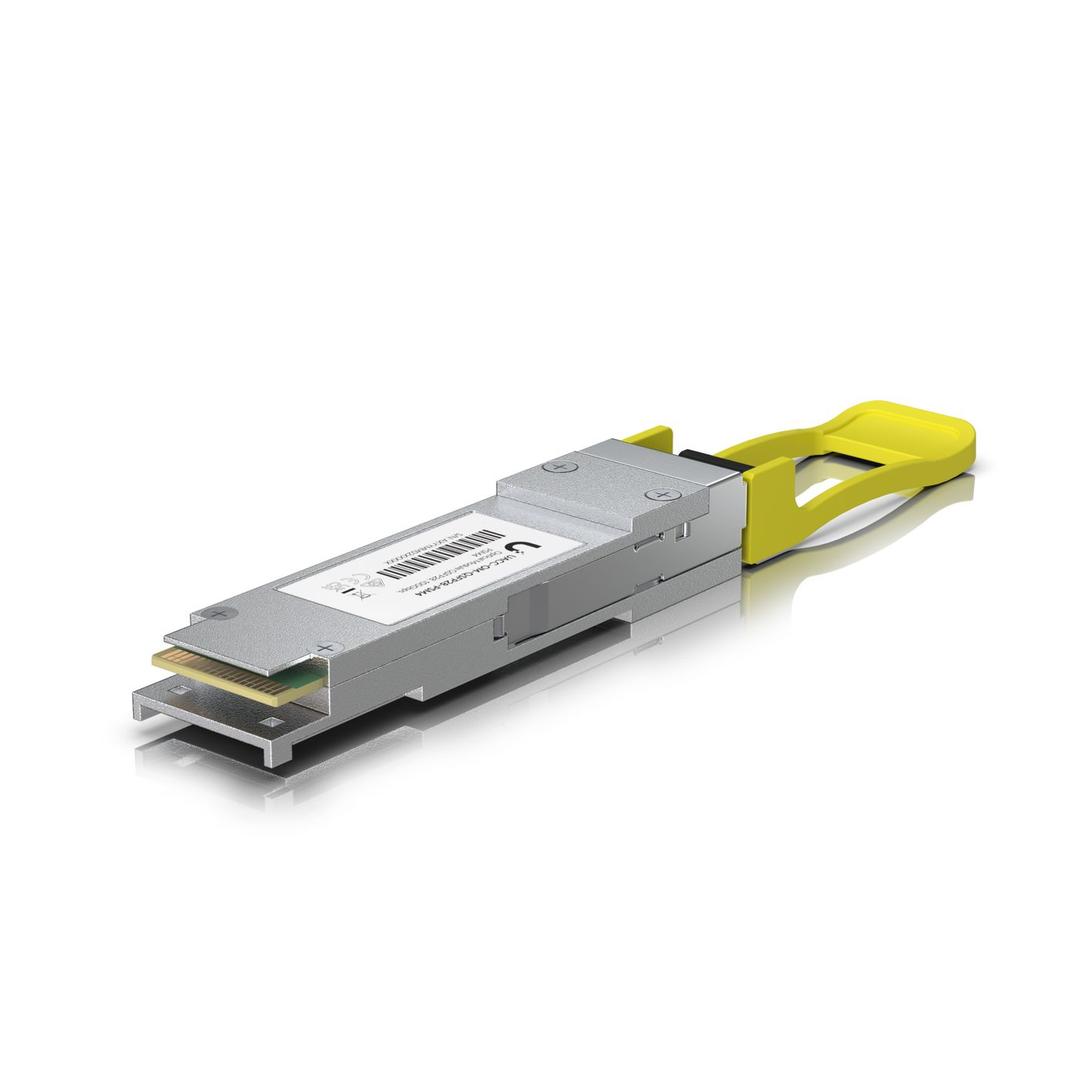

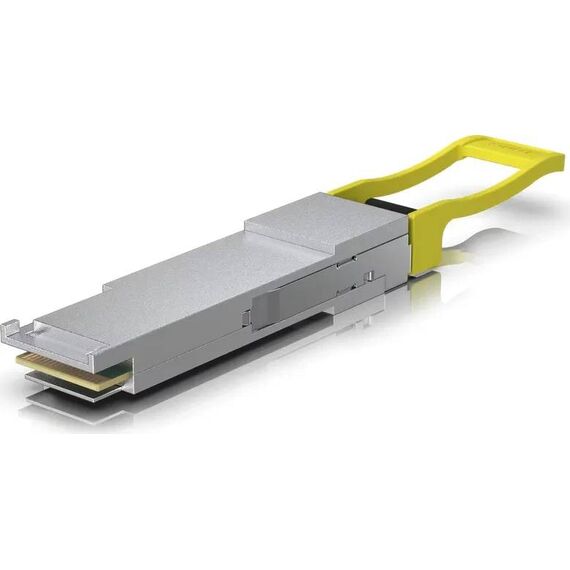

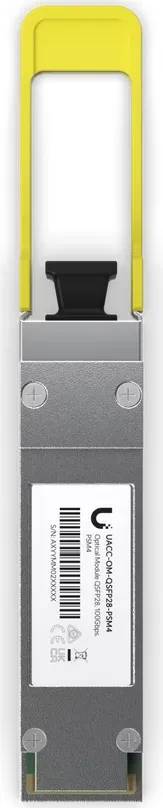

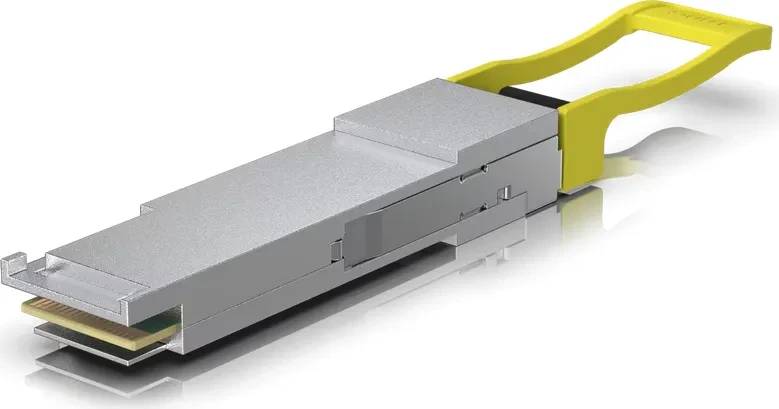

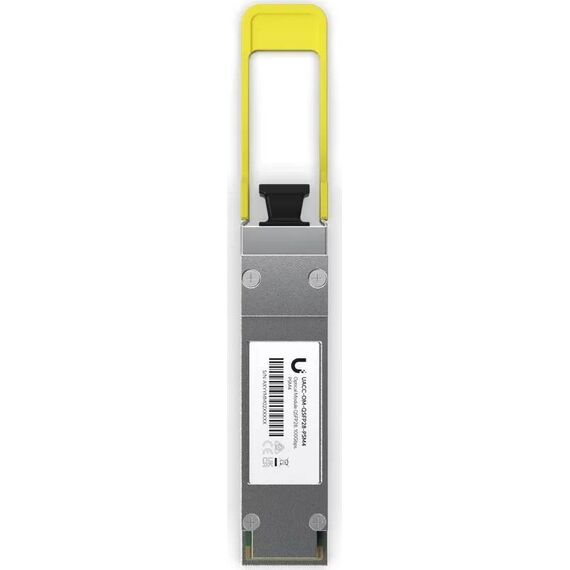

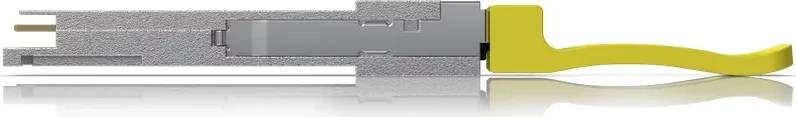

Ubiquiti UniFi 100G PSM4 QSFP28 Optical Module UACC-OM-QSFP28-PSM4 MPO-12 APC Single-Mode 2km 1310nm
Brand: Ubiquiti
Ubiquiti UniFi 100G PSM4 QSFP28 Optical Module UACC-OM-QSFP28-PSM4 MPO-12 APC Single-Mode 2km 1310nm
€70.5 inc. VAT
UACC-OM-QSFP28-PSM4
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Ubiquiti 100G PSM4 Single-Mode Optical Module — QSFP28, 2 km
100 Gbps (4x25G Lanes)MPO-12 Type B APCSingle-Mode, up to 2 km1310 nm Parallel Optics
The Ubiquiti UACC-OM-QSFP28-PSM4 (EAN 0810084690017) is a 100 Gbps QSFP28 transceiver using PSM4 parallel single-mode optics — four 25G lanes over eight fiber strands — to link core switches and aggregation layers up to 2 km apart. It is the cost-effective 100G choice for campus backbones beyond multi-mode reach: PSM4 optics are simpler than LR4 wavelength-multiplexed modules, provided your fiber plant has MPO-12 single-mode trunks. Maximum draw is 3.5 W. Typically in stock with fast delivery across Cyprus.
Compatibility note: Requires an MPO-12 Type B (crossover) APC single-mode trunk — the angled APC polish is mandatory; a UPC MPO cable will not seat correctly and degrades the link. Fits Ubiquiti QSFP28 100G ports (e.g. Enterprise Campus Aggregation). Install one module at each end of the run.
Key Features
True 100G Campus Backbone
Four synchronized 25 Gbps lanes at 1310 nm deliver line-rate 100G between buildings up to 2 km apart — ten times the distance of SR4 multi-mode optics.
PSM4 Economics
Parallel single-mode uses simple, identical lasers per lane instead of LR4's wavelength multiplexing, keeping the module cost and power (3.5 W max) down on links where fiber count is not scarce.
Laser-Safe, Standards-Based
Class 1 laser per IEC/EN 60825-1:2014, operating 0 - 70°C, in the universal QSFP28 form factor.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Choose by distance and fiber plant: in-rack use a DAC-QSFP28, in-building the SR4 multi-mode module, between buildings up to 2 km this PSM4 (if you have 8 SMF strands), and beyond that the LR4 class over a duplex pair. PSM4's hidden cost is strand count — verify the trunk has 8 good strands before committing. It slots into the 100G ports of the aggregation switch tier feeding your 25G access layer.
Buyer's Guide
Buy it if
You need 100G between switches 100 m - 2 km apart and your single-mode trunk has MPO-12 APC Type B connectivity with 8 spare strands.
Skip it if
Your run is in-rack or in-room (DAC/SR4 are cheaper) or you only have a duplex SMF pair — that calls for LR4-class optics.
Also consider
UACC-OM-QSFP28-SR4 (multi-mode 100 m), UACC-DAC-QSFP28 (copper, in-rack), UACC-AOC-QSFP28 (active optical, in-building).
Features - Ubiquiti - UACC-OM-QSFP28-PSM4
More Details
Product Code
03:259539
EAN Code
0810084690017
Manufacturer
Ubiquiti
