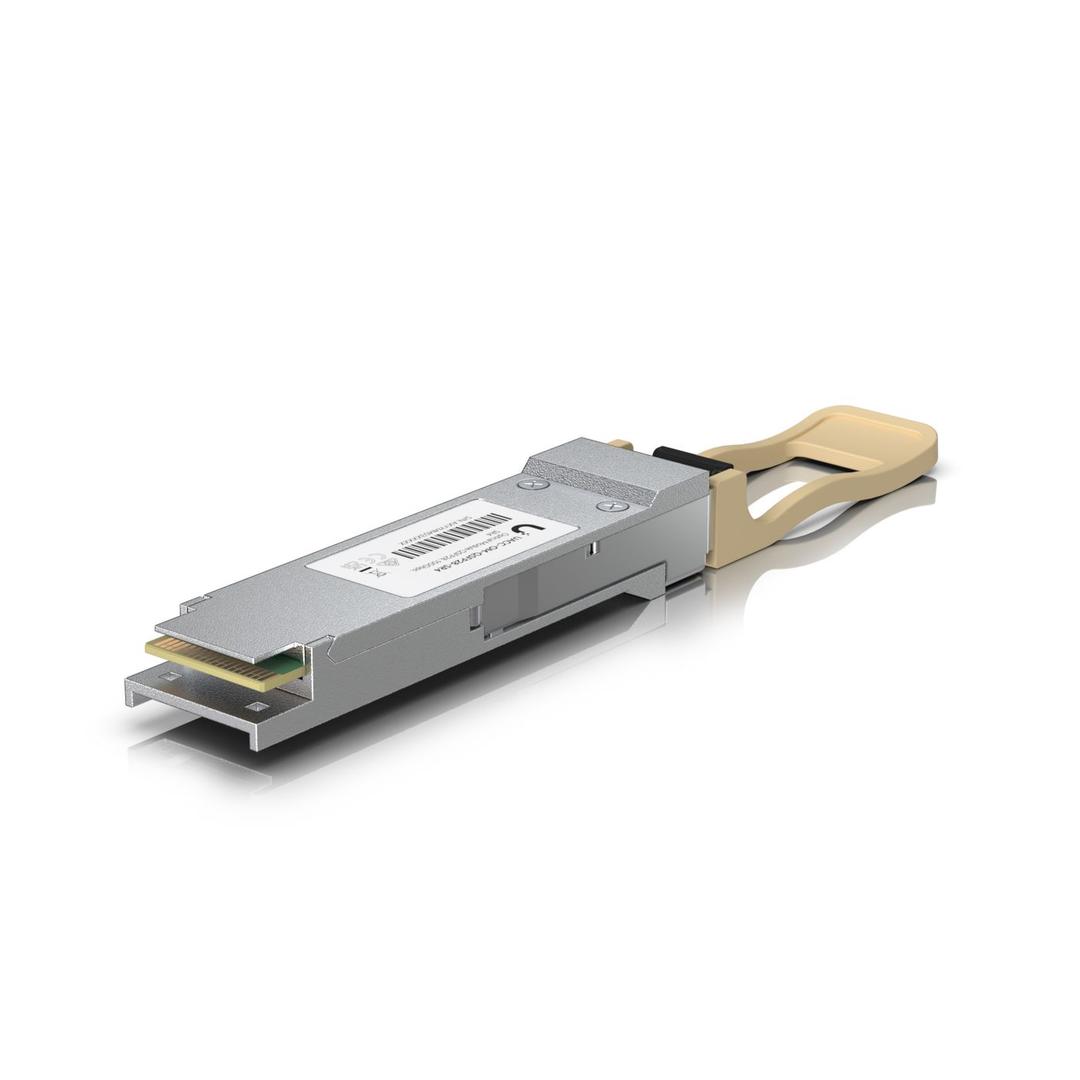

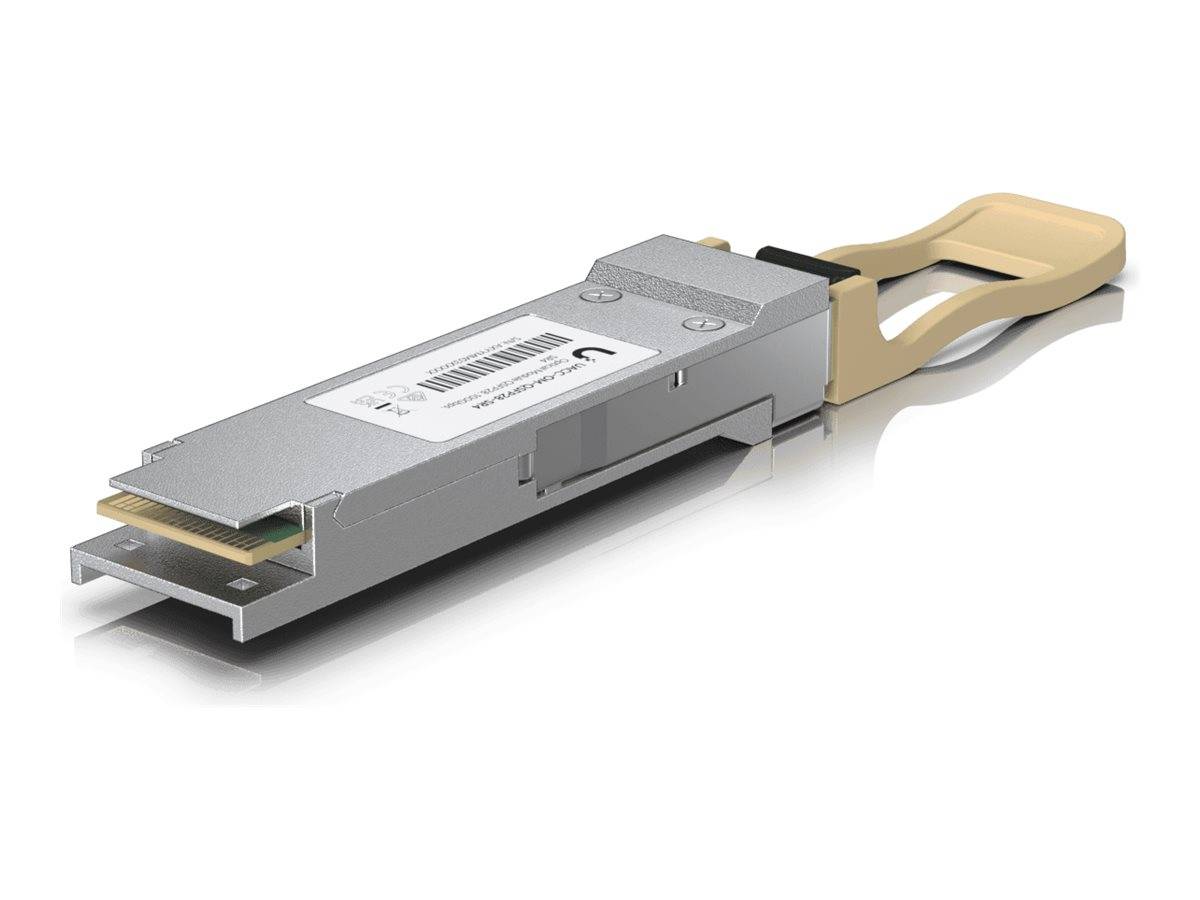

Ubiquiti UACC-OM-QSFP28-SR4 100G SR4 QSFP28 Optical Module 850 nm MPO-12 Multimode 100 m OM4 for UniFi

Brand:
Ubiquiti

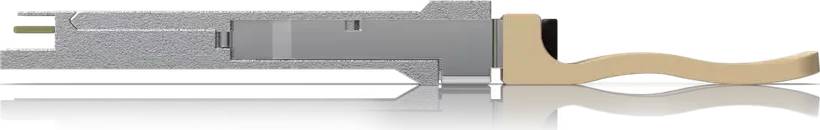

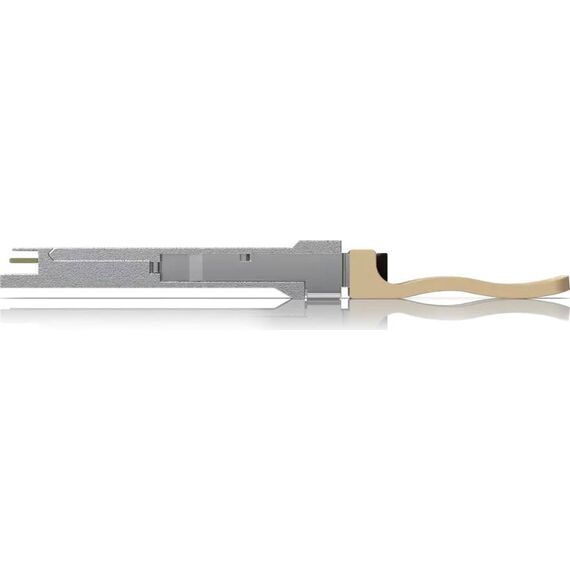

Ubiquiti UACC-OM-QSFP28-SR4 QSFP28 100GBase-SR4 Transceiver Module
Ubiquiti UACC-OM-QSFP28-SR4 100G SR4 QSFP28 Optical Module 850 nm MPO-12 Multimode 100 m OM4 for UniFi
€103.72 inc. VAT
Buy
UACC-OM-QSFP28-SR4
€87.16
€103.72 inc. VAT
Ships from EU stock: 7 item(s)
+ −
Add to wish list Ask a question
Product Code
04:518652
EAN Code
0810084690024
Manufacturer
Ubiquiti

Quick Specs

Standard
100G SR4 · also 40G
Fibre & Reach
OM4 100 m · OM3 70 m
Connector
MPO-12 Type B UPC
Power
Max. 2.5 W
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Ubiquiti UACC-OM-QSFP28-SR4 — 100G SR4 on MPO

100G / 40GQSFP28 SR4MPO-12OM4 100 m

The Ubiquiti UACC-OM-QSFP28-SR4 is a 100G QSFP28 optical module of the SR4 type, carrying four 850 nm lanes over an MPO-12 multimode trunk: 100 m on OM4 and 70 m on OM3. It also runs at 40G, and is the short-reach optic for UniFi aggregation switches linking racks inside one data room. In practice, multimode optics are the cheaper choice for links inside one building: most server rooms and floor risers already carry OM3 or OM4 fibre, and the module plus a short patch cord is all a port needs. Before you order, check the fibre grade printed on the cable jacket and the real length of the run, including patch panels.

Compatibility — check before buying:
It has an MPO-12 Type B UPC connector, so ordinary LC duplex patch cords will not fit — you need an MPO-12 multimode trunk, which is not included. It will not work on single-mode fibre, and reach is 70 m on OM3, 100 m on OM4. For links between buildings, the single-mode UACC-OM-QSFP28-LR4 uses LC and reaches 10 km. Keep the dust cap on until you connect the fibre, and clean both connector ends before every mating — dirt is the most common cause of a link that will not come up. Not sure? Send us your device model and the cable run and we check it before you order.

Best For

✓ 100G links between racks in one room
✓ UniFi aggregation switch uplinks
✓ MPO-based structured cabling
✓ OM3 / OM4 data-room trunks
✓ 40G links on QSFP+ ports
✓ Replacing a failed SR4 module

Key Features


100G over short multimode runs
Four 850 nm lanes carry 100 Gbps over an MPO-12 trunk, up to 100 m on OM4.

Multimode fibre, short reach
Built for the short runs inside a building or data room over OM-grade multimode fibre. Reach depends on the fibre grade — check what is actually in your walls before you plan a link.

Hot-swappable
Modules plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch to remove it.

Plan both ends together
A link only comes up when both ends use the same standard, speed and media. Order the far-end module, the cable and any spares in one go and the link works on day one.

Technical Specifications

Identification
Brand Ubiquiti
Model 100G SR4 Multi-Mode Optical Module
Part Number UACC-OM-QSFP28-SR4
EAN / GTIN 0810084690024
Pack Size Single unit
Interface
Form Factor QSFP28
Standard 100G / 40G SR4
Data Rate 100 / 40 Gbps
Connector MPO-12 Type B, UPC
Optics & Reach
Wavelength 850 nm
Reach on OM4 100 m
Reach on OM3 70 m
Laser Safety Class 1 (IEC/EN 60825-1)
Environment & Power
Operating Temperature 0 to 70 °C
Power Consumption Max. 2.5 W
Compatible Ports QSFP28 and QSFP+
Hot-Swap Yes
Compatibility
Designed For UniFi switches and gateways with the matching port type
Link Partner Another 100G SR4 module over an MPO-12 multimode trunk
In the Box
Included 1 module
Not Included MPO-12 multimode trunk cable and cleaning tools
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Ubiquiti publishes two years for products bought directly from its web store and one year for products bought through authorised distributors or resellers. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

What cable do I need?
An MPO-12 multimode trunk, OM3 or OM4, with a matching SR4 module at the other end. It is not included — tell us the distance and we quote it.
Does it run at 40G?
Yes. Ubiquiti lists 40 and 100 Gbps and compatibility with QSFP28 and QSFP+ interfaces.
Are fibre patch cords included?
No. You get 1 module. The patch cord for the MPO-12 Type B, UPC connector, a matching module for the far end of the link and a fibre cleaning tool are bought separately. Tell us the distance and the fibre type and we quote the right cord.
Will it work in a switch from another brand?
Ubiquiti builds its UniFi optics for UniFi switches and gateways and does not publish operation in other brands’ switches, so we do not promise it — send us the model and we check it.
Singular Expert Insight
We fit the UACC-OM-QSFP28-SR4 for 100G links between racks where MPO trunks are already in place or planned. For hops up to 3 m a UACC-DAC-QSFP28 is cheaper; for links between buildings, the LR4 single-mode module is the right part. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status and we help you find out whether it is the module, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.

Buyer’s Guide

Buy it if

You need a 100G or 40G multimode link up to 100 m on UniFi QSFP28 ports with MPO-12 cabling.

Skip it if

Your fibre is LC duplex or single-mode, or the run is longer than 100 m.

Also consider

Ubiquiti UACC-OM-QSFP28-LR4 for 10 km single-mode, or UACC-DAC-QSFP28 for short hops.
