Ubiquiti UniFi Retrofit Hub, two-door access control

Brand:
Ubiquiti

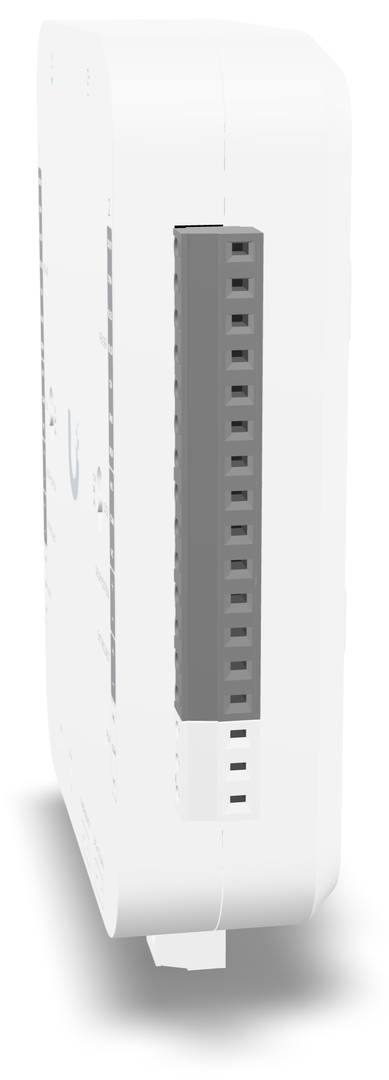

Ubiquiti UA-Retrofit-Hub-2 hub, angled view with side terminal block
Ubiquiti UniFi Retrofit Hub, two-door access control
€404.8 inc. VAT
Buy
UA-Retrofit-Hub-2
€340.17
€404.80 inc. VAT
Ships from EU stock: 57 item(s)
+ −
Add to wish list Ask a question
Product Code
04:596968
Manufacturer
Ubiquiti
Quick Specs
Doors
Up to 2
Readers
Wiegand and OSDP
Network
2 × 10/100 MbE RJ45
Power
12/24 V DC; supply separate
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Ubiquiti UniFi Retrofit Hub - two-door access control

Up to 2 doorsWiegand and OSDP2 × 10/100 MbE RJ4512/24 V DC; supply separate

The Ubiquiti UniFi Retrofit Hub (UA-Retrofit-Hub-2) is an indoor access-control hub for managing up to two doors through UniFi Access. It supports Wiegand and OSDP readers, but requires a suitable separately purchased DC supply, compatible management installation, and separately selected readers and locks.

Best For: For an indoor installation adding access control to up to two doors, where a compatible UniFi Access management installation and separately selected readers, locks and suitable DC power are arranged.
Before you order: This is a hub, not a reader or complete access kit. A suitable 12/24 V DC supply is sold separately, as are readers and electric locks; an appropriately designed Access installation is required. The hub is indoor-only and is not PoE-powered. Check each lock's voltage/current requirements and cable distance against wire gauge and load; the stated limits are not a combined accessory power budget.

What's in the Box

  • One Ubiquiti UniFi Retrofit Hub
  • One mounting piece/bracket
  • Two anchors
  • Two M4 screws

What It Means in Practice

  • Plan for a suitable external 12/24 V DC supply; the hub is not PoE-powered, and the supply is sold separately.
  • Choose readers and locks separately and confirm their interface and electrical requirements; Wiegand and OSDP support does not guarantee compatibility with every third-party reader.
  • Cable-distance limits vary with connected load and wire gauge. For example, the specified 152.4 m limit applies to a 250 mA UA-Retrofit-Reader with 18 AWG UACC cable, not to locks.
  • The included mounting piece supports DIN-rail mounting; the package does not establish that a full-length rail is included.

What Will Not Work

  • Indoor use only; operating range is -10 to 40 °C with 5–90% non-condensing humidity.
  • Requires a suitable external 12/24 V DC supply, sold separately; PoE input is not established.
  • Readers, electric locks, exit buttons, sensors, network cable, gateway/controller and switch are not included and may be required for the installation.
  • Two Ethernet ports are 10/100 MbE, not Gigabit.
  • Relay and power-output ratings are specific to each output: dry lock/AUX relays 30 V DC up to 1 A each; powered lock output 12 V DC up to 1 A or 24 V DC up to 0.5 A; reader output 12 V DC up to 0.5 A. These are not a shared total budget.
  • Cable-distance limits depend on load and wire gauge; there is no universal maximum cable length. The 250 mA reader example must not be applied to locks.

Key Features


Two-door control
One hub supports access control for up to two doors and up to 10,000 users.

Wiegand and OSDP readers
Supports both reader interfaces; confirm the specific third-party reader's compatibility.

Separate lock and AUX relays
Two lock relay outputs and two AUX relay outputs support the shown control connections, subject to their individual electrical ratings.

DIN-rail mounting
DIN-rail mounting is included, alongside the listed mounting piece, anchors and screws.

Technical Specifications

ManufacturerUbiquiti
ModelUniFi Retrofit Hub
Manufacturer SKUUA-Retrofit-Hub-2
Access controlUp to 2 doors; up to 10,000 users
Reader supportWiegand and OSDP; two reader inputs
Management softwareUniFi Access; compatible management installation required; exact minimum version not stated
Network interface2 × 10/100 MbE RJ45 ports; not Gigabit
Power input12/24 V DC; suitable external supply required and sold separately
Maximum power consumption50 W

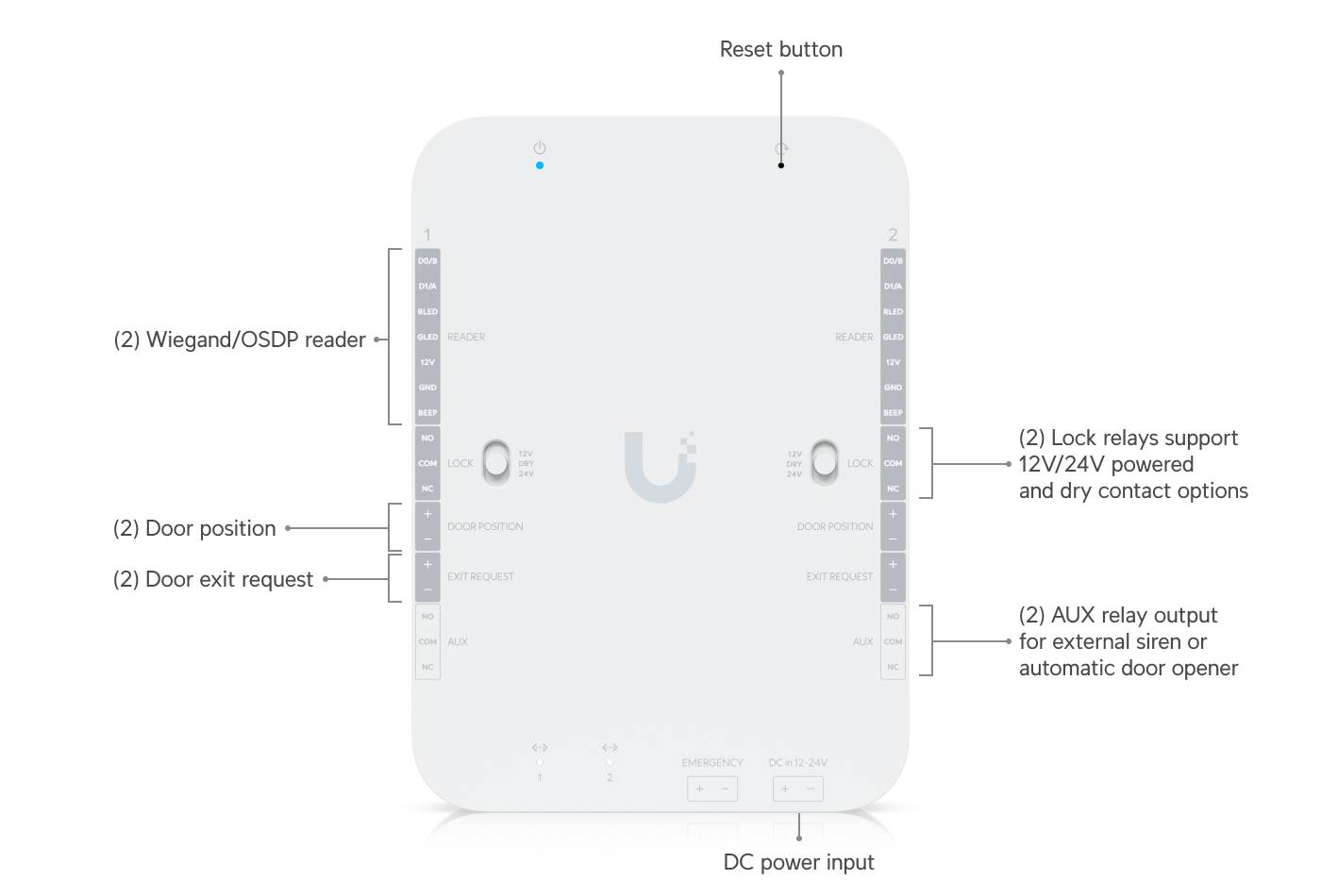

Door inputs2 door exit-request inputs; 2 door-position inputs; 1 emergency input
Relay outputs2 lock relays with 12 V/Dry/24 V selection; 2 AUX relay outputs
Dry lock and AUX relay rating30 V DC, up to 1 A each
Powered lock output12 V DC, up to 1 A; or 24 V DC, up to 0.5 A
Reader power output12 V DC, up to 0.5 A

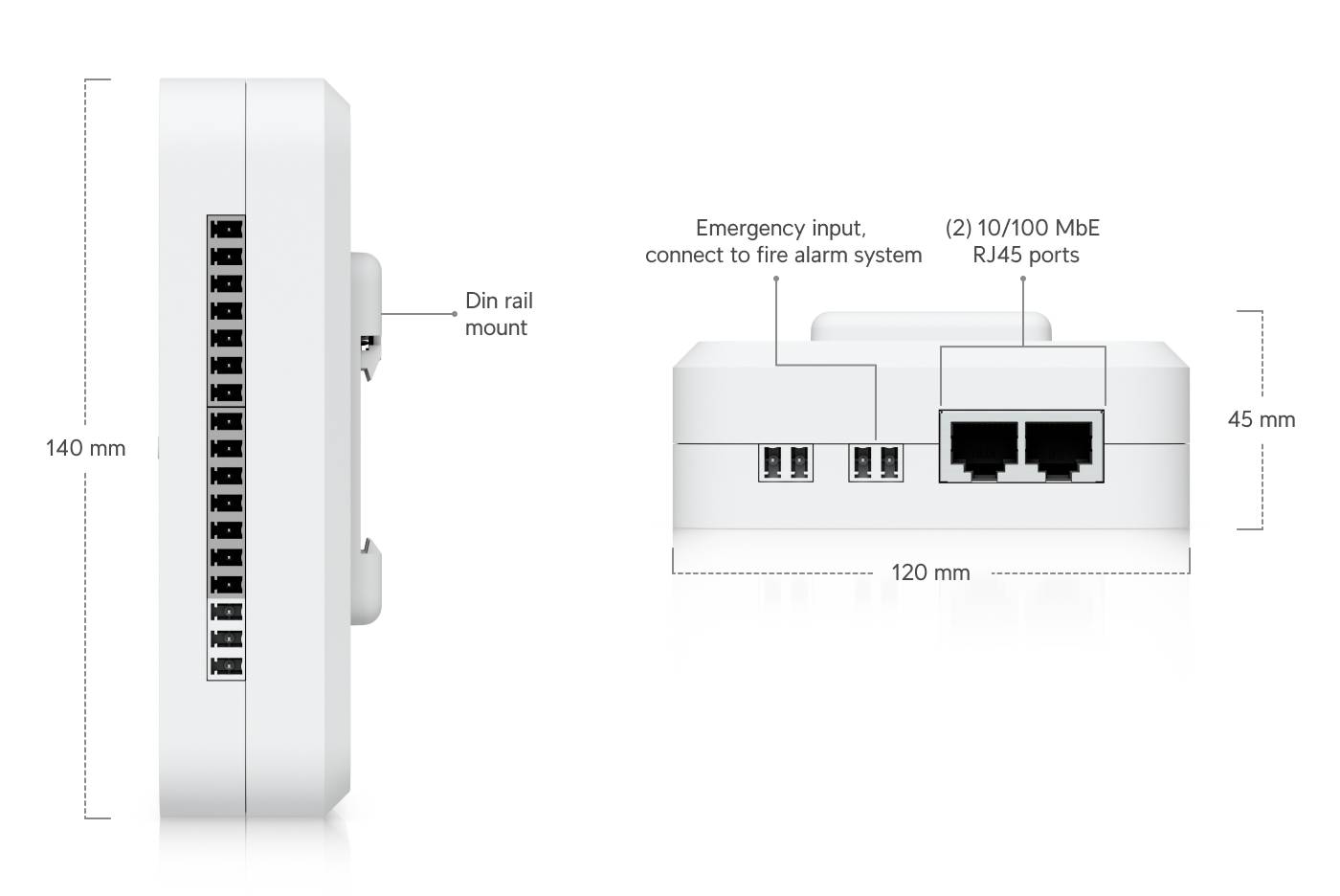

Dimensions140 × 120 × 45 mm
Weight420 g
Enclosure and mount materialsWhite polycarbonate enclosure; SGCC steel mount
MountingDIN-rail mounting included
Operating environmentIndoor only; -10 to 40 °C; 5–90% non-condensing humidity
Cable-distance conditionsDistances depend on reader/lock load and wire gauge; no universal maximum cable length
Example reader cable limitUA-Retrofit-Reader at 250 mA with 18 AWG UACC cable: up to 152.4 m
Example lock cable limitsUA-Lock-Electric at 400 mA with 18 AWG UACC cable: up to 100 m; other 1 A locks with same cable: up to 36 m
ComplianceNDAA compliant; CE, FCC, IC, UL 294 Level I (destructive attack, line security, endurance, standby power); CAN/ULC-60839-11-1 Grade I
Package contentsOne hub, one mounting piece/bracket, two anchors, two M4 screws; DIN-rail mounting included
EANNot supplied

Frequently Asked Questions

Does it include readers, locks or a power supply?
No. The package contains the hub and mounting hardware. The DC supply, readers and electric locks are sold separately.
Can it control two doors?
Yes. One hub supports up to two doors and up to 10,000 users, with two reader inputs and door exit-request and door-position inputs.
Is it powered over Ethernet?
No PoE input is established. It uses 12/24 V DC and requires a suitable external supply, sold separately.
Are its Ethernet ports Gigabit?
No. It has two 10/100 MbE RJ45 ports.
Singular Expert Insight

One hub supports two doors and Wiegand or OSDP readers, with dedicated door inputs and lock/AUX relay connections. Its two Ethernet ports are 10/100 MbE, not Gigabit.

Buyer’s Guide

✓ Buy it if For an indoor installation adding access control to up to two doors, where a compatible UniFi Access management installation and separately selected readers, locks and suitable DC power are arranged.
✕ Skip it if This is a hub, not a reader or complete access kit. A suitable 12/24 V DC supply is sold separately, as are readers and electric locks; an appropriately designed Access installation is required. The hub is indoor-only and is not PoE-powered. Check each lock's voltage/current requirements and cable distance against wire gauge and load; the stated limits are not a combined accessory power budget.
