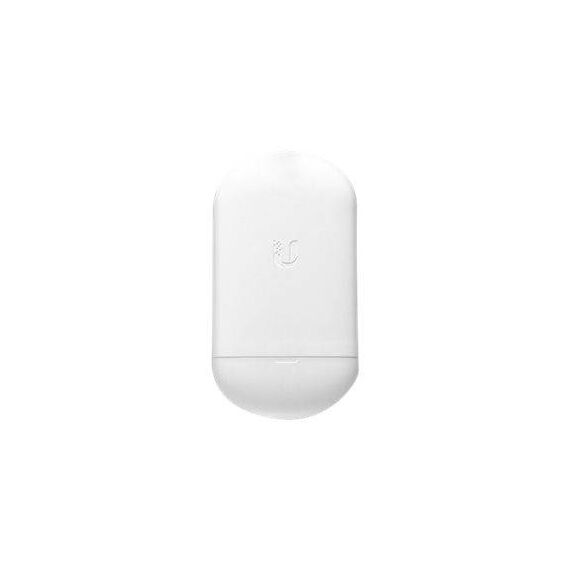

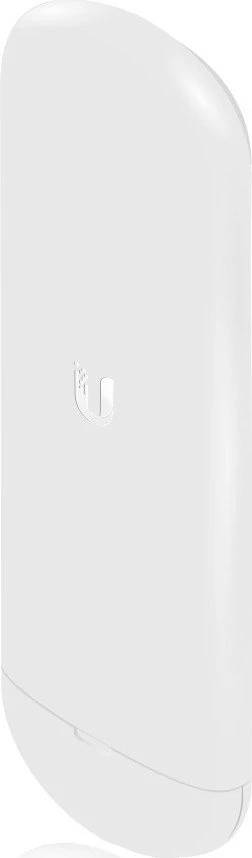

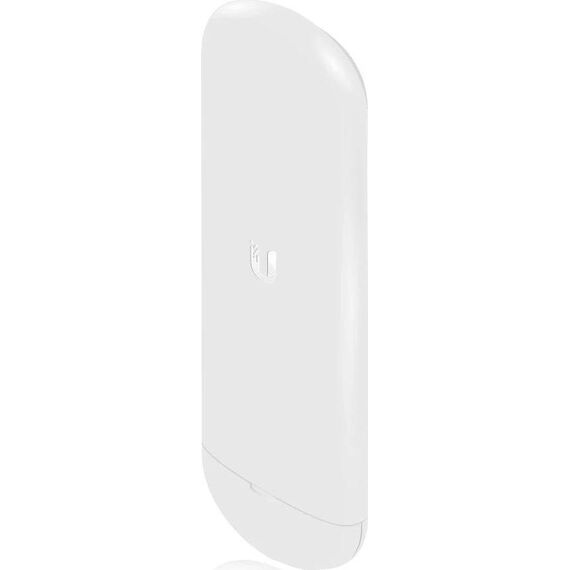

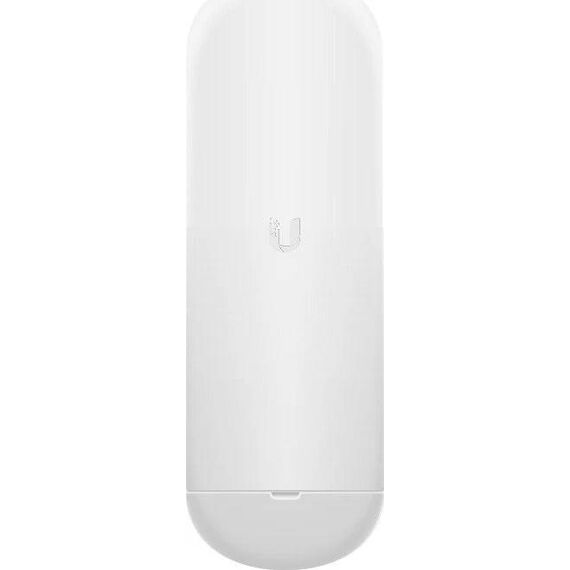

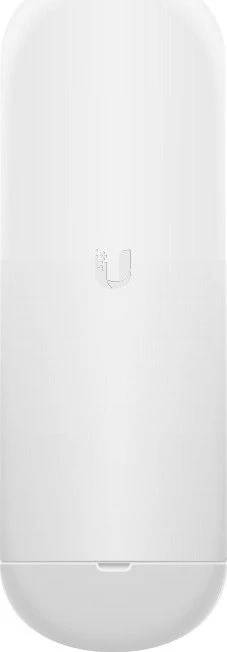

Ubiquiti NanoStation ac NS-5AC / Radio access point / AirMax ac / AirMax ac | NS-5AC
|
Description The indoor/outdoor NanoStation AC are compact, high-performance CPEs featuring airMAX AC technology and a dedicated Wi-Fi radio for management. Ubiquiti NanoStation ac NS-5AC / Radio access point | NS-5ACSpecial Features
Product features
|
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Outdoor, indoor |
| Width | 8.4 cm |
| Depth | 3 cm |
| Height | 25.7 cm |
| Weight | 233 g |
| Processors Installed | 1 x Atheros MIPS 74KC 560 MHz |
| Max Supported Qty | 1 |
| RAM | 64 MB DDR2 SDRAM |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 450 Mbps |
| Line Coding Format | 64 QAM, 256 QAM |
| Data Link Protocol | AirMax ac |
| Frequency Band | 5 GHz |
| Max Range Open Space | 15 km |
| Status Indicators | Power, signal strength, LAN |
| Features | Power over Ethernet (PoE), MIMO technology, Auto Channel Select (ACS), pole mountable, Time Division Multiple Access (TDMA), Distance Control (ACK Timeout), spectrum analyser, dual-linear polarisation, Point-to-Point (PtP) link mode |
| Encryption Algorithm | WPA2 |
| Compliant Standards | IEEE 802.3af |
| Antenna | Internal |
| Gain Level | 16 dBi |

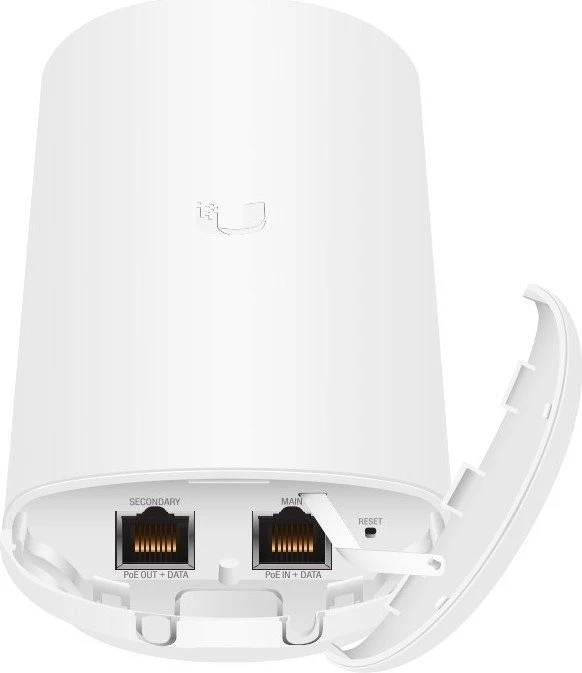

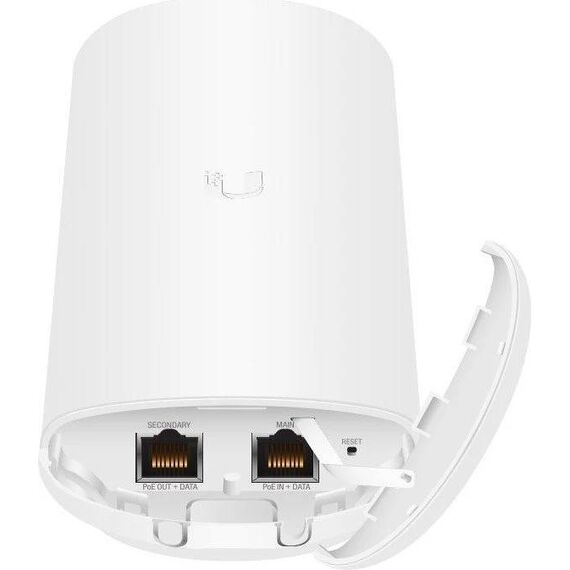

| Interfaces | 2 x 1000Base-T (PoE) - RJ-45 |
| Included Accessories | PoE injector, pole mount |
| Compliant Standards | IC, FCC, RoHS, ETSI 300 019-1-4 |
| Power Consumption Operational | 8.5 Watt |
| OS Provided | AirOS 8 |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Ubiquiti - NS-5AC
More Details
Product Code
04:251833
EAN Code
0817882021371
Manufacturer
Ubiquiti
