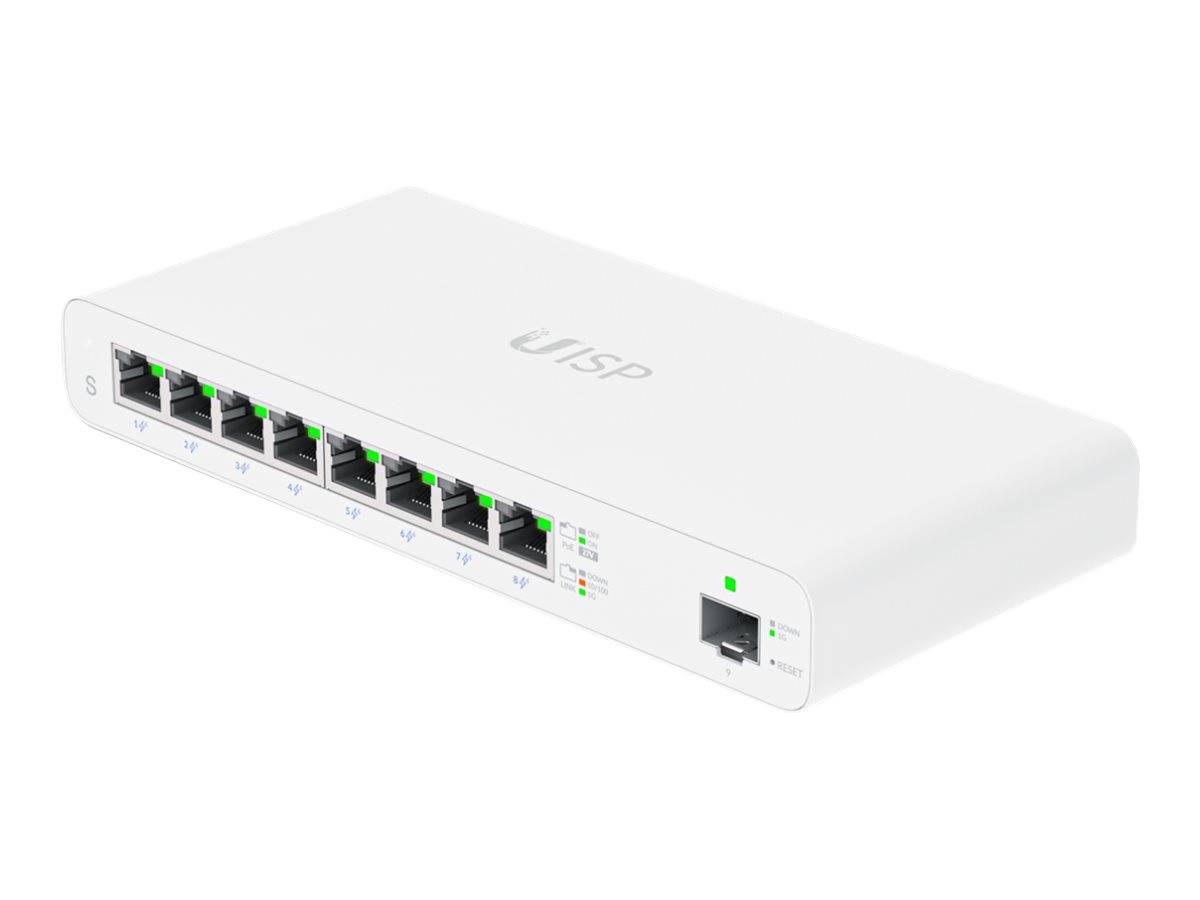

Ubiquiti UISP / Switch / 8 x 10/100/1000 (PoE) + 1 x Gigabit SFP / desktop / PoE (110 W) | UISP-S
Please sign in so that we can notify you about a reply
Special Features
- (8) GbE RJ45 ports with 27 V passive PoE output
- (1) SFP port
- 110 W (27 V) total PoE availability
- Port isolation, speed limiting, and DHCP snooping functionality
Product Specification
| Device Type | Switch - 9 ports |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE) + 1 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 110 W |
| Performance | Non-blocking switching throughput: 9 Gbps ¦ Switching capacity: 18 Gbps ¦ Forwarding rate: 13.392 Mpps |
| Features | 8KV ESD Protector (contact discharge), 15KV ESD Protector (air-gap discharge) |
| Status Indicators | Status, PoE, link/activity, speed |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 8 x 1000Base-T RJ-45 PoE - 30 W ¦ 1 x Gigabit LAN SFP |
| Power | Power |
| Power Device | External power adapter |
| Power Provided | DC 27 V - 4.4 A |
| Power Consumption Operational | 8 Watt |
| Miscellaneous | Miscellaneous |
| Compliant Standards | IC, FCC |
| Dimensions & Weight | Dimensions & Weight |
| Width | 21.04 cm |
| Depth | 9.5 cm |
| Height | 2.9 cm |
| Weight | 610 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Ubiquiti - UISP-S
General
8-Port
More Details
Product Code
03:206530
EAN Code
0810010076595
Manufacturer
Ubiquiti
