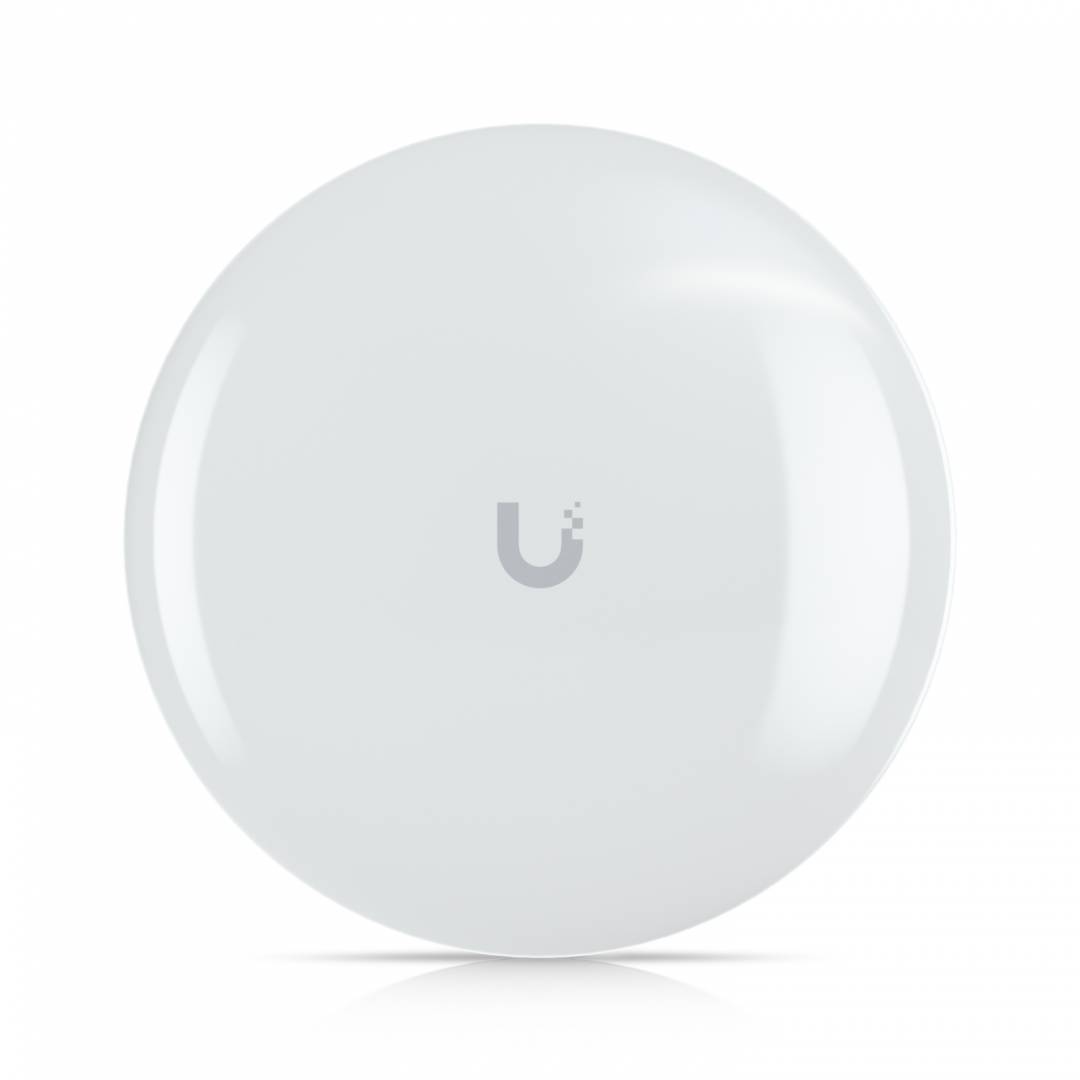

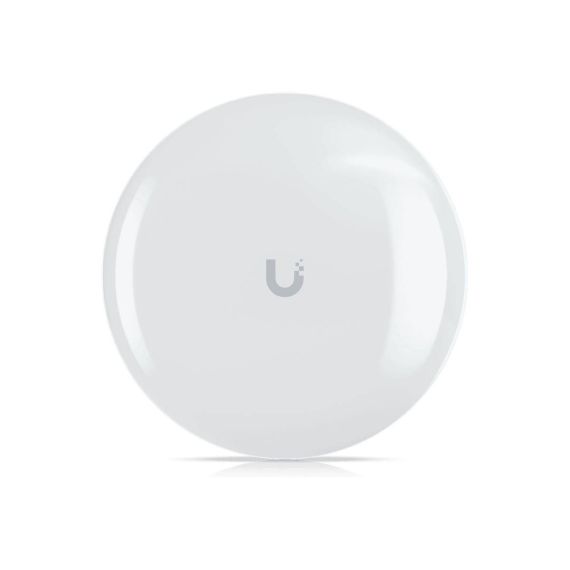

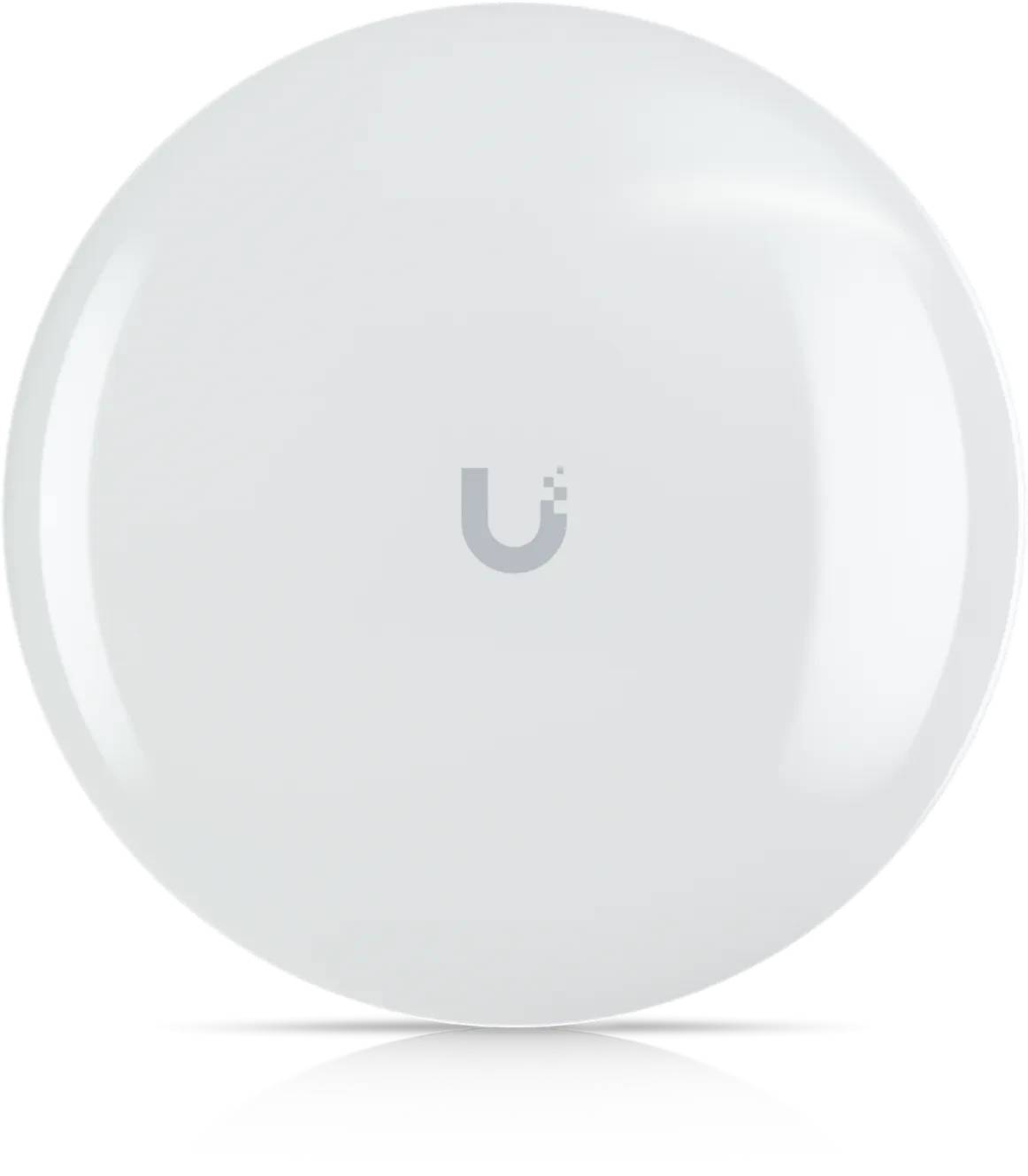

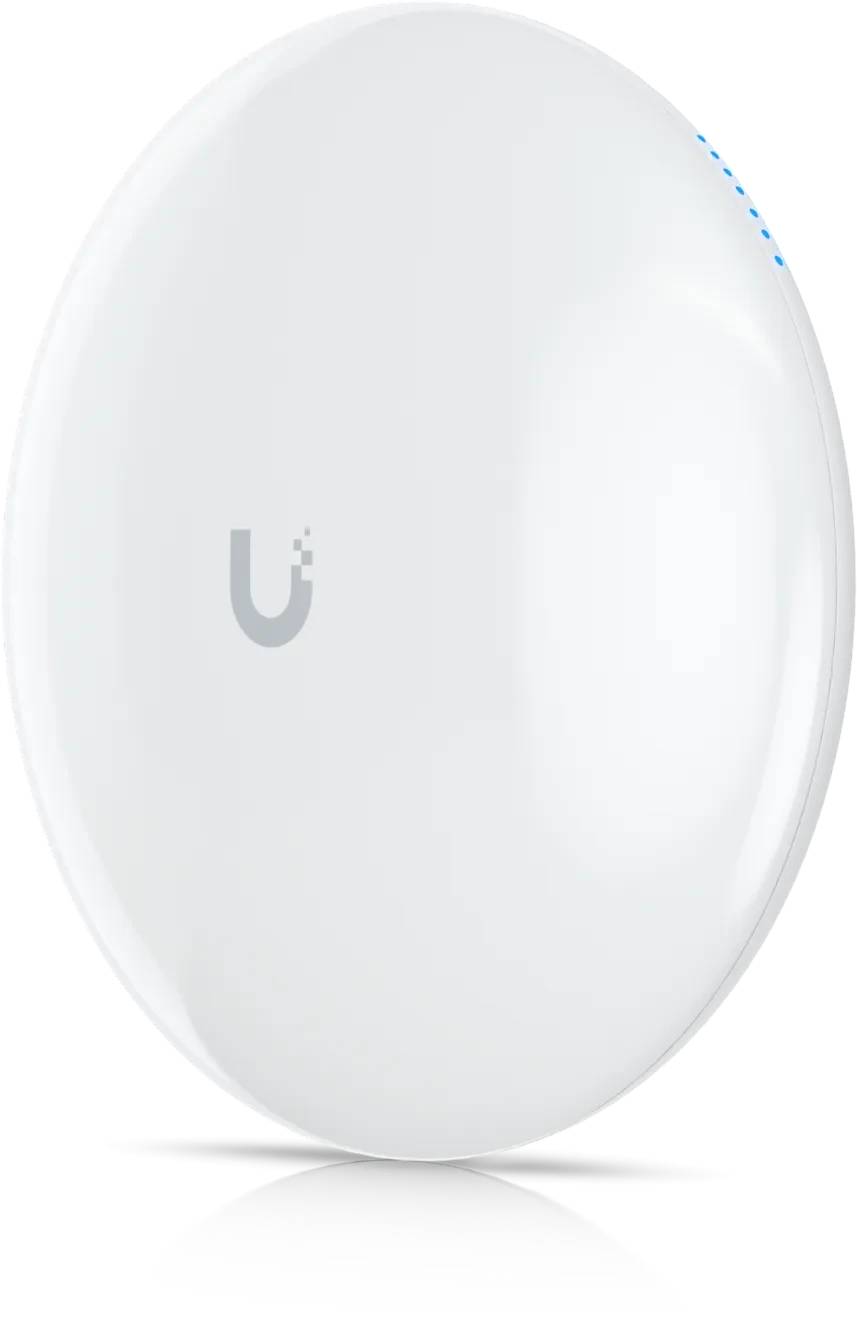

Ubiquiti UniFi Device Bridge Pro / Wireless bridge / Wi-Fi 5 / 5 GHz / pole mountable | UDB-PRO
Ubiquiti UniFi Device Bridge Pro / Wireless bridge / Wi-Fi 5 / 5 GHz / pole mountable | UDB-PRO
€297.89 inc. VAT
UDB-Pro
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Reliable performance
The Ubiquiti UniFi Device Bridge Pro supports advanced wireless protocols like 802.11a/n/ac, ensuring stable connections even at a range of up to 5 km. - Durable construction
Constructed with weatherproof and UV-resistant materials, this device is perfect for outdoor environments, maintaining performance during harsh conditions. - High efficiency
With a maximum data rate of 867 Mbps on the 5 GHz band, it allows for high-speed data transmission essential for demanding applications. - Versatile mounting
Designed to be pole mountable, the device can be easily installed in various settings, making it adaptable to user needs. - PoE capability
Support for Power over Ethernet (PoE) enables simplified installation by allowing power and data to feed through a single cable.
Special Features
- Offers a range of up to 5 km in open space
- Enhanced performance with a maximum data rate of 867 Mbps
- Weatherproof and UV-resistant design for outdoor durability
- Supports multiple wireless protocols including 802.11ac
- Built to operate in extreme temperatures from -40°C to 60°C
Product Specification
| Device Type | Wireless bridge |
| Width | 18.95 cm |
| Depth | 6.43 cm |
| Height | 18.95 cm |
| Weight | 515 g |
| Networking | Networking |
| Form Factor | Pole mountable |
| Connectivity Technology | Wireless |
| Line Coding Format | BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 5 GHz |
| Max Range Open Space | 5 km |
| Performance | Maximum data rate (5 GHz): 867 Mbps |
| Status Indicators | Power, Ethernet link/activity, signal strength |
| Features | 2x2 MIMO technology, reset button, UV resistant casing, weatherproof |
| Encryption Algorithm | WPA2, AES |
| Aerial | Aerial |
| Antenna | Internal |
| Gain Level | 19 dBi |
| Expansion / Connectivity | Expansion / Connectivity |

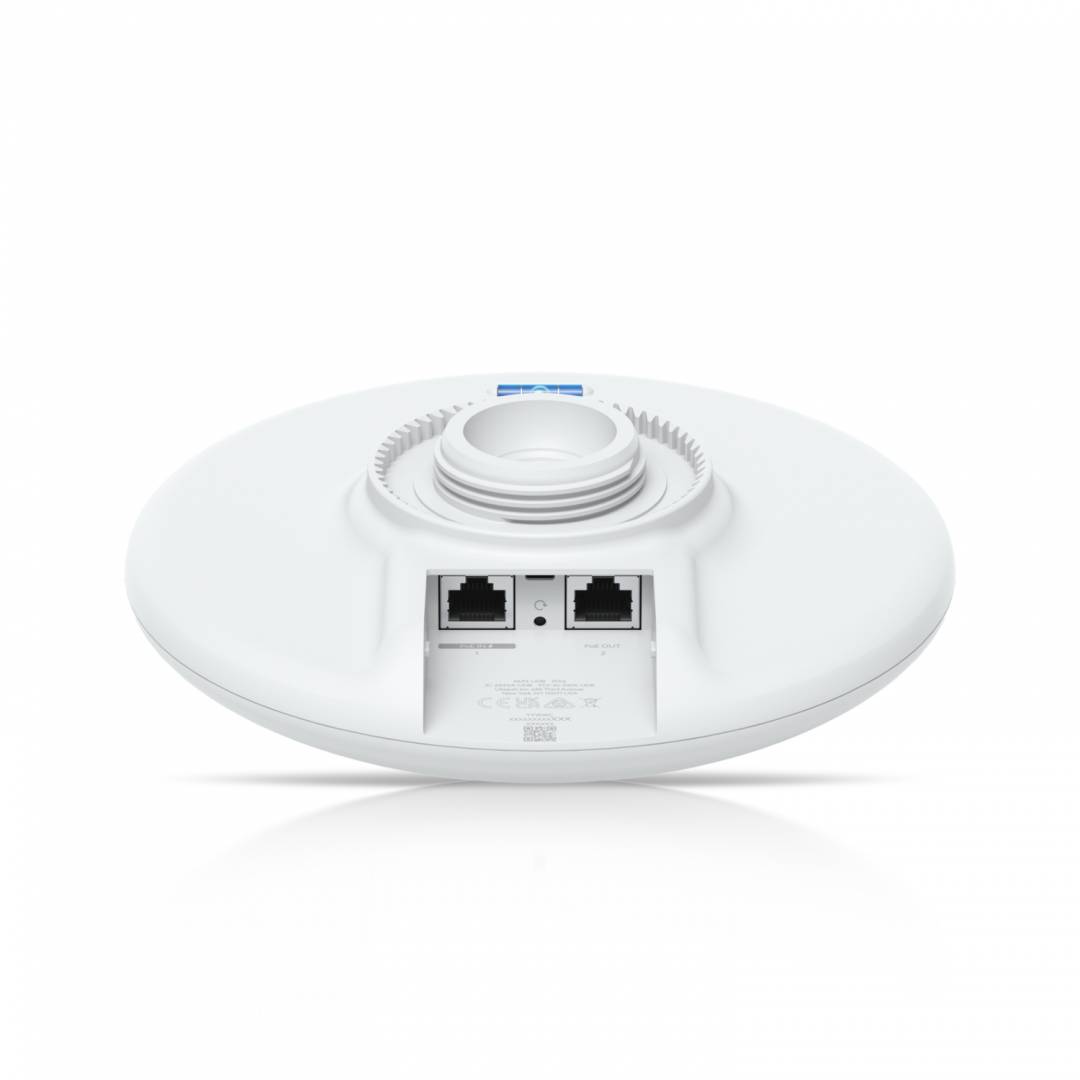

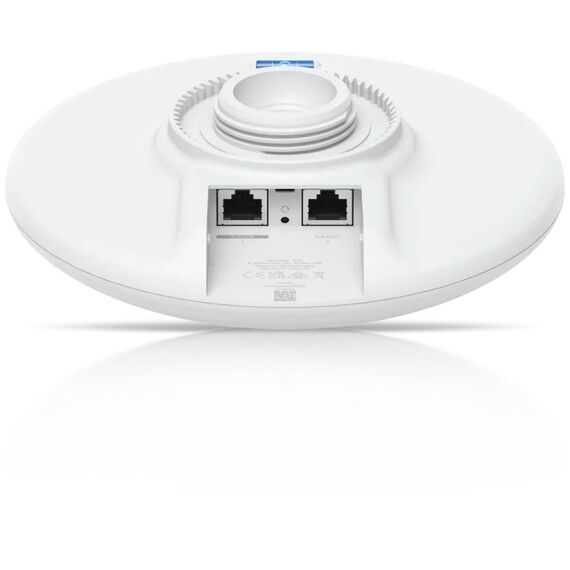

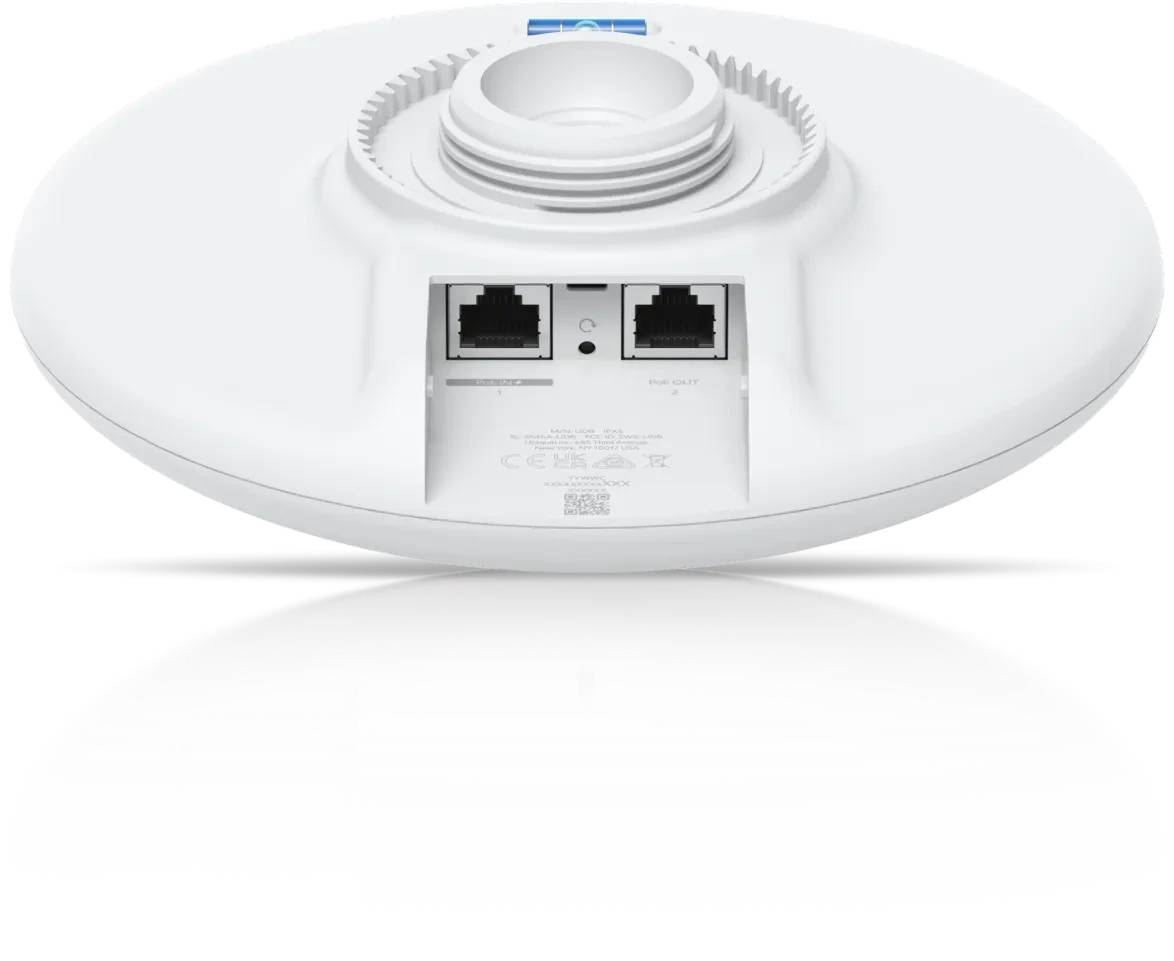

| Interfaces | 1 x 1000Base-T (PoE input) - RJ-45 1 x 1000Base-T (PoE output) - RJ-45 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Pole mount, power cable |
| Compliant Standards | IPX6, FCC, IC |
| Power | Power |
| Power Over Ethernet (PoE) Supported | Passive PoE |
| Power Device | Power injector |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Ubiquiti - UDB-Pro
More Details
Product Code
04:515667
EAN Code
0810084698051
Manufacturer
Ubiquiti
