Ubiquiti UACC-DAC-QSFP28-3M 100G Direct Attach Copper Cable QSFP28 to QSFP28 3 m 100G and 40G for UniFi

Brand:
Ubiquiti
Ubiquiti UniFi Direct Attach Copper Cable DA | UACC-DAC-QSFP28-3M
Ubiquiti UACC-DAC-QSFP28-3M 100G Direct Attach Copper Cable QSFP28 to QSFP28 3 m 100G and 40G for UniFi
€95.4 inc. VAT
Buy
UACC-DAC-QSFP28-3M
€80.17
€95.40 inc. VAT
Ships from EU stock: 41 item(s)
+ −
Add to wish list Ask a question
Product Code
04:518647
EAN Code
0810084690055
Manufacturer
Ubiquiti

Quick Specs

Speed
100 / 40 Gbps
Ends
QSFP28 to QSFP28
Length
3 m
Bend Radius
Min. 47 mm
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Ubiquiti UACC-DAC-QSFP28-3M — 100G QSFP28 DAC, 3 m

100G / 40GQSFP283 mCopper

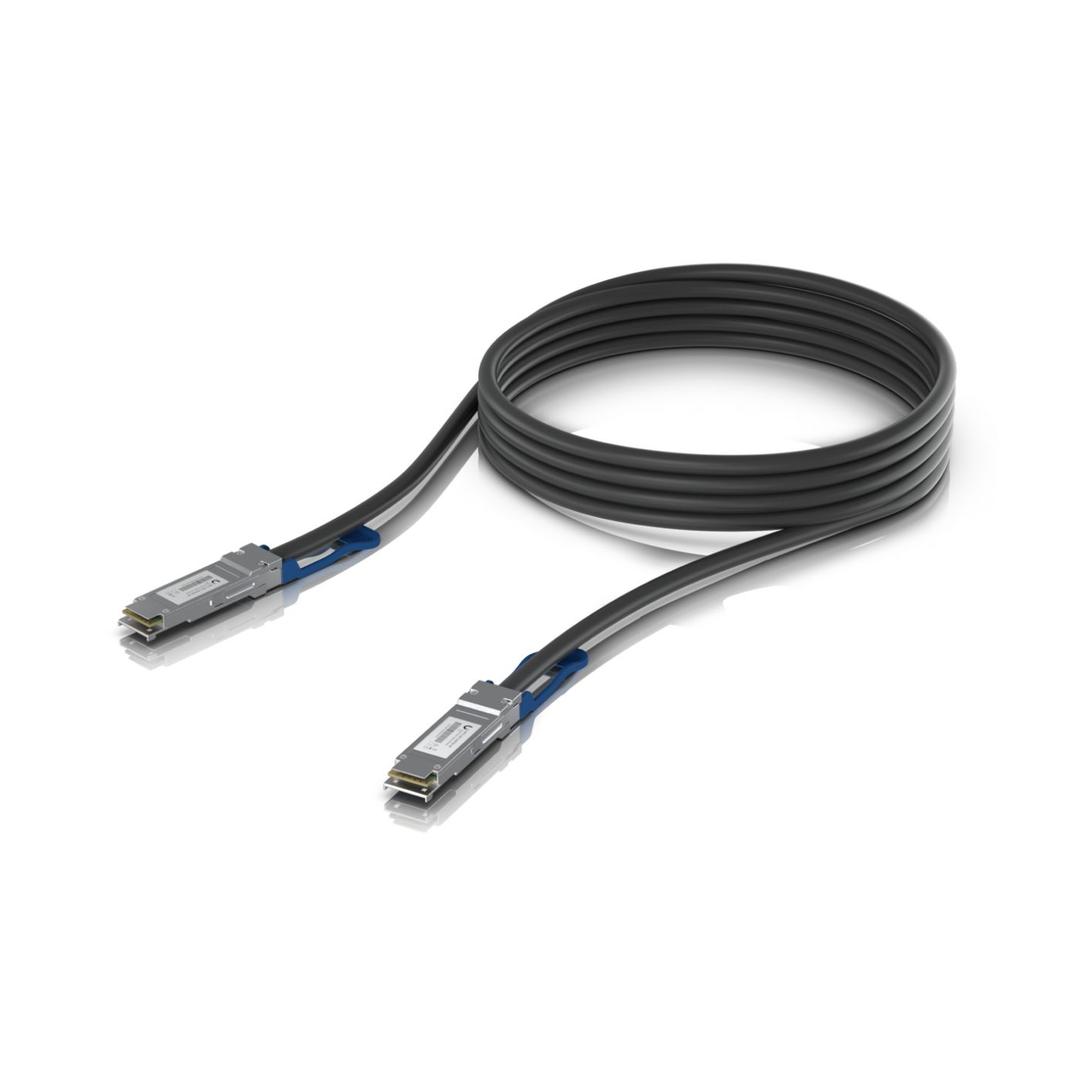

The Ubiquiti UACC-DAC-QSFP28-3M is a 3 m direct attach copper cable with a QSFP28 plug moulded onto each end, carrying 100G or 40G between two ports. It is the simplest way to join UniFi aggregation switches, gateways and servers that sit in the same rack or the next one, with no optics to buy and nothing to clean. In practice, a DAC is the cheapest way to join two switches that sit next to each other.

Compatibility — check before buying:
It fits QSFP28 and QSFP+ ports only — not SFP+ or SFP28 ports — and it is a straight QSFP28-to-QSFP28 cable, not a breakout to four SFP ports. Both ends must run the same speed. At 3 m the cable is 8.9 mm thick with a 47 mm minimum bend radius, so plan cable management in tight racks. Not sure? Send us your device model and the cable run and we check it before you order.

Best For

✓ 100G links between UniFi switches in one rack
✓ Aggregation to core switch links
✓ Server-to-switch 100G links
✓ 40G links on QSFP+ ports
✓ Adjacent racks up to 3 m
✓ Replacing optics on short runs

Key Features


100G at the lowest cost
For links up to 3 m a DAC replaces two optics and a fibre, and uses less power.

Cable and optics in one
A direct attach cable has the plugs moulded onto the cable, so there is nothing to clean, pair or buy separately.

Hot-swappable
Modules plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch to remove it.

Plan both ends together
A link only comes up when both ends use the same standard, speed and media. Order the far-end module, the cable and any spares in one go and the link works on day one.

Technical Specifications

Identification
Brand Ubiquiti
Model 100G Direct Attach Cable, 3 m
Part Number UACC-DAC-QSFP28-3M
EAN / GTIN 0810084690055
Pack Size Single unit
Other Lengths 0.5 m and 1 m versions of UACC-DAC-QSFP28
Interface
Form Factor QSFP28 to QSFP28
Standard 100G / 40G direct attach copper
Data Rate 100 / 40 Gbps
Connector QSFP28 plug at each end
Media & Reach
Length 3 m (9.8 ft)
Outer Diameter 8.9 mm
Minimum Bend Radius 47 mm
Jacket PVC, black
Environment & Power
Operating Temperature 0 to 70 °C
Compatible Ports QSFP28 and QSFP+
Passive / Active, AWG Not published by Ubiquiti
Compatibility
Designed For UniFi switches and gateways with the matching port type
Link Partner A second QSFP28 or QSFP+ port within 3 m, at the same speed
In the Box
Included the 3 m cable with both QSFP28 ends attached
Not Included Nothing else — no optics or patch cords are needed
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Ubiquiti publishes two years for products bought directly from its web store and one year for products bought through authorised distributors or resellers. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Does it work at 40G?
Yes. Ubiquiti lists 100 and 40 Gbps, and compatibility with QSFP28 and QSFP+ interfaces. Both ports must run the same speed.
Is it passive or active?
Ubiquiti does not publish this for the UACC-DAC-QSFP28. What matters for ordering is the length, the port type and the speed, which are shown above.
Is anything else needed to make the link?
Nothing. Both QSFP28 ends are part of the cable; plug one end into each port. Both ports must run the same speed, 100G or 40G.
Will it work in a switch from another brand?
Ubiquiti builds its UniFi optics for UniFi switches and gateways and does not publish operation in other brands’ switches, so we do not promise it — send us the model and we check it.
Singular Expert Insight
We fit the 3 m UACC-DAC-QSFP28 between UniFi aggregation switches and servers in the same or the next rack. Measure the route including the cable manager; for shorter hops the 0.5 m and 1 m versions keep the rack tidy, and for runs beyond 3 m use optics or an AOC. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status and we help you find out whether it is the module, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.

Buyer’s Guide

Buy it if

You need a 100G or 40G link of up to 3 m between QSFP28/QSFP+ ports.

Skip it if

The run is longer than 3 m, the ports are SFP+/SFP28, or you need a breakout cable.

Also consider

Ubiquiti UACC-OM-QSFP28-SR4 for longer multimode runs.
