Ubiquiti UniFi Dream Machine Pro Max | 8GB RAM | 32GB Flash | 8-Port Gateway | 1 x ARM 2 GHz | Gigabit Ethernet

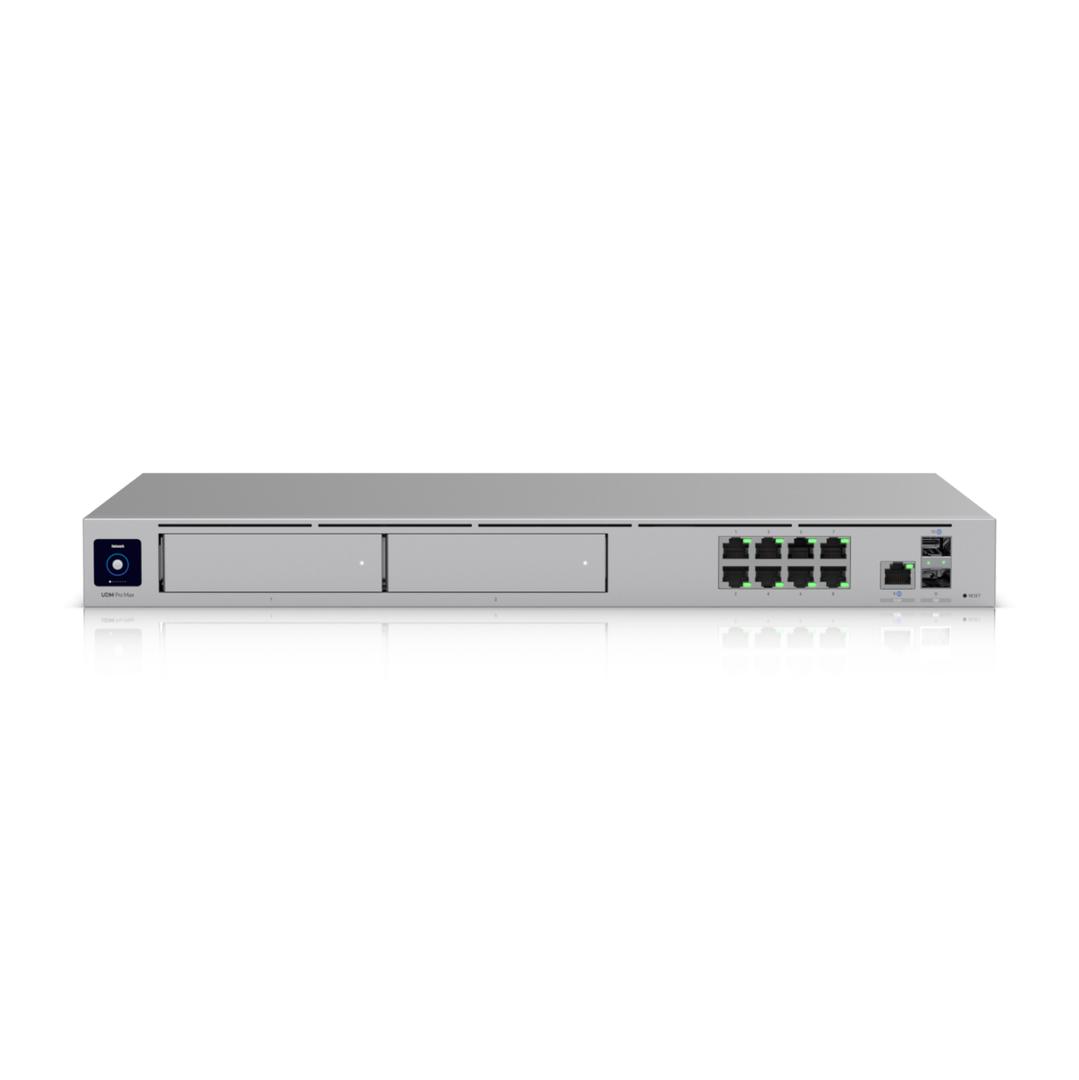

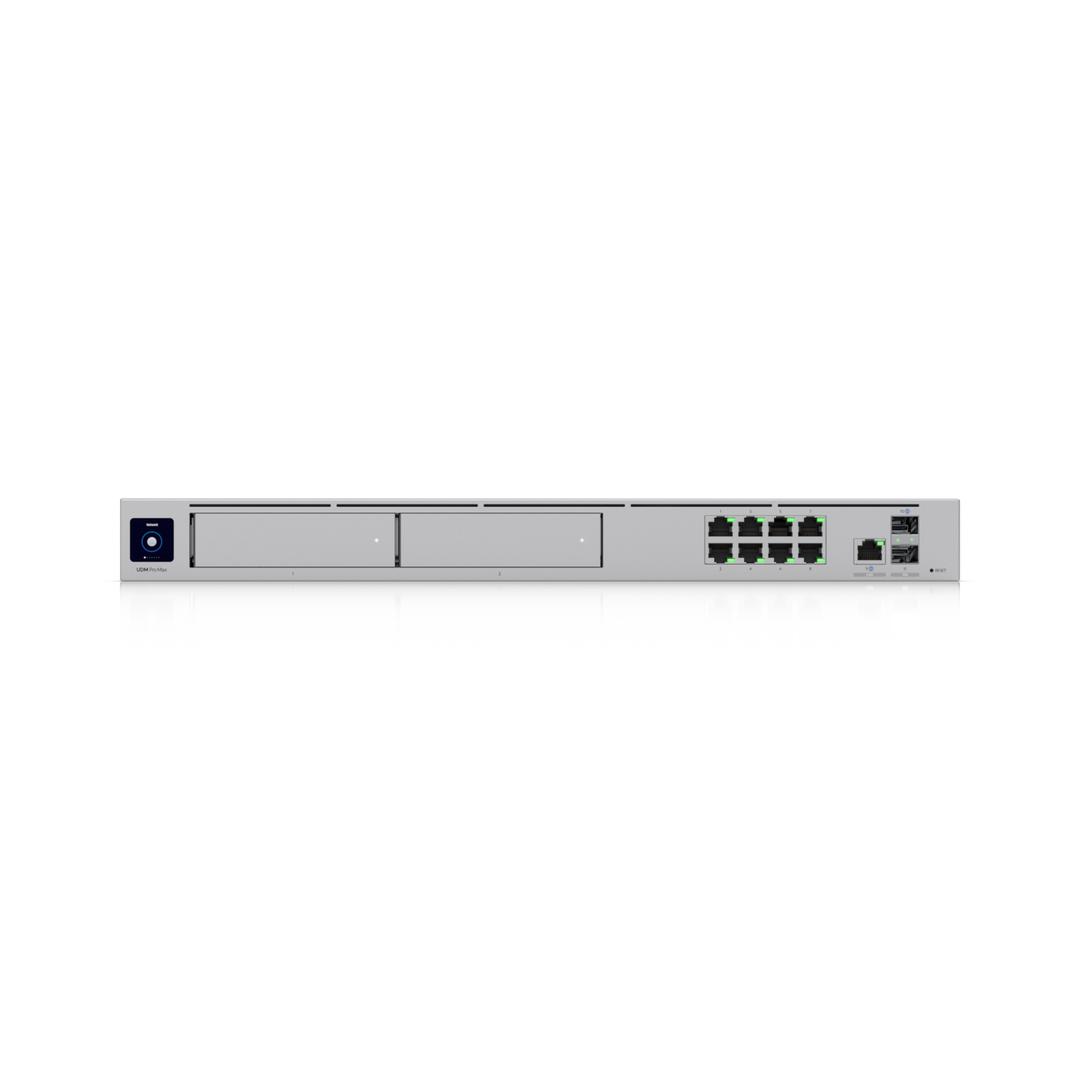

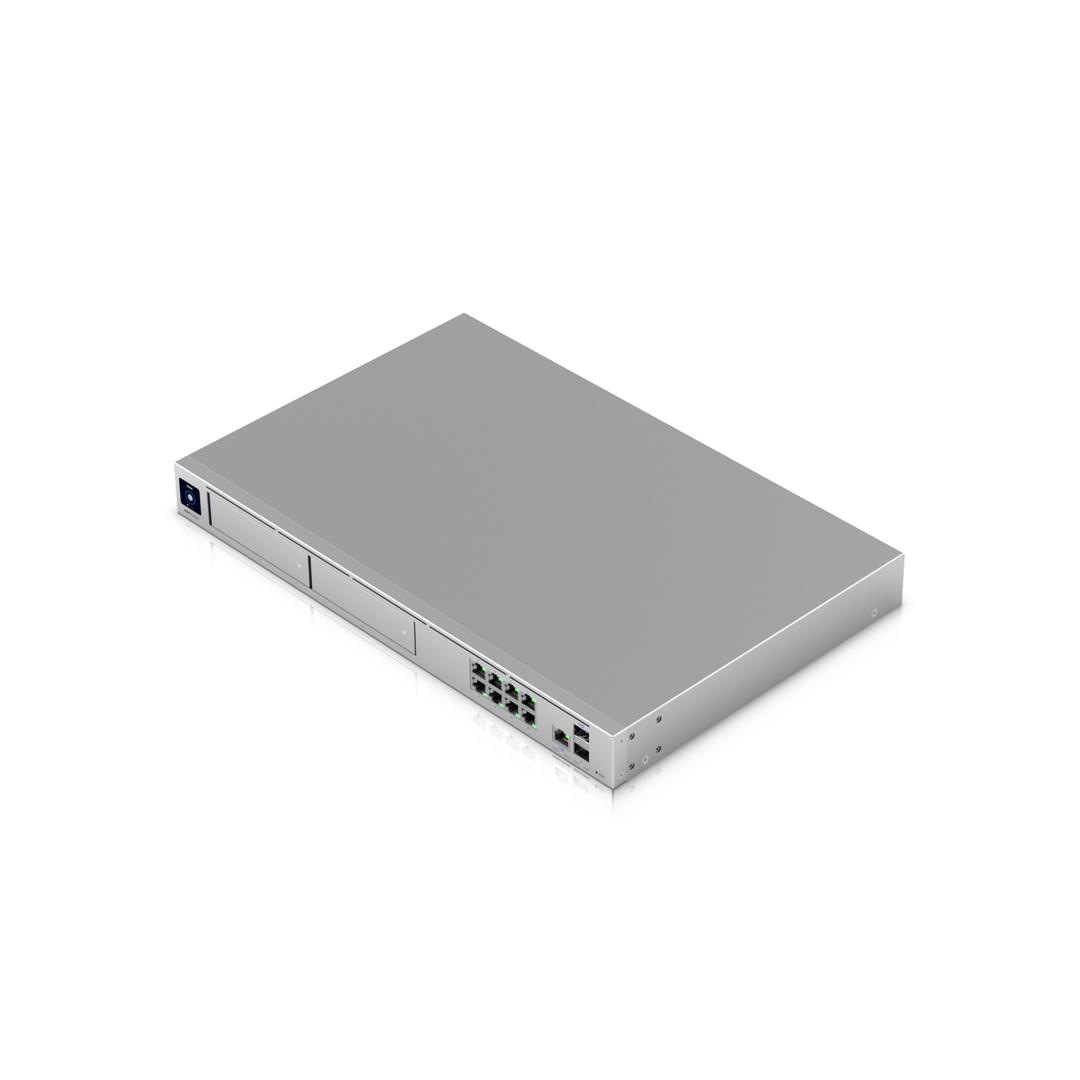

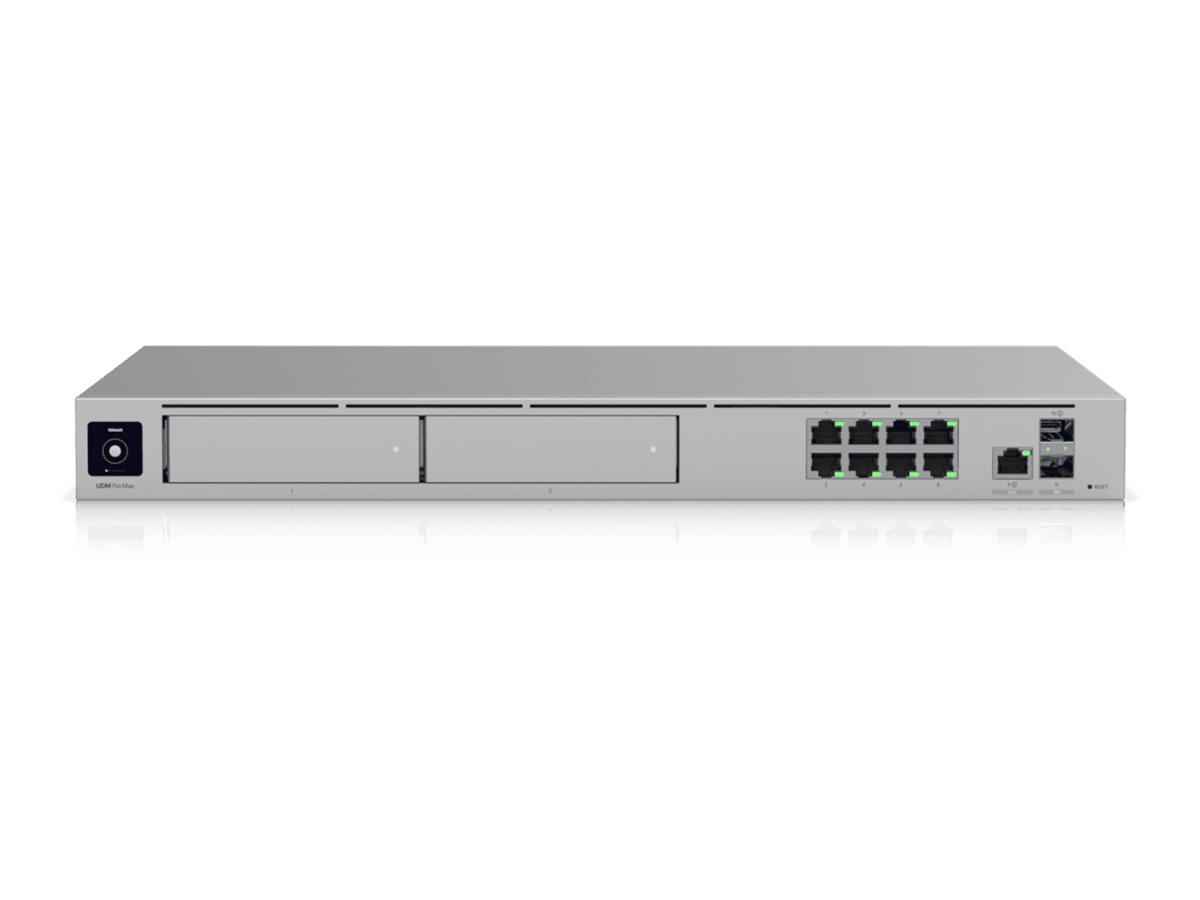

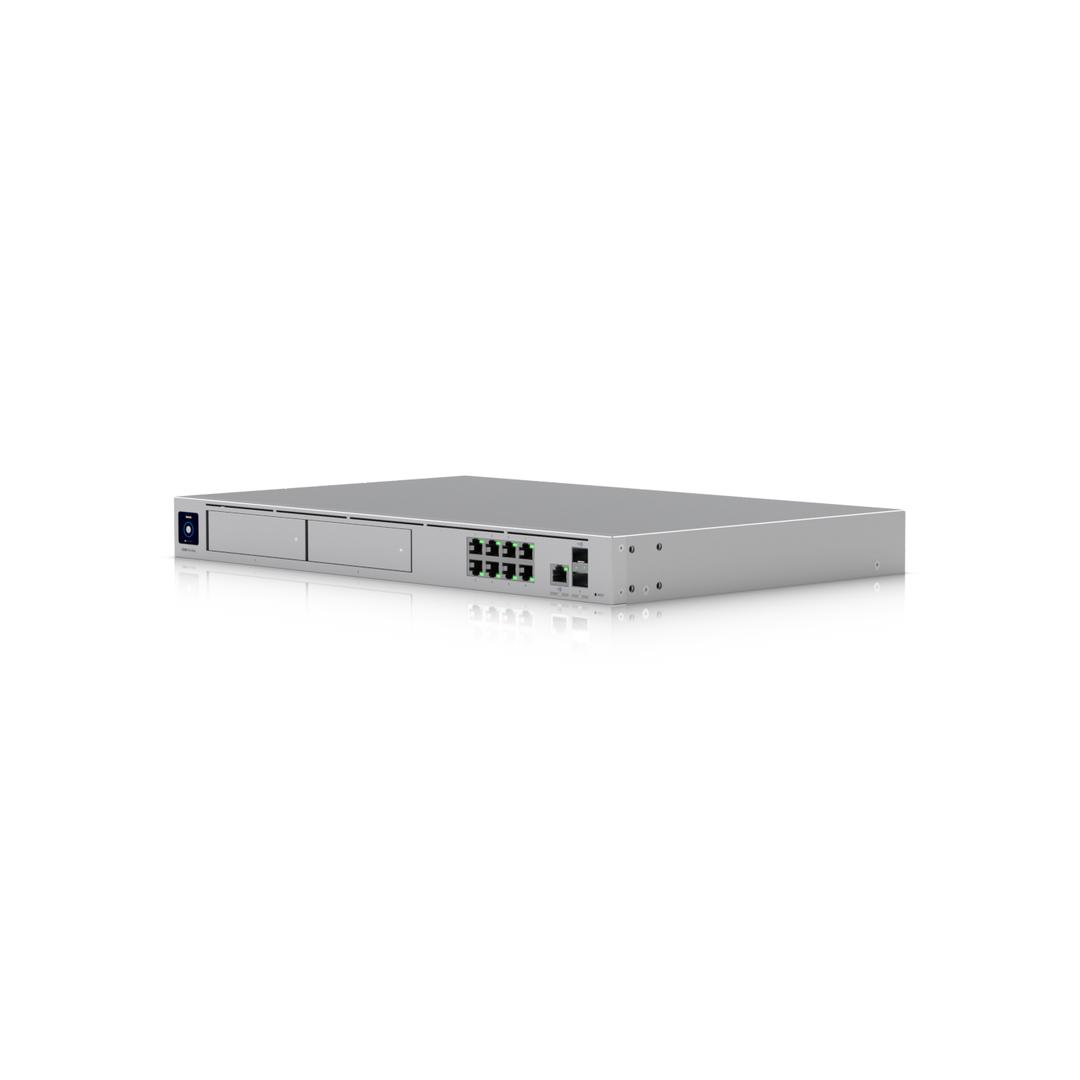

The Ubiquiti UniFi Dream Machine Pro Max is a wired Cloud Gateway with an integrated 8-port switch, built for rack-mounted deployments. It combines 8GB DDR4 RAM, 32GB flash storage, an ARM 2 GHz processor and a 1.3" touch screen, with 10GbE, 2.5GbE and Gigabit Ethernet interfaces. It also includes two 3.5" HDD bays and cloud-managed networking features for UniFi sites.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Gateway - 8-port switch (integrated) |
| Device Type | Gateway - 8-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired |
| Processor | 1 x ARM 2 GHz |
| RAM | 8 GB DDR4 SDRAM |
| Flash Memory | 32 GB |
| Built-in Devices | 128 GB SSD | 1.3" touch screen display |
| Performance | IDS/IPS throughput: 5 Gbps |
| Data Link Protocol | Gigabit Ethernet | 10 Gigabit Ethernet | 2.5 Gigabit Ethernet |
| Network / Transport Protocol | DHCP | WireGuard | L2TP | OpenVPN |
| Routing Protocol | IGMP |
| Remote Management Protocol | IPv6 | DHCP |
| Features | Aluminium/steel housing | Quad-core CPU | Bluetooth management | 15KV ESD Protector (air-gap discharge) | 8KV ESD Protector (contact discharge) | reset button | ISP | IGMP proxy | DHCP server | DHCP relay | OpenVPN server | OpenVPN client | Site-to-Site Replication | policy-based WAN | VPN routing | QoS | cloud managed |
| Compliant Standards | IC | FCC |
| Interfaces | LAN: 8 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | LAN: 1 x 10Gb Ethernet - SFP+ | WAN: 1 x 2.5G Gigabit Ethernet - RJ-45 | WAN: 1 x 10Gb Ethernet - SFP+ |
| Expansion Slots | 2 (total) / 2 (free) x 3.5" HDD bay |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V |
| Included Accessories | Power cable |
| Rack Mounting Kit | Included |
| Width | 44.24 cm |
| Depth | 28.56 cm |
| Height | 4.37 cm |
| Weight | 4.7 kg |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Manufacturer ID | UDM-PRO-MAX |
| EAN/UPC | 0810084693254 |
| Wireless Standard | Gigabit Ethernet | 10 Gigabit Ethernet | 2.5 Gigabit Ethernet |
| Power | Internal power supply |
| Package Contents | Power cable |
| Management Protocol | IPv6, DHCP |
| SKU / EAN | UDM-PRO-MAX | 0810084693254 |
SINGULAR RECOMMENDS
For who
For businesses or advanced home networks that need a rack-mount UniFi gateway with integrated switching and multi-WAN connectivity.
Real reason to buy it
It brings gateway, switch, 10GbE connectivity and two HDD bays into one rack-mount unit for a neat, centralised UniFi setup.
Know before

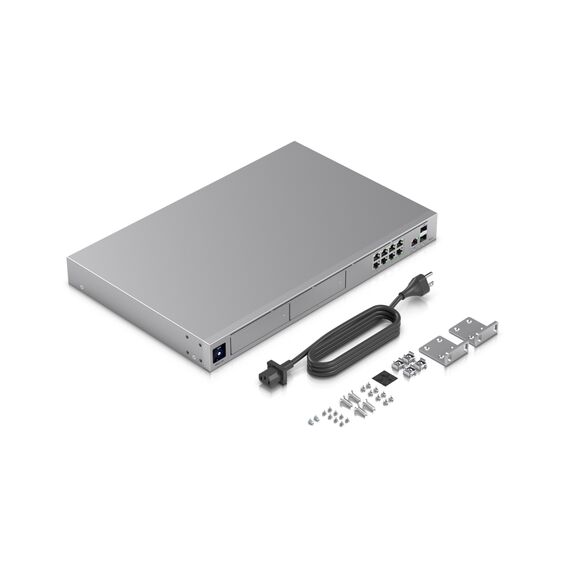

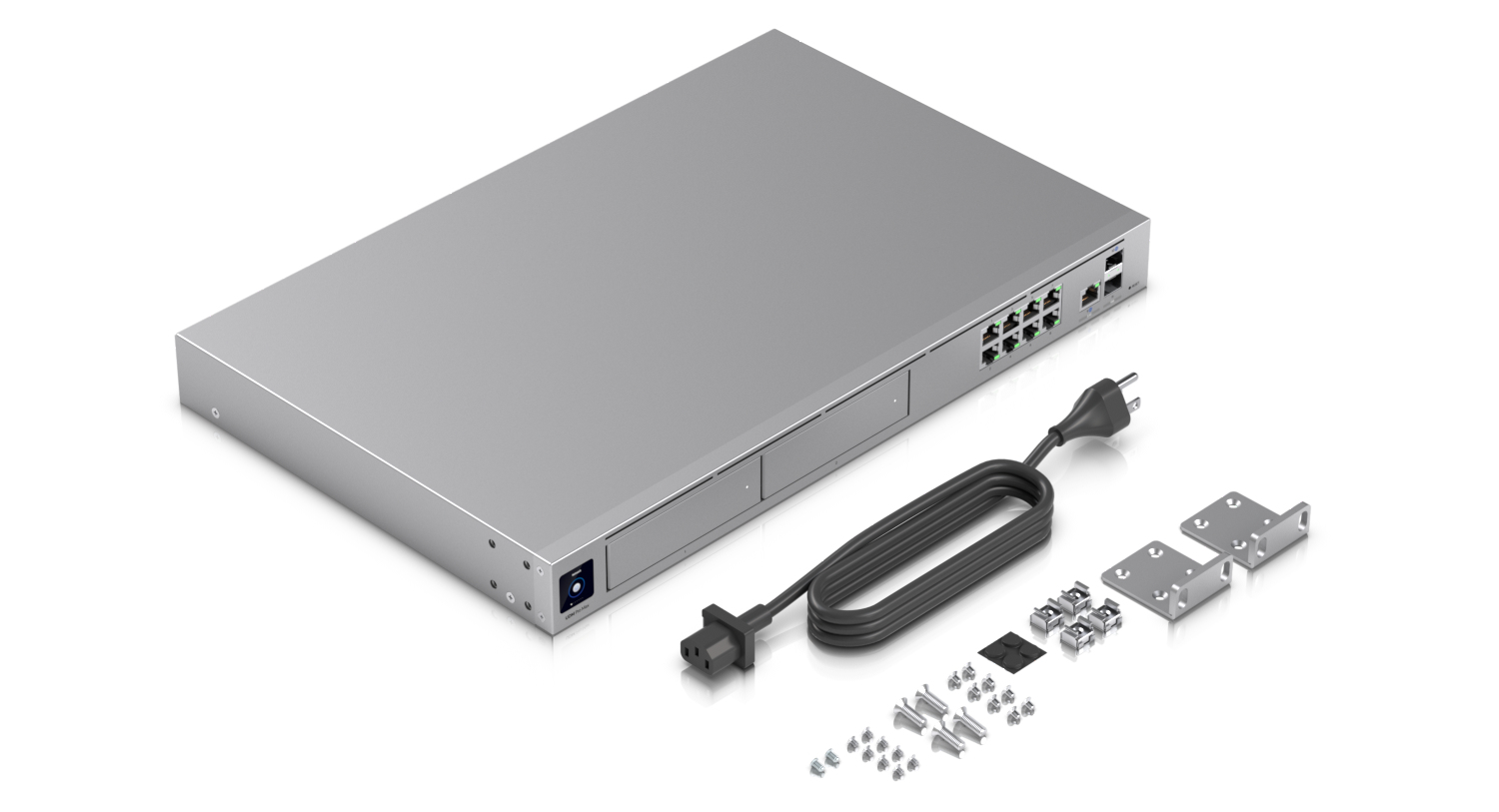

This is a wired desktop/rack-mount gateway, not a wireless router. The package includes a power cable and rack mounting kit, but no drives are supplied.
