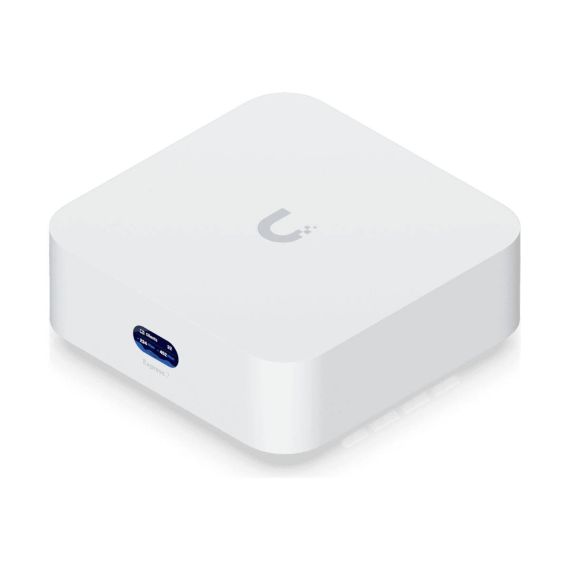

Ubiquiti UniFi Express 7 / Gateway / Wi-Fi 7, 10GbE, 2.5GbE / Wi-Fi 6 / Wi-Fi 7 / 2.4 GHz, 5 GHz, 6 GHz / desktop | UX7

Product Features
- Robust Security Measures
The UniFi Express 7 is equipped with multiple encryption algorithms, including WPA3-Enterprise and RADIUS authentication, ensuring that connections remain secure while also offering features like an Intrusion Detection System (IDS) and Intrusion Prevention System (IPS) for added protection. - Impressive Connectivity Options
This device includes a variety of connectivity technologies, including wired options such as 10 Gigabit Ethernet and 2.5 GBase-T, as well as wireless protocols supporting Wi-Fi 6 and Wi-Fi 7, catering to diverse networking needs. - High-Performance Throughput
Delivering significant data capacity, the UniFi Express 7 achieves a maximum throughput of up to 5.7 Gbps on the 5 GHz band, making it suitable for high-demand tasks and enabling smooth operation even in busy networks. - User-Friendly Management Features
This gateway simplifies network management with features such as DHCP server capabilities, content filtering, and VPN support, along with an intuitive status display for easy monitoring. - Reliable Environmental Resilience
Designed to function effectively across a wide temperature range from -10°C to 40°C and humidity levels of 5 to 95%, the UniFi Express 7 ensures consistent performance in various settings, making it adaptable for both home and professional environments.
Special Features
- Handles up to 20,000 simultaneous users
- Supports Wi-Fi 6 and Wi-Fi 7 technologies
- Includes security features like IPS and WPA3-Enterprise
- Maximum throughput of 5.7 Gbps on 5 GHz band
- Up to 1,500 sq. ft. coverage area
Product Specification
Device Type | Gateway |
Width | 11.7 cm |
Depth | 11.7 cm |
Height | 4.25 cm |
Weight | 422 g |
Processor / Memory / Storage | Processor / Memory / Storage |
Processors Installed | ARM 1.5 GHz |
Flash Memory | 3 GB |
Networking | Networking |
Form Factor | Desktop |
Connectivity Technology | Wireless, wired |
Data Link Protocol | IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11a, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6) |
Network / Transport Protocol | IPSec, OpenVPN, WireGuard, L2TP, DHCP |
Routing Protocol | OSPF, IGMP |
Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
Max Coverage Area | Up to 1,500 sq.ft |
Performance | IDS/IPS throughput: 2.3 Gbps Maximum throughput (6 GHz): 5.7 Gbps Maximum throughput (5 GHz): 4.3 Gbps Maximum throughput (2.4 GHz): 688 Mbps |
Capacity | Managed devices: 30 Simultaneous users: 300 IPS signatures: 20000 BSSIDs per radio: 4 |
Status Indicators | Ethernet link/activity |
Features | Full stateful firewall, application-aware layer 7 firewall, DPI & traffic identification, zone-based firewall advanced filtering, content filtering, Intrusion Prevention System (IPS), Intrusion Detection System (IDS), ad blocking, VLAN segmentation, SD-WAN support, VPN support, VPN Server, VPN client, Advanced QoS, mDNS, NAT support, DNAT support, SNAT support, RADIUS Server, failover backup, DHCP server, IGMP proxy, interrupt status port (ISP), policy-based WAN, VPN routing, 2x2 MU-MIMO technology, Private Pre-Shared Key (PPSK), Access Point operational mode, Quad-core CPU, polycarbonate enclosure, status display, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), reset button, Guest Isolation, USB-C host charging port |
Encryption Algorithm | WPA-PSK, WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise |
Authentication Method | RADSEC, RADIUS |
Compliant Standards | IEEE 802.1Q |
Aerial | Aerial |
Antenna | Internal |
Expansion / Connectivity | Expansion / Connectivity |
Interfaces | 1 x 10 Gigabit Ethernet - RJ-45 (WAN) 1 x 2.5 GBase-T - RJ-45 |
Miscellaneous | Miscellaneous |
Included Accessories | Feet set, power cable |
Cables Included | 1 x network cable |
Compliant Standards | IC, FCC |
Power | Power |
Power Device | External power adapter |
Voltage Required | AC 100-240 V |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | -10 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 5 - 95% (non-condensing) |
