Ubiquiti UniFi Access Magnetic Lock 270kg Fail-Safe Electromagnetic Door Lock for UA Hub Access Control

Brand:
Ubiquiti
UACC-Lock-Magnetic-270kg
€204.41
€243.25 inc. VAT
Out of stock
Add to wish list Ask a question
Product Code
04:514245
EAN Code
0810010076502
Manufacturer
Ubiquiti
Quick Specs
Holding Force
270 kg (600 lb)
Power Input
12V DC / 800mA
Lock Type
Fail-Safe (unlocks on power loss)
Weight
1kg body + 600g armature
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

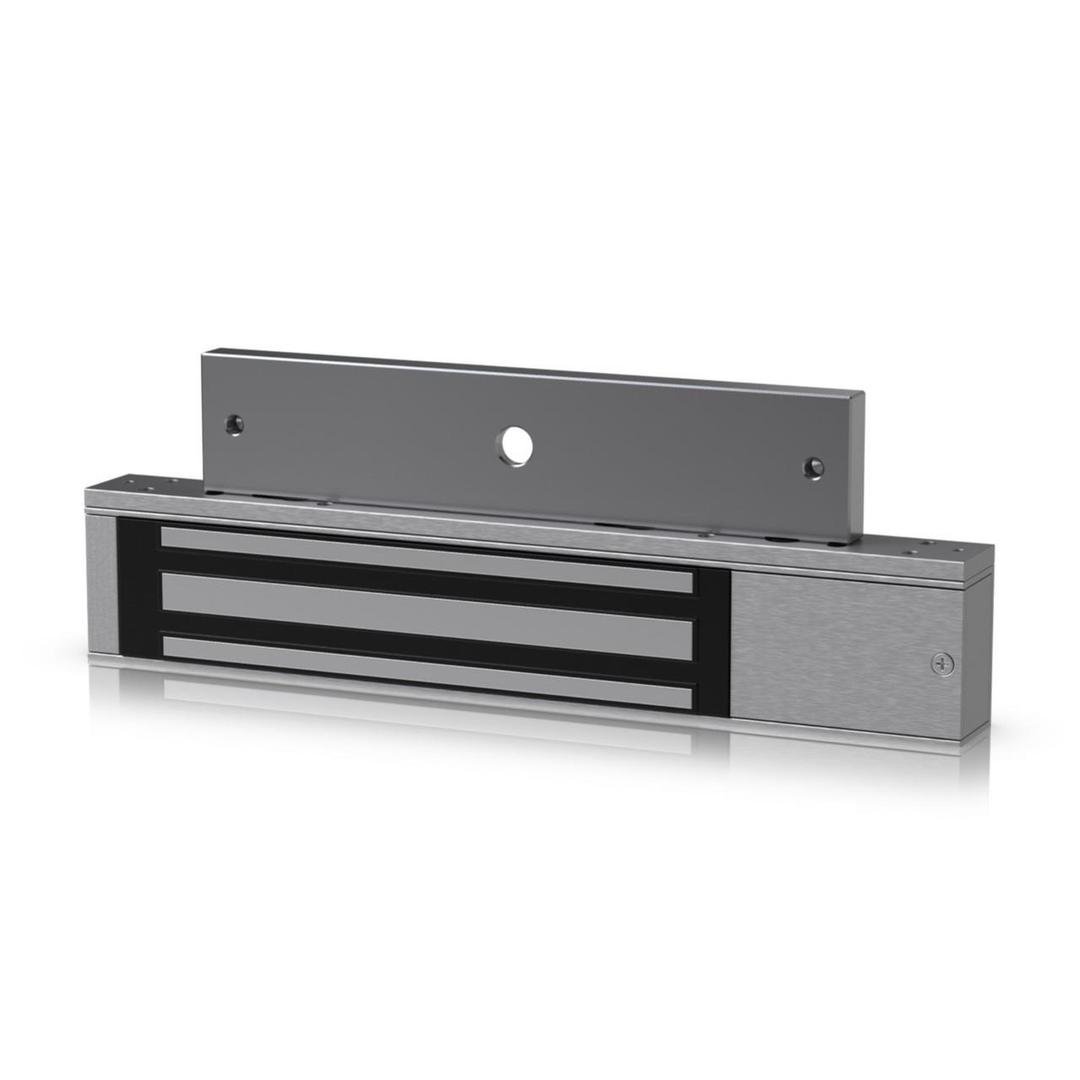

UniFi Access Magnetic Lock 270kg

270kg Holding ForceFail-Safe DesignUniFi Access Compatible

The Ubiquiti UniFi Access Magnetic Lock (part number UACC-Lock-Magnetic-270kg) is a fail-safe electromagnetic door lock rated for 270kg (600lb) of holding force, built to pair directly with a UniFi Access Hub for controlled entry on single wooden, metal, or glass doors. It suits offices, server rooms, and multi-tenant buildings that need reliable, code-compliant electronic access control. Typically in stock with fast delivery across Cyprus.

Compatibility note: this lock is a door-side actuator only — it requires a UniFi Access Hub (UA Hub / UA-Hub-Door or similar Access controller) to power and operate it; the hub and reader are sold separately. Choose the L bracket for outward-opening doors under 42mm thick, the Z+L combination for inward-opening doors, or the U bracket for glass doors up to 17mm thick.

Best For

✓ Office and commercial entrances
✓ Server rooms and comms closets
✓ Glass doors (with U bracket)
✓ Multi-tenant buildings
✓ Fire-code compliant fail-safe access
✓ Retrofitting existing UniFi Access sites

Key Features


Fail-Safe Operation
Unlocks automatically if power is cut, keeping the door fire-safe and code-compliant during an outage.

Universal Door Fit

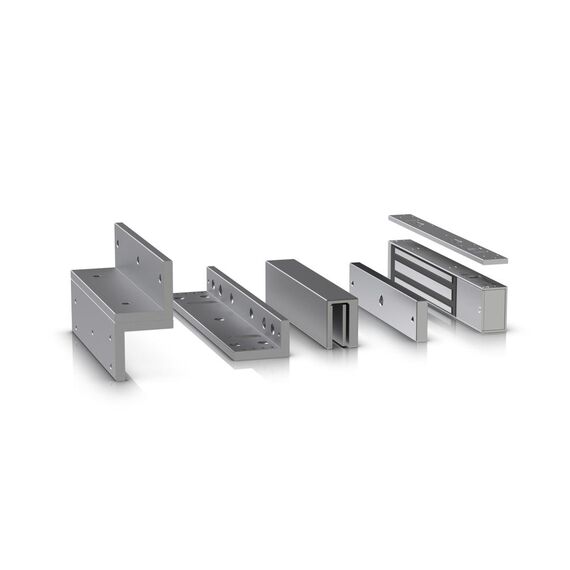

Ships with L, Z and U brackets covering outward-opening, inward-opening and glass doors.

270kg Holding Force
600lb of magnetic holding force is enough for standard single-door commercial access control.

Technical Specifications

Identification
Part Number UACC-Lock-Magnetic-270kg
EAN / GTIN 0810010076502
MPN UA-Lock-Magnetic-270kg
Electrical
Holding Force 270 kg (600 lb)
Input Voltage 12 V DC
Power Consumption 800 mA
Operating Mode Fail-safe electromagnetic — unlocks on power loss
Physical
Lock Body Dimensions 250 x 42.5 x 26 mm
Lock Body Weight 1 kg
Armature Dimensions 185.5 x 38.5 x 11 mm
Armature Weight 600 g
Install Plate 250 x 25 x 5 mm, 70 g
Mounting & Environment
Bracket Options L (outward-opening, door <42mm) · Z+L (inward-opening) · U (glass door, ≤17mm, gap ≤5mm)
Door Types Supported Single door — wood, metal or glass
Operating Temperature -10 to 50 °C (14 to 122 °F)

Frequently Asked Questions

Does the UACC-Lock-Magnetic-270kg work as a standalone lock?
No. It is an electromagnetic actuator that must be wired to a UniFi Access Hub (UA Hub or UA-Hub-Door) which supplies power and controls locking/unlocking — the hub and door reader are sold separately.
Is this lock fail-safe or fail-secure?
It is fail-safe: the door unlocks automatically if power is lost, which is required for fire egress compliance in most commercial buildings.
Can it be fitted to a glass door?
Yes, using the included U bracket, provided the glass is 17mm or thinner and the door gap is 5mm or less.
Singular Expert Insight
Pick the 270kg model for standard single doors; if you are securing a heavier steel or double-leaf door, look at a higher-holding-force Ubiquiti magnetic lock instead. Remember this is only the lock body — pair it with a UA Hub and a UniFi Access reader (such as the UA-G3 series) for a complete door.

Buyer's Guide

Buy it if: you run (or plan to run) a UniFi Access system and need a fail-safe 270kg lock for a single commercial door.
Skip it if: you do not already have a UA Hub, or you need to secure a double door or a much heavier steel door.
Also consider: UA-G2 Starter Kit if you need the hub+reader bundled with the lock.
