EFB-Elektronik K5293SW.1V2 USB 2.0 Type-B Panel-Mount Extension Cable 1 m Black

Brand:
EFB
EFB-Elektronik Classic / USB extension cable / USB | K5293SW.1V2
EFB-Elektronik K5293SW.1V2 USB 2.0 Type-B Panel-Mount Extension Cable 1 m Black
€6.14 inc. VAT
Buy
K5293SW.1V2
€5.16
€6.14 inc. VAT
Ships from EU stock: 50 item(s)
+ −
Add to wish list Ask a question
Product Code
04:264229
EAN Code
4049759132538
Manufacturer
EFB
Quick Specs
Type
USB 2.0 panel-mount extension
Connectors
USB-B male · USB-B female (panel mount)
Data rate
Up to 480 Mbit/s
Length · Colour
1.0 m · Black
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

EFB-Elektronik K5293SW.1V2 USB 2.0 Type-B Panel-Mount Extension, 1 m

Panel-mount B socket1.0 mUSB 2.0

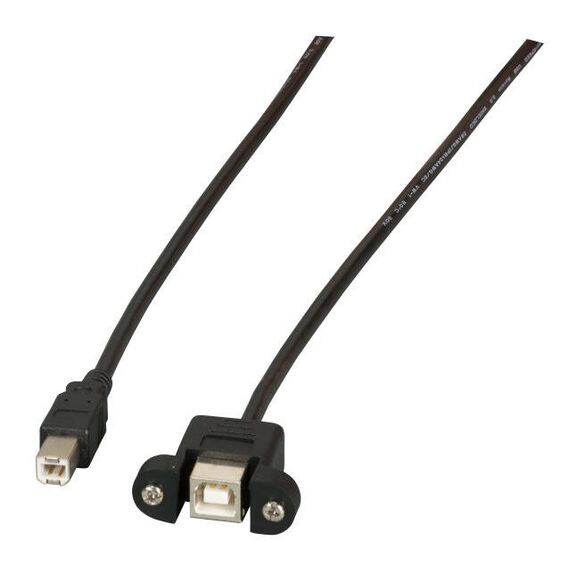

The EFB-Elektronik K5293SW.1V2 (Classic series) is a 1 m USB 2.0 extension with a Type-B plug on one end and a panel-mountable Type-B socket on the other, used to bring a device’s USB-B port out to the front or side of an enclosure, control cabinet or rack. It runs at up to 480 Mbit/s with AWG 28/24 conductors and foil plus braid shielding.

Compatibility note: This is a B-to-B extension: it relocates a USB-B port, it does not connect to a computer’s USB-A port. EFB does not publish the panel cut-out or screw spacing, so check the socket flange against your panel before drilling.

Technical Specifications

Identification
Part Number K5293SW.1V2
EAN / GTIN 4049759132538
MPN K5293SW.1V2
Brand EFB-Elektronik
Connectors
Connector 1 USB Type-B male (plug)
Connector 2 USB Type-B female, panel-mountable
Plugs Moulded
Performance
USB standard USB 2.0
Data rate Up to 480 Mbit/s
Cable
Wire gauge AWG 28 / AWG 24 conductors (as published by EFB) — lower AWG numbers mean thicker wires
Shielding Foil + braid
Series EFB Classic
Length 1.0 m
Colour Black

Frequently Asked Questions

What is a panel-mount USB-B extension used for?
It moves the USB-B port of a printer, PLC, instrument or embedded board to an outside wall of a housing, so the device can be connected without opening the cabinet.
Can I connect it directly to a PC?
Not by itself. The panel socket accepts a normal USB A-to-B cable, which then goes to the computer.
Singular Expert Insight

A tidy fit for machine builders and system integrators who need an accessible USB-B service port on a cabinet or enclosure. The foil and braid shielding is sensible in electrically noisy environments. For standard desk use, see our regular A-to-B leads in the USB cables & adapters range.

✓ Buy it if you need a USB-B service port on the outside of an enclosure or rack.
✕ Skip it if you simply need to connect a printer to a PC — use an A-to-B cable.
→ Also consider Equip 128652 (USB 2.0 A-to-B, 5 m).
