Equip 119463 USB-C to USB-C Active Optical Cable 15 m 10Gbps 4K60 60W PD Black

Brand:
Equip
Equip 119463 15m USB 3.2 Gen 2 Active Optical Cable USB-C 10Gbps 4K 60W PD
Equip 119463 USB-C to USB-C Active Optical Cable 15 m 10Gbps 4K60 60W PD Black
€336.48 inc. VAT
Buy
119463
€282.76
€336.48 inc. VAT
Ships from EU stock: 66 item(s)
+ −
Add to wish list Ask a question
Product Code
04:504416
EAN Code
4015867239292
Manufacturer
Equip

Quick Specs

Type
Active optical cable (AOC)
Connectors
USB-C male · USB-C male
Key spec
10Gbps · 4K 60Hz · 60W PD
Length
15 m
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

Equip 119463 USB-C to C Active Optical Cable 15 m

Video, data and charging over a single USB-C cable at a distance ordinary USB-C cables cannot reach.

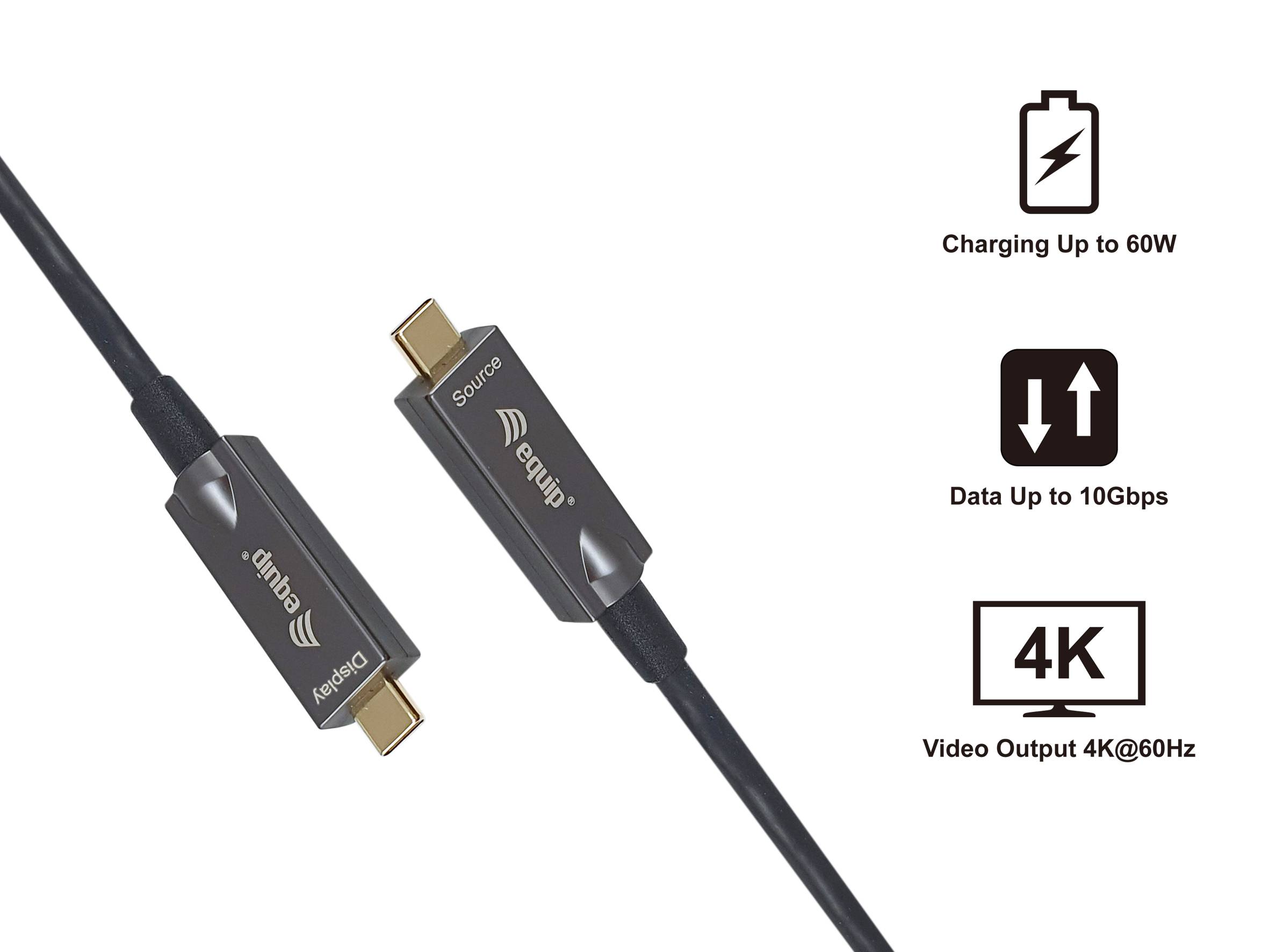

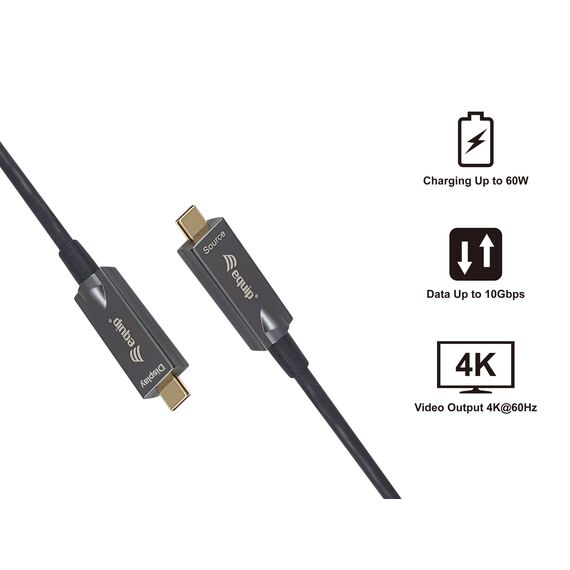

15 m active opticalUSB 3.2 Gen 2 10Gbps4K 60Hz · HDR · DSC60W Power Delivery

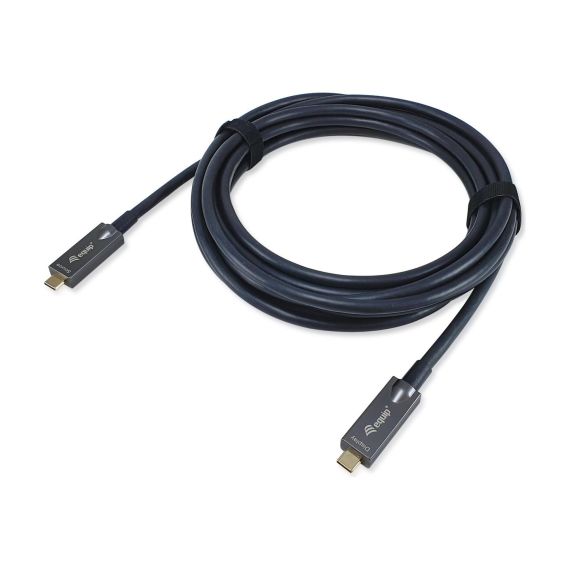

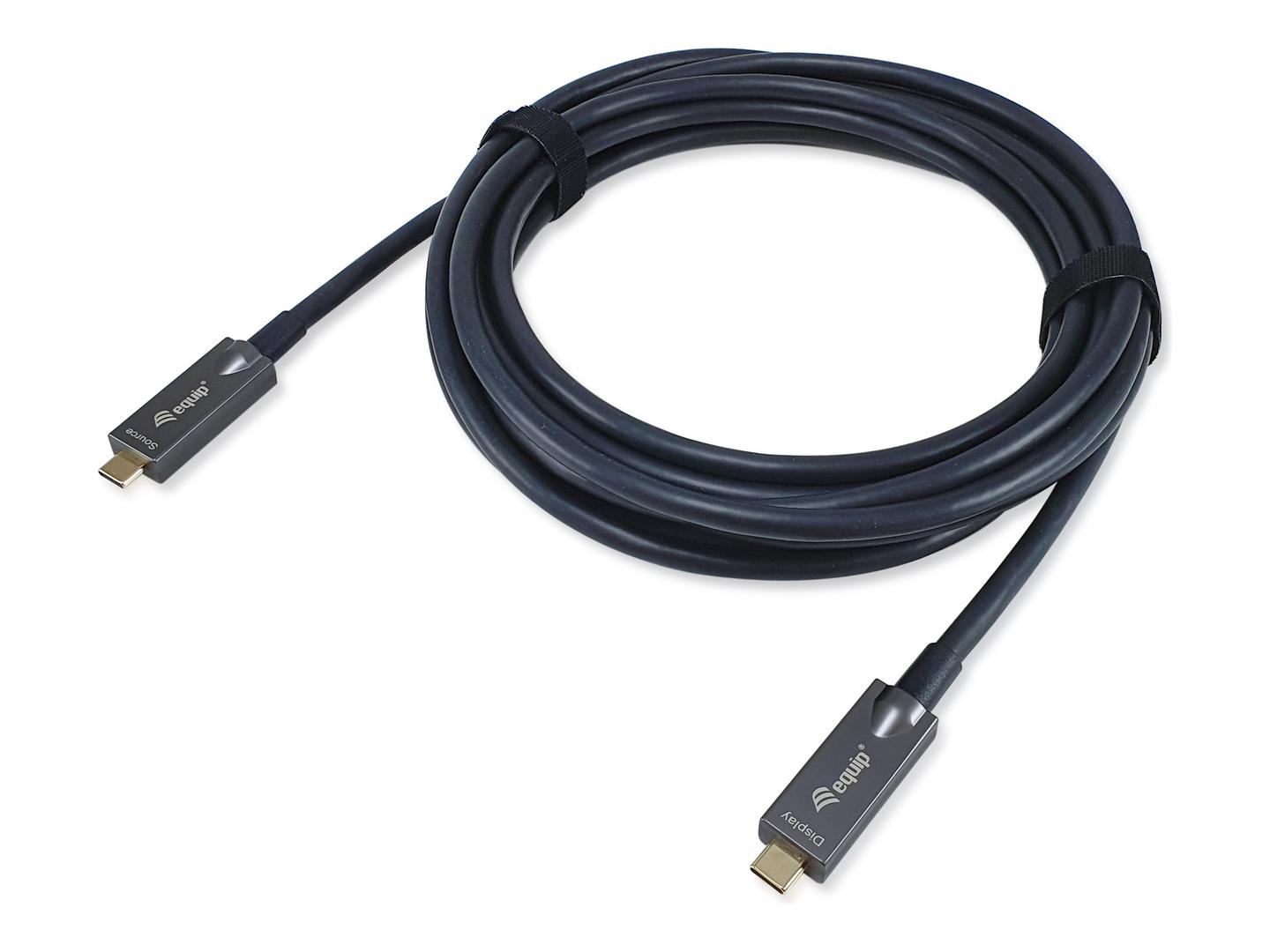

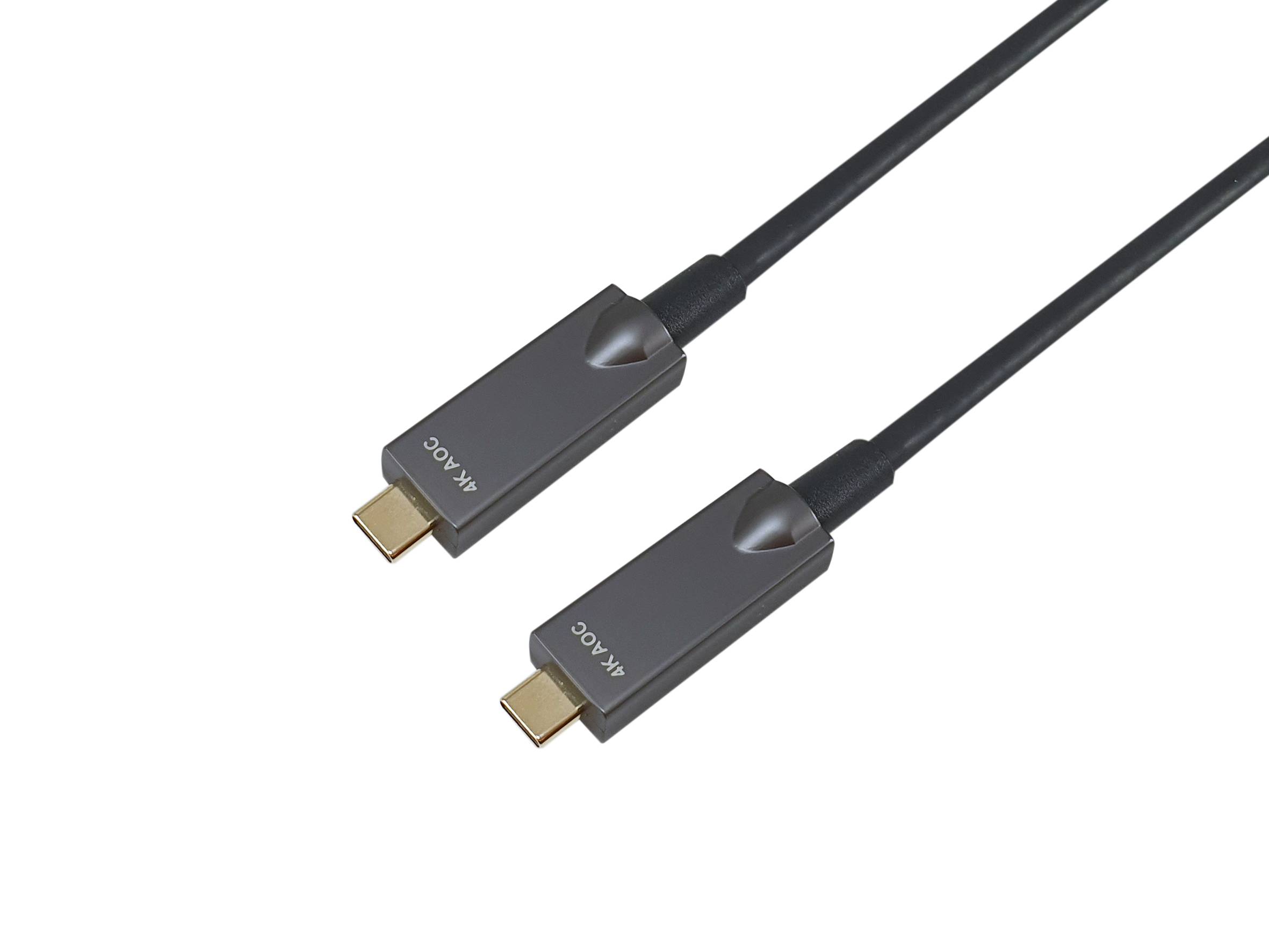

The Equip 119463 is a 15-metre USB-C to USB-C active optical cable (AOC) that carries USB 3.2 Gen 2 data at up to 10Gbps, DisplayPort Alt Mode video up to 4K at 60Hz and up to 60W (20V/3A) of USB Power Delivery, for connecting a laptop, tablet or USB-C PC to a display, dock or camera across a room. Active electronics convert the signal to light, so it reaches 15 m with far less loss and interference than a passive copper USB-C cable.

It suits boardrooms, classrooms, digital signage and control rooms, where the source sits at a desk or lectern and the screen or USB-C hub is mounted further away. Display features include DSC, HDR and HDCP 2.2, and the connectors use zinc-alloy housings with gold-plated contacts.

Compatibility Note: This AOC is unidirectional: connect the marked source end to the computer and the other end to the display or device, or video will not pass. The source USB-C port must support DisplayPort Alt Mode for video and USB PD for charging; 60W is the maximum, so laptops needing 90–100W will charge slowly.

Key Features


Active optical transmission
Electrical signals are converted to optical inside the cable, cutting attenuation and EMI over 15 m so 10Gbps data and 4K60 video arrive without a separate extender or repeater.

Video + data + power
DP Alt Mode up to 4K 60Hz with DSC, HDR and HDCP 2.2, USB 3.2 Gen 2 data up to 10Gbps and 20V/3A (60W) Power Delivery in one connection.

Installer-friendly build
Thin, light PVC-jacketed cable with zinc-alloy, gold-plated USB-C plugs; 1.5 kg for the full 15 m, easier to route than bundled HDMI + USB + power runs.

Technical Specifications

Identification
Part Number 119463
EAN / GTIN 4015867239292
MPN 119463
Brand equip
Connectivity
Connector A USB-C male
Connector B USB-C male
Cable length 15 m
Cable type Active optical cable (AOC) — fibre optic transmission with active electronics, unidirectional
Performance
USB standard USB 3.2 Gen 2
Data rate Up to 10Gbps
Video DisplayPort Alt Mode, up to 4K at 60Hz
Display features DSC, HDR, HDCP 2.2
Power Delivery Up to 60W (20V / 3A)
Physical
Housing Zinc alloy
Contacts Gold plated
Jacket PVC
Connector head 15 x 8.5 mm
Colour Black
Weight 1.5 kg
Compliance
Approvals CE, RoHS
Package contents USB-C to C Active Optical Cable, M/M

Frequently Asked Questions

Does the Equip 119463 work with a MacBook or a Thunderbolt laptop?
Yes, where the USB-C or Thunderbolt 3/4 port supports DisplayPort Alt Mode — which Mac and most Thunderbolt laptops do. You get 4K 60Hz video, 10Gbps USB data and up to 60W charging. It is not a Thunderbolt cable, so Thunderbolt-only docks and storage will not reach Thunderbolt speeds.
Can I use it to connect a USB-C monitor with a built-in hub?
Yes. A USB-C monitor with DP Alt Mode input receives the video, its hub ports work at up to 10Gbps, and a monitor that supplies USB PD can charge the laptop at up to 60W over the same cable.
Is this better than an HDMI cable for a meeting room?
If the laptop only needs to show a picture, a USB-C to HDMI AOC is cheaper. Choose the 119463 when you also want the room camera, touch screen or hub on the same cable, or charging back to the laptop.
Singular Expert Insight
We recommend the 119463 for rooms that want a true single-cable USB-C setup at 15 m, where a passive USB-C cable would fail or drop to USB 2.0. Compared with the ALOGIC hybrid AOC range it offers the same 10Gbps/4K60/60W class and adds DSC, HDR and HDCP 2.2 in its official specification. For a different run length choose the 5 m 119461 or 10 m 119462.
✓ Buy it if you need 4K60 video, 10Gbps USB and 60W charging from one USB-C port over 15 m.
✕ Skip it if your laptop needs more than 60W or you need Thunderbolt-speed storage or docks at the far end.
→ Also consider ALOGIC U3-TCC05/10/15-MM-H hybrid AOC, or the 5 m 119461 or 10 m 119462.
