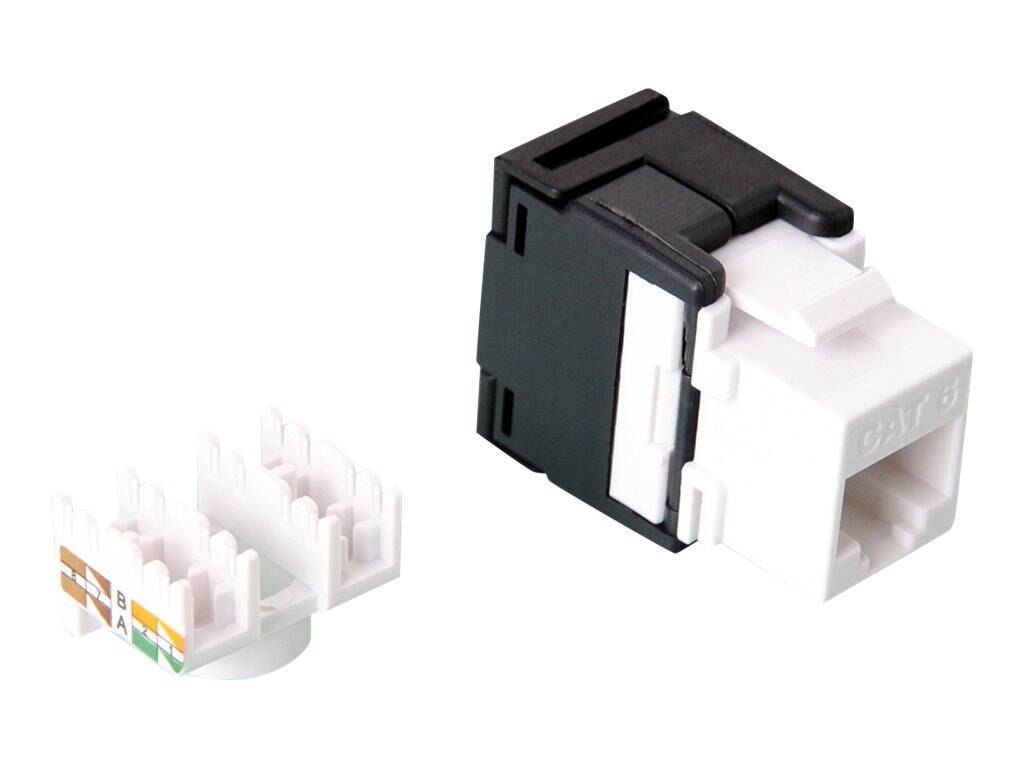

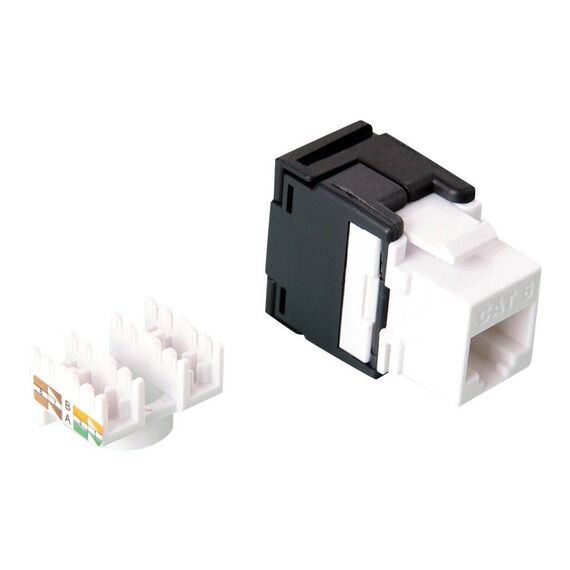

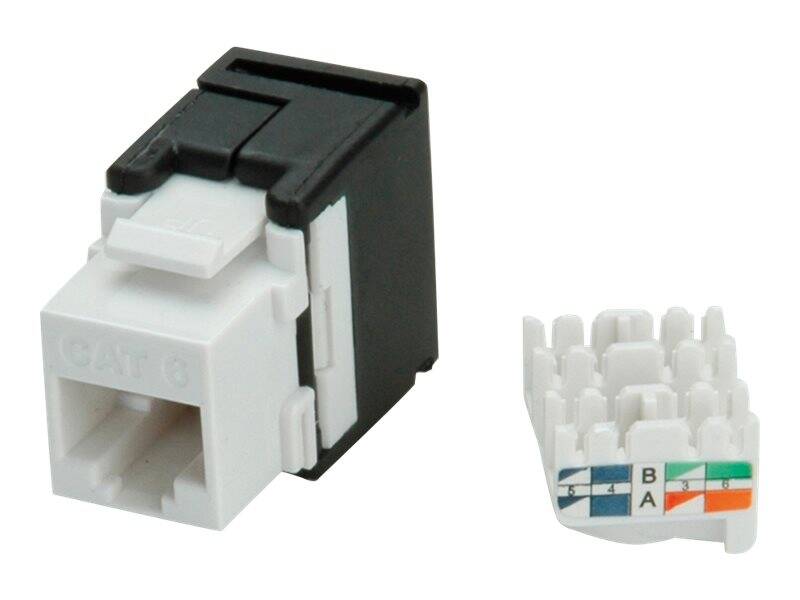

VALUE Cat6 Keystone Jack RJ45, Unshielded (UTP), Tool-Less Termination, Class E, AWG 23–26, White

The VALUE 26.99.0363 is a white Cat6 (Class E) unshielded RJ45 keystone jack with tool-less termination, for building your own patch panels, wall outlets and surface boxes with solid or stranded installation cable from AWG 23 to 26.

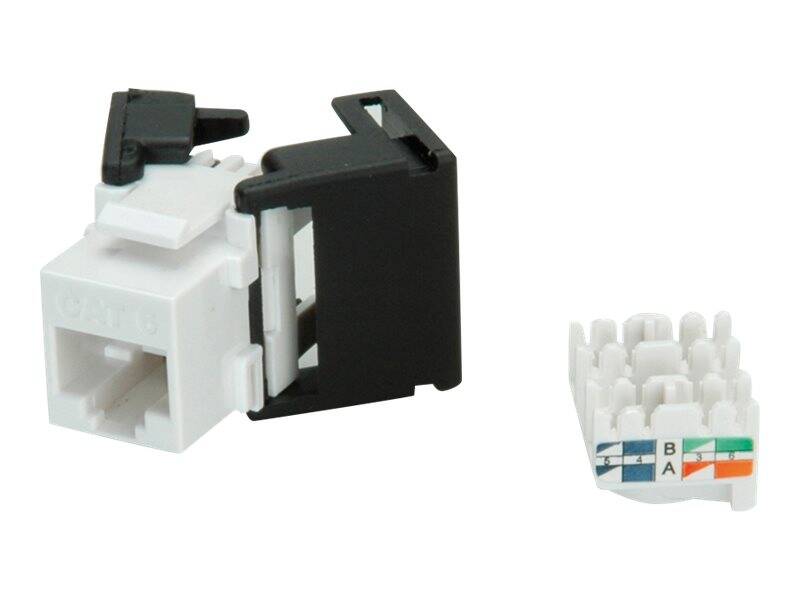

Instead of a punch-down tool, you lay the wires into the colour-coded guides, close the cap and press it shut — the insulation-displacement contacts make the connection. That makes it practical for small installations, repairs and for anyone who terminates only a few points and does not own an LSA tool. The keystone format snaps into empty keystone patch panels and modular outlets.

• 1 × VALUE Cat6 UTP keystone jack, tool-less, white

• Colour codes for both T568A and T568B are printed on the module — use the same scheme at both ends of the link.
• Accepts cable conductors from AWG 23 (typical Cat6) to AWG 26 (slim patch cable).
• Rated for at least 250 re-terminations of the IDC and 750 plug insertions, so it survives re-patching.
• Gigabit Ethernet and Cat6 permanent links are what it is made for; keep the untwisted wire length as short as possible.

• It is not a shielded module — it will not ground an S/FTP or F/UTP cable shield.
• It is not Cat6A: for 10GBASE-T over full 100 m channels use a Cat6A keystone.
• It does not fit non-keystone panels with fixed ports or proprietary module formats.
• It is a single module, not a complete wall outlet — the faceplate or keystone panel is sold separately.
