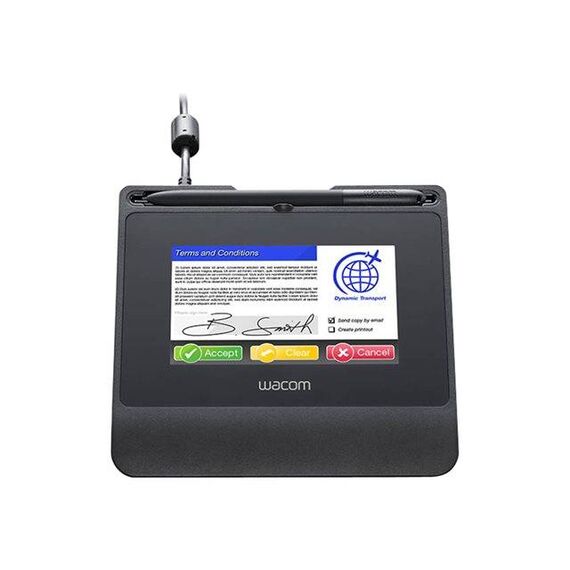

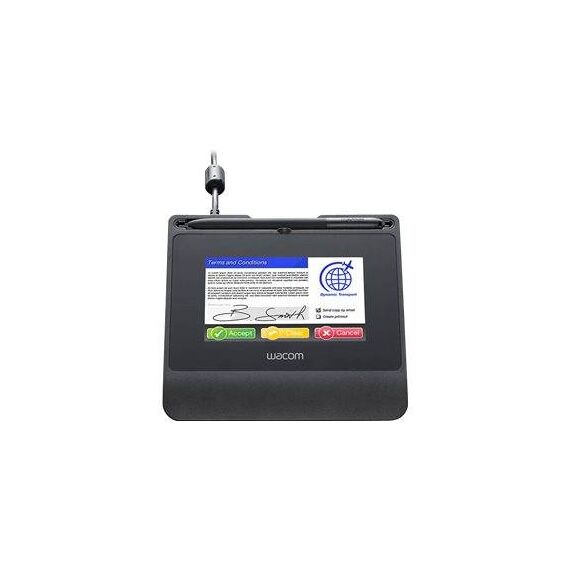

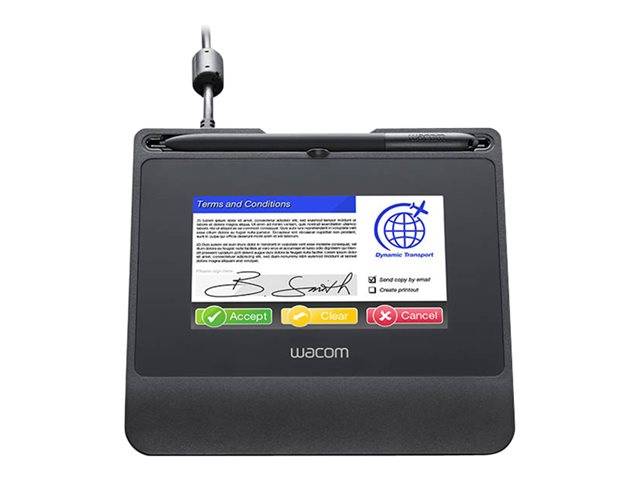

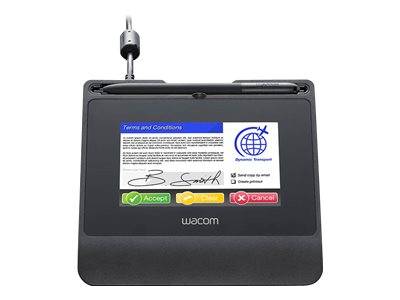

Wacom STU-540 / Signature terminal w/ LCD display / 10.8 x 6.5 cm / electromagnetic / wired / serial, USB 2.0 / black | STU540-CH2
Wacom STU-540 / Signature terminal w/ LCD display / 10.8 x 6.5 cm / electromagnetic / wired / serial, USB 2.0 / black | STU540-CH2
Description
The STU-540 is Wacom's advanced and robust signature pad, featuring a 5" high-resolution color screen with a hardened durable cover glass. Its broad range of connectivity options - including multiple choices for virtualized desktop environments, top-level encryption and user convenience give it the flexibility to meet the growing demands of organizations implementing handwritten electronic signature.
Wacom STU-540 / Signature terminal w | STU540-CH2
Special Features
- Patented cordless, battery-free pen with 1024 levels of pressure sensitivity to accurately capture the unique signature profile, including biometric data
- Hardened cover glass with anti-glare treatment provides enhanced viewing and a signing surface with a natural pen-on-paper feel
- AES 256/ RSA2048 encryption to perform secure transactions
- Slideshow mode can run advertising and promotional messages directly from the pad itself
- Customizable key pad enables input utilizing user-defined UI
Product Specification
Device Type | Signature terminal |
Width | 16.3 cm |
Depth | 15.7 cm |
Height | 1 cm |
Weight | 250 g |
Colour | Black |
Connectivity Technology | Wired |
Interface | Serial, USB 2.0 |
Movement Detection Technology | Electromagnetic |
Movement Resolution | 2540 lpi |
Accuracy | ± 0.5 mm |
Performance | 200 points per second |
Pressure Levels | 1024 |
Active Area | 10.8 cm x 6.5 cm |
Features | Pressure sensitive pen, antiglare surface, USB bus powered, pen slot, tempered glass, battery-free stylus, security lock slot |
Type | LCD display |
Diagonal Size | 5" |
Native Resolution | 800 x 480 |
Interfaces | 1 x USB - 4 pin USB Type A ¦ 1 x serial |
Included Accessories | Pen |
Compliant Standards | AES-256, RSA-2048 |
