Wera Kraftform Kompakt F 1 Window Installation Tool Set 36 Pieces with Flexible Shaft Driver and Joker S
Brand:
Wera
Wera Kraftform Kompakt F 1 Window Installation Tool Set 36 Pieces with Flexible Shaft Driver and Joker S
€172.55 inc. VAT
05134013001
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

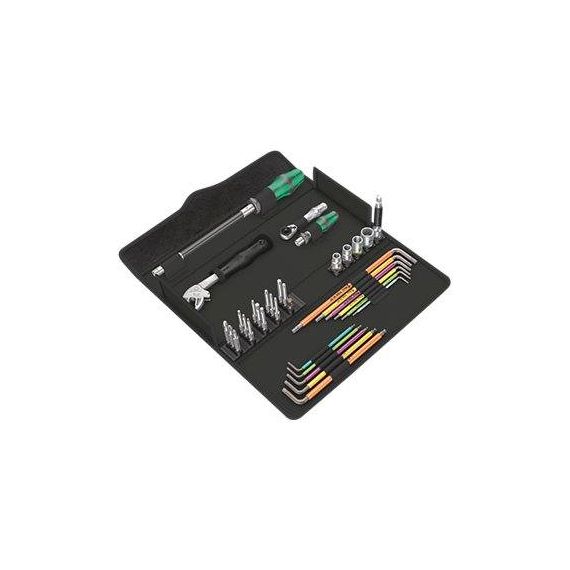

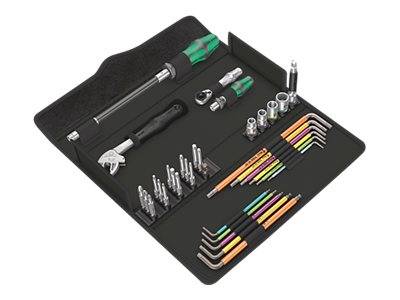

Wera Kraftform Kompakt F 1 — 36-piece window installation set with a flexible-shaft driver and holding-function L-keys
36 pieces393 S flexible shaft driver11 holding-function L-keys6004 Joker S self-setting spanner
The Wera Kraftform Kompakt F 1 (part number 05134013001) is a 36-piece screwdriving set built for window and door installation, where F stands for Fensterbau. Its defining tools are a 393 S extra-slim bit holder with a flexible shaft for frame rebates and reveals, eleven L-keys with a holding function that grip the screw for blind and overhead fixing, and a 6004 Joker S self-setting spanner that covers 10, 11, 12 and 13 mm plus 7/16 and 1/2 inch in one jaw. An 8001 A Zyklop Mini ratchet, four sockets and fifteen 50 mm bits complete it. Typically in stock with fast delivery across Cyprus.
Compatibility — check before buying:
Wera’s current datasheets and product page give this set as 36 pieces; the 35-piece figure that appears on some retailer listings, including our own previous title, is out of date. The textile tool box is not counted in the 36. The bits are mostly 50 mm long to reach recessed hinge and fitting screws, with the 6 mm hex supplied as an 89 mm blade. Nothing in the set is insulated or VDE-tested, and there is no torque tool, so anything with a specified tightening value needs a separate torque wrench.
Best For
✓ Window and door installation and adjustment
✓ Hinge and fitting screws in deep rebates
✓ Blind and overhead fixing where the screw must be held
✓ Facade element assembly
✓ Service and adjustment calls on existing frames
✓ Fitters who meet both metric and imperial nuts
Key Features

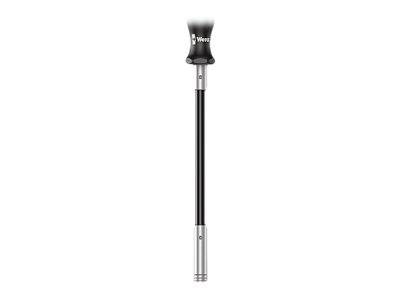

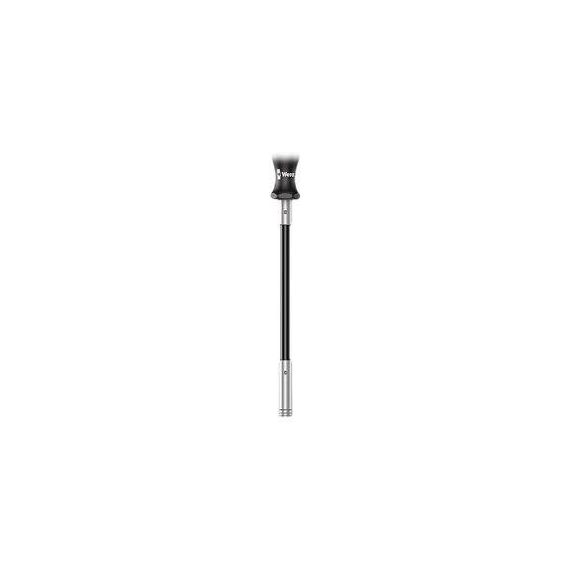

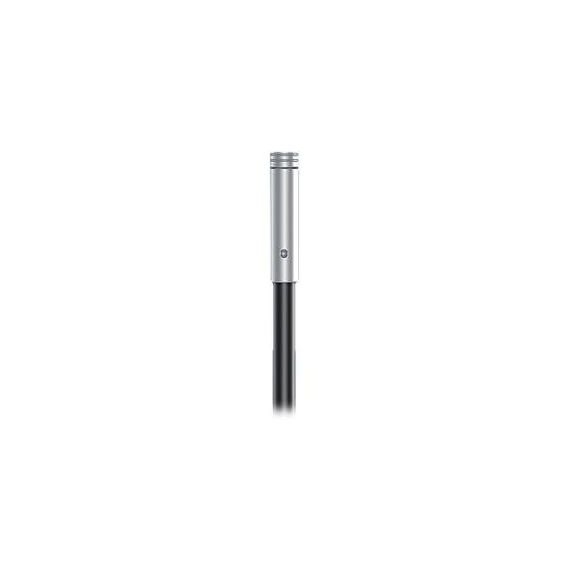

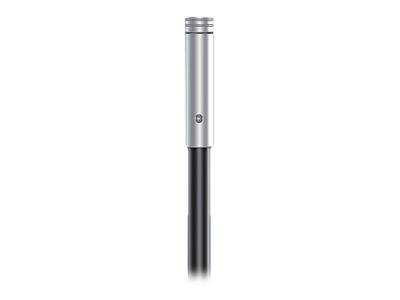

393 S extra-slim driver with a flexible shaft
Wera builds the 393 S at 1/4 inch x 173.5 mm with a flexible shaft for applications in hard-to-reach work spaces. On a window that means driving a fitting screw around the frame rebate instead of removing the sash to get a straight run at it.
Eleven L-keys with a holding function
Three 950 SPKL HF hex keys at 3, 4 and 5 mm and six 967 SXL HF TORX keys from TX 8 to TX 30 hold the screw on the key, which is what lets you place a fixing overhead or into a blind hole one-handed. Two multicolour 950 SPKL keys at 2 and 2.5 mm complete the set.
6004 Joker S self-setting spanner
One 154 mm spanner covers 10, 11, 12 and 13 mm and 7/16 and 1/2 inch by setting itself to the fastener, which removes four spanners from the bag on a job where the bolt sizes vary from frame to frame.
Zyklop Mini ratchet, sockets and 50 mm bits
An 8001 A Zyklop Mini 1 bit ratchet with a 870/1 square adaptor and a 75 mm free-turning extension drives four Zyklop sockets at 7, 8, 10 and 13 mm, while fifteen 50 mm bits cover Phillips PH 1 to PH 3, TORX TX 8 to TX 30 and hex 2 to 6 mm.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Trade sets are usually just a general kit with a label, so it is worth noting what is genuinely window-specific here: a flexible-shaft driver, nine keys with a holding function and a self-setting spanner. Each of those exists because of a problem that only shows up on a frame, namely a screw you cannot line up with, a fixing you cannot see and a bolt size that changes between manufacturers. The 50 mm bits are the quiet fourth item, since hinge screws sit deep in the fitting and a 25 mm bit leaves the holder fouling the frame. The gaps are torque and insulation, both absent, so plan for a separate torque tool if your fittings specify values. Browse our Cable Tools and Testers range for the rest of the hand-tool line-up, or the wider Cables and Accessories section for installation material.
Buyer’s Guide
Buy it if
You fit or service windows and doors and want a flexible-shaft driver, holding-function hex and TORX keys and a self-setting spanner already matched in one box.
Skip it if
You need torque control on fittings, you need insulated tools for live work, or you want a general assembly kit rather than a trade-specific one.
Also consider
The Wera Kraftform Kompakt W 1 Maintenance for a mixed VDE and mechanical set, or the Click-Torque A 6 Set 1 at 2.5 to 25 Nm where fittings specify a tightening value.
