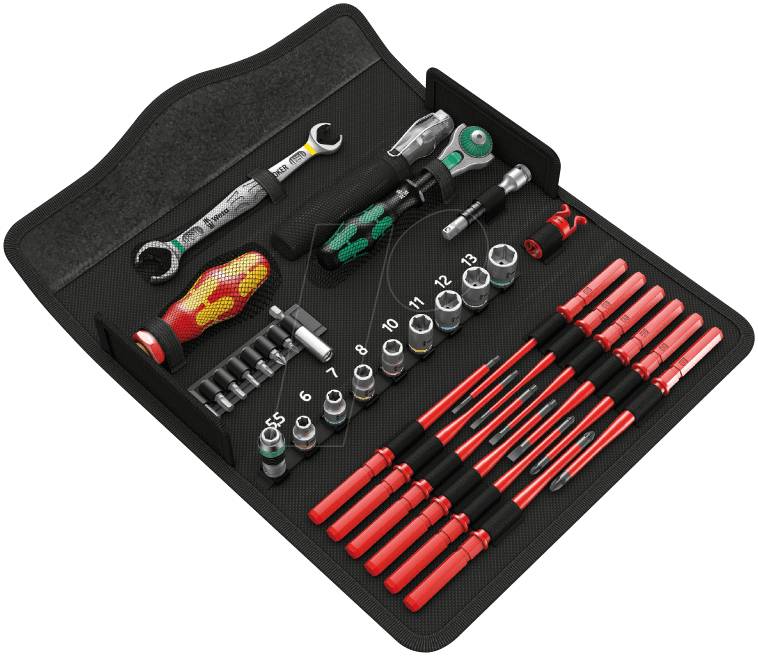

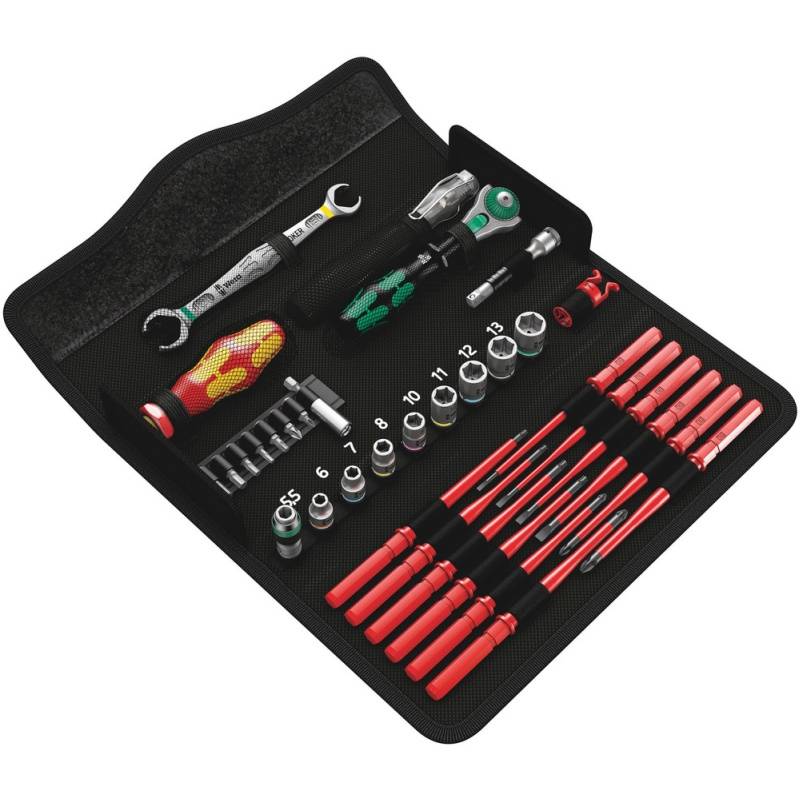

Wera Kraftform Kompakt W 1 Maintenance — 35-piece VDE screwdriving and Zyklop socket set in a textile box
35 pieces12 VDE blades, 1000 V1/4 inch Zyklop Speed ratchetMetric sockets 5.5–13 mm
The Wera Kraftform Kompakt W 1 Maintenance (part number 05135926001) is a 35-piece maintenance set that puts VDE screwdriving and a 1/4 inch Zyklop socket system in the same textile box. It combines an 817 VDE blade-holding handle with twelve interchangeable insulated blades, individually tested at 10,000 V to IEC 60900 for approved work at 1,000 V, alongside an 8000 A Zyklop Speed ratchet, eight metric sockets, seven bits, a Joker double open-end wrench and a 247 phase tester. Wera aims it at maintenance work indoors and outdoors across electronics, mechatronics, building technology and photovoltaics. Typically in stock with fast delivery across Cyprus.
Compatibility — check before buying:
Read the insulation scope carefully. Only the 817 VDE handle and the twelve VDE blades are individually tested at 10,000 V to IEC 60900 and approved for 1,000 V working. The ratchet, sockets, extension, adaptor, bit holder, all seven bits, the Joker wrench and the screw gripper are not insulated and must never touch live parts, and the 247 phase tester is rated only up to 250 V with no IEC 60900 statement. The 817 handle accepts Wera VDE blades only. Sockets are metric 5.5 to 13 mm with no 9 mm, they are non-impact, and the headline 35 counts the tools while the hook-and-loop strip is supplied uncounted.
Best For
✓ Building services and facilities maintenance
✓ Electronics, mechatronics and control panels
✓ Photovoltaic installation and service
✓ Technicians who need VDE and sockets in one box
✓ Mixed indoor and outdoor service calls
✓ Van kits where space allows only one case
Key Features
817 VDE handle with twelve insulated blades
Wera tests the handle and each blade individually at 10,000 V in accordance with IEC 60900, which licenses safe working at 1,000 V. The twelve 157 mm blades cover slotted 2.5 to 5.5 mm, PH 1 and PH 2, PZ 1 and PZ 2 and TORX TX 10 to TX 25, with a spinning function and anti-roll protection.
8000 A Zyklop Speed ratchet and eight sockets
The 1/4 inch Zyklop Speed ratchet works as a ratchet, a screwdriver or a speeder depending on how the head is set, and it drives eight 8790 HMA sockets from 5.5 to 13 mm plus a 75 mm extension with a free-turning sleeve.
Quick bit change and a magnetic holder
An 8784 A1 Zyklop bit adaptor gives a quick-release chuck for rapid bit changes on the ratchet, while the 893/4/1 K universal holder takes 1/4 inch hex bits with a stainless sleeve and a strong permanent magnet. Seven bits are supplied: four hex 3 to 6 mm, PZ 1, PZ 2 and TX 25.
Kraftform Plus handle and a robust textile box
The Kraftform Plus handle mixes hard zones for fast turning with soft grip zones for torque, with a hexagonal anti-roll feature. The textile box stands upright on a shelf, protects surfaces, stays light and docks with the Wera 2go system.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The value of a mixed set like this is that a maintenance call is rarely purely electrical or purely mechanical: you open a panel, you undo an enclosure, you tighten a terminal, and swapping between two bags is what wastes the hour. Wera gets the balance right by putting a genuine IEC 60900 handle and blade set beside a proper 1/4 inch Zyklop system rather than token uninsulated screwdrivers. The discipline it demands is knowing the boundary, because thirteen of the thirty-five items are rated and the rest are not, and a set sold as insulated invites the wrong assumption. If your work is entirely electrical, the Kraftform Kompakt VDE 17 extra slim set is the more focused buy; if it is entirely mechanical, the Zyklop ratchet sets go further. Browse our Cable Tools and Testers range for the rest of the line-up, or the wider Cables and Accessories section for cable and terminals.
Buyer’s Guide
Buy it if
Your service calls mix electrical and mechanical work and you want a genuine 1,000 V VDE handle and blade set in the same box as a 1/4 inch Zyklop ratchet, sockets and bits.
Skip it if
You need every tool in the box to be insulated, you work in imperial sizes, or you need a torque tool for terminal values.
Also consider

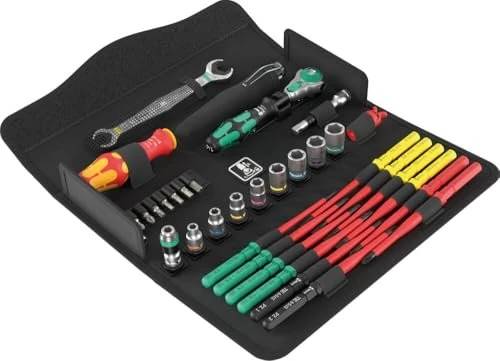

The Wera Kraftform Kompakt W 2 Maintenance, the same set with a 335 screwdriver instead of the phase tester and PH bits instead of PZ, or the W Imperial 1 Maintenance for imperial sizing.
Features - Wera - 05135926001
More Details
Product Code
04:494264
EAN Code
4013288178336
Manufacturer
Wera
