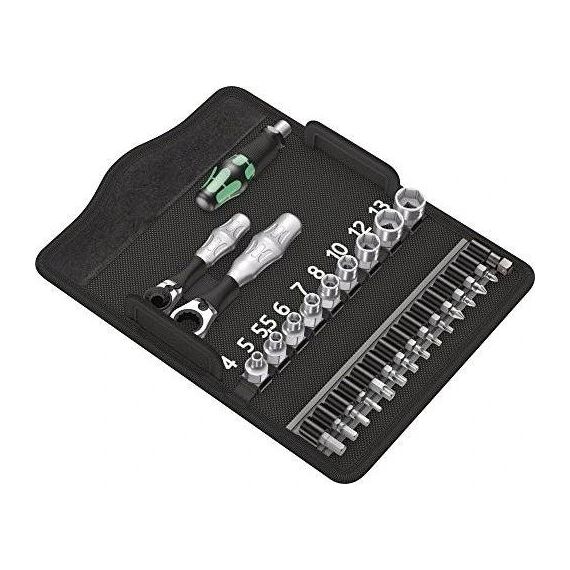

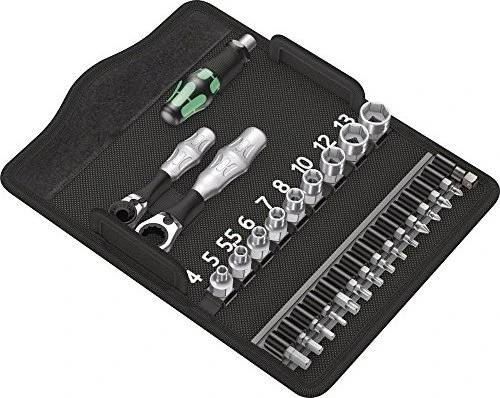

Wera Kraftform Kompakt Zyklop Mini 2 Ratcheting Screwdriver Bit and Socket Set 27 Pieces for Confined Spaces
Brand:
Wera
Wera Kraftform Kompakt Zyklop Mini 2 Ratcheting Screwdriver Bit and Socket Set 27 Pieces for Confined Spaces
€125.09 inc. VAT
05135918001
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Wera Kraftform Kompakt Zyklop Mini 2 — two ratchets and nine 18 mm low-profile sockets for confined spaces
27 piecesTwo ratchets, 60 teeth, 6°Sockets only 18 mm highHollow head, M6 pass-through

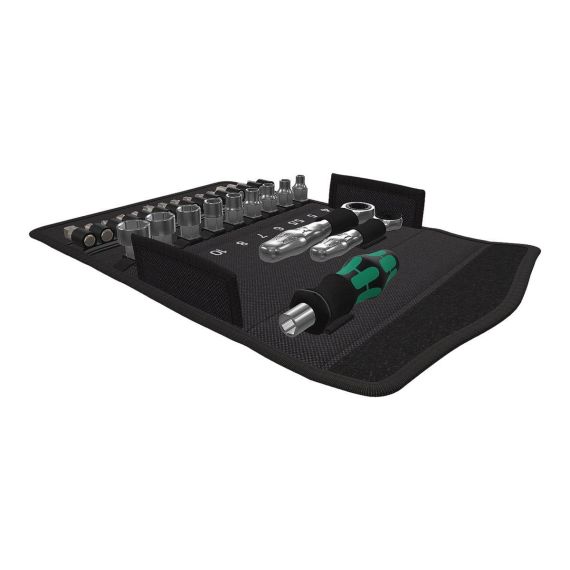

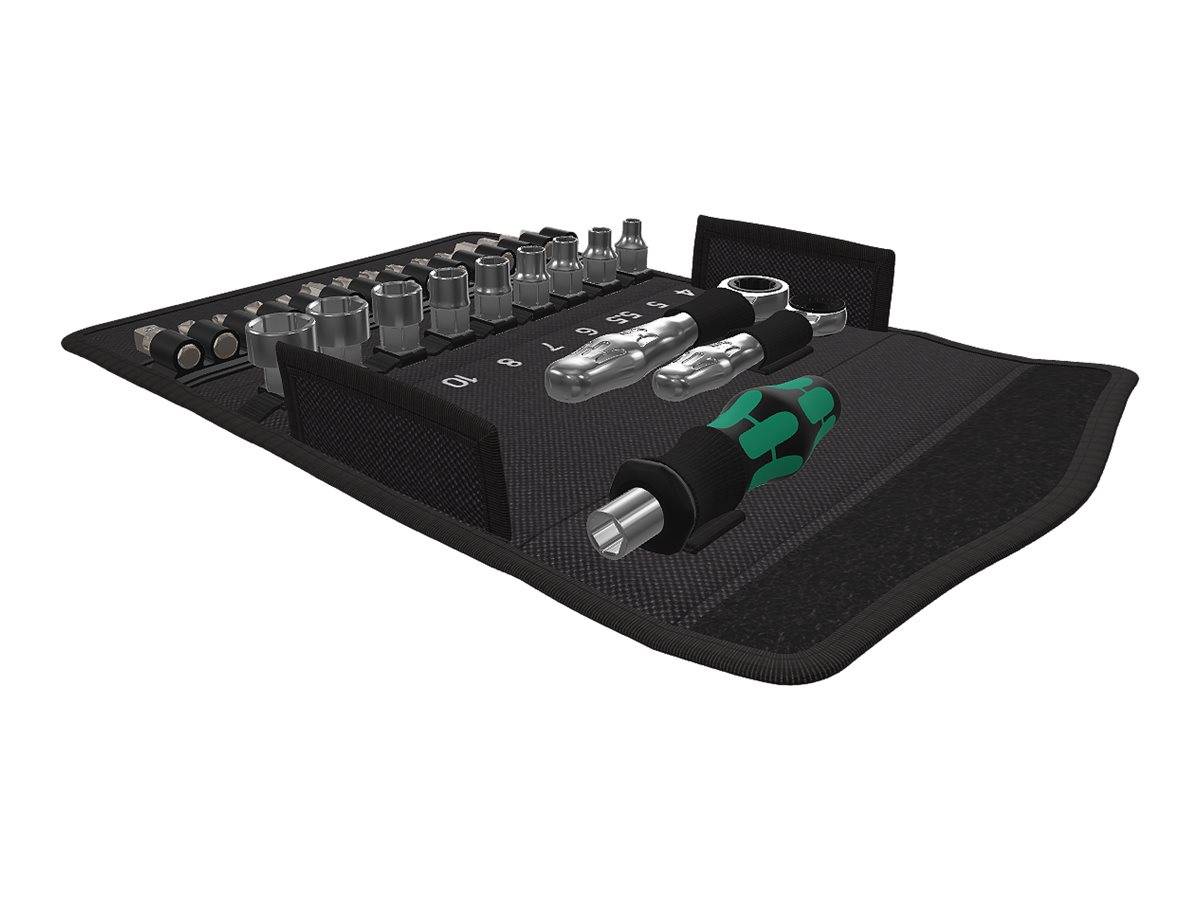

The Wera Kraftform Kompakt Zyklop Mini 2 (part number 05135918001) is a 27-piece set aimed squarely at spaces where nothing else fits. It carries two ratchets: the 8005 Zyklop Mini 2, whose head is only a fraction of a normal ratchet and takes sockets directly on a Hex 11 mount, and the 8001 A bit ratchet for 1/4 inch bits. Nine 8790 FA sockets from 4 to 13 mm are just 18 mm tall, and the 8005 head is hollow so threaded rod up to M6 passes straight through it. Typically in stock with fast delivery across Cyprus.
Compatibility — check before buying:

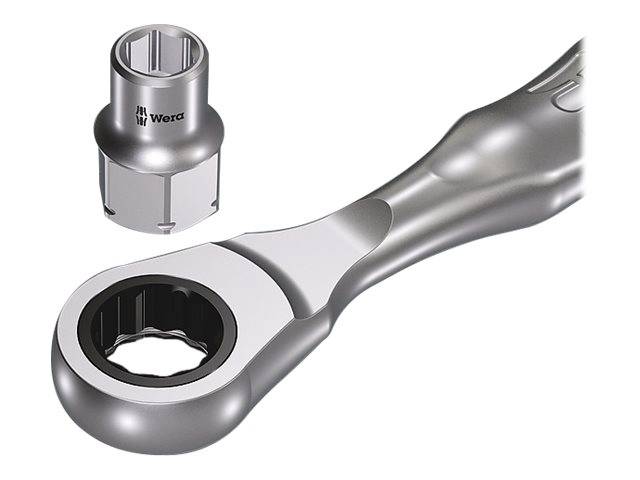

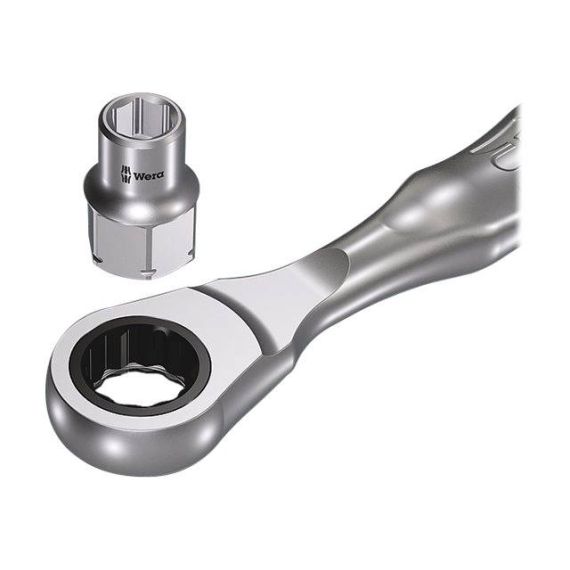

The two ratchets take different things. The 8005 Zyklop Mini 2 drives the 8790 FA sockets directly on a Hex 11 mount, not a square drive, so ordinary 1/4 inch sockets do not fit it; the supplied 870/1 adaptor bridges the 1/4 inch hex to a 1/4 inch square when you need it. The 8790 FA sockets are published for manual operation only — do not fit them to any powered driver. Note also that Wera’s datasheet lists the 3, 4, 5 and 6 mm items under slotted; they are Hex-Plus hexagon bits. Nothing in the set is insulated or VDE-tested.
Best For
✓ Nuts on protruding threaded rod up to M6
✓ Extremely confined spaces and shallow clearance
✓ Machine and cabinet assembly
✓ Service work behind panels and brackets
✓ Technicians who need sockets below 5.5 mm
✓ Kits where head height decides whether a tool fits
Key Features
8005 Zyklop Mini 2 with a hollow head

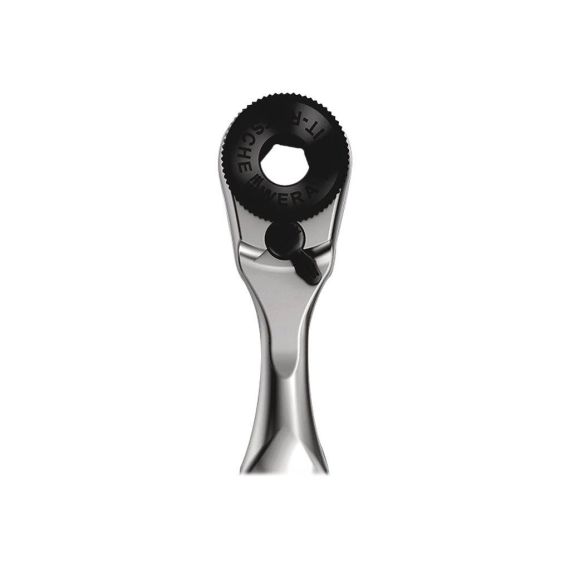

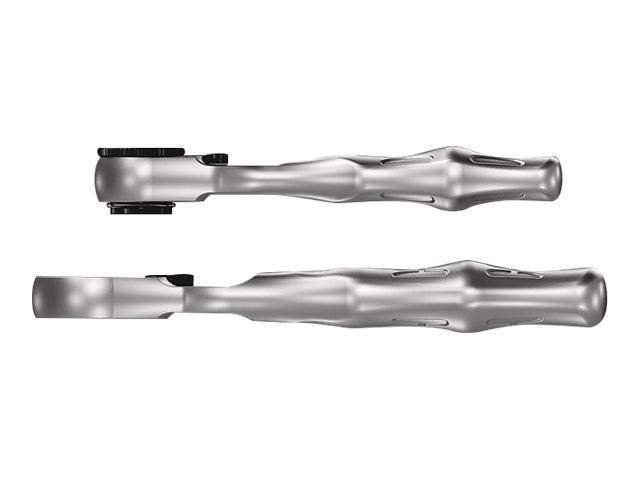

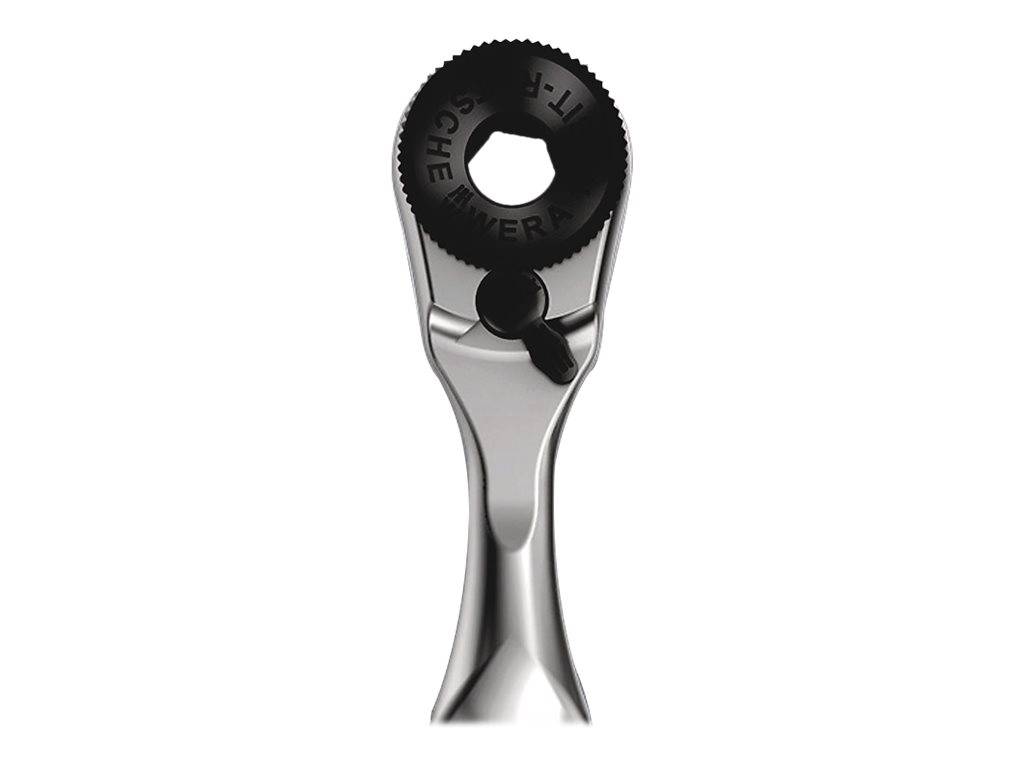

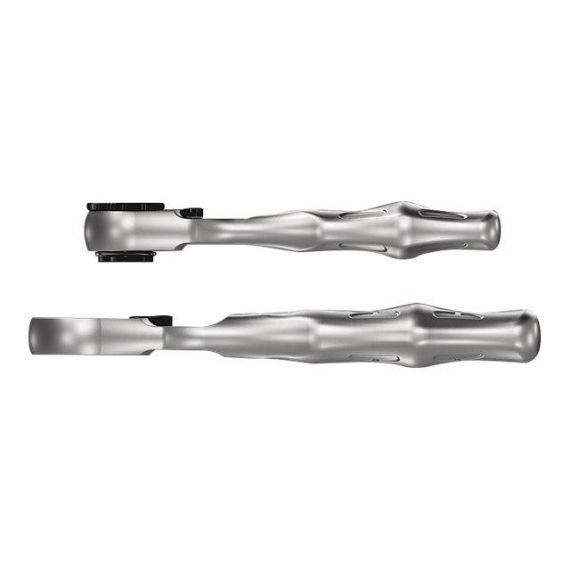

A 107 mm ratchet whose head is hollow, so threaded rod up to M6 passes right through it and the nut can be run all the way down a long stud. Sixty teeth give a 6 degree return angle, and switching direction is a simple left or right flick.
Nine sockets only 18 mm tall
The 8790 FA sockets cover 4, 5, 5.5, 6, 7, 8, 10, 12 and 13 mm at just 18 mm in height. That low profile plus the small sizes at the bottom of the range is what lets the set reach fasteners a conventional socket simply cannot approach.
A second ratchet for bits
The 8001 A bit ratchet takes 1/4 inch bits directly, also with 60 teeth and a 6 degree return angle, and adds a thumbwheel for fast run-down. Fourteen 25 mm bits cover PH, PZ, TORX up to TX 40 and Hex-Plus 3 to 6 mm.
813 screwdriver and 870/1 adaptor
A straight 813 bit-holding screwdriver handles the fixings where no ratchet is needed, and the 870/1 adaptor converts 1/4 inch hex to 1/4 inch square so the set works with square-drive accessories too.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Most compact tool sets are compact in the bag; this one is compact at the fastener, which is a different and rarer thing. An 18 mm socket height and a hollow ratchet head solve two specific failures, the nut you cannot get a socket over because the clearance is a centimetre, and the nut halfway down a stud. Add sockets at 4 and 5 mm, sizes most 1/4 inch sets do not bother with, and you have a kit for machine and cabinet work rather than a general toolbox. The cost of that design is that the FA sockets are manual-only and sit on a Hex 11 mount rather than a standard square, so they are not interchangeable with your existing socket set. Browse our Cable Tools and Testers range for the rest of the hand-tool line-up, or the wider Cables and Accessories section for installation material.
Buyer’s Guide
Buy it if
Your fasteners sit in shallow clearance or partway down threaded rod, and you need sockets from 4 mm upwards that are only 18 mm tall with a ratchet head to match.
Skip it if
You want sockets interchangeable with a standard 1/4 inch square set, you need powered driving, or you want a pivoting head and higher speed.
Also consider
The Wera Kraftform Kompakt Zyklop Speed with a 72-tooth pivoting-head ratchet and a free-turning extension, or the Tool-Check Combi 1 for a general kit with a Knipex plier.
Features - Wera - 05135918001
More Details
Product Code
04:494260
EAN Code
4013288182180
Manufacturer
Wera
