Xilence Performance C XPF80.R.PWM 80mm Case Fan, 4-pin PWM, 800–1800rpm, Black/Red

Brand:
Xilence

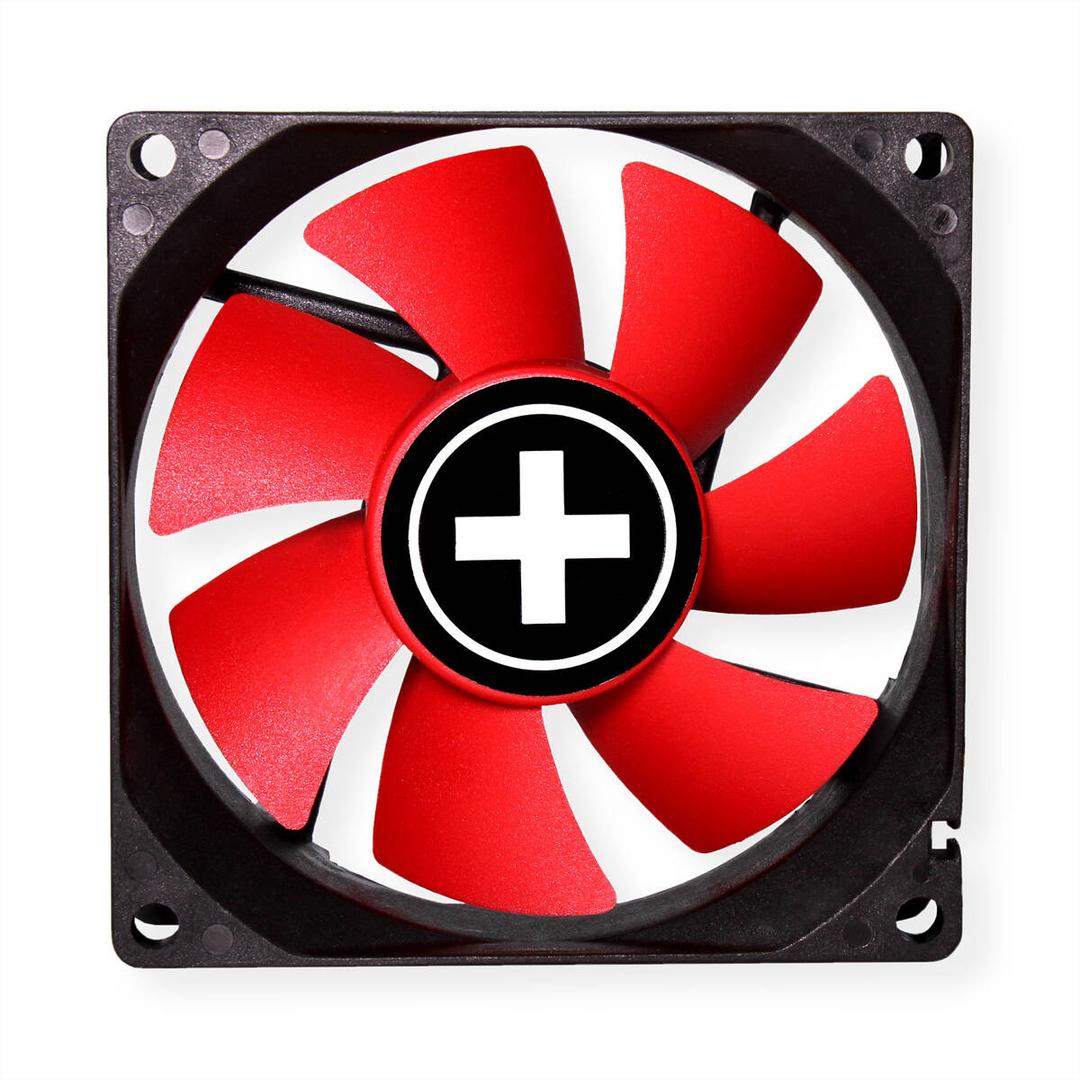

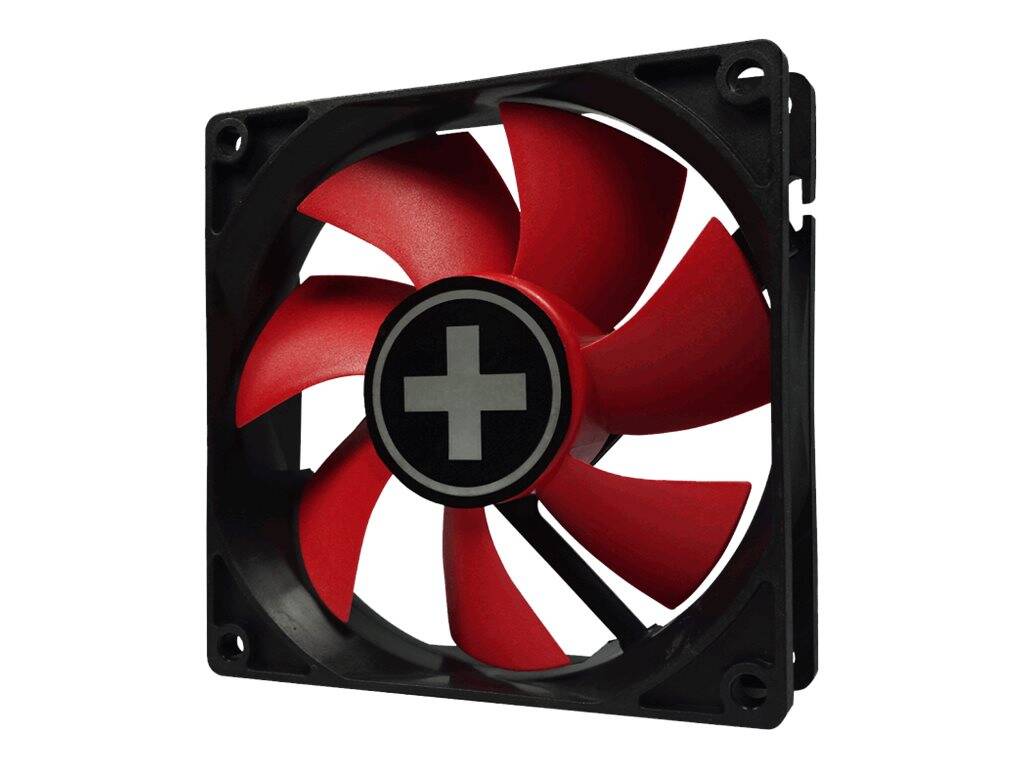

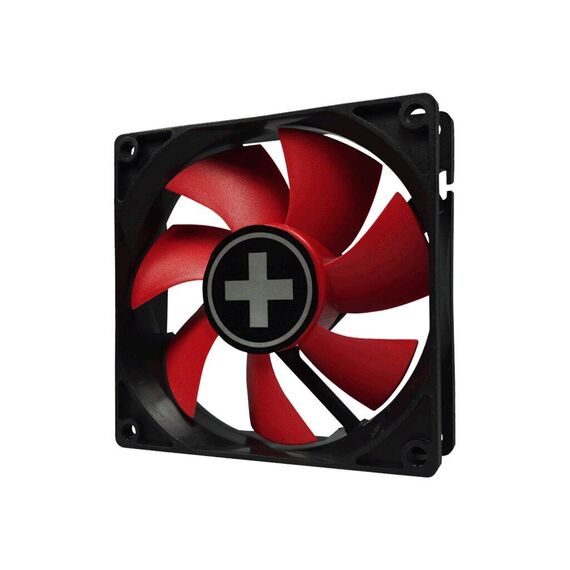

Xilence XPF80.R.PWM 80mm Black and Red Case Fan
Xilence Performance C XPF80.R.PWM 80mm Case Fan, 4-pin PWM, 800–1800rpm, Black/Red
€7.19 inc. VAT
Buy
XF040
€6.04
€7.19 inc. VAT
Ships from EU stock: 22 item(s)
+ −
Add to wish list Ask a question
Product Code
04:208234
EAN Code
4044953500886
Manufacturer
Xilence

Quick Specs

Size
80 × 80 × 25mm
Control
4-pin PWM
Speed at 12V
800–1800rpm ±10%
Airflow at 12V
21.8 CFM / 37.06 m³/h
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

PWM control for an 80mm case-fan position

80mm4-pin PWMHydro bearing

The Xilence XPF80.R.PWM is an 80mm Performance C case fan for a build or replacement that needs a small fan with motherboard-controlled speed. Its black frame and red rotor fit an 80 × 80 × 25mm space, with a fixed 440mm cable for routing to a suitable header.

Compatibility — check before buying:
Check the case's 80mm mounting position and 25mm depth clearance. A suitable 4-pin PWM fan header is needed for PWM control. Match the fan size and connection before replacing an existing fan; an 80mm fan is not a direct size replacement for a 92mm or 120mm model.

Best For

✓ Replacing an 80mm case fan where PWM speed control is required.
✓ Small fan positions with a verified 25mm depth allowance.

Key Features


Variable speed rather than a single set speed
The specified 800–1800rpm range at 12V allows a compatible PWM header to adjust speed. Set the fan curve in the motherboard's controls for your system's temperature and noise priorities.

Hydro bearing and compact frame
The hydro bearing supports the rotor in a conventional 25mm-thick frame. Confirm the mounting space instead of choosing by blade diameter alone.

Ready for screw mounting
Four screws are supplied. The fixed 440mm lead gives a defined routing length; check the distance to your motherboard header before installation.

Technical Specifications

Identity and fit
Brand / model Xilence Performance C XPF80.R.PWM
Article / EAN XF040 / 4044953500886
Dimensions 80 × 80 × 25 mm
Colour Black frame, red rotor
Bearing Hydro bearing
Weight including fixed cable 0.06 kg
Performance and connection
Speed at 12V 800–1800 rpm ±10%
Airflow at 12V 21.8 CFM / 37.06 m³/h
Noise at 12V Maximum 20 dB(A), manufacturer specification
Connector / control 4-pin PWM
Cable length 440 mm
Rated / operating DC voltage 12 V / 6–13.8 V
Included items 1 fan; 4 screws
Manufacturer term 2 years
Package dimensions / gross weight 90 × 30 × 100 mm / 0.11 kg

What's in the Box

1 XPF80.R.PWM fan
4 mounting screws

Frequently Asked Questions

Will it fit a 120mm case opening?
Its frame is 80 × 80mm with 25mm thickness. Select it only where the case provides an appropriate 80mm mounting pattern.
Is the quoted noise level guaranteed inside my PC?
Xilence specifies a maximum of 20dB(A) at 12V. Installed noise also depends on the case, mounting, airflow obstructions and selected speed.
Are screws included?
Yes, the manufacturer lists four screws. Check the case mounting arrangement and route the 440mm cable clear of the rotor.
Singular Expert Insight
Choose XF040 when the mounting position is genuinely 80mm and PWM adjustment matters. A larger fan is a different fit decision, so compare the mounting size before comparing airflow figures. Compare case fans at Singular Tell us your equipment model and we can check the compatibility requirements.

Buyer’s Guide

Buy it if

You need an 80mm,25mm-thick case fan with 4-pin PWM control.

Skip it if

Your mounting position needs another size or your controller requires another connector.

Also consider

Measure the mounting pattern,depth and cable route before comparing higher-airflow alternatives.
