Zebra ZE511 — 4-Inch Industrial Print Engine, 300 dpi, Left-Hand
300 dpiUp to 356 mm/sLeft-Hand4.3-inch Touchscreen

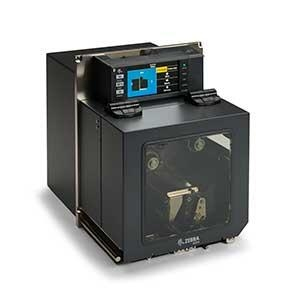

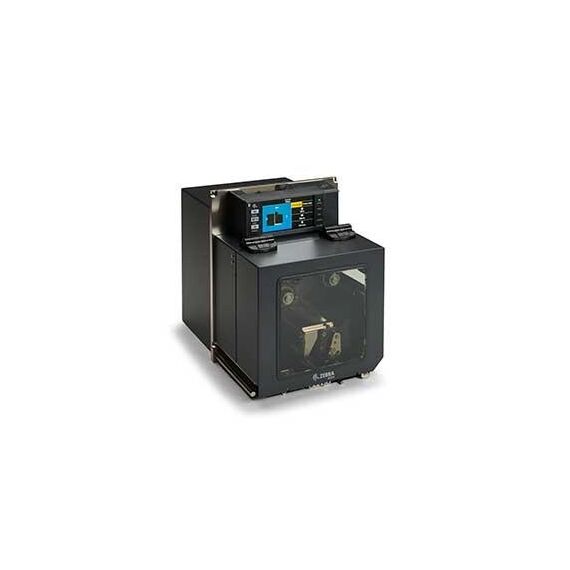

The Zebra ZE511 (ZE51143-L0E0000Z) is an industrial thermal transfer print engine designed for integration into automated label printing and application machinery. Unlike a conventional desktop or point-of-sale printer, it is intended to operate as the printing component of a compatible industrial labelling system. This exact version features a left-hand configuration, 300 dpi resolution, maximum print width of 104 mm and printing speeds up to 356 mm/s. It provides both thermal transfer and direct thermal printing methods, together with an integrated colour touchscreen and multiple standard communication interfaces.
Compatibility — check before buying:
This product is an industrial print engine, not a complete standalone label applicator or ordinary POS receipt printer. It must be integrated into suitable labelling machinery. Confirm the required left-hand orientation, mechanical mounting, applicator connection, print resolution and media path before ordering. The ZE511 series is available in several configurations, including different resolutions and orientations. This specific MPN identifies the 300 dpi left-hand thermal transfer version with EU and UK power cords. The standard interfaces include USB, RS-232, Ethernet, Bluetooth 4.1, dual USB Host and an applicator interface. Optional Wi-Fi, parallel connectivity and RFID equipment should not be assumed to be installed.
Best For
✓ Automated print-and-apply labelling systems
✓ Industrial manufacturing and production lines
✓ Packaging and carton identification
✓ Warehouse and distribution centre labelling
✓ Automated barcode and traceability labels
✓ Compatible left-hand industrial applicators
Key Features
300 dpi printing at industrial speeds
The 300 dpi printhead produces detailed text, barcodes and graphics at up to 356 mm/s, equivalent to 14 inches per second. Its 104 mm maximum print width accommodates a wide range of industrial label formats. This speed specification belongs to the 300 dpi ZE511 configuration; the series' higher 457 mm/s figure applies to a different 203 dpi setup.
Purpose-built for automated labelling
The ZE511 is designed for installation into compatible automated labelling systems. Its all-metal construction supports demanding industrial operation, while the left-hand design determines how it fits into the machine and follows the required label media path. The print engine can produce labels, but an external applicator is needed where automatic label application is required.
4.3-inch colour touchscreen
The integrated 4.3-inch full-colour touchscreen provides access to device configuration, operational status and maintenance functions. Zebra's user interface can be rotated, and optional mounting accessories allow the display to be positioned separately when required by the installation.
Connectivity and easier servicing
USB 2.0, RS-232 serial, 10/100 Ethernet, Bluetooth 4.1, dual USB Host and the applicator interface provide connectivity for industrial equipment and host systems. Zebra's quick-release printhead design allows replacement without tools, while removable platen, pinch and peel rollers help simplify maintenance. Zebra Print DNA software provides additional management, security and configuration capabilities.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The most important buying detail for the ZE51143-L0E0000Z is its role as an integrated industrial print engine. It should not be confused with a standalone POS printer simply because some distributor databases describe it that way. The 300 dpi printhead offers greater detail than the 203 dpi variant, but its maximum rated speed is 356 mm/s rather than the higher speed available on certain 203 dpi configurations. The left-hand arrangement is equally important: the wrong orientation can prevent correct installation in an existing applicator. Before purchase, verify the machine's original engine part number, mounting specifications, label media, host connection and required options. For applications where only ordinary desktop label printing is needed, a conventional Zebra desktop or industrial label printer will normally be a more appropriate choice.
Buyer's Guide
Buy it if
Your automated label applicator requires a Zebra ZE511 left-hand 300 dpi print engine, and you need thermal transfer or direct thermal label printing with wired industrial connectivity.
Skip it if
You need a standalone desktop label printer, a right-hand print engine, a different resolution or built-in Wi-Fi or RFID functionality that has not been specified for this configuration.
Also consider
Other Zebra ZE511 resolution and orientation variants for alternative applicators, the wider ZE521 for larger labels, or a conventional Zebra industrial printer when machine integration is unnecessary.
Features - Zebra - ZE51143-L0E0000Z
Colour
black
Interface
- USB2.0,
- Ethernet,
- Bluetooth,
- WIFI
More Details
Product Code
CB33650
EAN Code
5704174950301
Manufacturer
Zebra
