Zebra CS6080-SR Corded 1D/2D USB Barcode Scanner Kit with STND-GS0060C-04 Stand, Black

Brand:
Zebra
Zebra CS6080 Black Corded 1D 2D Scanner Stand Kit
Zebra CS6080-SR Corded 1D/2D USB Barcode Scanner Kit with STND-GS0060C-04 Stand, Black
€458.14 inc. VAT
Buy
CS6080-SR40000KSVW
€384.99
€458.14 inc. VAT
Ships from EU stock: 6 item(s)
+ −
Add to wish list Ask a question
Product Code
V36E397
EAN Code
8596375236608
Manufacturer
Zebra

Quick Specs

Capture
1D/2D, QR, screen codes
Connection
Corded USB
Package
Scanner + presentation stand
Scanner / housing
56 g · IP65
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Compact USB scanning, handheld or in the included stand

1D / 2DCorded USBStand includedIP65

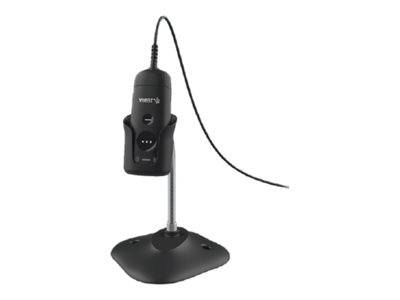

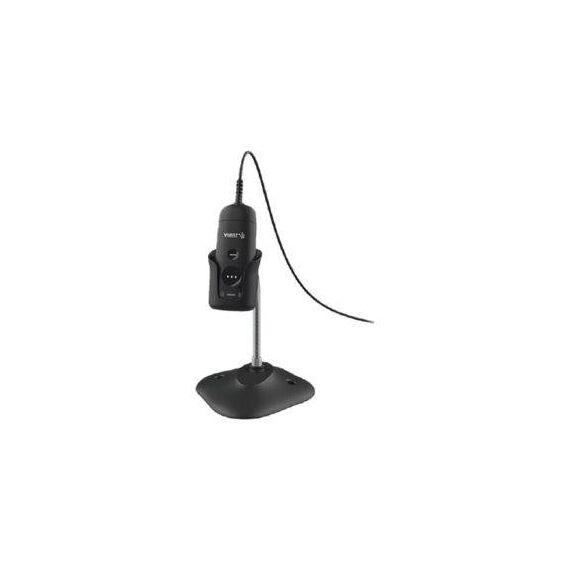

The black Zebra CS6080-SR40000KSVW is a corded barcode-scanning kit for a fixed checkout or service desk. It includes the CS6080-SRK0004VZWW scanner and STND-GS0060C-04 presentation stand. The imager reads supported 1D and 2D codes from paper and screens, sending data by USB to a compatible host and application. Use it by hand or place it in the stand for hands-free presentation scanning.

Before you order:
This exact kit is configured for corded USB operation. The Bluetooth and battery specifications of cordless CS60 variants do not describe this supplied configuration. A compatible USB host and receiving application are required; verify the host-side cable and any adapters for your installation.

What's in the Box

  • 1 × CS6080-SRK0004VZWW black corded scanner.
  • 1 × STND-GS0060C-04 presentation stand.

What It Means in Practice

  • Connect the corded scanner to the compatible USB host, configure the keyboard layout and data format, open the receiving field and scan. Your host application looks up products or records inventory.
  • At checkout, leave the scanner in its presentation stand and pass a product label in front of it. Pick it up to reach a label on a larger item.
  • Conversion to cordless use requires the appropriate battery and charging accessories; they are not established as included in this corded stand kit.

What Will Not Work

  • It is not a standalone POS terminal or inventory computer; a host/application is needed.
  • The supplied stand is not a cordless charging cradle. Do not purchase this configuration expecting battery-powered scanning away from the USB host.

Key Features


Paper and screen capture
PRZM imaging supports challenging printed labels and electronic barcodes, including QR and Data Matrix.

Handheld and presentation use
The included STND-GS0060C-04 stand supports a fixed scanning position while the compact scanner remains available for handheld tasks.

Feedback for busy counters
Vibration, LEDs, an adjustable beeper and Direct Decode Indicator give several ways to confirm a successful capture.

Configurable workflows
123Scan and DataCapture DNA tools support setup, formatting, preferred-symbol capture and management through compatible host arrangements.

Technical Specifications

EXACT KIT
Model / MPN CS6080-SR40000KSVW
EAN 8596375236608

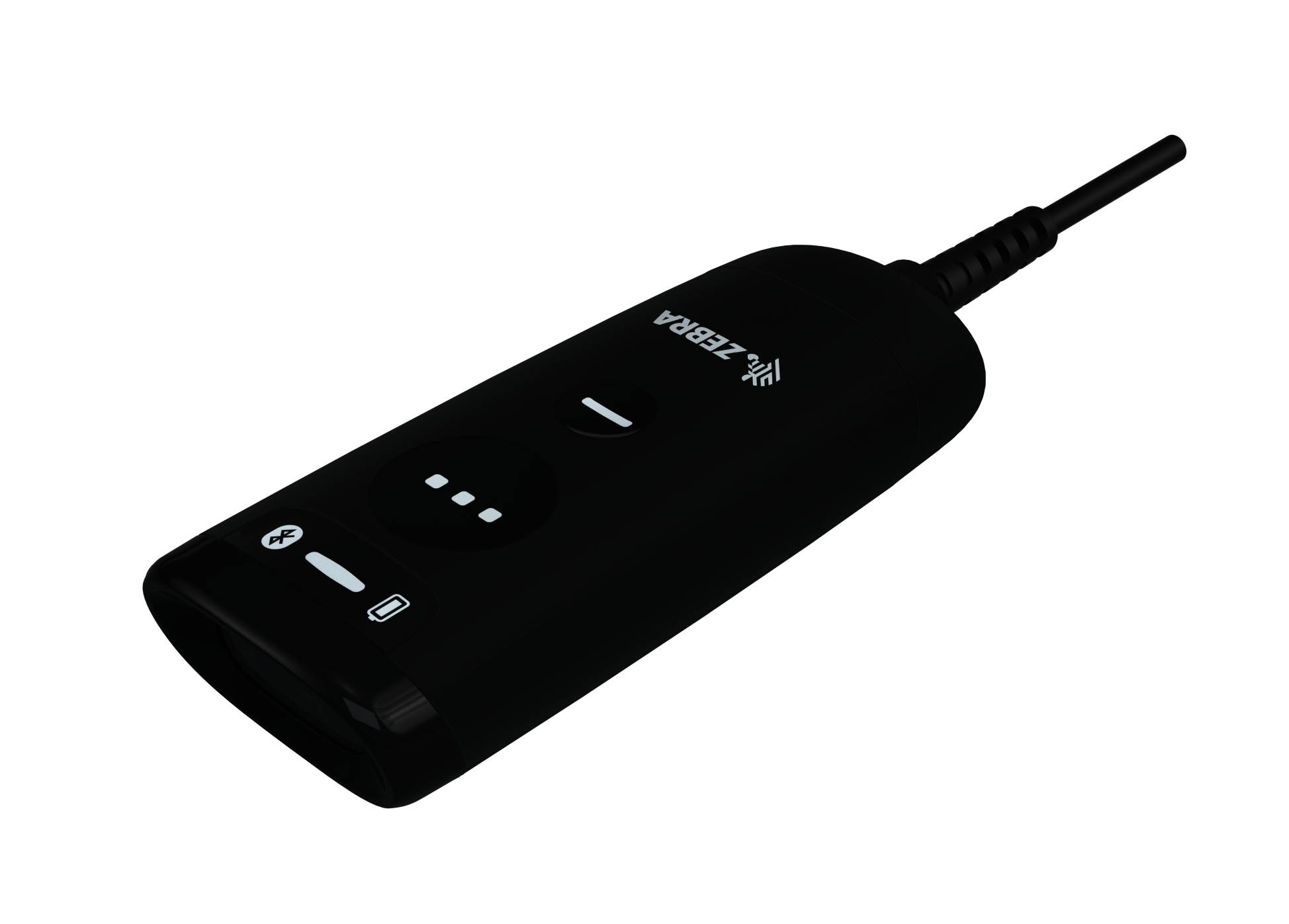

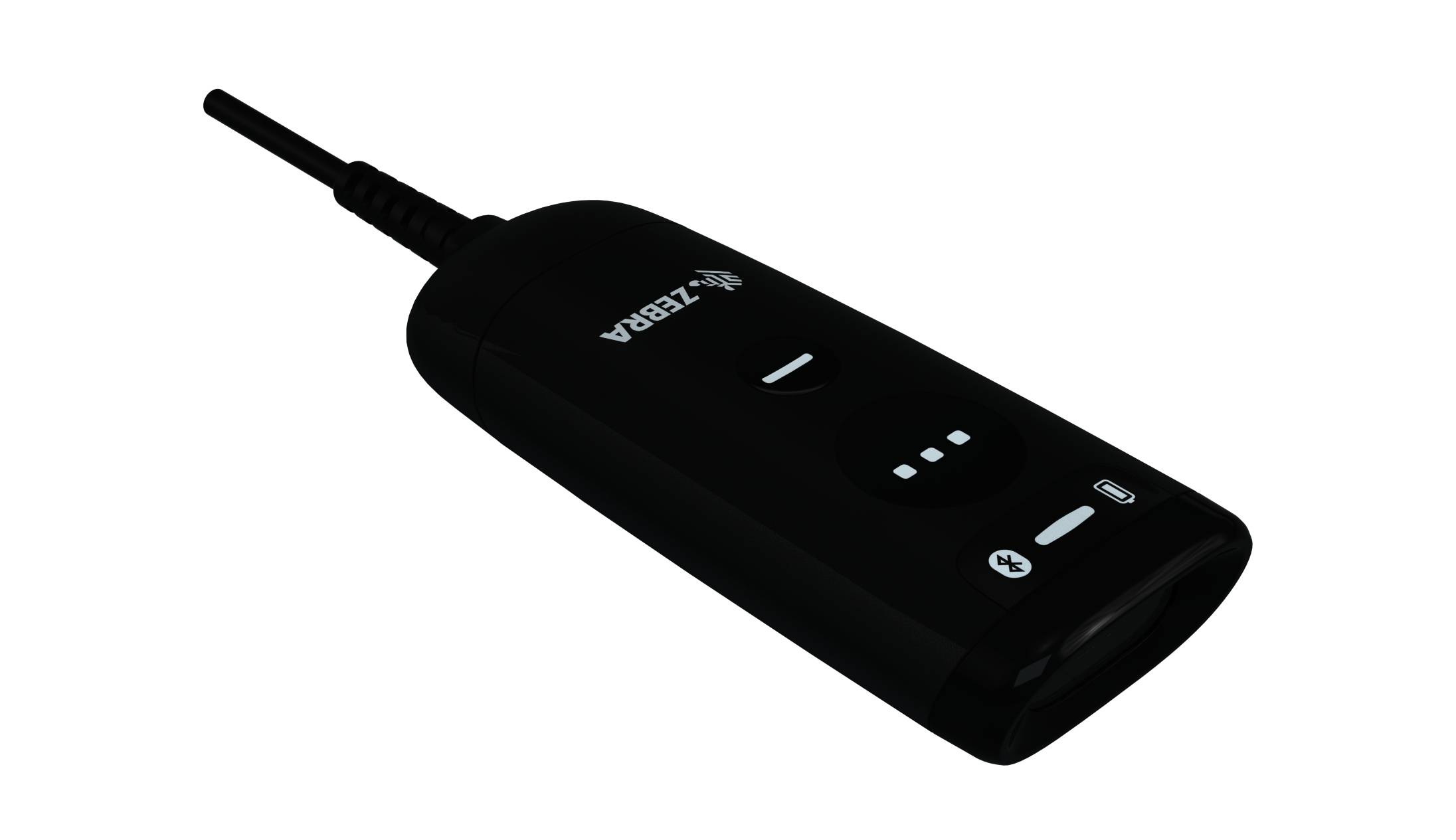

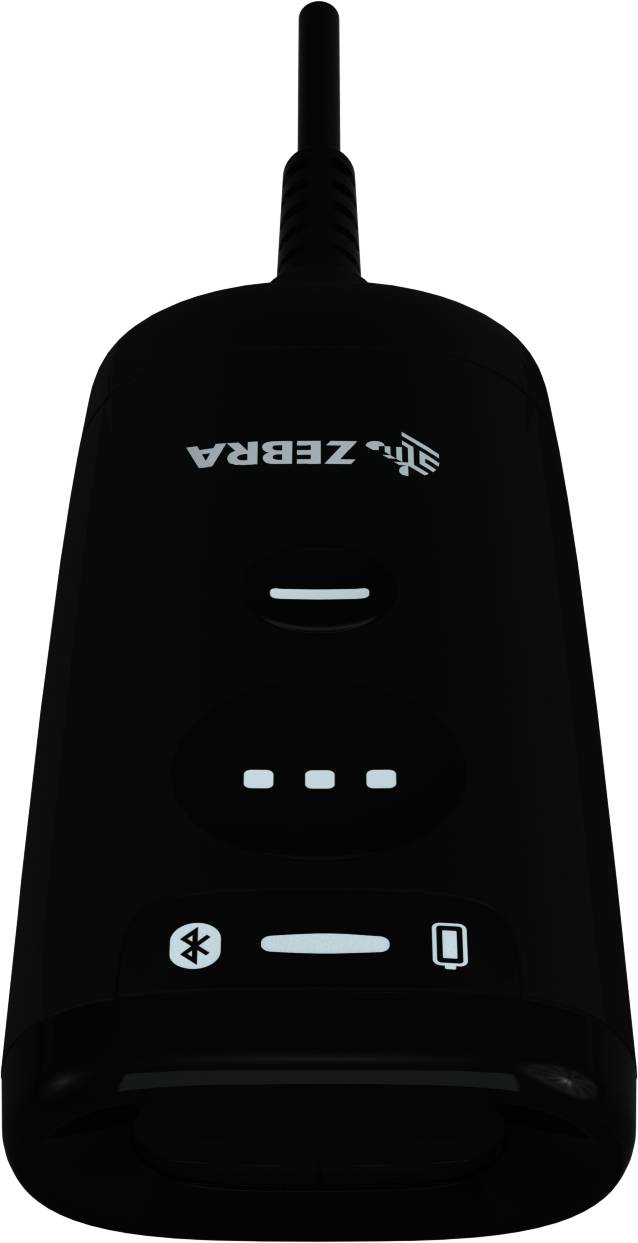

Included scanner CS6080-SRK0004VZWW, Midnight Black, corded
Included stand STND-GS0060C-04
Scanner weight 56 g, corded configuration
CONNECTION AND POWER
Host interface USB Certified
Input voltage 4.5–5.5 VDC, host or external supply
Scanner operating current 400 mA typical at 5.0 V
Scanner standby current 90 mA typical at 5.0 V
CAPTURE AND OPTICS
Scan engine PRZM Intelligent Imaging, 1D/2D Standard Range
Sensor 1280 × 960 pixels
Readable media Printed and electronic barcodes, including phone screens
Aimer Circular 525 nm green LED
Illumination 1 × warm white LED
Field of view 45° horizontal × 34° vertical, nominal
Minimum print contrast 20% reflective difference
Motion tolerance Up to 51 cm/s for 13 mil UPC in optimized mode
Skew / pitch / roll ±60° / ±60° / 0–360°
Minimum element resolution Code 39: 5 mil
1D formats Base 32, Codabar/NW7, Code 11, Code 39, Code 93, Code 128, GS1 DataBar, I 2 of 5, Korean 3 of 5, MSI Plessey, UPC/EAN
2D formats Aztec, Composite Codes, DataMatrix, Dotted DataMatrix, Dotcode, Han Xin, MaxiCode, PDF417, Micro PDF417, Postal Codes, QR Code, Micro QR, TLC-39, SecurPharm
OCR formats OCR-A, OCR-B, MICR, US Currency
TYPICAL READING DISTANCES
Code 39, 5 mil 6.1–24.1 cm
Code 39, 20 mil 6.4–66.0 cm
Code 128, 5 mil 7.1–22.9 cm
PDF417, 6.7 mil 6.1–20.3 cm
UPC, 13 mil (100%) 4.6–49.5 cm
Data Matrix, 10 mil 7.4–20.3 cm
QR, 20 mil 3.0–35.6 cm
Distance conditions Typical manufacturer figures; printing resolution, contrast and ambient light dependent
PHYSICAL AND ENVIRONMENT
Scanner dimensions (H × W × D) 23 × 46 × 109 mm
Sealing IP65
Drop resistance Multiple 1.8 m drops to concrete
Tumble resistance 250 tumbles in a 0.5 m tumbler; one tumble = 0.5 cycle
Operating temperature 0°C to 50°C
Storage temperature −40°C to 70°C
Humidity 5–95% RH, non-condensing
Ambient light immunity 0–108000 lux
ESD protection EN61000-4-2: ±15 kV air, ±8 kV direct and indirect
USER FEEDBACK AND MANAGEMENT
Feedback Direct Decode Indicator, good-decode LEDs, adjustable beeper, decode vibration, capacitive trigger with haptic/audible feedback
Controls Scan trigger and second programmable button
Keyboard support Over 90 international keyboards
Configuration / management 123Scan, Scanner Management Service, Remote Diagnostics, DataCapture DNA
Workflow tools MDF multi-code formatting, Preferred Symbol, Label Parse+; configuration required
Manufacturer warranty 3 years for CS6080 scanner, subject to Zebra terms; seller terms separate

Frequently Asked Questions

Is this the cordless version?
No. CS6080-SR40000KSVW is the black corded scanner and stand kit. Battery and Bluetooth runtime figures apply to other configurations.
Which stand is included?
The exact kit lists STND-GS0060C-04 with the CS6080-SRK0004VZWW scanner.
Can it read a QR code on a phone?
Yes. The imager supports QR and other supported 2D codes on screens as well as paper. The receiving application must support the intended workflow.
Singular Expert Insight
Choose this kit for a fixed USB workstation where a small scanner and presentation stand fit the counter. Verify the cable arrangement before installation and compare a cordless kit if staff must leave the desk. Explore other formats: Barcode scanners at Singular

Buyer’s Guide

✓

Buy it if

 you need a compact corded 1D/2D USB scanner with a presentation stand.
✕

Skip it if

 you need untethered battery operation or a standalone inventory terminal.
→

Also consider

 a verified CS6080 cordless kit with an appropriate charging cradle.
Confirm the USB host, receiving application and cable arrangement with Singular.
