Zebra DS3678-SR Cordless 1D/2D Bluetooth Barcode Scanner, FIPS Configuration, Vibration, 3100 mAh Battery, Industrial Green, Scanner Only

Brand:
Zebra
Zebra DS3678 SR Industrial Green Cordless 1D 2D Barcode Scanner Only
Zebra DS3678-SR Cordless 1D/2D Bluetooth Barcode Scanner, FIPS Configuration, Vibration, 3100 mAh Battery, Industrial Green, Scanner Only
€523.37 inc. VAT
Buy
DS3678-SR0F003VZWW
€439.81
€523.37 inc. VAT
Ships from EU stock: 83 item(s)
+ −
Add to wish list Ask a question
Product Code
V357701
EAN Code
0783555128312
Manufacturer
Zebra
Features
Bluetooth, Wireless

Quick Specs

Capture
1D / 2D Standard Range
Wireless
Bluetooth 4.0 LE · Class 1
Battery
PowerPrecision+ 3100 mAh
Package
Scanner + battery; cradle separate
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Cordless SR scanning for industrial work

1D / 2D SRBluetooth3100 mAhScanner only

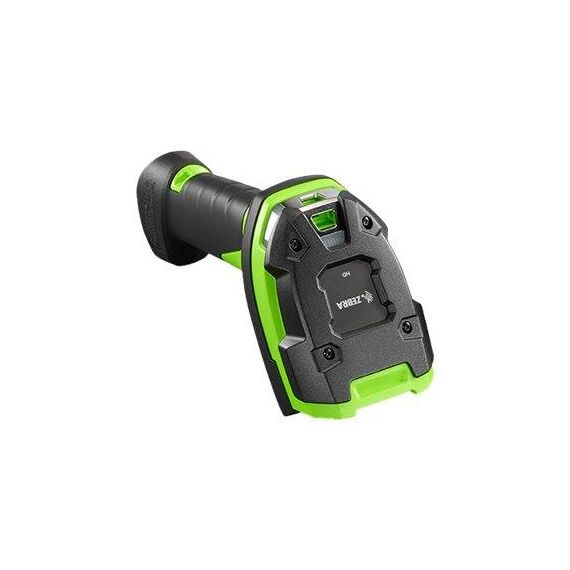

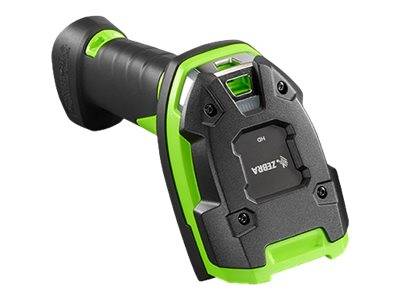

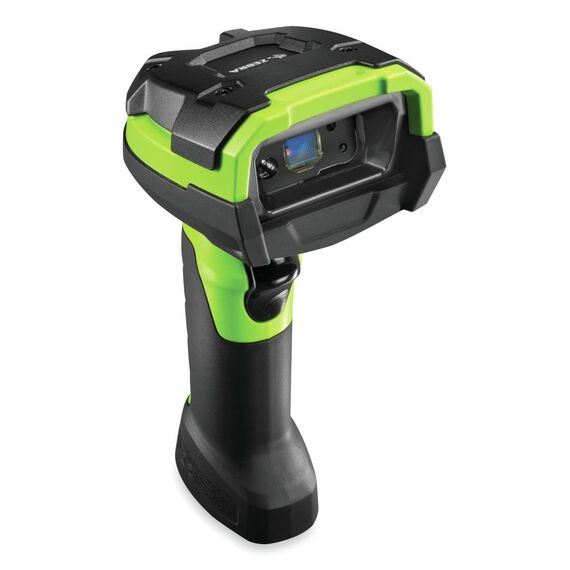

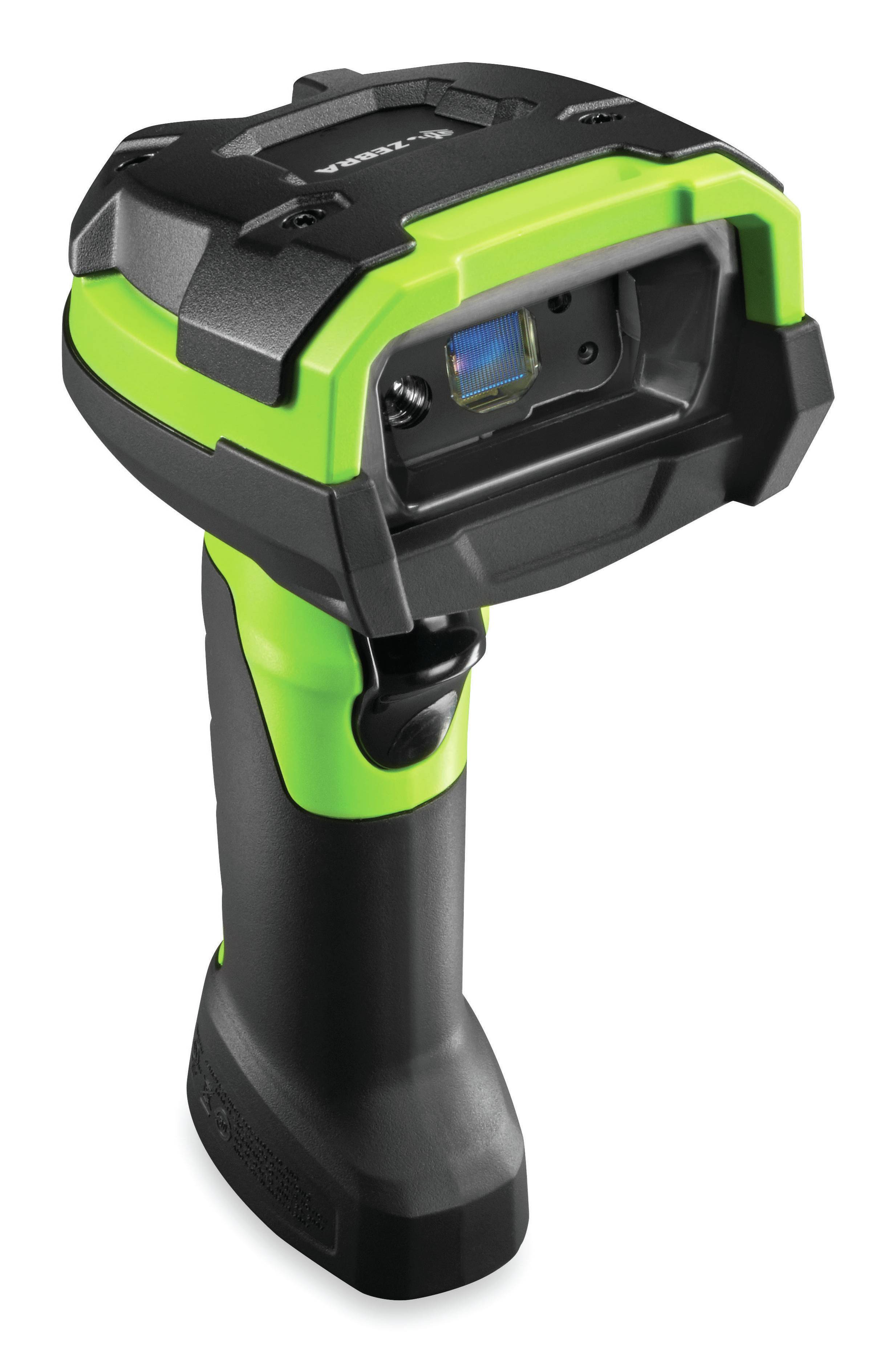

The industrial-green Zebra DS3678-SR0F003VZWW is a cordless Standard Range 1D/2D scanner with vibration feedback and a 3100 mAh PowerPrecision+ battery. This FIPS configuration is supplied as a scanner-only package with battery; the cradle, host cable, power supply and power cord are separate. Pair it with a compatible Bluetooth host or use the appropriate cradle connection to send labels, QR and Data Matrix codes to your warehouse or production application.

Before you order:
Budget for a compatible charging arrangement and, where required, cradle/cables before deployment. FIPS configuration does not establish a particular certification number or approval for your installation: confirm the required firmware, certificate and host policy. SR reading distances depend strongly on barcode size; this is not the ER long-range variant.

What's in the Box

  • 1 × DS3678-SR Standard Range cordless scanner, Industrial Green, FIPS configuration with vibration.
  • 1 × standard 3100 mAh PowerPrecision+ battery. Cradle, cables, power supply, host and application are separate.

What It Means in Practice

  • Charge the battery using an appropriate separately selected charging solution, pair the scanner and configure the host input profile.
  • During receiving, scan a carton label while moving around the workstation. The host application records the item; vibration, LEDs and sound confirm a successful decode.
  • For a wired host interface, choose the correct cradle and cable. Optional Network Connect integration requires its own suitable arrangement; Bluetooth is the scanner’s wireless link.

What Will Not Work

  • No supplied cradle or ready-to-use USB kit; no independent inventory application, Wi-Fi radio or built-in Ethernet port.
  • Do not apply ER distances, HP document/OCR features or corded DS3608 current/temperature figures to this SR cordless configuration.

Key Features


Standard Range 1D/2D capture
Reads supported linear and matrix codes with a 1280 × 800 area imager; the range table separates small and large symbols.

Industrial cordless operation
Bluetooth HID/SPP and a rechargeable 3100 mAh battery support movement around a compatible host installation.

Rugged housing
Current Zebra documentation specifies IP65/IP68 and temperature-qualified drop tests for the DS3678-SR.

Feedback you can configure
Vibration, LEDs, the beeper and direct decode indicator help confirm reads in different working conditions.

Technical Specifications

EXACT CONFIGURATION
MPN DS3678-SR0F003VZWW
EAN 0783555128312
Included items 1 × DS3678-SR scanner; 1 × standard PowerPrecision+ 3100 mAh battery
Separate accessories Cradle, host cable, power supply and power cord
Configuration Standard Range; FIPS configuration; vibration motor
Colour Industrial Green / Black
CAPTURE AND OPTICS
Sensor 1280 × 800 pixels
Illumination / aimer 660 nm LED / 610 nm LED
Field of view 42° horizontal × 28° vertical
Minimum contrast 15% reflective difference
Skew / pitch / roll ±60° / ±60° / 360°
Image capture Basic
1D formats Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I2of5, Korean 3of5, GS1 DataBar, Base 32
2D formats PDF417, MicroPDF417, Composite, TLC-39, Aztec, Data Matrix, MaxiCode, QR, Micro QR, Han Xin, Postal
Additional support Digimarc digital watermarks; IUID parsing
TYPICAL SR READING DISTANCES
Code 128, 5 mil 3.3–17 cm
Code 128, 20 mil 7.1–71.1 cm
Code 128, 40 mil 4.4–152.4 cm
Data Matrix, 7.5 mil 4.8–15.2 cm
Data Matrix, 10 mil 3.5–21.8 cm
Range conditions Typical; dependent on printing resolution, contrast and ambient light
WIRELESS AND BATTERY
Bluetooth Class 1, version 4.0 LE; HID / Serial Port profiles
Radio reference ranges Class 1: 100 m; Class 2: 10 m, direct line of sight in open air; host and environment affect actual range
Data rates (raw / effective) Classic: 3 / 2.1 Mbit/s; LE: 1 / 0.27 Mbit/s
Battery PowerPrecision+ 3100 mAh rechargeable Li-ion
Scans per full charge 100000+, published reference; actual use varies
Battery management Charge gauge; battery-health information
Host integration Compatible Bluetooth host via HID/SPP; USB, RS-232 or Keyboard Wedge through appropriate separate cradle/cable
Industrial Ethernet Separate Network Connect solution; no built-in Ethernet or Wi-Fi interface
PHYSICAL AND ENVIRONMENT
Dimensions (H × W × D) 18.5 × 7.6 × 14.2 cm
Weight 407 g
Sealing IP65 / IP68, current Zebra DS3678-SR specification
Drop resistance Multiple 3.0 m drops to concrete at room temperature; multiple 2.4 m drops at −20°C to 50°C
Tumble resistance 7500 tumbles from 1.0 m
Operating temperature −20°C to 50°C
Storage temperature −40°C to 70°C
Humidity 5–95%, non-condensing
ESD ±25 kV air; ±10 kV direct; ±10 kV indirect
Cold-room transitions Heated holder accessory recommended to reduce external window condensation
FEEDBACK AND MANAGEMENT
Good-read indicators Direct decode indicator, LEDs, beeper, vibration
Wireless features Wi-Fi Friendly mode; AutoConfig / Virtual Tether with appropriate cradle and configuration
Utilities 123Scan, Scanner SDK, Scanner Management Service, ScanSpeed Analytics
Scanner warranty 36 months, subject to Zebra terms
Battery warranty 12 months, subject to Zebra terms

Frequently Asked Questions

Does it include the charging cradle?
No. The exact package is scanner-only with its standard 3100 mAh battery. Select the cradle, cables and power arrangement separately.
Can it read every barcode from 1.5 metres?
No. The published 152.4 cm far distance is for a large 40 mil Code 128. Smaller codes and other symbologies have shorter ranges.
Does FIPS mean my installation is automatically approved?
No. Confirm the exact certificate, firmware and deployment requirements for your host/security policy before selecting this configuration.
Singular Expert Insight
For receiving and production, test the smallest real barcode at the actual distance first. Confirm the complete charging/host arrangement and security requirements rather than choosing on the maximum range figure alone. Compare other readers: Barcode scanners at Singular

Buyer’s Guide

✓

Buy it if

 you need rugged cordless 1D/2D SR capture, vibration and this specified FIPS configuration.
✕

Skip it if

 you need a complete USB/cradle kit, long-range ER capture or an independent stock-management device.
→

Also consider

 a verified DS3678-SR kit or different optical variant suited to the actual workflow.
Confirm battery charging, host profile, cradle/cables and deployment requirements with Singular.
