Zebra LI3678-SR Cordless 1D Bluetooth USB Scanner Kit with Cradle, USB Cable and Power Supply, Industrial Green

Brand:
Zebra
Zebra LI3678 SR Industrial Green Cordless 1D Scanner USB Kit with Charging Communication Cradle
Zebra LI3678-SR Cordless 1D Bluetooth USB Scanner Kit with Cradle, USB Cable and Power Supply, Industrial Green
€584.53 inc. VAT
Buy
LI3678-SR3U42A0S1W
€491.20
€584.53 inc. VAT
Ships from EU stock: 6 item(s)
+ −
Add to wish list Ask a question
Product Code
03:280376
EAN Code
4016139164502
Manufacturer
Zebra
Features
Bluetooth, Wireless

Quick Specs

Capture
1D Standard Range; no QR
Host connection
Bluetooth scanner → USB cradle
Included equipment
Cradle, USB cable, power supply
AC cord
Separate
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Cordless 1D scanning with its USB cradle kit

1D Standard RangeBluetooth → USBCradle + power supplyAC cord separate

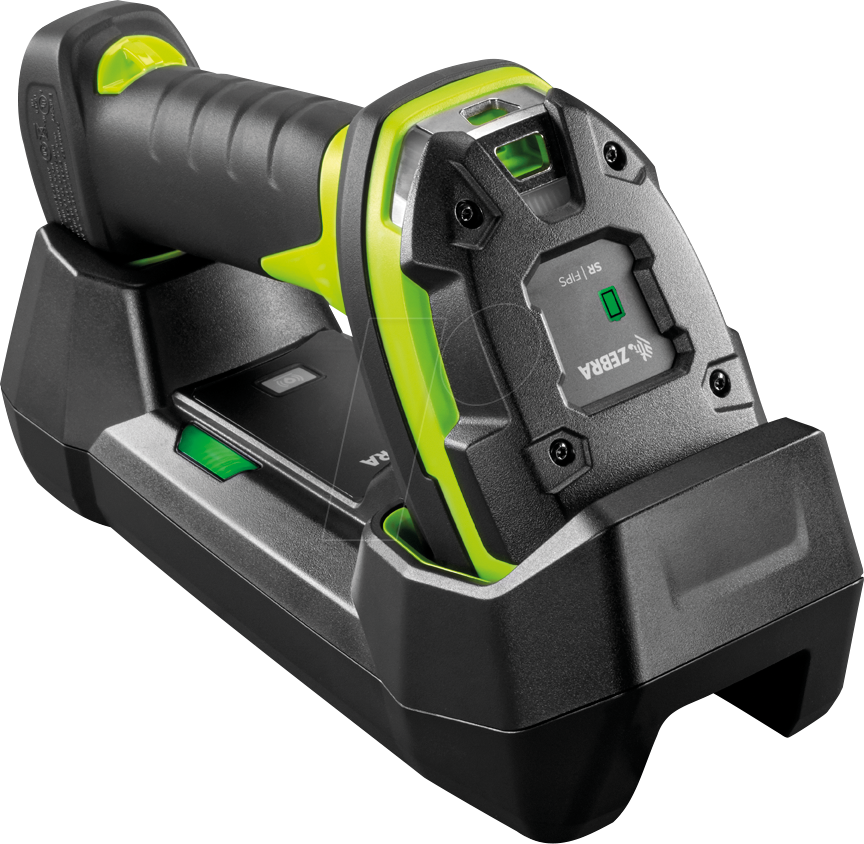

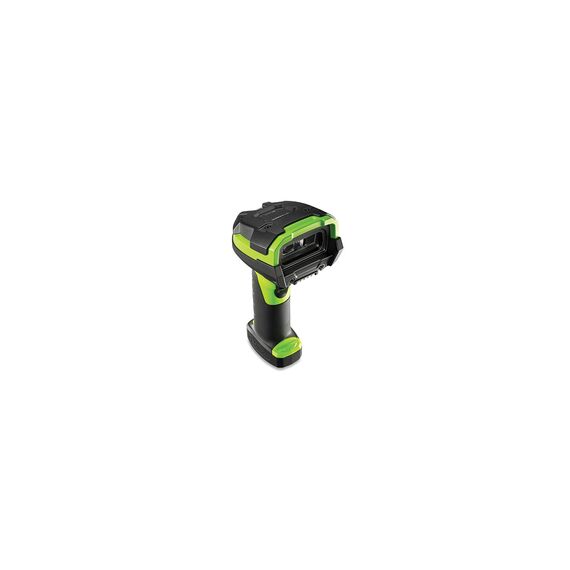

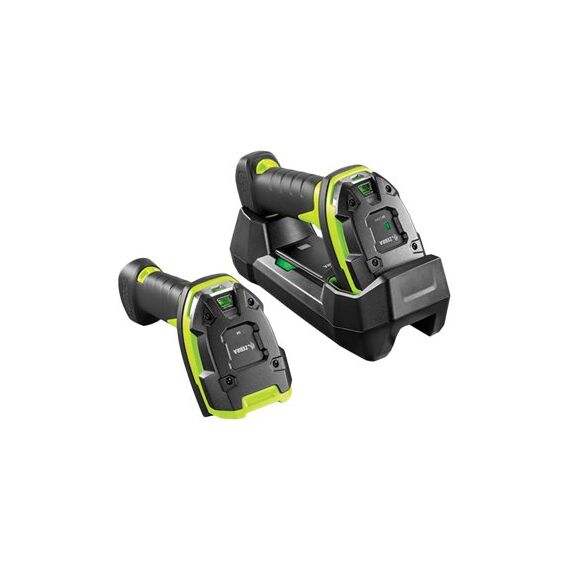

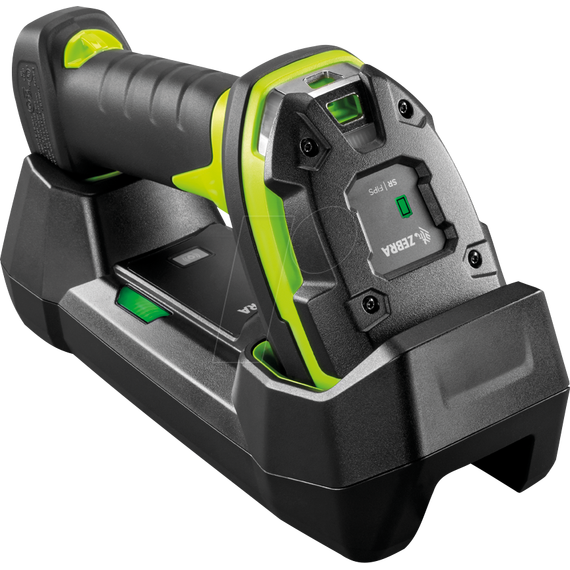

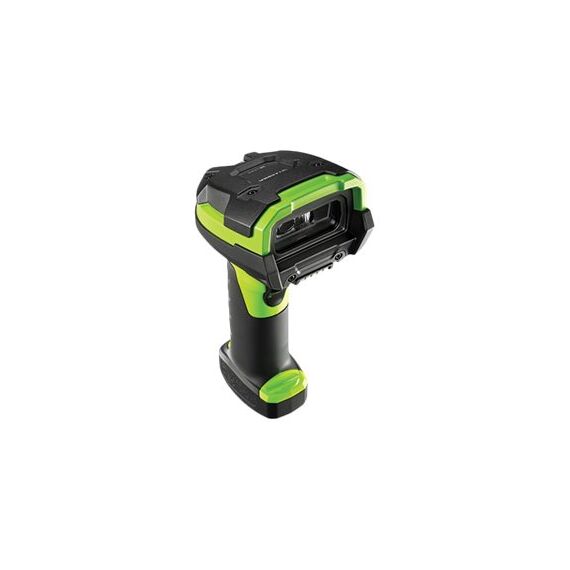

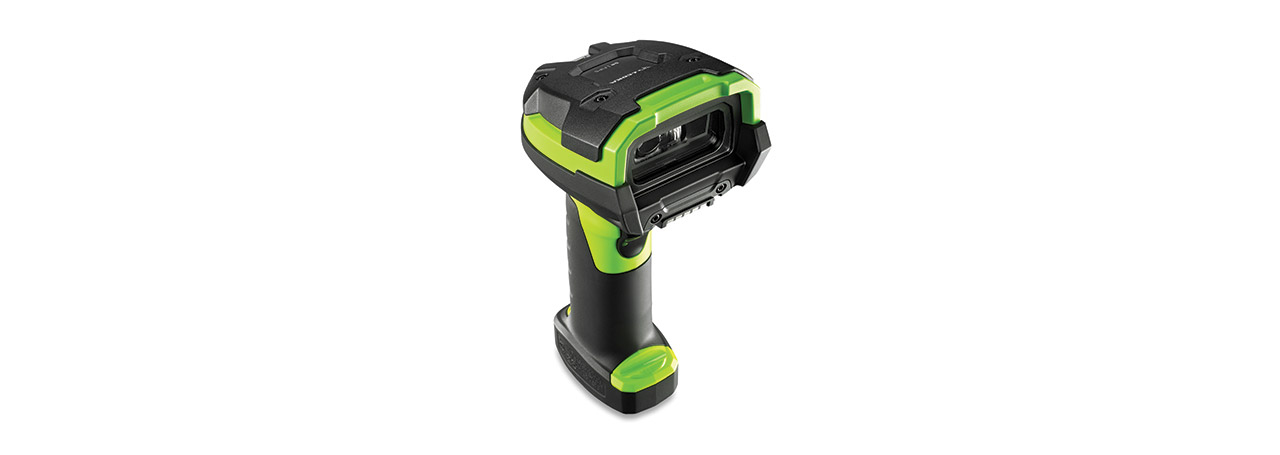

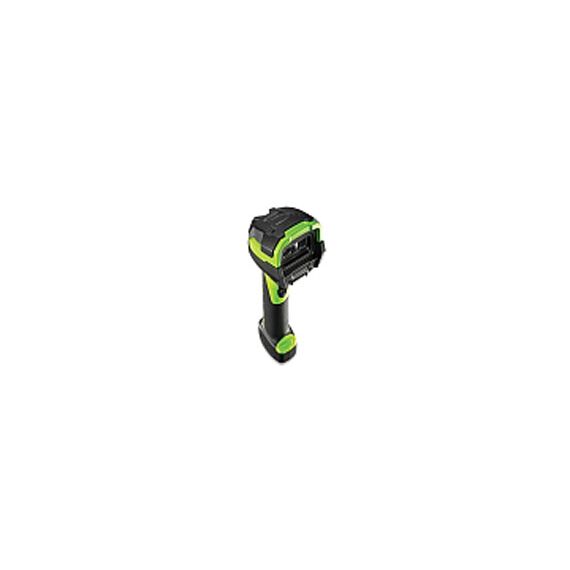

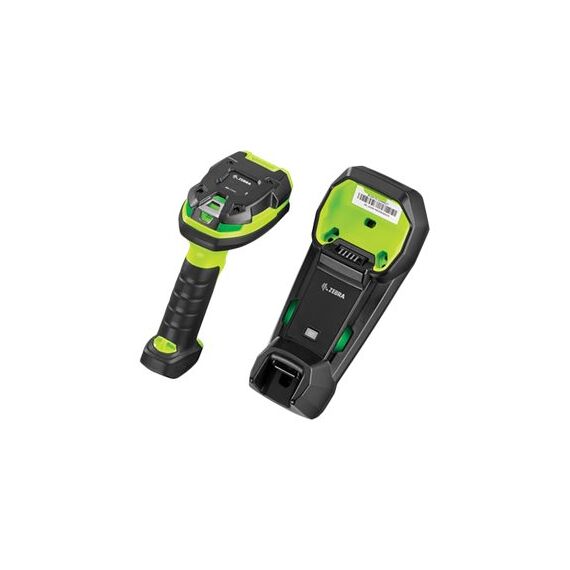

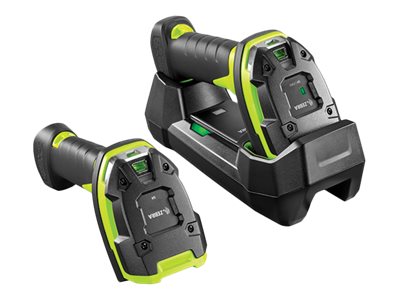

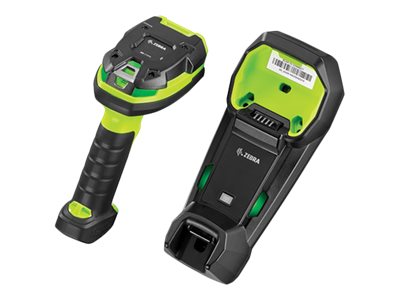

The industrial-green Zebra LI3678-SR3U42A0S1W combines a cordless Standard Range 1D scanner with a charging/communication cradle, USB cable and power supply. The scanner reads supported linear labels and screen codes and sends the data by Bluetooth to its cradle; the cradle connects to your compatible computer by USB. A suitable AC mains cord is a separate selection. Your receiving application handles inventory or production records.

Before you order:
This kit reads 1D codes only, not QR, Data Matrix or PDF417. The AC cord is not included; select the correct cord for the power supply and installation. FIPS configuration does not establish a particular certificate or firmware approval for your deployment.

What's in the Box

  • 1 × LI3678-SR scanner with standard 3100 mAh PowerPrecision+ battery.
  • Charging/communication cradle, USB cable, power supply and quick guide. AC mains cord, host computer and application are separate.

What It Means in Practice

  • Connect the cradle to the compatible host with the USB cable. Complete the power arrangement using the supplied power supply and separately selected AC cord, then pair and configure the scanner.
  • At receiving, scan a linear carton label while moving around the workstation. Data reaches the host through the cradle, and the application looks up or records the item.
  • Return the scanner to the cradle to recharge. Configure AutoConfig or Virtual Tether when useful for the installation, and test real labels and Bluetooth coverage.

What Will Not Work

  • No QR/2D decoding, independent inventory application, built-in Wi-Fi or Ethernet port.
  • A USB cable links the cradle to the host; it does not make the handheld scanner corded. RS-232 and Network Connect arrangements require appropriate separate accessories.

Key Features


Linear Standard Range capture
A 1500-pixel linear imager reads supported 1D codes on labels and screens within the symbol-specific ranges.

Cordless host connection
Bluetooth HID/SPP and a replaceable 3100 mAh battery support movement around the workstation.

Industrial construction
Current Zebra specifications state IP65/IP68, 3 m room-temperature drops and 2.4 m drops across the cordless operating temperature range.

Multiple feedback modes
Direct decode indication, LEDs, sound and vibration can be selected for the working environment.

Technical Specifications

EXACT CONFIGURATION
MPN LI3678-SR3U42A0S1W
EAN 4016139164502
Included items 1 × LI3678-SR scanner with battery; charging/communication cradle; USB cable; power supply
Separate equipment AC mains cord; host computer and application
Configuration Standard Range; FIPS configuration; vibration
Colour Industrial Green / Black
CAPTURE AND OPTICS
Engine 1500-pixel linear imager, 1D only
Field of view 35°
Illumination 2 × 617 nm amber LEDs
Aimer 655 nm laser
Minimum contrast 15% reflective difference
Skew / pitch / roll ±65° / ±65° / ±45°
1D formats Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I2of5, Korean 3of5, GS1 DataBar, Base 32
Unsupported codes QR, Data Matrix, PDF417 and other 2D codes
TYPICAL SR READING DISTANCES
Code 39, 4 mil 10.2–25.4 cm
Code 39, 7.5 mil 3.8–48.3 cm
UPC, 13 mil (100%) 2.5–78.7 cm
Code 39, 20 mil Up to 106.7 cm
Range conditions Typical; depends on print resolution, contrast and ambient light
WIRELESS AND BATTERY
Bluetooth Class 1, version 4.0 LE; HID / SPP
Radio range reference Class 1: 100 m; Class 2: 10 m, direct line of sight in open air; host and environment affect range
Data rates (raw / effective) Classic: 3 / 2.1 Mbit/s; LE: 1 / 0.27 Mbit/s
Battery PowerPrecision+ 3100 mAh rechargeable Li-ion
Scans per full charge 140000+, current manufacturer reference; actual results depend on use
Battery information Charge gauge and battery-health information
Supplied host path Bluetooth scanner to charging/communication cradle; USB cable to compatible host
Other host interfaces RS-232 / Keyboard Wedge need separately selected cable; Network Connect needs appropriate optional equipment
Cradle supply ranges Host power: 4.5–5.5 VDC; external power: 11.4–12.6 VDC
Industrial Ethernet Requires separate appropriate Network Connect arrangement; no built-in Ethernet or Wi-Fi
PHYSICAL AND ENVIRONMENT
Dimensions (H × W × D) 18.5 × 7.7 × 14.2 cm
Cordless weight 386.5 g
Sealing IP65 / IP68, current Zebra specification
Drop resistance Multiple 3.0 m drops at room temperature; multiple 2.4 m drops at −20°C to 50°C, onto concrete
Tumble resistance 7500 tumbles from 1.0 m
Operating temperature −20°C to 50°C
Storage temperature −40°C to 70°C
Humidity 5–95%, non-condensing
ESD ±25 kV air; ±10 kV direct; ±10 kV indirect
Ambient light 0–108000 lux
Cold-room transitions Heated holder accessory recommended to reduce external window condensation
FEEDBACK AND MANAGEMENT
Indicators Direct decode indicator, LEDs, beeper, vibration; Bluetooth status LED
Cordless features Wi-Fi Friendly Mode; AutoConfig / Virtual Tether require appropriate cradle and configuration
Utilities 123Scan, Scanner SDK, Scanner Management Service, ScanSpeed Analytics
Factory warranty 3 years for scanner, subject to Zebra terms

Frequently Asked Questions

What does this USB kit include?
One LI3678-SR scanner with standard battery, a charging/communication cradle, USB cable and power supply. The AC mains cord is separate.
Does it read QR codes?
No. It is a 1D linear imager. Choose an appropriate 2D scanner for QR, Data Matrix or PDF417.
Is the handheld unit connected by USB cable?
The handheld unit communicates wirelessly by Bluetooth. The USB cable connects the cradle to the host.
Singular Expert Insight
Choose the complete USB cradle kit when you need the scanner and its fixed host connection together. Check the separately required AC cord and real 1D label distances before ordering. A scanner-only SKU suits an existing compatible installation. Compare readers: Barcode scanners at Singular

Buyer’s Guide

✓

Buy it if

 you need rugged cordless 1D SR scanning with USB cradle, cable and power supply.
✕

Skip it if

 you need QR/2D, ER distances or only a replacement scanner.
→

Also consider

 the scanner-only LI3678-SR or an appropriate verified 2D kit for different needs.
Confirm barcodes, host profile, charging accessories and security requirements with Singular.
