Zebra MC3300x Gun — rugged Android keypad terminal with SE965 1D laser and 29-key keypad
Gun grip1D laser SE96529-key numeric7,000 mAh · IP64

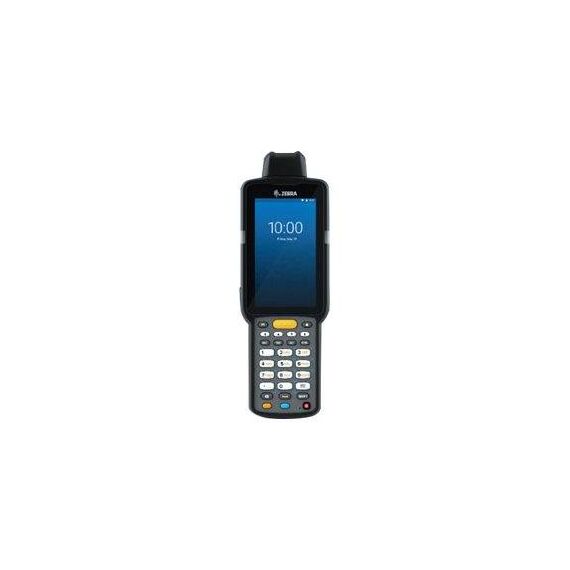

The Zebra MC3300x Gun (MC330L-GL2EG4RW) is a rugged Android mobile computer with a physical 29-key numeric keypad, a SE965 1D laser scanner, a 4-inch touchscreen and 4GB RAM with 32GB storage, built for warehouses, goods-in, picking, stock-taking and production lines where staff scan hundreds of items per shift. The pistol-grip body with a trigger keeps the scanner pointed forward and takes the strain off the wrist during repetitive scanning.
It runs Android 10 with Google Mobile Services on a Qualcomm Snapdragon 660 platform, connects over 802.11ac Wi-Fi, Bluetooth 5.0 and NFC, and is fitted with the extended 7,000 mAh PowerPrecision+ battery, which can be swapped hot without closing apps. The housing is sealed to IP64 and survives repeated 1.8 m drops to concrete. This configuration has a 1D laser engine: it reads classic linear barcodes quickly and from a distance, but not 2D codes.
Before you order: The SE965 is a 1D laser scanner — it cannot read QR codes, DataMatrix or other 2D codes, nor barcodes shown on phone screens. If you scan GS1 DataMatrix, QR or e-tickets, order an SE4770 (2D) model instead. No charger or cradle is included.
What's in the Box
- Zebra MC3300x Gun mobile computer (MC330L-GL2EG4RW)
- PowerPrecision+ 7,000 mAh extended battery (part of this configuration)
What It Means in Practice
- Hot-swap battery: change the 7,000 mAh pack during a shift while Wi-Fi and Bluetooth sessions are kept for a short time, so the picking app does not log out.
- The 29-key numeric keypad lets staff type quantities and location codes with gloves, without using the on-screen keyboard.
- The 1D laser reads linear barcodes up to around 4.9 m away — useful for labels on high racking.
- Android with GMS means modern warehouse, WMS and ERP apps install as on any Android device, while Zebra’s Mobility DNA tools manage and lock down the fleet.
What Will Not Work
- No charger, USB cable or cradle in the box — order an MC33 cradle (1-slot or 5-slot) or the USB charge cable separately.
- Batteries from the older MC32N0 do not fit the device (they can only be charged in the spare-battery slot of MC33 cradles).
- No 2D scanning: QR, DataMatrix, PDF417 and phone-screen codes will not scan with the SE965.
- Straight-shooter holsters, boots and hand straps do not fit the gun version — and the gun ships without a hand strap.
Key Features
Physical keypad
29-key numeric keypad with backlight, usable with gloves.
Scan engine
SE965 1D laser for fast linear scanning at distance.
All-shift battery
7,000 mAh PowerPrecision+ battery, hot-swappable, charges in under 5 hours.
Built for the floor
IP64, repeated 1.8 m drops, 3,000 tumbles at 1 m, −20 °C to 50 °C.
Technical Specifications
| Identification |
| Part Number |
MC330L-GL2EG4RW |
| EAN / GTIN |
8596375237698 |
| MPN |
MC330L-GL2EG4RW |
| Brand |
Zebra Technologies |
| Model |
MC3300x gun |
| Platform |
| Processor |
Qualcomm Snapdragon 660, octa-core 2.2 GHz |
| Memory |
4GB RAM / 32GB flash |
| Expansion |
microSD up to 512GB |
| Operating system |
Android 10 with Google Mobile Services (GMS) |
| Display, Keypad & Scanning |
| Display |
4.0" WVGA 800 x 480 colour, Gorilla Glass, finger/glove/stylus |
| Keypad |
29-key numeric |
| Scan engine |
SE965 1D laser scanner (range up to approx. 4.9 m) |
| Form factor |
Gun (pistol grip) |
| Camera |
None |
| Connectivity |
| WLAN |
802.11a/b/g/n/ac, 2x2 MU-MIMO, WPA3 |
| Bluetooth |
5.0 Class 2, BLE |
| NFC |
ISO 14443 A/B, FeliCa, ISO 15693, HCE |
| Port |
USB 2.0 OTG (host and client) |
| Physical |
| Dimensions |
202.6 x 74.7 x 163.9 mm |
| Weight |
522 g |
| Battery |
PowerPrecision+ Li-ion 7,000 mAh, hot-swap |
| Sealing |
IP64 |
| Drop |
Multiple 1.8 m drops to concrete |
| Tumble |
3,000 x 1.0 m |
| Operating temperature |
−20 °C to 50 °C |
| Warranty |
| Warranty |
1-Year Warranty (Singular) |
| Manufacturer Term |
Zebra: 1 year from date of shipment against defects in workmanship and materials — claims handled through Singular |
Frequently Asked Questions
Will my MC3300 or MC3200 cradles work?
MC3300 batteries are backward compatible with the MC3300x. MC32 cradles only charge the device through an adapter cup (charge only, no USB/Ethernet). MC32N0 batteries do not fit the terminal itself.
Which battery should I keep as a spare?
The gun version takes only the 7,000 mAh and 5,200 mAh PowerPrecision+ packs.
Can it be upgraded beyond Android 10?
Zebra’s spec sheet lists an Android upgrade path for the MC3300x (up to Android 14). Updates are delivered by Zebra; tell us your app requirements and we will check the right version.
Singular Expert Insight · Buyer's Guide
The MC3300x is the workhorse keypad terminal for warehouses that still type as much as they scan. Choose the scan engine first: the 1D laser is the right call only if every label you handle is a linear barcode. For smooth roaming between aisles, the Wi-Fi network matters as much as the terminal — we also supply
business Wi-Fi access points.
✓ Buy it if your staff scan and key in data all day, wear gloves, and need a terminal that survives drops and a full shift on one battery.
✕ Skip it if you have to read QR, DataMatrix or phone-screen codes — choose the SE4770 2D version.
→ Also consider the MC3300x gun with SE4770 2D imager, and MC33 5-slot charging cradles for fleets.
Send us your barcode types and the cradles or batteries you already own — we will confirm compatibility before you order.
